Shimano XT M8120 Disc Brake Set: Power & Control

For cyclists demanding the utmost in stopping power and control, the Shimano Deore XT M8120 disc brake set stands out as a premium choice. Building upon Shimano's renowned expertise in hydraulic braking systems, the M8120 series offers a significant upgrade, particularly for those looking to enhance their confidence on challenging descents and in varied riding conditions. This comprehensive guide delves into what makes the XT M8120 a favoured option among discerning riders, covering its design, performance benefits, and key features.

Unleashing Stopping Power: The 4-Piston Advantage

At the heart of the XT M8120's superior performance lies its innovative 4-piston caliper design. Unlike traditional 2-piston systems, the M8120 employs four opposed pistons, two of larger diameter and two of smaller diameter. This configuration is not merely about brute force; it's a carefully engineered solution for optimal braking. The differing piston sizes work in harmony to minimise pad wear, ensuring a longer lifespan for your brake pads, while simultaneously maximising control. This translates to a more consistent and predictable braking feel, especially crucial when navigating technical terrain or during high-speed descents where precise modulation is key. The increased surface area and even pressure distribution provided by the four pistons deliver truly phenomenal stopping power, instilling a greater sense of confidence and security on the bike.

Engineering for Performance and Durability

Shimano's commitment to quality engineering is evident throughout the M8120 brake set. The caliper itself features a two-piece construction, a design choice that contributes significantly to both its lightweight nature and exceptional stiffness. This rigidity is vital; it ensures that every ounce of braking force generated by the lever is effectively transferred to the rotor, resulting in quick and precise stops. The calipers are also designed with heat management in mind. When combined with Shimano's Ice Tech rotors and finned brake pads, the M8120 system excels at dissipating heat, a critical factor in preventing brake fade during prolonged downhill runs or demanding use. This advanced heat management system allows riders to push their limits with the assurance that their brakes will perform consistently, even under the most strenuous conditions.

Key Features of the Shimano XT M8120 Disc Brake Set

The Deore XT M8120 brake set is packed with features designed to enhance the riding experience:

• Consistent Braking Performance: Reliable stopping power in all weather and trail conditions.
• 4-Piston Caliper: Provides increased stopping power and enhanced downhill control.
• Optimised Pad Wear: Utilises two different piston diameters to minimise uneven pad wear.
• Lightweight and Stiff Caliper: The two-piece forged caliper design offers rigidity and reduces weight.
• Servo-Wave Mechanism: A short-stroke Servo-Wave action ensures rapid pad engagement and increased braking power.
• Ice Tech Compatibility: Designed to work seamlessly with Ice Tech rotors and finned pads for superior heat management.
• Forged Alloy Lever: Offers optimal strength, reliability, and a comfortable feel.
• Mineral Oil Fluid: Utilises non-corrosive and less hazardous mineral oil for a safer and more environmentally friendly system.
• Shim-less Mounting System: Facilitates quick and easy installation and adjustment.
• Adjustable Lever Reach and Free Stroke: Allows riders to customise the lever feel to their preference for maximum control.
• I-Spec-EV Compatibility: Enables direct mounting of compatible Shimano shifters to the brake lever for a cleaner cockpit and improved ergonomics.

What's in the Box?

Typically, a Shimano XT M8120 disc brake set will be supplied fully boxed and ready for installation. While specific package contents can vary slightly by retailer and region, you can generally expect:

• Fully bled front and rear brake levers and calipers.
• Cuttable hydraulic hoses (note: barbs and inserts are usually included for custom hose length adjustment, though it's always wise to confirm this, as some users have noted their absence).
• Hinged clamp for easy lever installation onto the handlebars.

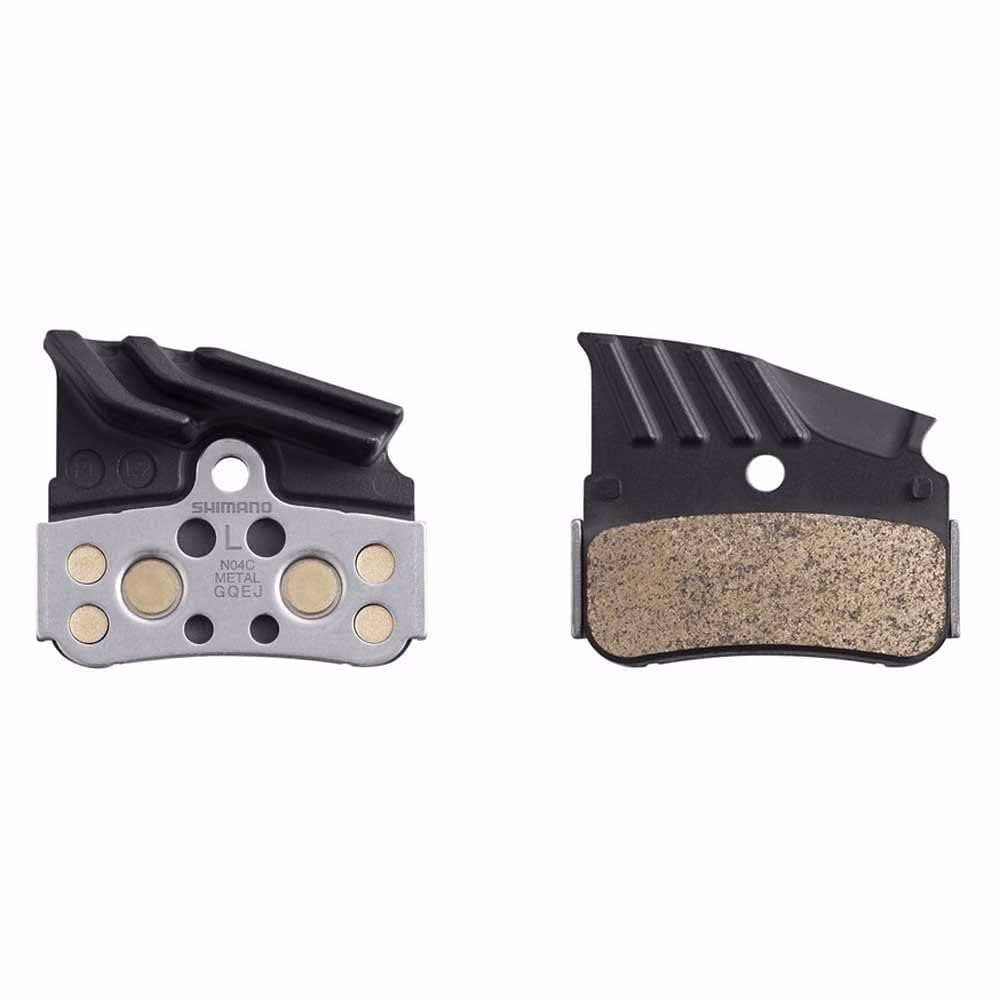

• Sintered brake pads (pre-installed or included).
• Spare olives and inserts for hose length adjustment.

It's important to note that rotors are usually sold separately, allowing you to choose the size and type that best suits your bike and riding style. The brakes come pre-bled, but you may need to adjust the hose length, which is a straightforward process involving fitting the hose into the lever after removing a seal, and then securing it with the supplied barb and olive.

Comparing the XT M8120 to Other Systems

Many riders upgrade to the XT M8120 from entry-level brakes like the Shimano MT200. The difference is often described as night and day. While the MT200 offers adequate stopping power for general trail riding, the M8120 provides a significant leap in both power and modulation. The 4-piston design delivers a more robust feel and allows for finer control over braking intensity, particularly beneficial for heavier riders or those tackling steeper gradients. The improved lever ergonomics and adjustability also contribute to a more refined and personalised braking experience. Compared to other high-end 4-piston offerings, the XT M8120 often strikes an excellent balance between performance, durability, and value for money, making it a highly recommended option.

Installation and Maintenance

Shimano brakes are renowned for being relatively easy to install and maintain. The Shim-less mounting system simplifies attaching the levers to your handlebars, and the hinged clamp means you don't have to remove your grips or shifters. As mentioned, the hoses are cuttable, allowing for a clean internal or external cable routing setup. Bleeding the brakes, a process to remove air from the hydraulic system, is also straightforward with Shimano's mineral oil system, often requiring just a bleed kit and fresh mineral oil. Regular maintenance, such as cleaning the calipers and levers, and occasional pad and rotor checks, will ensure your XT M8120 brakes continue to perform at their peak for a long time.

Frequently Asked Questions

Q1: Are the Shimano XT M8120 brakes suitable for downhill riding?

Absolutely. The 4-piston caliper, enhanced stopping power, and superior heat management make the XT M8120 an excellent choice for downhill and aggressive trail riding. They provide the confidence and control needed for steep descents.

Q2: Do I need special rotors for the XT M8120 brakes?

While not strictly mandatory, Shimano strongly recommends using their Ice Tech rotors for optimal performance. These rotors, often featuring an aluminium core or fins, work in conjunction with the brake pads to significantly improve heat dissipation, reducing the risk of brake fade.

Q3: Can I use the XT M8120 brakes with my existing shifters?

The XT M8120 levers feature I-Spec-EV compatibility. This means you can mount compatible Shimano shifters directly onto the brake lever clamp for a cleaner and more integrated cockpit. If your current shifters are not I-Spec-EV compatible, they will typically mount to a separate clamp on the handlebar.

Q4: Is it difficult to cut the brake hoses and install the barbs?

It's a manageable task for most home mechanics. You'll need a proper brake hose cutter for a clean cut, and then carefully insert the barb and olive into the hose end before threading it into the lever. Taking your time and ensuring a clean seal is crucial for preventing leaks and ensuring proper function. Watching a tutorial video can be very helpful.

Q5: What is the main advantage of the 4-piston caliper over a 2-piston caliper?

The primary advantage is increased stopping power and better heat management due to the larger piston surface area and more even pressure distribution. This also leads to improved modulation, allowing for finer control over braking force, and can help minimise uneven pad wear.

Conclusion

The Shimano Deore XT M8120 disc brake set is a testament to Shimano's dedication to producing high-performance, reliable cycling components. Its 4-piston design, robust construction, and rider-centric features deliver an exceptional braking experience, offering unparalleled stopping power and control. Whether you're upgrading from a more basic system or seeking to optimise your existing setup for demanding trails, the XT M8120 represents excellent value and a worthwhile investment for any cyclist who prioritises safety and performance.
