XR650L Kit & Stock Tank: A Fitment Guide

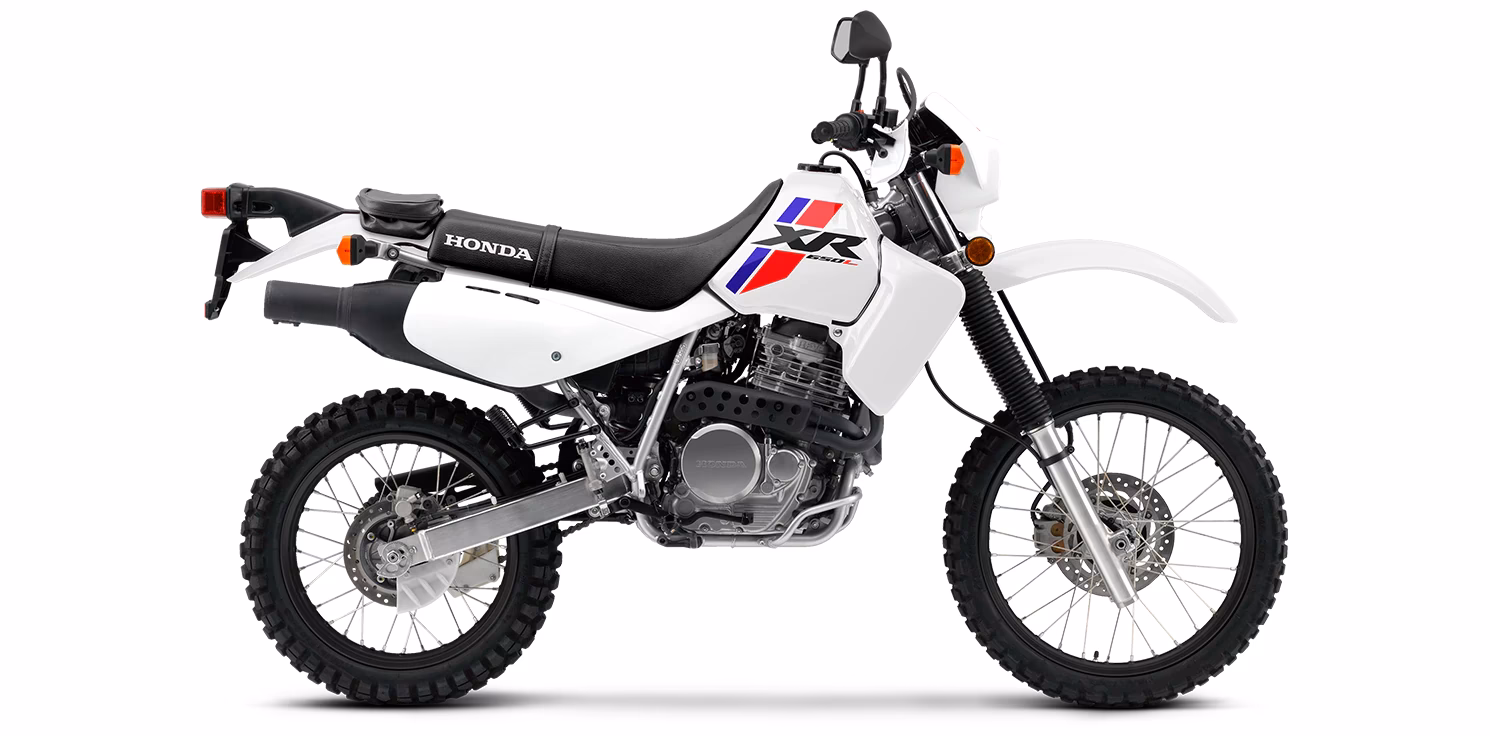

The Honda XR650L, affectionately known as the 'Big Red Pig' by enthusiasts, is a legendary dual-sport motorcycle renowned for its rugged reliability and go-anywhere capability. For decades, riders across the UK and beyond have embraced its versatile nature, often seeking to enhance its performance, comfort, or range through various modifications. Whether you're planning a long-distance adventure or tackling challenging green lanes, customising your XR650L is a common rite of passage. However, a frequent query that arises amongst owners considering upgrades is a crucial one: "Does the kit fit the stock fuel tank?" This seemingly simple question opens up a world of considerations, as the interaction between aftermarket components and your bike's original fuel cell can significantly impact installation, aesthetics, and even the motorcycle's handling characteristics. This guide aims to demystify the fitment process, exploring various types of kits and their compatibility with the standard XR650L petrol tank.

Understanding the XR650L's Stock Fuel Tank

Before delving into specific kits, it's essential to understand the characteristics of the Honda XR650L's factory-fitted fuel tank. The original tank is a robust steel unit, typically offering a capacity of approximately 10.6 litres (around 2.8 US gallons). While adequate for shorter rides and general commuting, this capacity often proves insufficient for extended off-road adventures or long-distance touring, where petrol stations can be few and far between. Key features include:

• Material: Steel, offering durability but contributing to overall weight.
• Capacity: Limited, leading many riders to seek range-extending solutions.
• Mounting: Securely bolted to the frame, designed for optimal weight distribution for the stock setup.
• Petcock: Standard vacuum-operated petcock (fuel tap) or gravity-fed, depending on the year.

The tank's design also dictates the positioning of radiator shrouds, seat fitment, and handlebar clearance, all of which can be affected by aftermarket modifications.

Decoding "The Kit": Types of Modifications and Tank Interaction

The term "kit" can refer to a wide array of aftermarket components. When considering fitment with the stock fuel tank, it's crucial to identify what kind of kit you're referring to. Let's break down the most common types:

1. Performance Enhancement Kits

These kits typically focus on improving engine output or efficiency. Examples include carburettor upgrade kits (e.g., Keihin FCR, Mikuni pumper carbs), airbox modification kits, or aftermarket exhaust systems. Generally, these kits have minimal direct interaction with the fuel tank itself. Carburettor changes might involve new throttle cables or air filter boxes that sit beneath or alongside the tank, but rarely directly interfere with its mounting or shape. Exhaust systems route away from the tank. However, ensure proper hose routing and cable clearances around the tank, especially if the new components are bulkier than stock.

2. Protection & Ergonomics Kits

This category includes items like crash bars, engine guards, and wider footpegs. While most of these components are designed to protect lower engine parts or improve rider comfort, some crash bar designs might have upper mounting points that attach near the front of the fuel tank or radiator shrouds. It's vital to check if these brackets will clear the tank's profile or if they require any modification to the stock plastics surrounding the tank.

3. Navigation & Fairing Kits

Rally fairings, larger windscreens, and navigation tower kits are popular for adventure riding, offering improved wind protection and space for electronics. These are among the most likely kits to interact significantly with the stock fuel tank. Rally fairings, in particular, often mount to the frame and extend forward, potentially clashing with the front of the tank or requiring the removal or modification of stock shrouds. Handlebar clearance at full lock, especially with a tank bag fitted, is a common concern. Always verify the kit's mounting points and ensure adequate clearance for steering and suspension travel.

4. Auxiliary Fuel Systems

When the stock 10.6-litre tank simply isn't enough, riders often turn to auxiliary fuel systems. These can range from small fuel bladders carried in luggage to more permanent external fuel cells (like Rotopax containers) mounted on rear racks or even supplementary tanks that integrate into the bike's existing fuel system. While these don't replace the stock tank, they are designed to work alongside it. Fitment concerns typically revolve around secure mounting, hose routing to the main tank or carburettor, and ensuring the added weight doesn't negatively impact handling or structural integrity, particularly if mounted high.

5. The Big One: Aftermarket Replacement Fuel Tank Kits

This is where the phrasing "Does the kit fit the stock fuel tank?" can be slightly misleading. Often, when riders ask this, they are actually considering replacing their stock tank with a larger capacity aftermarket fuel tank. These are complete replacement units, not kits that attach *to* the stock tank. Brands like Acerbis, Clarke, and IMS are well-known for producing larger capacity plastic tanks for the XR650L, significantly extending range. These tanks are designed to be a direct replacement, utilising the original mounting points, but often come with their own set of considerations:

• Capacity: Ranging from 15 litres up to 25 litres or more.
• Material: Typically polyethylene plastic, which is lighter than steel and more resistant to dents in a fall.
• Fitment: While designed to fit the stock frame, they may alter the ergonomics, require modifications to radiator shrouds, or necessitate a different seat. Some might come with a new fuel tap.
• Aesthetics: The larger size can change the bike's profile significantly.

Direct Fitment: When Kits Meet the Stock Tank

Regardless of the type of kit, several factors determine whether it will fit seamlessly with your stock fuel tank:

Clearance Issues

This is perhaps the most common challenge. Ensure that any new components:

• Clear the Handlebars: At full lock, turn the handlebars from side to side. Check for any contact with fairings, windscreens, or other accessories.
• Clear the Forks: During suspension compression, ensure no components foul the fork tubes or triple clamps.
• Clear Radiator Shrouds: Some larger tanks or fairings might require trimming or removing the stock plastic shrouds that flank the tank and radiator.
• Clear Fuel Lines and Petcock: Ensure unimpeded access to the fuel tap and that fuel lines are not pinched or stretched by new components.

Mounting Points and Brackets

Most aftermarket kits are designed to use existing frame mounting points or come with their own custom brackets. Verify that these brackets don't conflict with the tank's mounting hardware or interfere with its secure seating on the frame. Sometimes, minor adjustments or shims might be needed to achieve a perfect fit.

Weight Distribution and Handling

Adding significant weight, especially high up or far forward (e.g., a heavy rally fairing or a full auxiliary tank), can alter the XR650L's handling characteristics. While the XR650L is a robust machine, be mindful of how modifications might affect its balance, particularly when riding off-road or at speed. You might need to adjust your suspension settings to compensate for the added load.

The Aftermarket Fuel Tank Alternative: A Deeper Dive

If your primary goal is to extend your range, an aftermarket replacement tank is often the most effective solution. Here’s a closer look:

Benefits of Aftermarket Tanks:

• Significantly Increased Range: The most obvious benefit, allowing for longer journeys without refuelling.
• Lighter Weight: Many plastic tanks are lighter than the stock steel unit, even when full, improving overall bike weight.
• Improved Durability: Plastic tanks are less prone to denting and can often flex and absorb impacts better than steel.
• Better Ergonomics: Some designs offer a slimmer profile or different knee grip points, enhancing rider comfort and control.

Drawbacks and Considerations:

• Cost: Aftermarket tanks represent a significant investment.
• Aesthetics: The larger size and different material can drastically change the bike's appearance, which might not appeal to everyone.
• Seat Fitment: Some tanks require a different seat or modifications to the stock seat to fit properly.
• Radiator Shrouds: As mentioned, these often need to be trimmed or removed.
• Fuel Tap: Some tanks come with their own fuel tap, while others require you to transfer your original or purchase a new one. Ensure compatibility with your fuel lines.

Ensuring a Smooth Installation: Tips and Tricks

To avoid frustration and ensure your chosen kit integrates perfectly with your XR650L's stock fuel tank, follow these practical tips:

• Thorough Research is Key: Before purchasing, meticulously research the specific kit you're interested in. Look for manufacturer specifications regarding tank compatibility.
• Read User Reviews and Forums: The XR650L community is vast and knowledgeable. Search forums and owner groups for real-world experiences, photos, and tips from others who have installed the same kit. This is invaluable for identifying potential issues beforehand.
• Measure Twice, Install Once: If possible, take measurements of your existing setup and compare them to the dimensions provided for the kit. Pay close attention to clearances around the handlebars, frame, and existing components.
• Consult the Instructions: Always follow the kit manufacturer's installation instructions to the letter. Don't assume anything.
• Test Fit Before Final Assembly: Before tightening everything down, loosely fit the components to check for any obvious interference or misalignment.
• Seek Professional Help: If you're unsure or encounter unexpected difficulties, don't hesitate to consult a qualified motorcycle mechanic. A proper installation ensures safety and longevity.
• Consider Your Riding Style: Think about how the modification will impact your typical riding. A large tank might be great for range but cumbersome for technical off-road riding.

Comparative Table: Stock vs. Popular Aftermarket Fuel Tanks

For those considering a full tank replacement, here's a quick comparison of common options:

Frequently Asked Questions (FAQs)

Q: Do all aftermarket tanks require a new seat?

A: Not necessarily. While some larger tanks, particularly the Acerbis 22L, often benefit from or even require an aftermarket seat for optimal fit and comfort, many other aftermarket tanks (like the Clarke 15L or IMS 18L) are designed to work seamlessly with the stock XR650L seat, possibly with minor adjustments.

Q: Will adding a larger fuel tank affect my bike's handling?

A: Yes, it can. A larger tank, especially when full, adds significant weight higher up and further forward on the bike. This can alter the centre of gravity, making the bike feel heavier and potentially affecting its agility, particularly in technical off-road sections. You might notice a difference in turn-in and high-speed stability. Adjusting your suspension (preload and damping) to compensate for the added weight is often recommended.

Q: Can I install these kits myself, or do I need a mechanic?

A: Many kits, particularly aftermarket fuel tanks, are designed for DIY installation by a competent home mechanic with basic tools. However, kits involving complex wiring, significant frame modifications, or those where you're unsure of the process are best left to a professional. Always follow the manufacturer's instructions carefully.

Q: Are plastic aftermarket tanks durable in a crash?

A: Generally, yes. High-density polyethylene plastic tanks are often more forgiving in a fall than steel tanks. They can flex and absorb impact without denting or rupturing as easily as steel. However, extreme impacts can still cause them to crack or leak, just like any component.

Q: What about fuel petcock compatibility with aftermarket tanks?

A: Most aftermarket tanks are designed to accept the stock XR650L fuel petcock, or they come with a new one specifically designed for the tank. Always check the product description. If you need to transfer your stock petcock, ensure its gasket is in good condition to prevent leaks. Some older XR650L models have vacuum-operated petcocks, and aftermarket tanks might be designed for gravity feed, requiring a simple change.

Q: Will a larger tank affect my bike's aesthetics significantly?

A: Absolutely. A larger fuel tank will inevitably change the visual profile of your XR650L. While some riders prefer the more 'adventure bike' look, others might find it less appealing than the stock, slimmer profile. It's a matter of personal preference and a trade-off for increased range.

Conclusion

Modifying your Honda XR650L is an exciting journey that can transform your bike into an even more capable adventure machine. When asking "Does the kit fit the stock fuel tank?" it's vital to clarify what kind of kit you're referring to. Whether it's a performance upgrade, a rally fairing, an auxiliary fuel system, or a complete aftermarket replacement tank, each modification comes with its own set of fitment considerations. By conducting thorough research, understanding the potential challenges, and following best practices for installation, you can ensure that your chosen upgrades integrate seamlessly, enhancing your riding experience without unwelcome surprises. Ride safe, and enjoy the open road (or trail!) on your perfectly customised Big Red Pig!
