The Enduring Legacy of the Honda XR200R

The Honda XR200R, a name that evokes a sense of rugged reliability and pure off-road enjoyment, holds a special place in the hearts of many dirt bike enthusiasts. While its production run concluded in the early 2000s, its legacy as a formidable trail machine continues to thrive. Far from being a forgotten relic, the XR200R is celebrated for its lightweight, torquey, and user-friendly nature, making it an ideal companion for navigating tight, technical trails. It may never have been engineered as a dedicated race bike, but its inherent simplicity and robust design have allowed countless riders to experience the sheer joy of off-road exploration. So, what exactly happened to this beloved Honda, and why does it still command such attention today?

The XR200R's journey began with a strong reputation, particularly in the 1980s, where its suspension components were considered quite advanced for a trail bike, offering adjustability and rebuildability. However, as the 1990s dawned, Honda made a strategic shift, opting to make the XR200R more accessible to beginners. This involved downgrading the suspension, introducing non-adjustable, non-rebuildable components and reducing travel, which consequently lowered the seat height. This evolution, while broadening its appeal to novices, arguably diminished its performance capabilities in stock form for more aggressive riders. Honda eventually ceased importing the XR200R to the U.S. in 2002, marking the end of an era for this particular model. Despite its official discontinuation, the abundance of these bikes on the used market, especially the later models, ensures its continued presence on trails worldwide.

Unleashing the Beast: Essential Modifications for Your XR200R

While the Honda XR200R is a capable machine straight from the factory, its true potential often lies hidden beneath its stock components. For those looking to transform their trusty trail bike into a more potent off-road weapon, a series of well-planned modifications can yield significant improvements. It's crucial to approach these upgrades systematically, as simply adding power without addressing other areas can lead to a less enjoyable, or even unsafe, riding experience.

The Foundation: Suspension Upgrades

Before chasing horsepower, the first and most impactful area to address on any XR200R, especially if you weigh over 150 pounds or ride aggressively, is the suspension. Stock setups, particularly on models produced after 1991, are typically undersprung and underdamped. Trying to go faster with inadequate suspension will only lead to constant bottoming out and a lack of control.

Rear Shock Solutions

The rear shock is a common starting point. Interestingly, the stock shocks on the 1984-1991 XR200R models (and even the 1984-1985 XR250R shocks, which are interchangeable) were surprisingly good for their time, offering full adjustability. These early shocks, once rebuilt, perform significantly better than the non-adjustable units found on later models. Finding these older shocks on the used market can be challenging, and they often require a full service, including a new head seal kit. For a truly tailored experience, having the shock re-valved for your specific weight and riding style offers the best value for money in terms of performance improvement. For those seeking the absolute pinnacle of performance, a high-end Works shock is an option, though it comes with a substantial price tag. While a fantastic upgrade, it might be overkill if you're on a tight budget and not aiming for a full-on race machine.

Front Fork Enhancements

Similar to the rear shock, the front forks on the XR200R also saw a downgrade after 1991. Later models featured non-adjustable forks with reduced suspension travel, contributing to the bike's lower seat height and beginner-friendly profile. The prime forks from an XR200R are found on the 1986-1991 models, and these can be directly bolted onto later 200s. If you acquire these early model forks, installing stiffer progressive springs is a relatively inexpensive way to accommodate heavier and more aggressive riders. Servicing the forks and using heavier weight fork oil can also help by slowing down the damping, which is a common weak point in stock XR suspension.

For those willing to invest more time and effort, swapping out the stock forks for a superior set from another bike is a popular option:

• 1984-1985 Honda XR250R Forks: These are larger forks that require a complete front-end swap (triple clamps, wheel, brake, etc.) but offer the significant advantage of upgrading to a much-needed front disc brake. While they offer the same 10 inches of travel as early XR200s, their beefier internals can withstand more abuse.
• 1986-1995 XR250R Forks: A step up, these forks are 41mm in diameter (compared to the XR200R's 36mm) and provide 11 inches of travel, along with a disc brake. Again, a complete front-end swap is necessary. Be aware that this swap will raise the front end, altering the bike's geometry. To maintain balanced handling, you can either raise the forks in the triple clamps or adjust the rear suspension height with a different shock or linkage.
• Late 1980s Honda CR125/250R Forks: Arguably the best performance upgrade for the money if you can find a donor bike. These are cartridge forks, offering significantly better damping and adjustability than the conventional damper-rod forks found on the XR. They also come with vastly superior disc brakes. While not a direct 'bolt-on' swap, the main fabrication required is usually just a specific height spacer. Expect a substantial increase in front-end height, necessitating adjustments to the forks in the clamps or the rear suspension to maintain proper handling.

Optimising Airflow: Intake & Exhaust Modifications

Once your suspension is dialled in, you can turn your attention to the engine's breathing. Most Honda XRs, including the 200R, are somewhat choked from the factory in both their intake and exhaust systems. Uncorking these areas can lead to noticeable gains in throttle response and overall power.

Intake Enhancements

The stock airbox, while excellent at protecting the air filter from dirt and water, restricts airflow. The simplest and most effective intake mod is to remove the snorkel located on top of the airbox. By removing just the top cap, you allow significantly more air to reach the filter and then the carburettor, resulting in a noticeable increase in throttle response and power. While this does increase the potential for water ingress if riding through deep water crossings, the airbox is still largely protected. Complementing this, replacing the stock air filter with a larger, more free-flowing aftermarket unit will ensure that the increased airflow actually reaches the carburettor. Typically, if all other components are stock, you won't need to re-jet the carburettor as the XR200R comes from the factory running rich.

Exhaust System Upgrades

Exhaust modifications often involve a compromise between performance and noise. If maintaining a low noise profile is a priority due to neighbours or regulations, the stock exhaust is likely your best option. However, for performance gains, there are several avenues:

• Baffle Removal: Simply pulling the baffle out of the stock muffler can significantly improve throttle response and low-end torque, though it will make the bike considerably louder.
• Aftermarket Head Pipe: The stock head pipe is restrictive. Replacing it with a larger diameter aftermarket pipe can yield noticeable horsepower gains across the RPM range. Companies like XRs Only offer stainless pipes designed to work with their silencers.
• Supertrapp Exhaust: A popular aftermarket option, but generally louder than stock.
• Honda ATC 250R Baffle Swap: A clever trick used by many XR200 owners involves swapping the stock baffle for one from an early to mid-1980s Honda ATC 250R. This modification offers improved flow and performance similar to running without a baffle, but without a drastic increase in noise.

The Heart of the Matter: Engine Tuning

Engine modifications are typically the most expensive and should generally be considered after optimising the suspension, intake, and exhaust. If your engine runs strong and doesn't smoke, it's often best to leave it alone until other 'un-corking' mods are complete.

• Hotter Camshaft: A performance camshaft can provide a good increase in power. However, more radical cams will require supporting modifications such as an aftermarket exhaust, a high compression piston, and upgraded valve springs. In some cases, increased piston clearance may also be necessary.
• Oversized Pistons: While oversized pistons can increase displacement, boring the cylinder too large (over 66mm) can compromise reliability as the sleeve becomes very thin and prone to failure.
• Stroker Crank: If you can find a shop that still performs this modification for XR200 engines, a stroker crank (e.g., a 218cc stroker) primarily increases low-end and mid-range torque. This is an excellent mod for trail riders who don't frequently rev the engine to its limit. Powroll is a company historically known for this type of work.

The XR200R's Long History: Parts Compatibility & Evolution

Understanding the Honda XR200R's production history and parts interchangeability is crucial for anyone looking to maintain or modify these machines. The 2-valve engines from the XR185, XR200, and XR200R series, produced from 1980 right through to 2002, share a surprising degree of similarity, making parts sourcing and swaps feasible.

Engine Component Compatibility Highlights

• Cylinder Heads: All XR185/200/R 2-valve cylinder heads are generally interchangeable between the 2-valve motors. However, be mindful of frame mount width differences: 1979-1984 twin shock XR200s typically have a wider top motor mount (~42mm) compared to the 1986-2002 XR200Rs (~36mm). Some heads may lack a decompressor setup, which can lead to kickstarter mechanism problems.
• Cylinders: Most 1980-1983 and 1986-2002 cylinders appear to bolt up, sharing bore sizes, height, and oil passages. A notable change occurred in 1994 and later models, which feature two dowels instead of the earlier three. Original equipment cylinders are 194cc (or 180cc for XR185). Be cautious with online aftermarket cylinders. Oil weeping is a common issue around the right rear cylinder stud, which is part of the oil feed to the head.
• Crankshaft Timing Chain Sprocket: Engines up to and including 1988 use a 20mm inner diameter sprocket, while 1990 and later engines use a 22mm ID sprocket.
• Kickstart Mechanism: Changes occurred around 1986 (kicker shaft and lever) and 1987 (gear ratios). A later kicker can often be modified to fit an earlier bike.
• Cases: Early side cases (pre-1986) were painted black, while 1986 and later side cases were silver externally. Centre case part numbers changed in 1986, and the left case cover changed for a new stator. A significant change to the right-hand crankcase, crank, and bearing occurred in 1994.

Frame & Electrical System Evolution

• Frame & Drive: 1986 and later XR200Rs feature a slightly longer countershaft (approx. 1/4 inch), and their frames lack the footpeg bosses found on earlier models. The motor itself also switched from black to silver paint in 1986.
• CDI & Rotor: The electrical system underwent a significant overhaul in 1986, moving to 12 volts and doubling the alternator output to 100 watts. The CDI system also changed, meaning pre- and post-1986 CDI parts are generally not interchangeable. The 1986 and later rotor is also heavier. If swapping, you'll need the corresponding left-hand sidecover, CDI module, harness, and coil. In the 1990s (around 1994), the lighting section of the stator was simplified to a two-wire output system.

These details highlight the continuous evolution of the XR200R, even if many changes were subtle or aimed at cost reduction rather than performance enhancement. This long production run and the relative consistency of its core engine components are why so many parts remain interchangeable, making it a fantastic platform for customisation and restoration projects.

Frequently Asked Questions About the Honda XR200R

Navigating the world of classic trail bikes like the XR200R often brings up a host of questions. Here are some of the most common queries from enthusiasts and potential owners:

Is the Honda XR200R a race bike?

No, the Honda XR200R was never designed as a dedicated race bike. It was engineered as a reliable, torquey, lightweight, and easy-to-ride trail bike, particularly well-suited for tight and technical off-road riding. While it may not excel in any single category in stock form, it performs many off-road tasks exceptionally well and is known for being incredibly fun to ride.

Why was the suspension on the XR200R downgraded after 1991?

After 1991, Honda made changes to the XR200R's suspension, introducing cheaper, non-rebuildable, and non-adjustable rear shocks, along with shorter forks with less travel. This was primarily done to lower the seat height and make the bike more accessible and appealing to beginner riders, rather than to enhance its performance for aggressive riding.

Can I put a disc brake on my older XR200R?

Yes, it is possible to upgrade your older XR200R to a front disc brake. The most common method involves swapping the entire front end (forks, triple clamps, wheel, brake caliper, master cylinder) from a later model Honda XR250R (e.g., 1984-1995 models) or even a late 1980s Honda CR125/250R motocross bike. This is a popular modification that significantly improves braking performance.

What's the best first modification for an XR200R?

For most riders, the best initial modification for an XR200R is to upgrade the suspension. Starting with the forks and rear shock, getting them sprung and damped correctly for your weight and riding style, will dramatically improve the bike's handling and capability. Power modifications should generally follow once the suspension is dialled in, as more power won't make you faster if you're constantly bottoming out.

Are XR200R parts hard to find?

While new OEM parts for the XR200R are becoming scarcer, many components remain available through aftermarket suppliers or by sourcing used parts. Given the long production run and the interchangeability of many engine and frame parts across different XR and even ATC models, finding what you need is often feasible with a bit of research. Online forums and marketplaces are excellent resources for used parts and compatibility information.

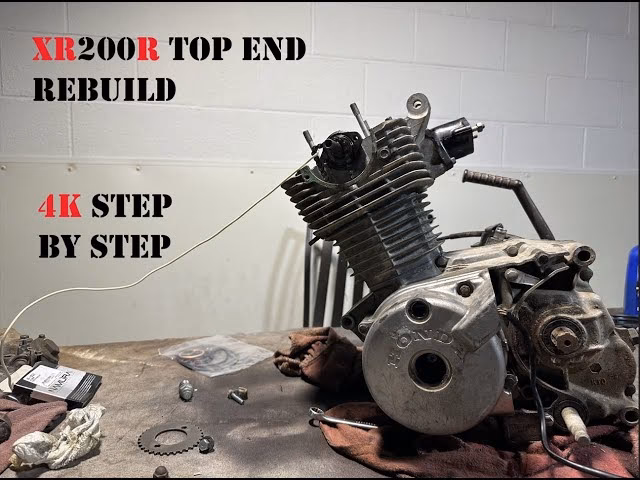

Which years were XR200R motors produced?

The 2-valve engines, which form the core of the XR200R, were produced with various designations (XR185, XR200, XR200R) from 1980 through to 2002. While there were internal changes and part number updates over these years, the fundamental 2-valve architecture remained largely consistent, allowing for a surprising degree of parts compatibility across the range.

The Unyielding Appeal of the XR200R

In conclusion, the Honda XR200R, despite its official discontinuation, remains an incredibly relevant and exciting off-road machine. It stands as a testament to Honda's engineering prowess, delivering a reliable and enjoyable riding experience that has captivated generations of enthusiasts. While it may not be a modern, cutting-edge motocross weapon, its simple, air-cooled, 4-stroke engine from the 1980s still offers more than enough traction and torque for challenging trails. The key to truly unlocking its potential lies in a thoughtful approach to modifications, starting with the suspension to ensure a balanced and controlled ride. Whether you're a seasoned veteran or a newcomer to the trails, a well-sorted XR200R is not just a bike; it's an invitation to adventure, proving that sometimes, the most enduring legends are those that never truly fade away.
