The 2002 Jaguar XK8 is a celebrated grand tourer, renowned for its blend of classic styling, luxurious comfort, and spirited performance. At the core of this automotive icon lies a formidable engine, a testament to Jaguar's engineering prowess. Understanding the specifics of its powertrain is key to appreciating what makes the XK8 such a desirable machine. This article delves into the engine and drivetrain specifications of the 2002 Jaguar XK8, providing a comprehensive overview for enthusiasts and owners alike.

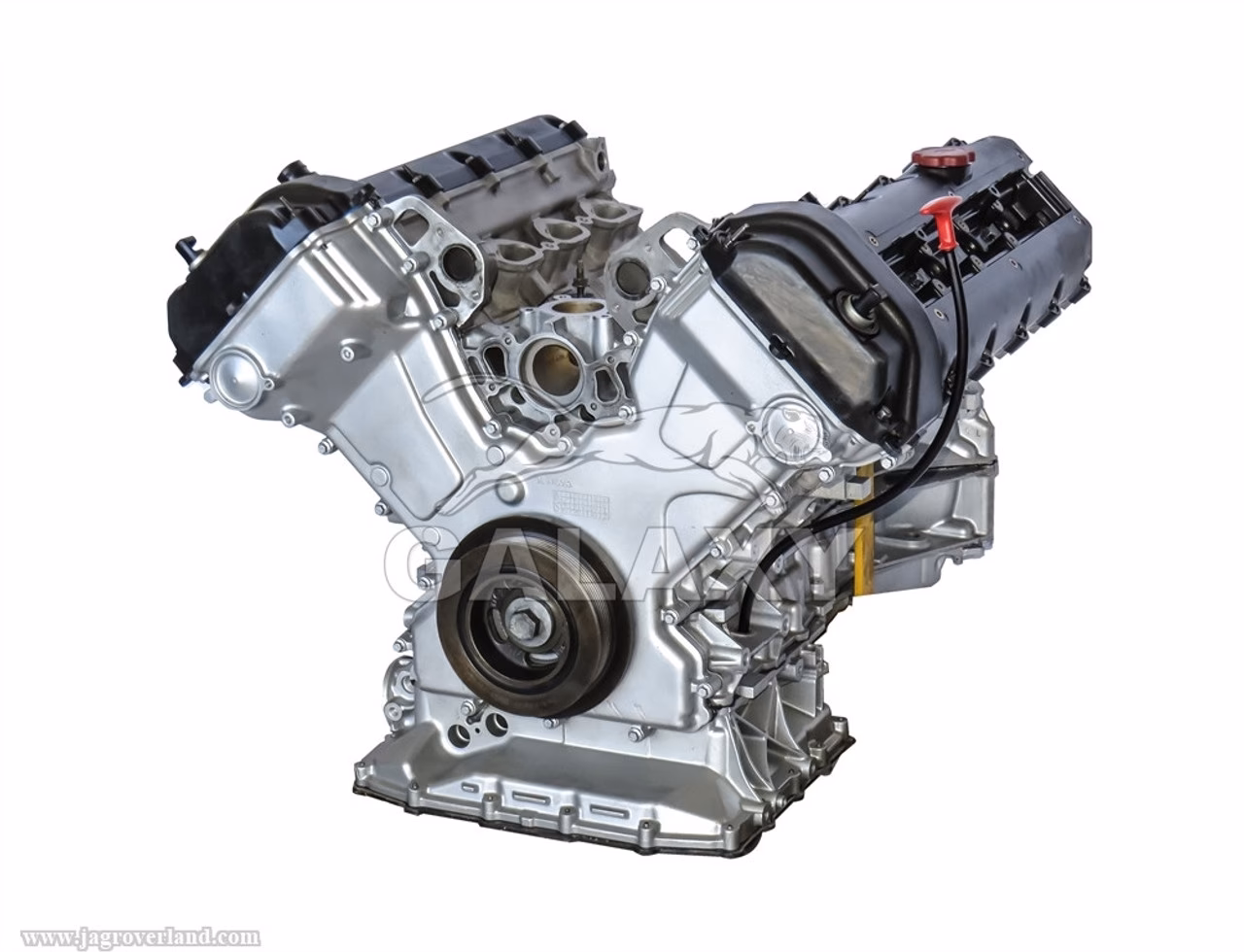

The Heart of the Beast: The AJ-V8 Engine
The 2002 Jaguar XK8 is exclusively powered by Jaguar's acclaimed AJ-V8 engine. This naturally aspirated, 32-valve, V8 engine was a significant development for Jaguar, marking a departure from their previous straight-six and V12 offerings. The AJ-V8 is celebrated for its smooth power delivery, sophisticated design, and distinctive V8 rumble.
Engine Specifications for the 2002 XK8
For the 2002 model year, the XK8 featured the 4.0-litre version of the AJ-V8 engine. This powerplant was designed to deliver a balance of performance and refinement, making it ideal for a grand tourer.
| Specification | Details |
|---|---|
| Engine Type | Naturally Aspirated V8 |
| Displacement | 3996 cc (4.0 Litres) |
| Valvetrain | 4 Valves per Cylinder (32 Valves Total) |
| Bore x Stroke | 86 mm x 86 mm |
| Compression Ratio | 10.75:1 |
| Fuel System | Multi-Point Fuel Injection |
| Power Output | Approximately 290 bhp (294 PS; 216 kW) at 6000 rpm |
| Torque Output | Approximately 290 lb-ft (393 Nm) at 4000 rpm |
| Engine Management | Jaguar J-Gate Electronic Control |
Transmission Options: Smooth Shifting
The 2002 Jaguar XK8 was offered with a sophisticated automatic transmission, designed to complement the V8 engine's character. The primary transmission choice for this model year was the ZF 5HP24 five-speed automatic gearbox. This transmission was well-regarded for its smooth shifts and adaptability, offering a refined driving experience.
The ZF 5HP24: A Closer Look
The ZF 5HP24 is a robust and electronically controlled automatic transmission that features a torque converter, planetary gearsets, and a sophisticated control unit. It offers several driving modes, including a "sport" mode that sharpens throttle response and holds gears longer for more spirited driving. The distinctive Jaguar "J-Gate" shifter allowed drivers to manually select gears within a defined pattern, offering an engaging alternative to fully automatic operation.
Key features of the ZF 5HP24 include:
- Five Speeds: Providing a good range for both acceleration and highway cruising.
- Electronically Controlled: Allowing for precise shift points and adaptive learning.
- Torque Converter Lock-up: Enhancing fuel efficiency by eliminating slip at cruising speeds.
- J-Gate Shifter: Offering manual gear selection for more driver involvement.
Performance and Driving Dynamics
The combination of the potent 4.0-litre AJ-V8 engine and the smooth ZF transmission resulted in impressive performance figures for the 2002 XK8. While precise acceleration times can vary depending on conditions and driver input, the XK8 was capable of brisk acceleration, often quoted in the mid-to-high six-second range for the 0-60 mph sprint. Top speed was electronically limited, typically around 155 mph.
Beyond raw numbers, the XK8's drivetrain was tuned for a luxurious and engaging driving experience. The engine's wide torque band meant that power was readily available, whether for overtaking on a country road or cruising on the motorway. The suspension system, often featuring Jaguar's CATS (Computer Active Technology Suspension) on some models, worked in harmony with the drivetrain to provide a balance of comfort and dynamic capability. This made the XK8 a true grand tourer, equally at home on a long road trip or a spirited drive.
Common Drivetrain Considerations for the 2002 XK8
As with any vehicle of this age, potential owners and current keepers of the 2002 Jaguar XK8 should be aware of common drivetrain considerations. Regular maintenance is paramount to ensuring the longevity and optimal performance of the AJ-V8 engine and its associated components.
Engine Maintenance
The AJ-V8, while generally robust, has a few areas that require diligent attention:
- Timing Chain Tensioners: Early versions of the AJ-V8 (prior to VIN 193289 in 2001) were known to have plastic timing chain tensioners that could degrade over time, leading to potential chain slap or failure. While the 2002 model year is less susceptible, it's a crucial check for any XK8. Upgraded tensioners are available.
- Cooling System: The V8 engine can generate significant heat. Ensuring the cooling system, including the radiator, hoses, water pump, and thermostat, is in good condition is vital. Overheating can lead to severe engine damage.
- Oil Changes: Regular oil and filter changes using the correct specification oil are essential for lubrication and cooling of the engine's internal components, especially the camshafts and timing chains.
- Spark Plugs and Ignition Coils: Proper ignition system maintenance ensures optimal combustion and performance.
Transmission Maintenance
The ZF 5HP24 transmission is a durable unit, but like all automatic transmissions, it benefits from regular servicing:
- Fluid and Filter Changes: While often considered a "lifetime" fluid, regular changes of the transmission fluid and filter (typically every 60,000 miles or so) can significantly extend the transmission's life. Using the correct ZF-specified fluid is crucial.
- Cooling: Ensure the transmission cooler lines and radiator are clean and free from leaks to prevent overheating.
Frequently Asked Questions
Q1: What type of fuel should I use in my 2002 Jaguar XK8?
A1: The 2002 Jaguar XK8, with its 4.0-litre AJ-V8 engine, is designed to run on premium unleaded gasoline (91 octane or higher) to ensure optimal performance and prevent knocking or pinging.
Q2: Are there any common issues with the 2002 XK8 engine?
A2: The most notable potential issue for earlier AJ-V8 engines was the timing chain tensioners, which were made of plastic and could degrade. While less common on 2002 models due to revisions, it's still a point of inspection. Regular maintenance of the cooling system is also crucial.
Q3: Can I manually shift gears in the 2002 XK8?
A3: Yes, the 2002 XK8 features the Jaguar "J-Gate" shifter. This allows you to select gears manually by moving the shifter left or right from the "D" position, offering a more engaging driving experience.
Q4: What is the typical maintenance schedule for the transmission?
A4: While manufacturers sometimes cite "lifetime" fluids, it is highly recommended to change the transmission fluid and filter every 60,000 miles to ensure the longevity of the ZF 5HP24 automatic gearbox. Always use the correct, manufacturer-specified fluid.
Conclusion
The 2002 Jaguar XK8 is a beautifully engineered machine, powered by the capable 4.0-litre AJ-V8 engine and paired with the smooth-shifting ZF 5HP24 automatic transmission. Its enduring appeal lies not just in its classic lines but in the refined performance delivered by its sophisticated powertrain. By understanding its engine and drivetrain components and adhering to a diligent maintenance schedule, owners can continue to enjoy the distinctive Jaguar driving experience for years to come.
