Jaguar XJ8 Air Suspension Woes: A UK Guide

The Jaguar XJ8, a paragon of British automotive luxury, offers an unparalleled driving experience, largely thanks to its sophisticated air suspension system. However, like any complex mechanical component, these systems can develop faults over time, leading to concerning noises, warning lights, and compromised ride quality. Understanding the common issues and how to diagnose them is crucial for any XJ8 owner in the UK.

Understanding Air Suspension Noises in Your XJ8

While the specific 'knocking' noise you mentioned might be unrelated, a variety of loud noises can indeed emanate from an ailing air suspension system. Identifying the type of noise can often point you towards the source of the problem.

Hissing or Whooshing Sounds

If you hear a persistent hissing or whooshing sound, especially when the car is parked or after the engine is turned off, this is a strong indicator of an air leak. These leaks can occur in the air lines, the air struts themselves, or even the air reservoir. Over time, such a leak will cause the system to lose pressure, leading to the air compressor working harder and potentially failing prematurely.

Whining or Grinding from the Compressor

A loud whining, grinding, or buzzing noise, particularly noticeable when the car is starting or attempting to adjust its height, often points to a struggling air compressor. This unit is responsible for pumping air into the system. If it's old, worn, or attempting to compensate for a significant leak, it will overwork, generate excessive heat, and produce concerning sounds before eventually failing entirely. A healthy compressor should operate relatively quietly.

Clunking or Thumping Noises

While less common directly from the air system itself, a clunking or thumping noise could indirectly relate to suspension issues. If an air strut has completely failed and lost all pressure, the vehicle's corner will drop significantly, potentially causing mechanical components (like control arms or anti-roll bar linkages) to bottom out or move in an unintended way over bumps, leading to these sounds. However, these noises are more often associated with worn bushes, ball joints, or shock absorber top mounts.

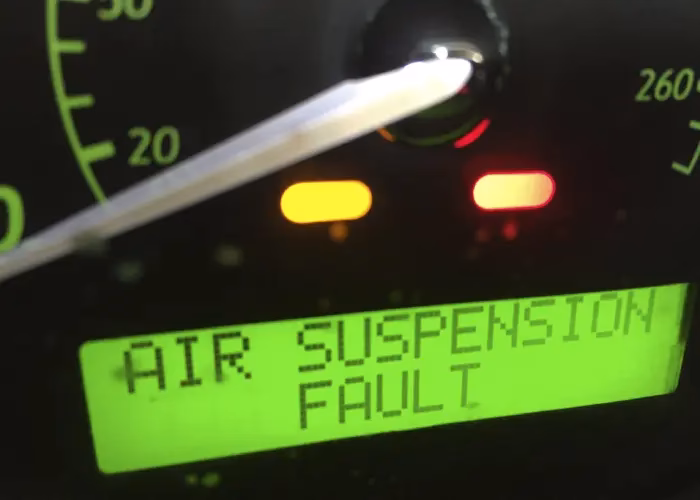

The Enigma of the Air Suspension Warning Light

The dreaded amber air suspension warning light can be a source of much frustration for XJ8 owners. As you've experienced, it typically illuminates when the system isn't reaching the correct pressure within the expected timeframe. This is the car's way of telling you something is amiss with its ability to maintain ride height.

Why the Light Appears

The primary reason for the light to appear is usually insufficient pressure. This can stem from:

• Air Leaks: As discussed, leaks force the compressor to work harder. If it can't keep up, or if the leak is too severe, the system won't reach target pressure.
• Failing Compressor: An old or worn compressor might simply not be capable of generating enough pressure, or it might be too slow.
• Failing Air Strut: A common culprit. The internal bladder or seals in an air strut can degrade, leading to internal or external air leaks. If one corner isn't inflating as quickly as the others, or if it drops overnight, a failing strut is highly probable. The system monitors the height at each corner; if one is consistently out of sync, the warning light will trigger.
• Sensor Issues: Height sensors or pressure sensors can also malfunction, providing incorrect readings to the control module, leading to false warnings.

Why the Light Might Turn Off

Interestingly, the amber warning light can sometimes extinguish itself. This usually happens if the system, after a period of struggle, manages to achieve the required pressure. Perhaps a small leak temporarily seals itself, or the compressor finally catches up after a long run. However, this is often a temporary reprieve. If the underlying fault (e.g., a slow leak or a weak compressor) hasn't been addressed, the light will almost certainly reappear, often becoming more frequent and persistent over time as the problem worsens.

Diagnosing Air Suspension Faults: A Step-by-Step Approach

Accurate diagnosis is key to avoiding unnecessary repairs and costs. The initial steps provided are excellent foundational checks:

1. Park the vehicle on level ground: This ensures that any height discrepancies are due to system faults and not uneven terrain.
2. Ensure the ignition is switched ‘OFF’: This prevents the system from actively trying to adjust, allowing for a static assessment.
3. The steering is in the straight ahead position: Similar to level ground, this avoids any variables introduced by steering angle.
4. The transmission selector lever is in park: Ensures the vehicle is stable and secure.

Beyond the Basics: Advanced Diagnostic Techniques

Visual Inspection

Once the car is parked safely, conduct a thorough visual inspection. Look for:

• Uneven Ride Height: Is one corner of the car visibly lower than the others, especially after being parked overnight? This is a strong indicator of a leaking strut on that particular corner.
• Damaged Air Lines: Trace the air lines (usually thin plastic tubing) for any visible kinks, cracks, or chafing.
• Compressor Location: In the XJ8, the air compressor is typically located behind the front bumper. Look for any visible damage or excessive corrosion around its housing.

The Soapy Water Test

For suspected air leaks, the soapy water test is invaluable. Mix water with a generous amount of dish soap to create a thick, bubbly solution. With the compressor running (if possible, or after the system has attempted to inflate), spray or brush the solution onto suspect areas: air lines, connections, and around the top and bottom seals of the air struts. Look for bubbles forming, which indicate air escaping. This is particularly effective for slow, hard-to-find leaks.

Diagnostic Scan Tool (SDD/JLR SDD)

As you mentioned, using a dedicated diagnostic tool like JLR SDD (Symptom Driven Diagnostics) is paramount for a definitive diagnosis. Generic OBD-II readers might show basic engine codes, but they won't delve into the nuanced world of the air suspension control module. SDD can:

• Read Fault Codes: Crucial for identifying specific component failures (e.g., "Pressure Sensor Fault," "Compressor Over-temp," "Height Sensor Out of Range").
• Monitor Live Data: Observe real-time pressure readings, height sensor values, and compressor activity. This can confirm if a strut isn't inflating correctly or if the compressor isn't building enough pressure.
• Perform Actuation Tests: Command the compressor to run, or individual struts to inflate/deflate, to test their functionality.
• Calibrate Suspension: This is vital after replacing components. If the system cannot be calibrated, it often points to a fundamental hardware fault, such as a severely leaking strut.

The Compressor Repair Kit: A DIY Solution for Common Faults

Your experience with the Bagpipingandy repair kit highlights a common and often cost-effective solution for a failing air compressor. Many compressor issues stem from wear and tear on internal components rather than complete unit failure.

What the Kit Addresses

These kits typically contain replacement parts for the compressor's piston seal and dryer desiccant. The piston seal is crucial for creating pressure; over time, it wears down, reducing the compressor's efficiency. The desiccant in the dryer removes moisture from the air, preventing internal corrosion and freezing, but it becomes saturated over time. Replacing these components can often restore the compressor to full working order, saving the expense of a complete unit replacement.

The Sheared Bolt Saga

The issue you encountered with the two sheared bolts securing the compressor halves is a well-known frustration among XJ8 owners. These bolts, exposed to the elements, are prone to corrosion and can seize or snap during disassembly. Your solution of drilling out the snapped ends and using a helicoil insert is the correct and robust repair for this problem. It underscores the fact that even seemingly simple repairs can throw unexpected challenges, requiring patience and sometimes specialist tools or expertise.

While the front bumper removal might seem drastic, it often provides much better access to the compressor, making the job easier in the long run, especially when dealing with stubborn or corroded fixings. The need for a hacksaw to remove rusted fixings is also a common theme in UK automotive repairs, thanks to our lovely damp climate.

Air Strut Replacement: Quality Over Cost

When it comes to replacing failing air struts, your advice is spot on: do not compromise on quality. The market is flooded with cheaper alternatives, but as you've found, they often fail quickly, leading to repeated work and expense. Investing in reputable brands like Arnott or Bilstein is highly recommended for longevity and performance.

Why Cheap Struts Fail

Inferior struts often use lower-quality rubber for the air bladder, which is prone to cracking and leaking prematurely. The internal damper unit might also be of poor quality, leading to a compromised ride and rapid wear. The sensors and electrical connections might also be substandard, leading to incorrect readings or communication issues with the car's control module.

Replacing an air strut is a significant job, often requiring specialist tools and knowledge of the air suspension system's bleeding and calibration procedures. Doing it right the first time with quality parts will save you considerable headaches and expense down the line.

Comparative Table: Symptoms and Potential Solutions

Frequently Asked Questions (FAQs)

Q: Can I drive my Jaguar XJ8 with an air suspension fault?

A: While you might be able to drive it for a short period, it's not recommended. A compromised air suspension system significantly affects ride comfort, handling, and safety. If a corner has dropped completely, it could lead to tyre damage or contact with wheel arches. Prolonged driving with a fault can also put undue strain on other components, leading to more expensive repairs.

Q: How long do Jaguar XJ8 air struts typically last?

A: The lifespan of original equipment air struts can vary, but generally, they last between 80,000 to 120,000 miles, or 8-12 years. Factors like road conditions, climate, and driving style can influence this. Aftermarket quality struts like Arnott or Bilstein typically offer similar or improved longevity.

Q: Is replacing an XJ8 air strut a DIY job?

A: For an experienced DIY mechanic with the right tools (including a diagnostic scanner for calibration), it is possible. However, it involves working with high-pressure air systems, potentially corroded fasteners, and requires careful attention to detail. If you're unsure, it's always best to consult a professional Jaguar specialist.

Q: What's the typical cost of air suspension repair for an XJ8 in the UK?

A: Costs can vary widely. A compressor repair kit might be under £100, plus your labour. A new quality aftermarket compressor could be £300-£600. Individual air struts (Arnott/Bilstein) typically range from £400-£700 each. Labour charges at a specialist garage could add several hundred pounds per job, depending on complexity. Early diagnosis and repair of a small issue can save you a significant sum down the line.

Q: Why is calibration necessary after replacing air suspension components?

A: Calibration ensures that the car's control module accurately knows the neutral ride height for each corner. Without proper calibration, the system may not correctly adjust the suspension, leading to an uneven ride, persistent warning lights, or even premature wear on new components.

Conclusion

Addressing air suspension issues on your Jaguar XJ8 promptly is vital not only for maintaining the car's legendary ride comfort but also for ensuring its safety and longevity. While the initial diagnosis might seem daunting, armed with the right knowledge and tools, many common faults, especially those related to the compressor or struts, can be effectively resolved. Always prioritise quality replacement parts and don't hesitate to seek professional help from a Jaguar specialist if you're out of your depth. A well-maintained air suspension system will ensure your XJ8 continues to glide smoothly along the UK's roads for years to come.
