Jaguar XF 3.0D: Demystifying Timing Belt & HPFP Belt

Owning a Jaguar XF 3.0 Diesel is often a sublime experience, blending luxury with impressive performance. However, as many owners discover, navigating the intricacies of its maintenance schedule, particularly regarding vital engine components, can be a minefield of misinformation. One of the most common points of confusion and potential financial peril revolves around the engine's drive belts – specifically, the main timing belt and the lesser-known, yet equally crucial, high-pressure fuel pump (HPFP) belt. For owners of a 2010 XF 3.0D, understanding the distinct roles and replacement requirements of these belts is not merely good practice; it's essential for the longevity and health of your vehicle.

The question of whether a 'diesel pump belt' needs replacing on a 2010 Jaguar XF, especially if the main timing belt has reportedly been done, highlights a critical gap in common knowledge and sometimes even dealership understanding. Unlike some engines that rely solely on a timing chain, the 3.0D V6 found in your XF utilises a combination of belts and chains, making its service requirements somewhat unique. Let's delve into the specifics to ensure your magnificent machine continues to purr, rather than suddenly seize.

Understanding the 3.0D V6 Engine's Drive Systems

The 3.0-litre V6 diesel engine, prevalent in many Jaguar and Land Rover models of that era, is a sophisticated power unit. It employs a complex system of belts and internal chains to synchronise various engine components. It's not a straightforward 'timing chain' engine, nor is it purely 'timing belt' driven. This hybrid setup is often the root cause of confusion among owners and even some service professionals.

The Main Timing Belt: The Heartbeat Synchroniser

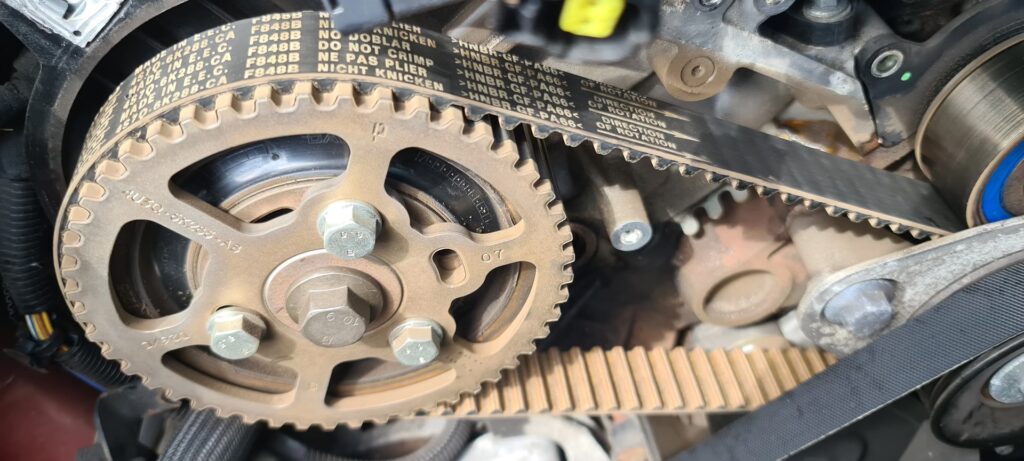

The primary timing belt in your Jaguar XF 3.0D is a robust, toothed belt that synchronises the rotation of the crankshaft and the camshafts. This synchronisation is absolutely vital because it ensures that the engine's valves open and close at precisely the right time in relation to the piston's movement. If this belt fails, the pistons can collide with the valves, leading to catastrophic engine damage – often necessitating a complete engine replacement, which is an extremely costly affair. For the 3.0D engine, this belt is located at the front of the engine.

Jaguar's official service intervals for the 3.0D timing belt typically recommend replacement every 7 years or 105,000 miles, whichever comes first. However, it's crucial to consider the 'age' factor seriously. As mechanical engineering experts often highlight, a belt's material degrades over time due to environmental factors like temperature fluctuations, oil residue, and general material ageing, regardless of mileage. Even if your 2010 XF has relatively low mileage at 63,000 miles, its original timing belt would be well beyond the 7-year mark. Therefore, adhering to the time-based interval is paramount for preventative maintenance.

The High-Pressure Fuel Pump (HPFP) Belt: The Overlooked Essential

This is where the specific query about the 'diesel pump belt' comes into play. The 3.0D V6 engine has a separate, secondary belt that drives the high-pressure fuel pump (HPFP). This belt is often referred to as the 'rear fuel pump belt' because of its location, typically at the back of the engine. Unlike the main timing belt, which synchronises the valve train, this belt's primary function is to drive the fuel pump responsible for delivering diesel at extremely high pressures to the fuel injectors. Without this, the engine simply cannot run.

While a failure of the HPFP belt won't typically cause the same immediate, catastrophic internal engine damage as a snapped main timing belt (i.e., pistons hitting valves), it will undoubtedly lead to your vehicle breaking down. The engine will lose fuel pressure and cease to function. Furthermore, the replacement of this belt is often more labour-intensive due to its location, sometimes requiring the removal of the gearbox or other significant components to gain access. For this reason, it's a job that should ideally be done concurrently with the main timing belt if access allows, or at least at its own specified interval.

Unfortunately, the HPFP belt is frequently overlooked during routine timing belt services, especially by workshops unfamiliar with the specific nuances of the 3.0D engine. The information you received from the Jaguar dealer about the 'diesel pump belt' not having a record of replacement, despite the main timing belt being done, is a classic example of this oversight. For the 3.0D, the rear fuel pump belt is indeed timed and requires specific attention. The recommended interval for the HPFP belt is generally aligned with the main timing belt, often around 105,000 miles or 7 years. Given your 2010 vehicle's age, it is highly advisable to have this belt inspected and replaced immediately if there's no record of it ever being done.

Why the Confusion and Misinformation?

The anecdote about a car sales business telling you the 3.0D engine has a 'timing chain' is unfortunately common. While some Jaguar engines do use chains, and the 3.0D has internal chains for some components, its critical external drives are belt-driven. This misunderstanding can lead to serious neglect. Uneducated dealers or general mechanics might genuinely not know the specific requirements of every engine variant. This underscores the importance of seeking out specialists who are intimately familiar with Jaguar's specific engines and their service schedule.

Another point of confusion stems from the water pump. On the 3.0D, the water pump is typically driven by the auxiliary belt (serpentine belt), not directly by the timing belt. While not a direct timing component, it's often prudent to replace the water pump when the auxiliary belt is off, or at least inspect it thoroughly, as its failure can also lead to overheating and engine damage. There are also reports of issues with early 3.0D models (pre-2009) regarding the oil pump, but for your 2010 model, this specific weakness is generally not a concern related to the belt issues.

Signs Your Belts Might Need Attention

While the best approach is always preventative replacement based on time and mileage, there are some signs that a belt might be failing:

• Visible Cracks or Fraying: Inspecting the visible parts of the belts (if accessible) for signs of wear.
• Squealing or Chirping Noises: Often indicates a worn auxiliary belt or tensioner, but can sometimes be related to other belts.
• Engine Misfires or Rough Running: Can indicate a timing belt issue, but by this point, damage may already be occurring.
• Dashboard Warning Lights: Engine management light might illuminate if sensors detect an issue, though a belt snapping often gives no prior warning.

Relying on these signs is risky. The nature of timing and HPFP belt failures is often sudden and without warning, leading to immediate breakdown or severe damage.

The Cost of Neglect vs. Proactive Replacement

The cost of replacing both the main timing belt and the HPFP belt on a Jaguar XF 3.0D can be significant, ranging from several hundred to over a thousand pounds, depending on the garage, location, and whether other components (like tensioners, idlers, or water pump) are replaced concurrently. However, this cost pales in comparison to the expense of repairing an engine after a belt failure. A full engine replacement can easily run into thousands of pounds, often making the vehicle an economic write-off, especially for second-hand buyers.

Therefore, treating these belt replacements as a non-negotiable part of your Jaguar's maintenance is crucial. It's an investment in the vehicle's future reliability and resale value. Always ensure that any garage undertaking this work is fully aware of the need to address both the main timing belt and the high-pressure fuel pump belt on the 3.0D engine.

Choosing the Right Service Provider

Given the complexity and critical nature of this work, it is highly recommended to use either a reputable Jaguar main dealer or an independent specialist with extensive experience specifically with the Jaguar/Land Rover 3.0D engine. They will have the correct tools, technical knowledge, and access to genuine or OEM-quality parts. Always request a detailed quote that explicitly mentions the replacement of both the main timing belt and the HPFP belt, along with any associated components like tensioners and idler pulleys.

Frequently Asked Questions (FAQs)

Q1: Does my 2010 Jaguar XF 3.0D really have two separate timing-related belts?

Yes, it does. It has a main timing belt at the front of the engine that synchronises the crankshaft and camshafts, and a separate, smaller belt at the rear of the engine that drives the high-pressure fuel pump (HPFP). Both are critical for engine operation and have similar recommended replacement intervals.

Q2: My main timing belt was replaced. Does that mean the HPFP belt was also done?

Not necessarily. As your own experience indicates, the HPFP belt is often overlooked. Many workshops only focus on the main timing belt due to its more common knowledge and accessibility. You must explicitly confirm with the workshop that the HPFP belt was also replaced, and ideally, see evidence of it on the invoice or service record. If there's no record, assume it hasn't been done.

Q3: What are the recommended replacement intervals for these belts on a 3.0D?

For both the main timing belt and the HPFP belt on the Jaguar XF 3.0D, the general recommendation is every 7 years or 105,000 miles, whichever comes first. For your 2010 vehicle, even at 63,000 miles, the 7-year age limit has been significantly exceeded, making replacement urgent if not already done.

Q4: What happens if the HPFP belt breaks?

If the high-pressure fuel pump belt breaks, the engine will immediately lose its high-pressure fuel supply. This will cause the engine to stall and prevent it from restarting. While it won't typically cause the same catastrophic internal engine damage (like bent valves) as a main timing belt failure, it will leave you stranded and require costly repairs due to the difficult access to the belt.

Q5: Is it a DIY job to replace these belts?

Replacing these belts, especially the HPFP belt, is a complex job that requires specialised tools, significant mechanical expertise, and a thorough understanding of the engine's timing marks. It is not recommended for the average home mechanic. Incorrect installation can lead to severe engine damage. It's best left to experienced Jaguar specialists.

Q6: Should I replace anything else when these belts are being done?

Yes, it's highly recommended to replace associated components such as tensioners and idler pulleys for both belts, as these wear out and can cause premature belt failure. The water pump, while driven by the auxiliary belt, is often replaced at the same time if it's nearing the end of its life or if access is significantly improved by the belt work. Discuss these 'while you're in there' items with your chosen mechanic.

Q7: I was told the 3.0D has a 'timing chain'. Is this true?

This is a common misconception. While the 3.0D V6 engine does have internal chains for certain components (like connecting the two banks of camshafts), the critical drives for the crankshaft to camshafts (main timing) and the high-pressure fuel pump are indeed belt-driven. Relying on the 'timing chain' misinformation can lead to costly neglect of the vital belts.

In conclusion, Richard, your vigilance and research are commendable. The 2010 Jaguar XF 3.0D is a superb vehicle, but like any sophisticated machine, it demands specific and timely maintenance. The 'diesel pump belt' (HPFP belt) is not a myth; it's a critical component that absolutely needs attention on your vehicle, especially if there's no record of it being replaced. Prioritising both the main timing belt and the HPFP belt replacement according to the time-based interval will save you from potential headaches and significant expense down the road, ensuring your XF remains the amazing car you know it to be.
