Immersion Oil: The Key to Microscopic Clarity

In the fascinating realm of microscopy, achieving unparalleled clarity and detail is paramount. While various components contribute to a microscope's performance, one often overlooked yet profoundly critical element is immersion oil. This transparent, viscous liquid acts as a bridge between your objective lens and the specimen, fundamentally transforming how light interacts with your sample and ultimately, the resolution of your image. Without it, the highest magnifications would be a blurry disappointment, limiting our understanding of the microscopic world.

This article delves into the science behind immersion oil, explaining its vital role in enhancing image quality and how its unique properties overcome the inherent limitations of air as an imaging medium. We'll explore its refractive index, the different types available, and provide practical guidance on its application and, crucially, its proper removal to preserve your valuable equipment.

Understanding Numerical Aperture and Resolution

To truly appreciate the significance of immersion oil, we must first grasp the concepts of Numerical Aperture (NA) and resolution. These are the twin pillars of microscopic image quality.

What is Numerical Aperture (NA)?

The Numerical Aperture, often abbreviated as NA, is a critical numerical expression found on every microscope objective. It quantifies the objective's ability to gather light and, consequently, its capacity to resolve fine detail. A higher NA indicates a greater light-gathering ability and superior resolution. The formula for Numerical Aperture is given by:

NA = n × sin(α)

Where:

• n is the refractive index of the medium between the objective lens and the specimen.
• α (alpha) is half the angular aperture of the objective lens, seen from the specimen. Essentially, it's half the maximum angle of light rays that can enter the objective.

From this formula, it's clear that the refractive index (n) of the medium plays a direct and profound role in determining the objective's NA. The greater the value of 'n', the higher the potential NA.

The Concept of Resolution

Resolution, in microscopy, refers to the minimum distance required between two objects for the microscope to discern them as separate entities. If two objects are closer than this minimum distance, they will appear as a single, indistinguishable point. This minimum discernible distance is often denoted as δ (delta).

The resolution of a microscope is directly linked to its NA, as described by Ernst Abbe's equation:

δ = λ / (2 × NA)

Where:

• δ is the minimum resolvable distance.
• λ (lambda) is the wavelength of light being used.
• NA is the Numerical Aperture of the objective.

This equation highlights that to achieve a high resolution (a small δ), you need a high Numerical Aperture. This is precisely where immersion oil becomes indispensable.

The Limitations of Air and the Immersion Solution

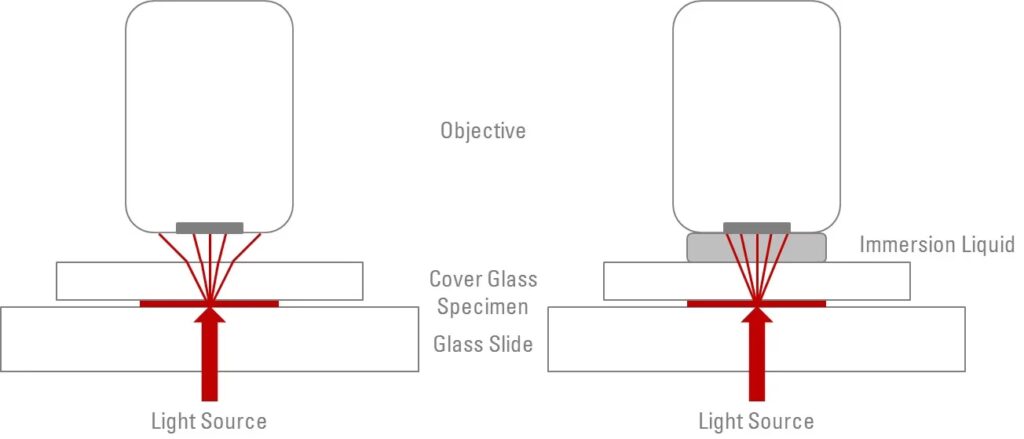

When observing specimens with a 'dry' objective (i.e., without immersion oil), the medium between the objective lens and the coverslip is air. The refractive index of air is approximately 1.0. Given the NA formula (NA = n × sin(α)), even with the largest possible angular aperture, the theoretical limit for NA in air is 1.0 (since sin(α) can never exceed 1).

However, light rays emanating from the specimen and passing through the coverslip will encounter a change in medium from glass (refractive index ≈ 1.52) to air (refractive index ≈ 1.0). This significant difference in refractive indices causes light rays, particularly those at wide angles (highly oblique rays), to refract sharply away from the objective lens. Many of these valuable light rays, crucial for forming a high-resolution image, are either reflected back into the coverslip or refracted into the air surrounding the objective, thus failing to enter the lens. This loss of light directly limits the effective NA and, consequently, the resolution.

This phenomenon is also a major contributor to spherical aberration, an optical distortion where light rays passing through different parts of the lens do not converge at a single focal point, leading to a blurry image.

Immersion oil provides an elegant solution to this problem. By filling the space between the objective lens and the coverslip with a medium that has a refractive index very similar to that of glass, the light rays encounter a homogeneous optical path. This minimises refraction as light passes from the coverslip into the immersion oil and then into the objective lens itself. More of the highly oblique light rays are 'captured' by the objective, dramatically increasing the effective Numerical Aperture and, therefore, the microscope's resolving power.

The Refractive Index of Immersion Oil

The typical refractive index of standard immersion oils is approximately 1.515 to 1.518. This value is deliberately chosen to closely match the refractive index of common microscope glass slides and coverslips (which is around 1.515-1.52). This optical matching is the fundamental principle behind immersion microscopy.

When the refractive indices are similar, light travels through the coverslip, oil, and objective lens almost as if it were passing through a single, continuous medium. This continuity means that light rays are not significantly bent or lost at the interfaces, allowing a much greater proportion of the light to enter the objective lens. This increased light-gathering capability translates directly into a higher effective NA and a sharper, more resolved image, free from the distortions caused by light scattering in air.

Types of Immersion Oil

Historically, cedar tree oil was the predominant immersion medium. While effective, it suffered from several drawbacks:

• It absorbed blue and ultraviolet light, potentially affecting image quality.
• It would yellow and harden with age, becoming difficult to remove and potentially damaging objectives.
• Its acidity could, over time, attack the cement used to join lens elements in objectives.
• Its viscosity could change with dilution, altering its refractive index.

Modern microscopy almost exclusively utilises synthetic oils, which have overcome these limitations. These non-hardening hydrocarbons and petroleum by-products offer superior performance and stability. Key types include:

• Standard Immersion Oil (Type A & B): These are general-purpose oils with a refractive index around 1.515. Type A often has a higher viscosity, reducing air bubble formation and offering a greater working distance. Type B has a slightly lower viscosity, allowing for viewing more slides with one application. Both are excellent for routine brightfield microscopy.
• Fluorescence-Specific Immersion Oil (Type F): Engineered for fluorescence microscopy, these oils exhibit reduced autofluorescence, preventing interference with the delicate fluorescent signals from specimens. They often have a specified refractive index for use at room temperature (e.g., 23°C).
• Live-Cell Imaging Oil (Type N): Designed for applications involving live cells, this oil is formulated to be used at body temperature (e.g., 37°C), maintaining its optimal refractive index and viscosity in temperature-controlled environments.
• High Refractive Index Immersion Oil: Specialised oils with refractive indices ranging from 1.56 to 1.60 or even higher are available for advanced microscopy techniques, such as super-resolution or 3D imaging. These oils further maximise the NA, enabling the highest possible light-gathering capacity and resolution at ultra-high magnifications.

It is crucial to use the correct immersion oil specified by the objective lens manufacturer, as a mismatch in refractive indices can lead to significant spherical aberration and degraded image quality.

Why 100x Objectives Are Oil Immersion

You'll notice that your highest magnification objectives, typically the 100x, are marked with "Oil". This is not arbitrary. High-magnification objectives have very short working distances (the space between the lens and the specimen) and a naturally high angular aperture. To achieve their maximum potential Numerical Aperture, which often exceeds 1.0 (e.g., 1.25, 1.30, 1.40, or even 1.60), they absolutely require an immersion medium.

Without oil, the NA would be limited to 1.0, and a significant portion of the light rays essential for resolving fine details at 100x magnification would be lost due to refraction in the air gap. The 100x objective's design specifically accounts for the presence of oil to ensure the optical path is optimised for maximum light capture and minimal aberration. Attempting to use a 100x oil objective without oil will result in a very dim, blurry image, far below its intended performance.

A critical warning: NEVER use immersion oil on 'dry' objectives (e.g., 4x, 10x, 40x). Dry objectives are not sealed in a way that prevents oil from seeping into their internal lens elements. Oil ingress can cause permanent damage, dissolving the cement holding lenses together, contaminating optical surfaces, and rendering the objective unusable. Always check the objective markings carefully.

Applying Immersion Oil: A Step-by-Step Guide

Proper application of immersion oil is vital for both optimal imaging and equipment longevity. Always ensure your specimen is mounted under a coverslip; applying oil directly to an uncovered specimen will contaminate and likely move it.

1. Prepare Your Slide: Position your specimen on a clean glass slide and secure it with a coverslip. Tweezers are recommended to avoid fingerprints or smudges.
2. Focus at Lower Magnification: Begin observing your specimen with a lower power dry objective (e.g., 4x, then 10x, then 40x). Focus the image clearly using the coarse and fine adjustment knobs.
3. Position for Oil: Once you're on your highest power dry objective (e.g., 40x) and ready to switch to the 100x oil objective, rotate the revolving nosepiece halfway between the 40x and 100x objectives. This creates a clear space to apply the oil.
4. Lower the Stage: Gently lower the microscope stage slightly using the coarse adjustment knob to create enough room.
5. Apply Oil to Coverslip: Place a single, small drop (1-2 µL) of the correct immersion oil directly onto the coverslip, over the area of your specimen you wish to observe. Avoid excess oil.
6. Apply Oil to Condenser (Optional but Recommended for High NA): For optimal performance, especially with high NA condensers, you may also need to apply a drop of oil to the top lens of the condenser. To do this, unlatch the stage clip, move the slide out of the way, and lower the condenser rack to its lowest position. Place a single drop of oil on the condenser's top lens. Then, re-engage the stage clip, place the slide back, and slowly raise the condenser until the oil on its lens just touches the underside of the slide.
7. Engage the Oil Objective: Carefully rotate the nosepiece until the 100x oil objective clicks firmly into place. Ensure the objective's front lens gently makes contact with the oil droplet on the coverslip. Do not force it.
8. Focus the Image: Using only the fine adjustment knob, slowly raise the stage until the image comes into sharp focus. Minor adjustments to the condenser aperture or illumination intensity may further optimise contrast.

Cleaning Immersion Oil: Essential Maintenance

Cleaning immersion oil immediately after use is paramount to prevent it from hardening, attracting dust, or potentially seeping into optical components. This routine maintenance extends the life of your microscope.

You will need:

• Lens paper: Specifically designed for optics, lint-free (do NOT use Kimwipes or regular tissues).
• Lens cleaning solution: A specialised solution, often alcohol-based, for microscope optics.
• Q-tips (optional): Can be helpful for condenser cleaning.

Cleaning the Slide

1. Lower the stage completely and carefully remove the slide.
2. Remove the coverslip and dispose of the specimen appropriately.
3. Apply a small amount of lens cleaning solution to a fresh piece of lens paper.
4. Gently wipe the slide in a circular motion until all oil residue is removed and the slide is clean and dry.

Cleaning the Objective Lens

1. Ensure the 100x oil objective is rotated slightly away from the stage for easier access.
2. Dab a fresh piece of lens paper with lens cleaning solution.
3. Gently wipe the front lens of the objective. Start from the centre and move outwards in a spiral motion, or wipe in one direction across the lens.
4. Use a fresh, dry piece of lens paper to remove any remaining streaks or solution.
5. Repeat with new pieces of lens paper until the lens is perfectly clean and free of oil residue. Do NOT reuse lens paper that has touched oil on other objectives.
6. Perform this step immediately after use; hardened oil is significantly harder to remove and risks damaging the lens.

Cleaning the Condenser Lens

1. Lower the condenser to its lowest position.
2. Apply lens cleaning solution to a fresh piece of lens paper (or a Q-tip).
3. Gently wipe the top lens of the condenser until all oil is removed.
4. Use a dry piece of lens paper to remove any streaks.
5. Ensure the condenser lens is clean and dry before storing the microscope.

Advantages and Limitations of Immersion Oil

Advantages:

• Improved Resolution: The primary benefit, allowing the microscope to distinguish finer details (smaller δ).
• Increased Numerical Aperture: Significantly boosts the objective's light-gathering ability beyond the limits of air.
• Clearer and Brighter Images: More light entering the objective leads to a brighter and higher-contrast image.
• Reduced Optical Aberrations: Minimises light scattering and refraction at the glass-air interface, reducing spherical aberration.
• Essential for High Magnification: Indispensable for observing minute structures at 100x and higher magnifications, such as bacteria, blood cells, or subcellular components.

Limitations:

• Specific Objective Requirement: Can only be used with objectives specifically designed and marked for oil immersion.
• Requires Careful Application: Incorrect application can lead to air bubbles or contamination.
• Mandatory Cleaning: Requires immediate and thorough cleaning after each use to prevent damage to the objective and other microscope components.
• Potential for Mess: Can be messy if not handled carefully, and can attract dust if left on objectives.
• Surface Tension: The surface tension of the oil can potentially move loosely mounted coverslips or specimens, especially on inverted microscopes.

Frequently Asked Questions (FAQs)

Q: What is oil immersion in light microscopy?
A: Oil immersion is a microscopy technique where a drop of transparent, high-refractive-index oil is placed between the microscope's objective lens and the specimen. This replaces the air gap, allowing more light to be gathered by the objective, thereby increasing the Numerical Aperture and improving the image resolution and clarity, especially at high magnifications.

Q: Does oil immersion increase resolving power?
A: Yes, absolutely. Immersion oil significantly increases the resolving power of a microscope. By matching the refractive index of the glass slide and objective, it minimises light loss due to refraction, enabling the objective to capture more oblique light rays. This directly increases the Numerical Aperture (NA), which in turn, according to Abbe's equation, leads to a smaller resolvable distance (δ) and thus higher resolution.

Q: Can immersion oil be used at room temperature?
A: Yes, most standard immersion oils (like Type A and Type B) are designed for optimal performance at typical room temperatures (around 20-25°C). However, specialised oils, such as Type F (for fluorescence) or Type N (for live-cell imaging), are formulated for specific temperatures (e.g., 23°C or 37°C) to maintain their precise refractive index and viscosity.

Q: Why is immersion oil primarily used with 100x objectives?
A: The 100x objective is designed to achieve the highest possible magnification and resolution, which necessitates a very high Numerical Aperture (typically greater than 1.0). Without immersion oil, the NA would be limited by the refractive index of air (1.0), and a significant amount of light would be lost, resulting in a dim and blurry image. Immersion oil ensures that the maximum potential of the 100x objective is realised by effectively increasing its NA and channelling more light into the lens.

Q: What happens if I use immersion oil on a dry objective?
A: Using immersion oil on a dry objective (e.g., 4x, 10x, 40x) can cause severe and often irreversible damage. Dry objectives are not sealed to prevent oil from entering their internal structures. The oil can seep inside, dissolve the adhesive that binds the lens elements, contaminate the internal optics, and attract dust, ultimately rendering the objective useless. Always ensure an objective is marked 'Oil' before applying immersion oil.

Q: How quickly do I need to clean immersion oil from my objective?
A: It is highly recommended to clean immersion oil from your objective immediately after use. While modern synthetic oils do not harden as quickly as older cedar oil, leaving oil on the lens can still attract dust, become sticky, or potentially seep into the objective over time. Prompt cleaning ensures the longevity and optimal performance of your microscope.

Conclusion

Immersion oil is far more than just a liquid; it is a fundamental component of advanced light microscopy, acting as a crucial optical bridge that unlocks higher levels of detail and clarity. By understanding its role in maximising Numerical Aperture and minimising light loss, microscopists can harness its power to reveal the intricate beauty of the unseen world. Proper application and diligent cleaning are key to maintaining both the performance of your microscope and the integrity of your observations. Embrace this essential technique, and you'll find your journey into the microscopic realm becomes significantly more illuminating.
