EV & Hybrid Garage Equipment Guide

The automotive landscape is rapidly shifting towards electric and hybrid vehicles, presenting both opportunities and challenges for independent garages. As more EVs and hybrids roll off the production line, workshops that aren't equipped to service them risk being left behind. Choosing the right garage equipment is paramount to not only keeping pace with this evolution but also to ensuring the safety of your technicians and the integrity of the vehicles you work on. This guide will delve into the essential tools and considerations for equipping your garage to confidently tackle electric and hybrid vehicle maintenance and repair.

Understanding the Unique Demands of EV/Hybrid Servicing

Electric and hybrid vehicles operate on fundamentally different principles to traditional internal combustion engine (ICE) vehicles. The most significant difference lies in their high-voltage electrical systems. These systems, often operating at hundreds of volts, pose a serious risk of electric shock if not handled with the appropriate precautions and equipment. Beyond the high-voltage components, EVs and hybrids also feature sophisticated battery management systems, regenerative braking, and unique thermal management systems that require specialised diagnostic and repair tools.

Key Equipment Categories for EV/Hybrid Workshops

To effectively service electric and hybrid vehicles, your workshop will need to invest in several key categories of equipment. These can be broadly categorised as follows:

1. Safety Equipment: The Non-Negotiable Foundation

Safety is the absolute priority when working with high-voltage systems. Without the correct safety gear, the risk to technicians is unacceptably high. A premium electric/hybrid vehicle safety package should be your first consideration. This typically includes:

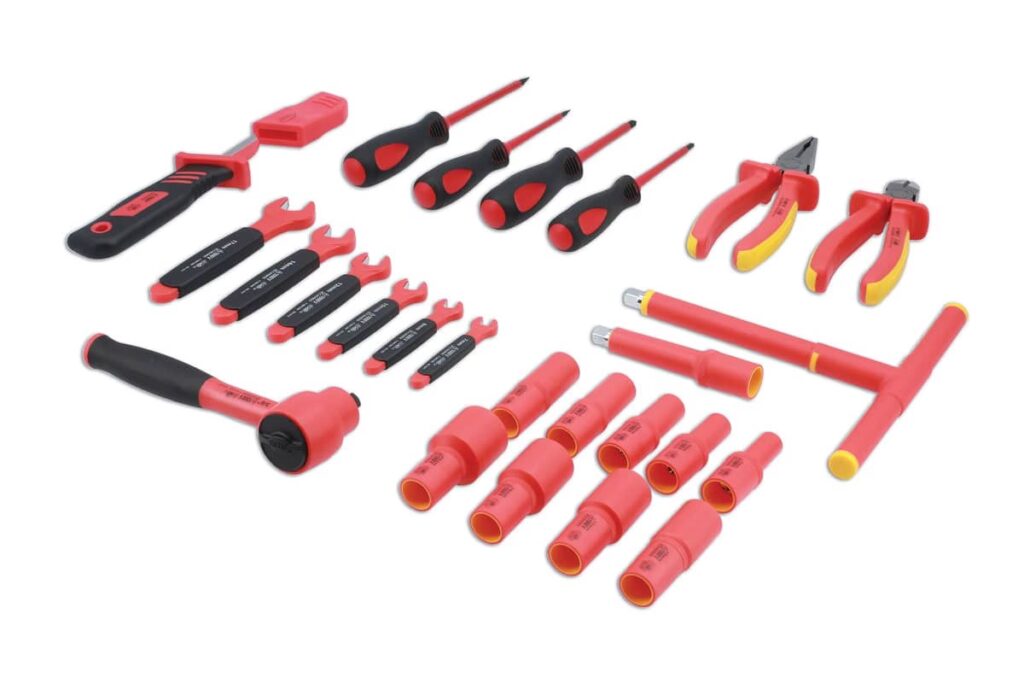

• Insulated Tools: Hand tools (spanners, screwdrivers, pliers, wrenches) specifically designed and rated for working on high-voltage systems. These tools have a thick, durable insulating material covering the metal parts, preventing electrical conductivity. Look for tools rated to IEC 60900 standards.
• High-Voltage Gloves: Class 0, Class 1, or Class 2 insulated rubber gloves, depending on the voltage levels you anticipate working with. These must be regularly inspected for damage and tested for dielectric strength.
• Safety Glasses/Face Shields: To protect against arc flash and debris.
• Insulated Mats: To stand on, providing an extra layer of protection against electrical current.
• Warning Signs and Barriers: To clearly demarcate work areas and alert others to the presence of high-voltage systems.
• High-Voltage Cable Disconnect Tools: Specialised tools for safely disconnecting high-voltage cables, often colour-coded (typically orange).
• Insulated Jump Leads: For jump-starting hybrid vehicles (only when specified by the manufacturer and with appropriate safety protocols).

2. Diagnostic Equipment: Unlocking the Secrets of the Powertrain

Modern EVs and hybrids are packed with sensors and complex control modules. Advanced diagnostic tools are essential for identifying faults and understanding the vehicle's intricate systems.

• Advanced Diagnostic Scanners: These need to be capable of communicating with the specific protocols used by EV and hybrid manufacturers. Generic OBD-II scanners are often insufficient. Look for scanners that can access EV-specific modules like battery management systems (BMS), motor controllers, and charging systems. Brands like Autel, Launch, and Snap-on offer advanced options.
• Battery Diagnostic Tools: These tools can assess the health and state of charge of the main traction battery, crucial for diagnosing performance issues and estimating remaining battery life.
• Insulation Resistance Testers: To verify the integrity of the high-voltage cabling and components, ensuring no leakage to the chassis.
• Oscilloscopes: For visualising electrical signals and diagnosing complex electrical faults.

3. Lifting and Support Equipment: Safe and Secure Access

EVs and hybrids can be significantly heavier than their ICE counterparts due to the large traction batteries. This necessitates robust lifting and support equipment.

• Heavy-Duty Vehicle Lifts: Ensure your lifts have a sufficient weight capacity to safely handle the increased weight of EVs and hybrids. Four-post lifts with sufficient lifting height are ideal for battery removal and underbody access.
• Transmission Jacks/Battery Handling Equipment: The traction battery is often a large, heavy component. Specialised battery handling lifts or transmission jacks with appropriate adapter plates are necessary for safe removal and installation. These are designed to support the battery's weight and allow for precise manoeuvring.

4. Charging and Electrical System Tools: Powering Up and Maintaining

Servicing the charging system and other electrical components requires specific tools.

• EV Charging Equipment: While not strictly for servicing, having the ability to charge a customer's EV can be beneficial. More importantly, diagnostic equipment for testing charging ports and cables is essential.
• DC Power Supply: A variable DC power supply can be useful for simulating battery power during diagnostics, allowing technicians to work on systems without the high-voltage battery connected.
• Multimeters: High-quality multimeters with CAT III or CAT IV ratings are essential for measuring voltage, current, and resistance safely. Ensure they have appropriate leads and probes for high-voltage work.

5. Thermal Management Tools: Keeping it Cool

EV batteries and power electronics generate significant heat and require sophisticated cooling systems.

• Coolant System Service Tools: Tools for flushing, refilling, and pressure testing the specific coolant systems used in EVs and hybrids, which often use specialised dielectric coolants.
• Infrared Thermometers/Thermal Cameras: Useful for identifying hotspots or uneven temperatures within battery packs or power electronics, indicating potential issues.

Training: The Human Element of EV Servicing

Even with the best equipment, untrained technicians are a significant risk. Comprehensive training is non-negotiable. Look for training courses that cover:

• High-voltage system safety protocols.
• Understanding EV/hybrid powertrains.
• Battery technology and diagnostics.
• Specific manufacturer diagnostic procedures.
• Safe handling of high-voltage components.

If you need any help in choosing the right training course for you and your team, please feel free to contact us online or call us on 01234 240 503.

Making the Investment: Costs and Considerations

Equipping a workshop for EV and hybrid servicing represents a significant investment. However, the cost of not investing can be far greater, in terms of lost business and potential safety incidents. When budgeting, consider:

• Initial Equipment Purchase: This will be the largest outlay. Prioritise safety equipment and essential diagnostic tools.
• Training Costs: Factor in the cost of courses and potential downtime for technicians.
• Ongoing Maintenance and Calibration: Diagnostic equipment and safety tools require regular calibration and maintenance to remain effective and safe.
• Software Updates: Diagnostic software needs to be kept up-to-date to recognise new vehicle models and system updates.

Table: Essential EV/Hybrid Garage Equipment Checklist

Frequently Asked Questions (FAQs)

Q1: Do I need to buy entirely new equipment for EVs/hybrids?

Not necessarily entirely new, but you will need to supplement your existing equipment with specialised safety gear, advanced diagnostic tools, and potentially heavier-duty lifting equipment. Your existing ICE tools may still be useful for non-high-voltage components.

Q2: What is the most critical piece of equipment for EV servicing?

Without question, the most critical equipment is high-voltage safety gear, including insulated tools and gloves. Working on high-voltage systems without this can be fatal.

Q3: How much does it typically cost to equip a garage for EV servicing?

The cost can vary significantly depending on the number of bays and the level of service you intend to offer. A basic setup focusing on safety and essential diagnostics could range from £5,000 to £15,000, while a fully equipped workshop could easily exceed £30,000. Training costs are additional.

Q4: Are there specific certifications required for EV technicians?

While not always legally mandated in every region, industry-recognised certifications (e.g., IMI qualifications in the UK) are highly recommended and often sought by employers and customers to demonstrate competence and ensure safety.

Q5: How often does diagnostic equipment need updating?

Diagnostic software should be updated as soon as new versions are released by the manufacturer to ensure compatibility with the latest vehicle models and software revisions. Hardware may need upgrading every 3-5 years to keep pace with technological advancements.

Conclusion: Embracing the Electric Future

The transition to electric and hybrid vehicles is an undeniable trend that independent garages must embrace to remain competitive and relevant. By carefully selecting the right specialised equipment, investing in comprehensive technician training, and prioritising safety above all else, your workshop can confidently navigate this exciting new era of automotive repair. The investment now will pay dividends in future business and a reputation for expertise in the burgeoning electric vehicle market.
