Wishbone Woes: Your Guide to Car Suspension Arms

When it comes to the intricate dance between your car and the road, few components are as fundamental yet often overlooked as the wishbone. Also widely known as a suspension arm or control arm, this unsung hero of your vehicle’s chassis plays a pivotal role in ensuring a stable, comfortable, and, most importantly, safe driving experience. Connecting the chassis frame directly to the wheels, the wishbone is integral to both the suspension and steering systems, allowing for precise wheel movement while maintaining crucial structural integrity. Without a properly functioning wishbone, your vehicle's handling, tyre wear, and overall stability can be severely compromised, making it a component that demands your attention.

Understanding the Wishbone: A Vital Component

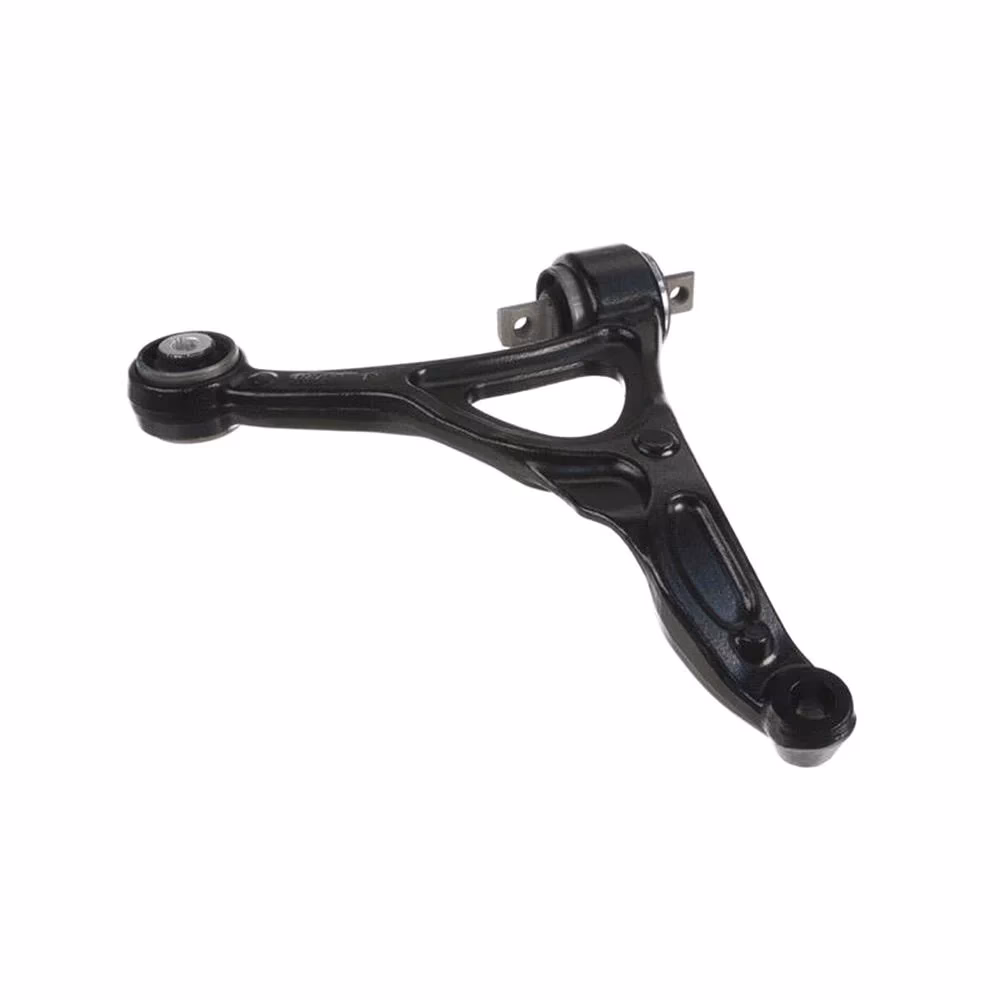

At its core, a car wishbone is a robust, usually Y-shaped or A-shaped, metal arm that forms a critical link in your car's suspension system. Its primary function is to provide a movable connection between the vehicle's chassis and the wheel hub. This connection allows the wheel to move up and down in response to road imperfections, absorbing shocks and bumps, while simultaneously maintaining the correct wheel alignment relative to the road surface. This dual action is crucial for stable steering, effective braking, and consistent tyre contact, all of which contribute to your vehicle's safety and performance.

There are various designs of control arms, including upper and lower wishbones, depending on the specific suspension setup of your vehicle. Despite their variations, they all share the common goal of managing wheel movement and maintaining geometry. Typically, a wishbone is attached to the chassis via rubber bushings (also known as bearings) and to the wheel hub via a ball joint. These flexible connections are essential, as they allow for the necessary articulation and rotation required for suspension travel and steering input, yet they are also the component's most common point of failure.

Why Wishbones Fail: Common Causes and Symptoms

While wishbones themselves are often made from durable, welded metal, designed to withstand significant stress, their Achilles' heel lies in the attached components, particularly the bushings and ball joints. Over time, these parts are subjected to constant motion, friction, and environmental exposure, leading to wear and deterioration. Understanding the causes of failure and recognising the symptoms early can save you from more extensive and costly repairs down the line.

Common Causes of Wishbone Failure:

• Corrosion and Rust: Exposure to road salt, moisture, and general atmospheric conditions can lead to rust, weakening the metal components of the wishbone and its attachments.
• Wear and Tear (Old Age): Like any mechanical part, wishbones and their bushings have a finite lifespan. Over years of use, the rubber in the bushings can become brittle, crack, or lose its elasticity, leading to excessive play.
• Impact Damage: Hitting potholes, driving too quickly over speed bumps, or minor collisions can exert sudden, extreme forces on the wishbone, potentially bending the arm or damaging the bushings and ball joints.
• Poor Road Conditions: Regularly driving on rough or unmaintained roads subjects the suspension system to continuous stress, accelerating wear on all components, including the wishbones.

Symptoms of a Failing Wishbone:

When a wishbone or its bushings begin to fail, your car will often exhibit a range of noticeable symptoms. Ignoring these signs can lead to compromised driving safety and further damage to other suspension and steering components. Here’s what to look out for:

If you experience any of these symptoms, it's crucial to have your vehicle inspected by a qualified professional without delay. Early diagnosis can prevent a minor issue from escalating into a costly and dangerous problem.

The Importance of Timely Diagnosis and Replacement

Ignoring a faulty wishbone isn't just a matter of comfort; it's a significant safety concern. A compromised wishbone directly impacts your ability to steer and control the vehicle, increasing the risk of accidents. Furthermore, the unwanted play caused by worn bushings can rapidly accelerate wear on other critical components, including tyres, ball joints, shock absorbers, and even the steering rack. What might start as a relatively inexpensive wishbone replacement can quickly snowball into a much larger bill for an entire front axle overhaul if left unattended.

Wishbone Replacement: A DIY Guide (with Crucial Caveats)

While replacing a wishbone might seem like a daunting task, it is achievable for a confident DIY mechanic with the right tools and a strong emphasis on safety. However, it's vital to remember that any intervention in the steering geometry requires subsequent professional alignment. The following is a general guide and not a substitute for a vehicle-specific repair manual. We strongly recommend seeking a certified car mechanic for this task if you are unsure.

Is a Wishbone Replaceable Separately?

The wishbone itself is a solid, welded metal component. Its weak points are the pressed bushings and the ball joint. While technically the bushings can be replaced separately using specialist tools (like a press), this is often more complicated and time-consuming than replacing the entire wishbone assembly. For safety reasons, the bushing is very tightly fixed. Given that complete control arms are often very affordable, replacing the entire component with pre-mounted bushings is usually the simpler, safer, and more cost-effective solution for the average mechanic.

Tools You'll Need:

• Car lift (ideal) or sturdy axle stands and a reliable jack
• Gearbox jack (for supporting the wheel during installation)
• Torque spanner
• Spanner set (various sizes)
• Cranked ring spanner set
• Jig saw (optional, for bushing removal if attempting separate replacement)
• New wishbone (and new wishbone bushing if replacing separately)

Spotting a Defective Wishbone:

Before you begin, visually inspect the suspected faulty wishbone. A defective control arm or bushing is often easy to identify: the thick rubber ring of the bushing will appear porous, cracked, or even completely torn. If the defect is severely affecting driving quality, the rubber bushing has likely failed entirely. You can often confirm this by carefully using a lever to gently move the wishbone up and down; any excessive play or visible cracks in the rubber are clear indicators.

Safety First! Crucial Precautions:

Replacing the wishbone requires working underneath the car. This carries inherent risks. Your safety is paramount. Never compromise on safety equipment.

• Never rely solely on a car jack to support the vehicle.
• Always use suitable axle supports placed securely under the car's designated jacking points.
• Ensure the car is on a flat, stable surface.
• Pull the handbrake, engage a low gear (or Park for automatics), and place safety wedges under the rear wheels.
• Never work alone. Have someone else present who knows you are working under the car.
• Do not use improvised supports such as rocks, tyres, or wood blocks.

Step-by-Step DIY Guide (General Description):

This is a general guide. Specific bolt locations and torque settings will vary by vehicle. Consult your car's service manual.

1. Removing the Wheel: After safely securing the car on a lift or axle stands, remove the wheel from the side with the affected wishbone.
2. Unscrewing Bolts: The wishbone is connected to the car via several bolts. Typically, you'll find a connection to the vertical coupling rod, three bolts on the wheel hub, and two bolts on the chassis (one vertical, one horizontal). Use the cranked ring spanner to hold the nut while unscrewing the vertical bolt. Then, carefully loosen and remove all other connecting bolts.
3. Disengaging the Wishbone: First, carefully disengage the wishbone from the wheel side. Once free, gently pull out the horizontal chassis bolt. The old wishbone should now be completely free.
4. Installing a New Wishbone: Position the new control arm in place of the old component. First, connect it to the wheel hub, securing the three bolts with just a few turns initially. This allows for some play needed for the next steps. Now, insert the horizontal chassis bolt and screw it in with 2-3 turns. Inserting the vertical chassis bolt can be tricky; proceed with care to avoid damaging the new component's pressed bushings.
5. Relieving the Front Wheel (CRITICAL STEP): This is perhaps the most crucial step for the longevity of your new wishbone's bushings. On no account tighten the chassis bolts of the control arm while the front wheel is hanging in the air. If the control arm is tightened too soon, strong, excessive torsion forces will destroy the bushings, significantly reducing their lifespan. Instead, use a gearbox jack or a second jack to lift the front wheel until the shock absorber is approximately 50% compressed. This simulates the car's normal driving position, ensuring the wishbone bushing is under normal tension and not excessively strained. Now, all bolts can be tightened to the manufacturer's prescribed torque settings.
6. Installing the Wheel and Checking Alignment: Reinstall the front wheel and secure it with the correct torque. Remember, replacing a wishbone directly impacts the steering geometry. Therefore, after replacement, the car must be taken to a garage for a professional wheel alignment check. This is non-negotiable for safe driving and to prevent rapid tyre wear.
7. Replacing the Control Arm Bushing (Alternative/Advanced): As mentioned, replacing just the bushing is more complex. If you have the special pressing tools, you would disassemble the wishbone as described, press out the old bushing, and then press in the new one. Re-installation still requires the critical step of relieving the front wheel to prevent torsion in the new bushing. A common DIY trick for removing a stubborn old bushing is to make a single cut transversely through the rubber with a jig saw, right to the wishbone pin, which can relieve tension and allow removal. However, installing a new bushing without a press is challenging, and hammering it in is not recommended as it can damage the bushing and reduce its lifespan. Using a vice for gentle, even pressure is a better but still difficult DIY alternative.

Cost Implications: New Wishbones and Full Axle Sets

The cost of replacing wishbones can vary significantly depending on your vehicle's make and model, and the quality of the part. As a crucial component, it's wise not to skimp on quality. One of the main reasons why it's important to diagnose an issue with your suspension arms promptly is the potential expense.

Typically, individual wishbones can range from around £80 up into the hundreds, depending on the material and car model. However, here at Spares Hut, we pride ourselves on offering exceptional value. Our control arms average at a highly competitive £30-£50, often almost half the normal average price! We highly encourage you to check out our extensive online store for a wide range of suspension arms and other car parts.

While replacing a single wishbone is often the immediate repair, it's worth considering the broader picture. A single new wishbone might start at around £13-£15 for the part alone, but often, these components age simultaneously. If one wishbone is failing, it's highly probable that other parts in the same area—such as coupling rods, ball joints, tie rods, other control arm bushings, or support joints—are also nearing the end of their lifespan. Replacing individual parts can lead to repeated trips to the garage and multiple alignment checks.

A more comprehensive solution is to purchase a complete front axle set. These sets typically include:

• Control arms (wishbones)
• Coupling rods
• Ball joints
• Tie rods
• Control arm bushings
• Support joints

A complete set for both sides of the front axle can cost anywhere from £71-£90. While the initial outlay is higher, the effort for replacing all these parts is only slightly more than for a single wishbone. By replacing the entire axle's components, you establish a defined 'new' starting point for your suspension, significantly extending the period before you'll face similar issues again. Plus, since an alignment check is necessary anyway after any significant suspension work, combining the repairs makes economic sense.

Frequently Asked Questions (FAQs)

Q: Can I drive with a faulty wishbone?

A: While you might be able to drive your car, it is strongly advised against. A faulty wishbone severely compromises steering control, vehicle stability, and braking performance, significantly increasing the risk of an accident. It also causes rapid wear to other expensive components like tyres and shock absorbers.

Q: How often should wishbones be checked?

A: Wishbones and their bushings should be inspected as part of your regular service schedule, typically annually or every 10,000-12,000 miles. Any time you notice the symptoms described above, an immediate inspection is warranted.

Q: How long do wishbones typically last?

A: The lifespan of a wishbone can vary greatly depending on driving conditions, vehicle type, and part quality. Generally, they can last anywhere from 50,000 to 100,000 miles or more. However, the rubber bushings often fail much sooner, typically between 30,000 and 60,000 miles, especially if subjected to harsh conditions.

Q: Is it always necessary to get a wheel alignment after wishbone replacement?

A: Yes, absolutely. Replacing a wishbone directly alters the geometry of your vehicle's suspension and steering. A professional wheel alignment is crucial to ensure correct tyre wear, safe handling, and optimal vehicle performance. Skipping this step will lead to rapid and uneven tyre wear and could make your car unsafe to drive.

Conclusion

The car wishbone, or suspension arm, is an indispensable part of your vehicle's safety and performance. Understanding its function, recognising the signs of wear, and addressing issues promptly are vital for maintaining your car's integrity and ensuring your safety on the road. Whether you opt for a DIY replacement or seek professional help, prioritising the health of your wishbones will lead to a smoother, safer, and more economical driving experience in the long run. Don't let a small issue turn into a significant headache – act quickly and drive with confidence.
