Wind Turbine Brakes: Keeping the Power Generation Safe

While the primary objective of a wind turbine is to harness the kinetic energy of the wind and convert it into electrical power, the ability to control and halt its rotation is of paramount importance. Often overshadowed by the drive for increased efficiency and energy output, wind turbine brakes are essential safety mechanisms that protect both the machinery and the investment. These vital components ensure that turbines can be safely maintained, respond to emergencies, and mitigate risks associated with extreme weather conditions. Understanding the different types of brakes and their functions is key to appreciating the complete operational picture of wind energy.

The Purpose of Wind Turbine Brakes

Wind turbine brakes are not merely an afterthought; they are integral to the safe and reliable operation of any wind energy system. Their primary functions can be broadly categorised as follows: * Maintenance and Servicing: During routine inspections, repairs, or component replacements, the turbine rotor must be brought to a complete standstill. Mechanical brakes provide a robust and reliable method for securing the rotor in a stationary position, preventing accidental movement. * Emergency Stops: In situations of sudden, unexpected events such as extreme wind gusts that exceed operational limits, grid faults, or mechanical malfunctions, an immediate and effective braking system is crucial. This prevents catastrophic damage to the turbine. * Operational Control and Risk Management: In certain operating conditions, such as during exceptionally high wind speeds that could over-speed the turbine, or when there's a need to temporarily halt power generation, brakes can be applied to manage the rotational speed and reduce stress on the components. * Protection of Investment: By preventing over-speeding and damage during adverse conditions, brakes play a significant role in protecting the substantial financial investment represented by a wind turbine. These braking systems are typically located within the nacelle, the housing at the top of the tower that contains the main components, usually situated just underneath the low-speed shaft. This strategic placement allows them to exert control over the main rotating elements of the turbine.

Types of Wind Turbine Brakes

Wind turbine braking systems can be broadly classified into two main categories: electrical and mechanical. Often, turbines employ a combination of these systems for comprehensive safety and control.

Electrical Wind Turbine Brakes

Electrical braking methods, often referred to as dynamic braking or regenerative braking, are particularly effective for smaller wind turbines. The principle behind these systems involves redirecting the electrical energy generated by the turbine. Instead of sending this power to the grid or a load, it is diverted to a bank of resistors. As the electrical energy flows through these resistors, it is converted into heat, effectively creating a braking force that slows the rotation of the turbine. This process dissipates the kinetic energy of the moving blades as thermal energy. Electrical brakes are well-suited for cyclical application. By intermittently engaging the braking system, the turbine's speed can be managed, allowing it to continue rotating at a safe velocity even in high winds. This method is efficient as it prevents excessive energy from being wasted or causing undue stress on the mechanical braking components. However, for larger, grid-connected wind turbines, electrical braking alone is often insufficient for the robust stopping power required, and it is typically used in conjunction with mechanical systems or for speed regulation rather than a complete standstill.

Mechanical Wind Turbine Brakes

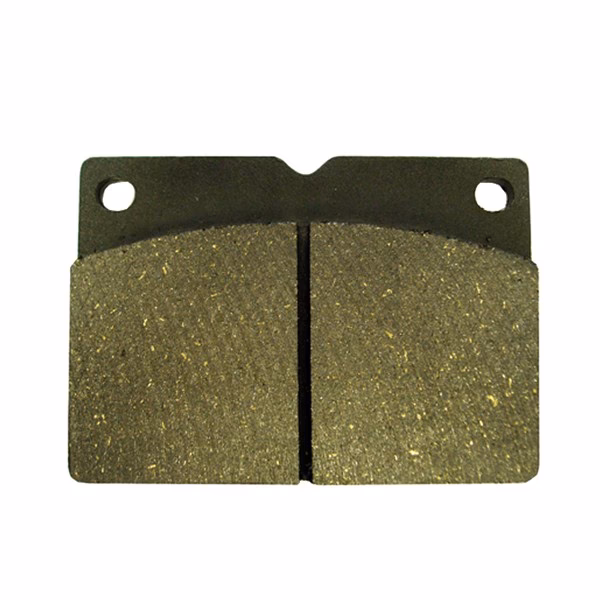

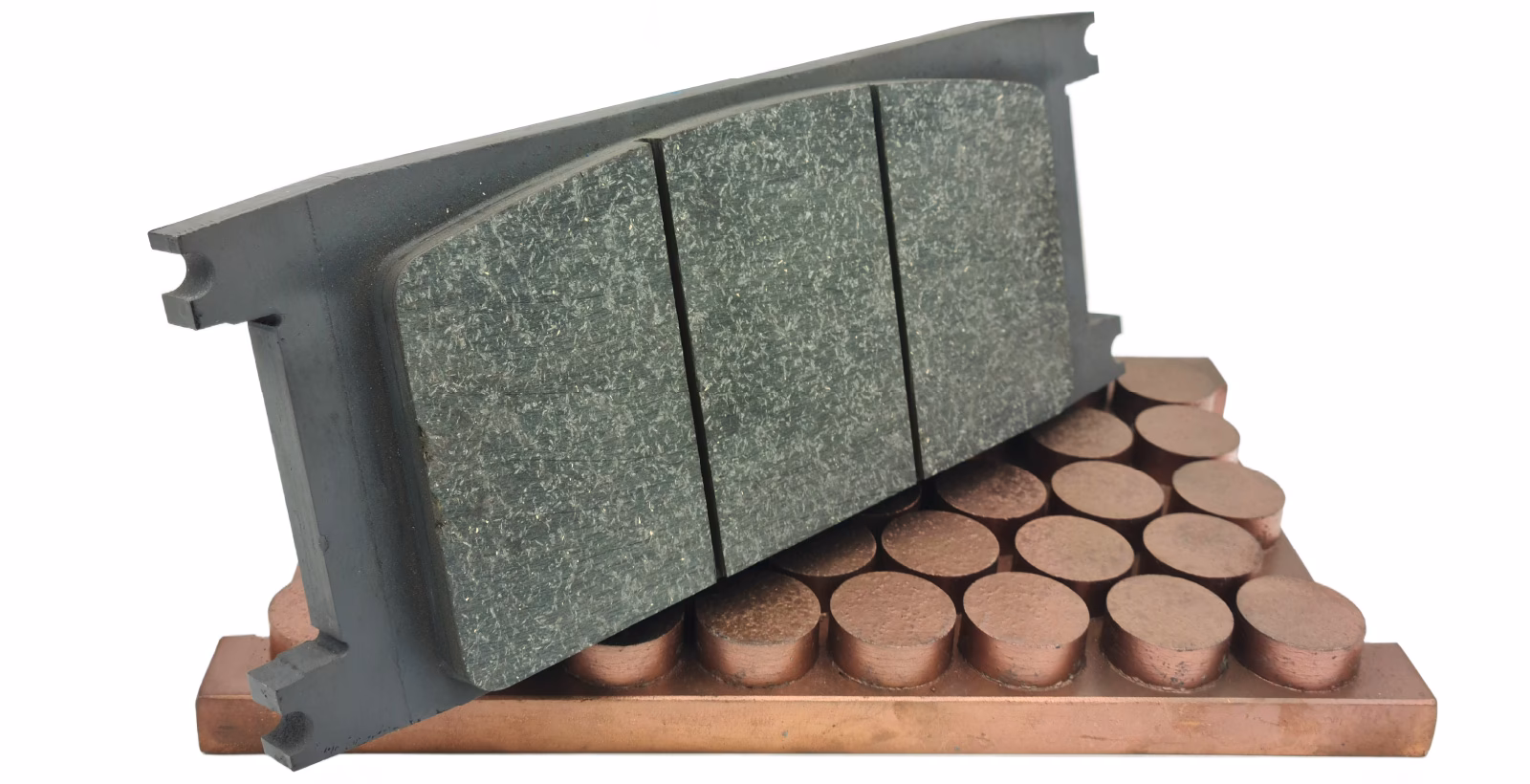

Mechanical brakes are the workhorses of wind turbine braking systems, providing the physical force needed to bring the rotor to a halt. The two primary types of mechanical brakes found in wind turbines are: * Drum Brakes: These operate similarly to the brakes found in many vehicles. A rotating drum is attached to the shaft, and brake shoes, actuated by a hydraulic or mechanical mechanism, press against the inner surface of the drum. This friction generates the braking torque. * Disc Brakes: These are more common in larger, modern wind turbines. A rotating disc, typically mounted on the high-speed shaft (though sometimes on the low-speed shaft), is gripped by brake calipers. These calipers house brake pads that apply friction to both sides of the disc, generating substantial braking force. Mechanical brakes serve two critical roles: 1. Primary Rotor Locking System (Backup): They act as a crucial backup to the primary method of holding the turbine stationary, which is often a rotor lock or a pitch control system that feathers the blades. In the event of a failure in these primary systems, the mechanical brake can be deployed to secure the rotor. 2. Emergency and Over-speed Situations: For critical safety reasons, mechanical brakes are the go-to solution for bringing a turbine to a complete stop during emergencies, such as sudden, violent wind gusts or when the turbine's rotational speed becomes dangerously high. It is imperative to note that mechanical brakes are designed for gradual application. Attempting to stop a wind turbine from its full operational speed using only mechanical brakes can generate immense heat, potentially leading to fires within the nacelle. Therefore, before engaging a mechanical brake, the turbine's rotational speed must be significantly reduced. This reduction is typically achieved using the electrical braking system or by 'furling' the blades, which means pitching them to reduce their aerodynamic efficiency and slow their rotation.

Other Braking Considerations

While electrical and mechanical brakes are the most common, hydraulic brakes also exist and are sometimes employed, particularly for emergency stopping functions. These systems use hydraulic fluid pressure to actuate the braking mechanism. Modern trends in wind turbine brake development focus on enhancing reliability, reducing noise levels during operation, and simplifying maintenance procedures. Innovations in materials science and actuator technology are continuously improving the performance and longevity of these critical components. For those involved in heavy industry and seeking robust braking and friction solutions, understanding the specific requirements of the application is key to selecting the appropriate system.

How High-Speed Brakes Work on a Wind Turbine

When dealing with larger wind turbines or those designed for high power generation, the stopping requirements are significantly more demanding. While disc brakes provide substantial stopping power, there are instances where additional braking capacity is needed, particularly for rapid deceleration or emergency scenarios. This is where specialized high-speed brakes come into play. These systems are designed to engage directly with the generator or other high-speed rotating components within the drivetrain. By interacting with these elements, high-speed brakes can exert a more direct and powerful influence on the turbine's rotational motion, enabling faster and more effective deceleration when required.

Frequently Asked Questions

Q1: Why are wind turbine brakes important?A1: Wind turbine brakes are vital for safety, enabling maintenance, responding to emergencies like extreme wind gusts, and preventing over-speeding, thereby protecting the turbine from damage and ensuring operational longevity. Q2: What are the main types of wind turbine brakes?A2: The two primary types are electrical brakes (used more for speed regulation and smaller turbines) and mechanical brakes (such as drum and disc brakes, used for holding and emergency stops). Q3: Can mechanical brakes stop a turbine from full speed?A3: No, attempting to stop a turbine from full speed using only mechanical brakes can cause overheating and fires. The turbine's speed must be significantly reduced first, usually via electrical braking or blade pitching. Q4: Where are wind turbine brakes located?A4: They are typically located within the nacelle, the housing at the top of the tower, usually positioned beneath the low-speed shaft. Q5: What is the role of electrical brakes in larger turbines?A5: In larger, grid-connected turbines, electrical brakes are primarily used for speed regulation and control, often as a precursor to engaging mechanical brakes for a complete stop, rather than for bringing the turbine to a standstill on their own.
