Wilwood Calipers: Engineering Performance Braking

When it comes to upgrading your vehicle's braking system, few names command as much respect and recognition in the performance automotive world as Wilwood Engineering. For decades, Wilwood has been at the forefront of designing and manufacturing high-performance disc brakes, catering to an incredibly diverse range of applications, from daily drivers seeking an edge to purpose-built race cars pushing the limits. Their reputation is built on a relentless pursuit of innovation, quality, and, most importantly, unparalleled stopping power.

Wilwood's commitment to engineering excellence is evident in the sheer variety and sophisticated design of their brake calipers. Unlike many manufacturers who might offer a limited selection, Wilwood provides a comprehensive catalogue of calipers, each meticulously designed to meet specific performance requirements, vehicle types, and budget considerations. Understanding the nuances of their offerings is key to selecting the perfect braking solution for your automotive project.

The Core Philosophy Behind Wilwood Calipers

At the heart of every Wilwood caliper lies a dedication to several key principles: lightweight construction, superior rigidity, efficient heat dissipation, and precise modulation. These principles guide their engineering process, ensuring that every product not only performs exceptionally but also contributes positively to the overall dynamics of the vehicle. By reducing unsprung weight, increasing brake feel, and maintaining consistent performance under extreme conditions, Wilwood calipers offer a significant upgrade over standard factory units.

Diverse Range of Caliper Constructions

Wilwood employs various construction methods to achieve different performance characteristics and cost points. Each method offers distinct advantages:

Forged Calipers: Strength and Lightness

Many of Wilwood's most popular performance calipers, such as those in the Dynalite and Superlite series, are manufactured using a forging process. Forging involves shaping metal through compressive forces, resulting in a dense, grain-oriented structure that is inherently stronger and more resistant to fatigue than cast components. This process allows Wilwood to create calipers that are incredibly robust yet remarkably lightweight, a crucial factor in performance applications. The increased strength of forged calipers translates directly into less flex under heavy braking, providing a firmer pedal feel and more consistent stopping power. This method is particularly favoured for applications where durability and weight savings are paramount, making them ideal for both street performance and competitive racing.

Billet/Machined Calipers: Precision and Customisation

For certain high-end or specialised applications, Wilwood also produces calipers machined from solid billets of aerospace-grade aluminium. This process allows for extremely precise tolerances and complex internal designs that might be difficult or impossible to achieve with forging. Billet calipers often feature intricate fluid passages and optimised piston configurations, leading to exceptional performance and heat management. While typically more expensive to produce, billet calipers represent the pinnacle of Wilwood's engineering capabilities, offering unparalleled precision and often allowing for more bespoke designs tailored to specific racing series or unique vehicle setups.

Monobloc Calipers: Unyielding Rigidity

A more advanced form of caliper construction found in Wilwood's premium lines, such as the Aero6 and Aero4, is the monobloc design. Unlike traditional two-piece calipers that are bolted together, monobloc calipers are machined from a single piece of aluminium. This one-piece construction eliminates any potential for flex or twisting that might occur at the joint of a two-piece design. The result is an incredibly rigid caliper that provides an exceptionally firm and consistent pedal feel, superior modulation, and enhanced durability, especially under the extreme temperatures and pressures encountered during track use. This design is highly prized by serious enthusiasts and professional racers for its uncompromising performance.

Mounting Styles: Radial vs. Lug

Wilwood offers calipers designed for two primary mounting styles, each with its own advantages:

• Lug Mount Calipers: This is the more traditional and common mounting style, where the caliper bolts directly to the vehicle's spindle or mounting bracket using bolts that pass through mounting ears (lugs) on the caliper body. Lug mount calipers are versatile and widely used across a broad spectrum of vehicles. They are generally easier to install as direct replacements for factory calipers.
• Radial Mount Calipers: Increasingly popular in high-performance and racing applications, radial mount calipers bolt to the vehicle's upright or bracket using bolts that are parallel to the rotor's axis. This mounting method offers several advantages: increased rigidity, better resistance to flex, and easier alignment with the brake rotor. Radial mounting also allows for quick and precise shimming to centre the caliper over the rotor, which is crucial for optimal performance and pad wear. Many of Wilwood's top-tier calipers utilise this more robust mounting system.

Piston Configurations: Tailoring Braking Force

Perhaps the most significant differentiator among Wilwood calipers is their piston count and configuration. The number and size of pistons directly influence the clamping force, pedal feel, and heat management capabilities of the caliper. Wilwood offers a range of options to suit various needs:

• 2-Piston Calipers: Often found in entry-level performance kits or on the rear axles of vehicles where less braking force is required. They offer a significant upgrade over single-piston floating calipers in terms of rigidity and even pad wear. Examples include some Dynapro series calipers.
• 4-Piston Calipers: A very popular choice for performance street cars and light track use. Four-piston calipers provide a balanced combination of stopping power, modulation, and heat dissipation. They are a substantial upgrade for most vehicles and are available across many Wilwood series, including Dynalite, Dynapro, and Superlite.
• 6-Piston Calipers: Moving into serious performance territory, 6-piston calipers offer superior clamping force and an even larger pad area for enhanced stopping power and heat management. These are typically found in high-performance street and track applications, especially for the front axle of powerful vehicles. Wilwood's Aero6 and Superlite 6R calipers are prime examples.
• 8-Piston Calipers: At the pinnacle of Wilwood's offerings, 8-piston calipers are designed for extreme performance, heavy-duty applications, or vehicles requiring maximum stopping power, such as large SUVs, trucks, or dedicated endurance race cars. They offer the largest pad area and most extensive heat capacity, providing uncompromising braking performance under the most demanding conditions.

Wilwood also employs differential bore pistons in many of their multi-piston calipers. This design uses pistons of different diameters, typically with smaller pistons leading the rotor and larger ones trailing. This compensates for the natural taper wear of brake pads, ensuring more even pad wear and consistent clamping force across the entire pad surface, thereby extending pad life and maintaining optimal performance.

Key Wilwood Caliper Series & Their Applications

While Wilwood continuously innovates, several core series represent their primary offerings:

• Dynalite Series: These are Wilwood's most popular and versatile calipers. Known for their compact size, lightweight forged construction, and excellent performance-to-cost ratio, Dynalite calipers are a go-to choice for street performance, road racing, and circle track applications. They are available in 2 and 4-piston configurations.
• Dynapro Series: Building on the success of the Dynalite, the Dynapro series offers enhanced features, often with a more modern aesthetic and improved rigidity. They are designed for a wide range of applications, from street upgrades to light-duty racing, and are available in various piston counts.
• Superlite Series: As the name suggests, Superlite calipers are engineered for maximum weight reduction without sacrificing strength. These are often forged or billet designs, available in 4-piston and 6-piston configurations, and are a favourite among serious racers where every gram counts and performance is paramount.
• Aerolite Series (Aero4, Aero6): Representing Wilwood's premium line, Aerolite calipers are typically monobloc or highly optimised forged designs. They feature advanced airflow for cooling, superior rigidity, and are engineered for the most demanding road racing and high-performance street applications. These are often radial mount and come in 4-piston and 6-piston variants.
• DynaPro Rear Parking Brake (DP-PBP): A specialised caliper designed for rear axle applications that require an integrated parking brake mechanism, combining performance braking with the practicality of a mechanical parking brake.

Materials and Finishes

Wilwood calipers are predominantly manufactured from high-strength aluminium alloys, chosen for their excellent strength-to-weight ratio and heat dissipation properties. To protect these alloys and enhance their aesthetic appeal, Wilwood typically offers various finishes:

• Anodised Finishes: Hard anodising, often in black, provides a durable, corrosion-resistant surface that also helps with heat dissipation. It's a popular choice for performance and race applications due to its ruggedness.
• Powder Coated Finishes: Available in a range of colours (e.g., red, black, grey), powder coating offers excellent chip resistance and a vibrant, long-lasting finish, often favoured for street and show vehicles.

Choosing the Right Wilwood Caliper: A Comparative Guide

Selecting the ideal Wilwood caliper involves considering several factors: your vehicle's weight and power, its intended use (street, track, drag), your budget, and existing wheel clearance. Here's a simplified comparison of popular series:

Frequently Asked Questions About Wilwood Calipers

Are Wilwood calipers street legal?

Yes, many Wilwood brake kits are designed for street use and are perfectly legal. However, it's crucial to ensure that the specific kit you choose is appropriate for your vehicle and meets local regulations. Always check product specifications and consult with a reputable installer or your local authorities if you have concerns.

Do I need to upgrade my master cylinder when installing Wilwood calipers?

It depends. When upgrading to multi-piston calipers, the total piston area often increases, which can change the fluid displacement required from your master cylinder. If the total piston area significantly increases, you might experience a softer pedal or longer pedal travel. Wilwood often recommends specific master cylinder sizes or offers kits that include a compatible master cylinder to ensure optimal brake balance and pedal feel. It's best to follow Wilwood's recommendations for your chosen kit.

What's the main difference between radial and lug mount calipers?

Mounting orientation and rigidity. Lug mount calipers attach with bolts perpendicular to the rotor, while radial mount calipers attach with bolts parallel to the rotor's axis. Radial mounting offers superior rigidity, reducing flex under extreme braking, and allows for easier and more precise alignment of the caliper over the rotor, which is critical for performance applications.

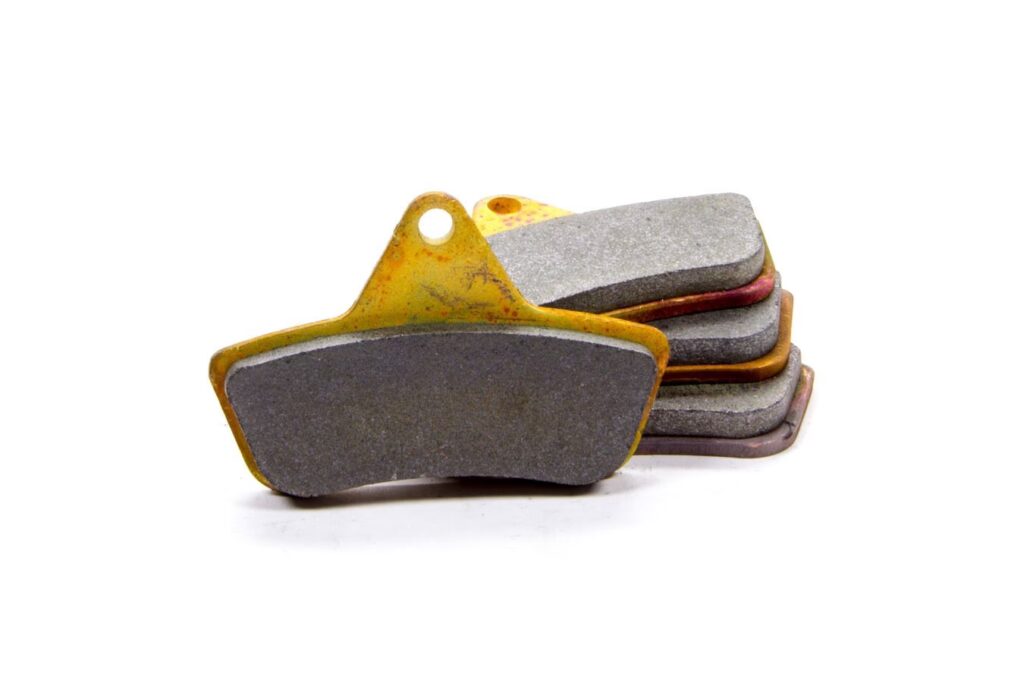

How often should I change my brake pads with Wilwood calipers?

Pad life varies significantly based on driving style, vehicle weight, and the type of brake pads used. For street driving, pads typically last many thousands of miles. For track use, pads can wear out in a single weekend or even less. Regularly inspect your pads for wear and replace them when they reach their minimum thickness, usually around 2-3mm of friction material remaining.

Can I use Wilwood calipers with my existing rotors?

Generally, no. Wilwood calipers are designed as part of a complete brake system, which includes specific rotors that match the caliper's pad shape, mounting dimensions, and heat capacity. Attempting to use Wilwood calipers with mismatched factory rotors is not recommended and can lead to poor performance, uneven wear, or even dangerous brake failure. Always purchase a complete Wilwood kit or ensure all components are compatible.

Conclusion

Wilwood Engineering stands as a titan in the performance braking industry, offering an extensive and meticulously engineered range of calipers to suit virtually every automotive enthusiast's needs. From the robust and lightweight forged Dynalite series to the ultra-rigid monobloc Aerolite calipers, Wilwood provides solutions that promise enhanced stopping power, superior modulation, and unwavering reliability. By understanding the different constructions, mounting styles, and piston configurations, you can confidently choose the perfect Wilwood caliper to transform your vehicle's braking performance and enjoy the unmatched control and safety that comes with their expertly crafted systems. When performance matters, Wilwood delivers.
