Wilwood GP 200: Unpacking Its Racing Caliper Design

For competitive racers in the Kart and Junior Dragster circuits, every component plays a pivotal role in achieving peak performance and, crucially, reliable stopping power. The brake system, often overlooked in favour of pure engine output, is paramount for precise control, shaving crucial tenths off lap times, and ensuring safety. Within this high-stakes environment, the Wilwood GP 200 caliper stands out as a purpose-built solution, meticulously engineered to meet the rigorous demands of racing.

This article delves into the specifics of the Wilwood GP 200, exploring the unique design features that set it apart, from its innovative piston mechanism to its lightweight construction and thermal efficiency. Understanding these elements is key to appreciating why this caliper is a preferred choice for those who demand the absolute best in braking performance.

Understanding the Racing Caliper's Imperative

Before dissecting the GP 200, it's beneficial to briefly grasp the fundamental role of a brake caliper in a racing context. A caliper is the assembly that houses the brake pads and pistons, clamping the pads against the brake rotor to create friction and slow or stop the vehicle. In racing, however, the demands escalate dramatically. Calipers must offer:

• Exceptional Stopping Power: The ability to decelerate rapidly and consistently from high speeds.
• Precise Modulation: Allowing the driver fine control over braking force, crucial for trail braking and handling.
• Resistance to Fade: Maintaining performance under extreme heat generated during repeated hard braking.
• Lightweight Construction: Minimising unsprung weight to improve suspension response and overall vehicle dynamics.
• Durability: Withstanding the harsh conditions of racing without compromise.

The Wilwood GP 200 has been designed from the ground up to excel in all these areas, specifically tailored for the unique requirements of Kart and Jr. Dragster racing.

The Wilwood GP 200: Engineering for the Track

The Revolutionary Self-Retracting and Adjusting Piston System

One of the most distinctive and impactful features of the Wilwood GP 200 is its unique self-retracting and adjusting piston system. Unlike many conventional brake calipers where pistons remain in close proximity to the pads even when not actively braking, this system is engineered for efficiency and precision. As brake line pressure is reduced, signifying the release of the brake pedal, the piston is designed to retract proactively.

What does this mean for the racer? This intelligent retraction minimises pad drag against the rotor when the brakes are not engaged. In racing, every fraction of a second and every ounce of energy conserved can make a difference. Reduced drag translates directly into less rotational resistance on the wheels, leading to better free-rolling performance, potentially higher top speeds, and even marginal improvements in fuel economy for endurance applications. Furthermore, this system contributes to a more consistent pedal feel and immediate brake engagement when pressure is reapplied, crucial for repeatable performance lap after lap.

Featherlight Construction for Maximum Agility

At a mere 1.20 pounds (approximately 544 grams), the Wilwood GP 200 stands as a testament to lightweight engineering. In Kart and Jr. Dragster racing, where the vehicles themselves are inherently light and every gram of unsprung weight impacts performance, this characteristic is profoundly significant. Unsprung weight – the weight of components not supported by the suspension – directly affects how quickly the wheels can respond to road surface irregularities. A lighter caliper means:

• Improved Suspension Compliance: The wheels can follow the track surface more closely, enhancing grip and control.
• Reduced Inertia: Less mass to accelerate and decelerate, contributing to quicker acceleration and more efficient braking.
• Enhanced Handling: A more nimble and responsive vehicle overall.

Achieving such a low weight without compromising strength or performance is a hallmark of Wilwood's engineering prowess, utilising advanced materials and design techniques.

Optimised Thermal Management for Consistent Performance

Braking generates immense heat, and in racing, this heat can quickly lead to brake fade, where the pads and fluid overheat, causing a dramatic loss in stopping power. The GP 200 addresses this critical issue with its deep cup stainless steel piston. This design feature is specifically incorporated for thermal management, reducing the transfer of heat from the high-friction brake pads and rotor into the brake fluid and caliper body.

Stainless steel is a poorer conductor of heat than aluminium, and the 'deep cup' design creates a larger air gap between the hot pad and the fluid, further insulating it. This helps maintain brake fluid integrity and prevents boiling, ensuring consistent pedal feel and reliable braking performance even under the most punishing racing conditions. Maintaining optimal brake temperatures is vital for safety and competitive edge.

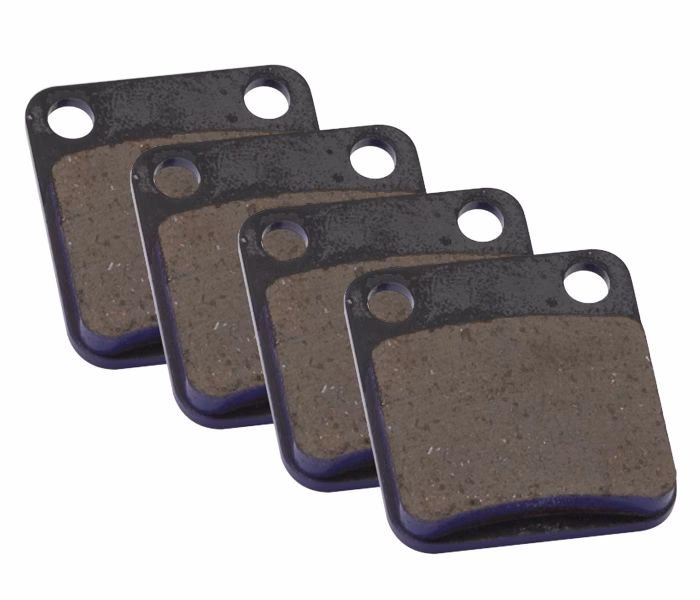

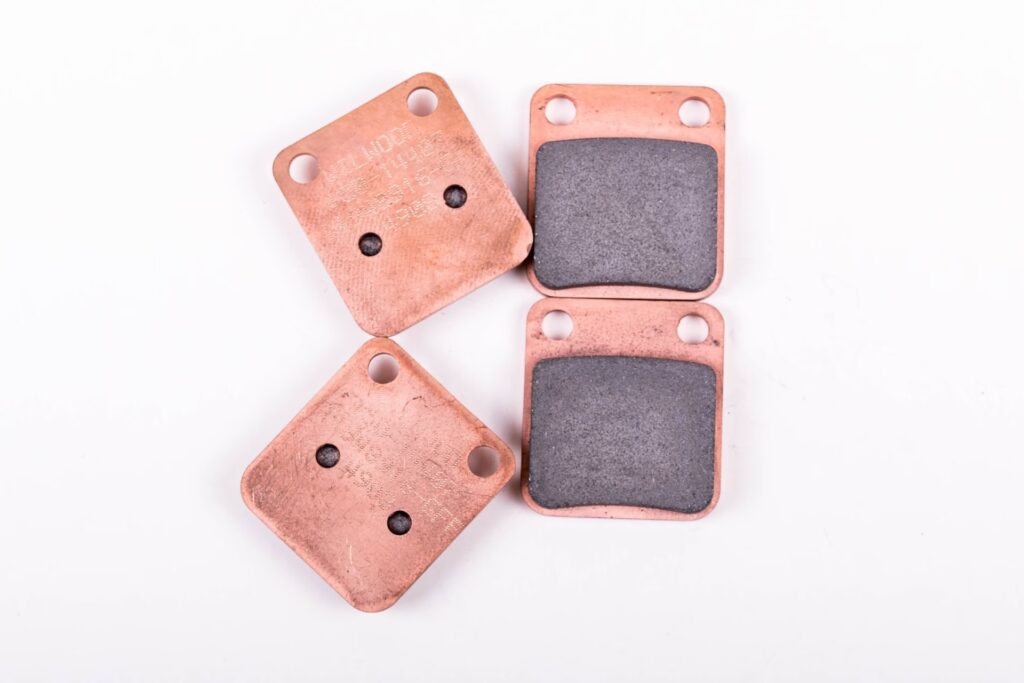

High-Performance, High-Friction Brake Pads Included

While the specific compound details are proprietary, the GP 200 comes equipped with high-performance, high-friction brake pads. The choice of brake pad material is crucial for racing, as it dictates the coefficient of friction, operating temperature range, and wear characteristics. High-friction pads are designed to provide aggressive bite and superior stopping power from cold, and maintain that performance as temperatures rise during a race. The fact that these are included underscores Wilwood's commitment to providing a complete, high-performance braking solution straight out of the box.

Versatility and Durability Features

Beyond its core performance attributes, the Wilwood GP 200 includes several thoughtful design elements that enhance its versatility and durability:

• Ambidextrous Mounting: The caliper can be mounted on either side of the vehicle, offering flexibility in chassis design and setup.
• Three Rotor Widths: Compatibility with three different rotor widths allows racers to fine-tune their brake system to specific rotor dimensions, ensuring optimal fitment and performance across various setups.
• Internal Fluid Passage: This design eliminates external crossover tubes, reducing potential leak points and simplifying installation, while also contributing to a cleaner, more compact profile.
• Cotter Pin and Pad Retainer: These components ensure secure pad retention, preventing movement or dislodgement even under extreme forces, and facilitating quick pad changes.
• Blue Anodised Finish: Beyond aesthetics, the anodised finish provides enhanced corrosion resistance and durability, protecting the caliper from the elements and track debris.

Integrated System Approach: The Matched Master Cylinder

Wilwood also offers a specifically designed master cylinder for use with the GP 200 caliper. While not strictly mandatory, using a matched master cylinder is highly recommended. A master cylinder and caliper are designed to work in harmony, with bore sizes and fluid displacement carefully matched to ensure optimal brake pedal feel, response, and overall precision. This integrated system approach maximises the effectiveness of the GP 200, ensuring that every input from the driver translates into predictable and powerful braking action.

Why Choose the Wilwood GP 200 for Your Racing Machine?

The sum of its innovative features makes the Wilwood GP 200 an exceptional choice for serious Kart and Jr. Dragster racers. It's not just a component; it's a performance enhancer designed to give you an edge. Its ability to provide consistent, powerful, and controllable braking, combined with its lightweight and durable construction, translates directly into improved lap times and greater confidence on the track. The reduced drag from the self-retracting piston system can lead to marginal but meaningful gains in straight-line speed, while superior heat management ensures that brake performance remains unwavering throughout a race.

Key Features Comparison: Wilwood GP 200 vs. Generic Racing Caliper

Frequently Asked Questions (FAQs)

What type of brake caliper is the Wilwood GP 200?

The Wilwood GP 200 is a dedicated Kart/Jr. Dragster Caliper, specifically designed for high-performance racing applications. It is a fixed-mount, single-piston caliper, distinguished by its unique self-retracting and adjusting piston system.

How does the self-retracting piston system benefit racing performance?

This system actively retracts the piston as brake line pressure reduces, minimising residual pad drag against the rotor. This leads to less rotational resistance, potentially higher top speeds, improved fuel economy (in endurance situations), and a more consistent, immediate brake pedal response.

Why is the 1.20-pound weight of the GP 200 significant?

Its ultra-lightweight construction significantly reduces unsprung mass. In racing, lower unsprung weight improves suspension response, allowing the wheels to follow track irregularities more effectively, which enhances grip, handling, and overall vehicle agility.

What role does the deep cup stainless steel piston play?

The deep cup stainless steel piston is crucial for thermal management. It reduces heat transfer from the hot brake pads and rotor into the brake fluid and caliper body, helping to prevent brake fade and maintain consistent brake performance under extreme racing conditions.

Are special brake pads required for the Wilwood GP 200?

The GP 200 comes with high-performance, high-friction brake pads included, designed to complement its capabilities. While other compatible pads might exist, using Wilwood's recommended or supplied pads ensures optimal performance and compatibility.

Is a specific master cylinder needed for the GP 200?

Wilwood offers a specifically designed master cylinder for use with the GP 200. While not strictly mandatory, using this matched master cylinder is highly recommended as it ensures optimal fluid displacement and pressure balance, resulting in the best possible pedal feel and braking precision.

Can the Wilwood GP 200 be mounted on any side of the vehicle?

Yes, one of its versatile features is that it can be mounted on either side of the vehicle, providing flexibility for different chassis configurations and setups.

In conclusion, the Wilwood GP 200 brake caliper represents a pinnacle of dedicated racing brake technology. Its comprehensive design, from the innovative self-retracting piston to its meticulous thermal management and ultra-lightweight construction, is engineered to provide competitive racers with a distinct advantage. For those pushing the limits in Kart and Jr. Dragster racing, investing in such a precisely crafted component ensures not just superior stopping power, but also enhanced control, consistency, and ultimately, a better chance at victory on the track. It's a testament to Wilwood's commitment to performance and reliability in the demanding world of motorsport.
