Wheel Alignment and Camber Explained

Understanding Wheel Alignment and Camber Angles

Ensuring your vehicle handles correctly and your tyres wear evenly is paramount for both safety and economy. Two fundamental aspects of your car's suspension that contribute to this are wheel alignment and camber angle. While often discussed together, they represent distinct adjustments that significantly impact your driving experience.

What is Wheel Alignment?

Wheel alignment, often referred to as tracking, is the process of adjusting your vehicle's suspension system. This system connects your car to its tyres. It's crucial to understand that alignment doesn't involve adjusting the wheels or tyres themselves, but rather the angles at which the tyres meet the road. When your wheels are correctly aligned, they are perpendicular to the ground and parallel to each other. This precise setup ensures optimal tyre wear, improved fuel efficiency, and enhanced vehicle handling. Misaligned wheels can lead to a host of problems, from a car pulling to one side to premature tyre degradation.

The Three Pillars of Wheel Alignment:

Wheel alignment encompasses several key angles, with three being the most significant:

• Camber: This refers to the inward or outward tilt of the tyre when viewed from the front or rear of the vehicle. We'll delve deeper into this shortly.
• Toe: Imagine looking down at your car from above. Toe describes the extent to which your tyres turn inwards (toe-in) or outwards (toe-out) relative to each other.
• Caster: Viewed from the side, caster is the angle of the steering axis. This angle plays a vital role in steering stability, centreing, and cornering performance.

Decoding the Camber Angle

The camber angle is a critical component of wheel alignment. It dictates how your wheels are angled in relation to the vertical axis of the vehicle when observed from the front or rear. Camber can be categorised as either positive or negative:

Negative Camber Explained

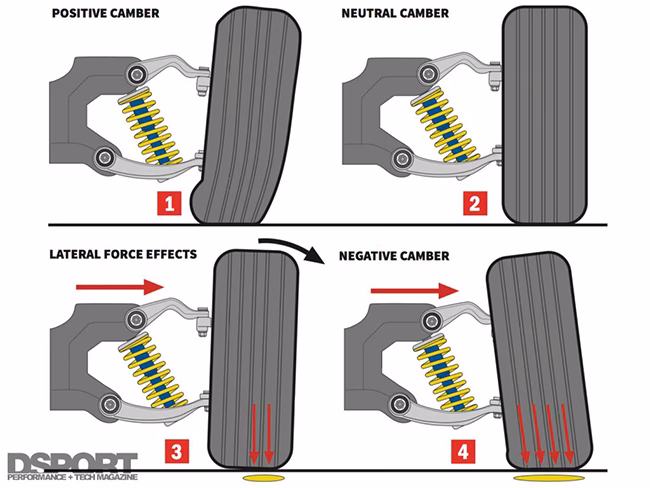

Negative camber occurs when the top of the wheel tilts inwards, towards the centre of the vehicle. This is a common setting, particularly in performance and sports cars. The advantage of negative camber is that it significantly improves grip during cornering. As a vehicle leans into a turn, the negative camber ensures that more of the tyre's surface area remains in contact with the road, thereby increasing traction and reducing the risk of skidding. However, excessive negative camber can lead to accelerated wear on the inner edge of the tyre.

Understanding Positive Camber

Conversely, positive camber is present when the top of the wheel tilts outwards, away from the vehicle's centre. While less common in everyday passenger cars, positive camber can be found in certain types of machinery, such as agricultural vehicles. In these applications, the focus is often on straight-line stability rather than aggressive cornering, and positive camber can contribute to this. Excessive positive camber, like its negative counterpart, will result in uneven tyre wear, specifically on the outer edge of the tyre.

Maintaining the correct camber angle, as specified by your vehicle's manufacturer, is essential for optimal tyre life and consistent handling. Regular alignment checks are the best way to ensure your camber settings remain within these crucial parameters.

What Causes a Wheel to Lean Inward (Negative Camber)?

A wheel leaning inwards, exhibiting negative camber, isn't always a sign of a problem. However, if it's beyond the manufacturer's specified range or has changed unexpectedly, several factors could be responsible:

1. Vehicle Design and Factory Settings: Many modern vehicles are intentionally designed with a slight amount of negative camber to enhance their handling characteristics, particularly during cornering. Manufacturers carefully calibrate these settings to strike a balance between tyre wear and dynamic performance.
2. Suspension Wear and Tear: Over time, the various components of your suspension system – including bushings, control arms, and ball joints – are subjected to constant stress and can wear out. This wear can alter the suspension geometry, leading to an unwanted inward tilt of the wheels. Regular servicing is key to identifying and rectifying these worn parts before they cause significant alignment issues.
3. Impact Damage: Encountering potholes, hitting kerbs, or striking road debris can cause immediate and substantial damage to your suspension. Such impacts can bend suspension components or dislodge alignment settings, resulting in a noticeable change in camber.
4. Improper Alignment Service: If a previous wheel alignment was not carried out correctly, it could result in incorrect camber settings. This might mean one or more wheels are tilted inwards more than they should be, or even that the adjustment wasn't properly secured.
5. Suspension Modifications: Lowering a vehicle or installing aftermarket suspension parts can alter the fundamental geometry of the suspension system. Often, these modifications can lead to an increase in negative camber. It's vital to ensure that any modifications are performed correctly and do not compromise the vehicle's handling or safety.
6. Sagging Springs: The coil springs within your suspension system are designed to support the vehicle's weight and absorb shocks. Over many years, these springs can weaken and sag, altering the vehicle's ride height and, consequently, its alignment angles, including camber.
7. Damaged Struts or Shock Absorbers: These components are crucial for controlling suspension movement and maintaining ride height. If struts or shock absorbers are damaged, they can affect how the suspension sits, which in turn can influence the camber angle.

It is vital to address any unexpected or excessive inward lean of your wheels promptly. Beyond causing uneven tyre wear, it can lead to compromised handling, making the vehicle feel unstable or unresponsive, especially at higher speeds or during turns.

Consequences of Incorrect Camber:

Incorrect camber angles can have several detrimental effects:

• Uneven Tyre Wear: Too much negative camber wears the inside edge of the tyre, while too much positive camber wears the outside edge. This premature wear means you'll need to replace your tyres sooner, costing you more money.
• Poor Handling: The steering might feel heavy, or the car could pull to one side of the road. Cornering stability can be compromised, making the vehicle feel less secure.
• Increased Fuel Consumption: Tyres that aren't rolling straight create more resistance, which can lead to a slight increase in fuel consumption.

How to Fix a Front Wheel Leaning Inward at the Top

Rectifying a front wheel that is leaning inwards, indicating negative camber, is a job that typically requires professional expertise and specialised equipment. While understanding the process is beneficial, it’s generally recommended to have this work carried out by a qualified mechanic at a reputable service centre.

The Professional Approach to Correcting Camber:

1. Diagnosis and Thorough Inspection: The first and most crucial step is to identify the root cause of the inward lean. This involves a comprehensive inspection of the entire suspension system. A mechanic will check for worn bushings, damaged control arms, play in ball joints, compromised struts, and any issues with the steering tie rods. This diagnostic phase is critical; simply adjusting the alignment without addressing underlying worn components will only provide a temporary fix.
2. Wheel Alignment Check: Using advanced laser or electronic alignment equipment, a technician will measure all the relevant angles – camber, toe, and caster. This provides precise data on how far out of specification your wheels are and what adjustments are needed.
3. Camber Angle Adjustment: If the inward lean is found to be due to misalignment rather than damaged parts, the mechanic will proceed to adjust the camber angle. This usually involves loosening specific bolts on the strut mounts or control arms and then shifting these components to achieve the correct angle. Some vehicles are equipped with adjustable camber bolts from the factory, while others may require the installation of aftermarket adjustable suspension parts or kits to allow for this adjustment.
4. Replacement of Worn or Damaged Components: If the inspection reveals worn or broken suspension parts are the cause of the negative camber, these components must be replaced before any alignment adjustments are made. This could involve replacing anything from small rubber bushings to entire control arms.
5. Full Wheel Realignment: Once any necessary repairs or adjustments to the camber angle have been made, a complete wheel alignment is performed. This ensures that all angles – camber, toe, and caster – are reset to the manufacturer's precise specifications, guaranteeing the vehicle tracks straight and true.
6. Test Drive and Re-evaluation: After the alignment is complete, the vehicle will typically be taken for a test drive. This allows the technician to assess how the car handles, checking for any pulling or steering irregularities. Following the test drive, a recheck of the alignment may be necessary to confirm that the adjustments have held and are stable.
7. Preventative Maintenance: To avoid recurring issues, regular checks of your vehicle's wheel alignment and the overall health of the suspension system are highly recommended. This proactive approach can catch minor problems before they escalate into costly repairs.

While some experienced DIY enthusiasts might consider adjusting wheel alignment at home, it is strongly advised against unless you possess the correct equipment and a thorough understanding of vehicle dynamics. Incorrect alignment can not only lead to accelerated tyre wear but also compromise your vehicle's safety. Furthermore, not all vehicles offer easily adjustable camber settings, and some may necessitate specialised tools or replacement parts that are not readily available to the average consumer.

Comparative Table: Camber vs. Toe

Frequently Asked Questions (FAQs)

Q1: How often should I get my wheel alignment checked?

A1: It's generally recommended to have your wheel alignment checked annually, or whenever you notice signs of uneven tyre wear, your car pulling to one side, or after hitting a significant pothole or kerb.

Q2: Can I adjust camber myself?

A2: While theoretically possible on some vehicles, it's not recommended for DIY. Proper alignment requires specialised equipment and knowledge to ensure accuracy and safety. Incorrect adjustments can worsen tyre wear and compromise handling.

Q3: What is the difference between alignment and balancing?

A3: Wheel alignment refers to the angles of the wheels, ensuring they are positioned correctly relative to the road and each other. Wheel balancing involves adding small weights to the tyre and wheel assembly to ensure an even distribution of mass, preventing vibrations at speed.

Q4: My car pulls to the left. Is this always an alignment issue?

A4: A car pulling to one side can be caused by several factors, including misaligned wheels, uneven tyre pressures, worn suspension components, or even issues with the braking system. A professional inspection is needed to diagnose the exact cause.

Conclusion

A tyre tilted inwards, or indeed any deviation from the manufacturer's specified alignment angles, can stem from various sources – from intentional design choices to the inevitable wear and tear of daily driving, or even sudden impact damage. Understanding the causes and consequences of incorrect wheel alignment, particularly concerning camber and toe angles, is fundamental to maintaining your vehicle's optimal performance, ensuring even tyre wear, and most importantly, safeguarding your driving safety. Regular, professional vehicle maintenance and alignment checks are your best defence against these issues, ensuring your car remains responsive, efficient, and safe on the road.
