Citroen Engine Woes: Unravelling Depollution Faults

It's a driver's worst nightmare: a sudden loss of power, a dashboard warning light flashing ominously, and the sickening feeling that your car is about to give up the ghost. For owners of Citroen vehicles, particularly those with the 1.6 HDI engine, the 'Depollution System Faulty' warning accompanied by complete engine failure is a distressingly common, and frankly dangerous, occurrence. This article aims to shed light on this prevalent issue, drawing from real-world experiences and offering potential explanations and solutions for those grappling with this frustrating problem.

The 'Depollution System Faulty' Phenomenon

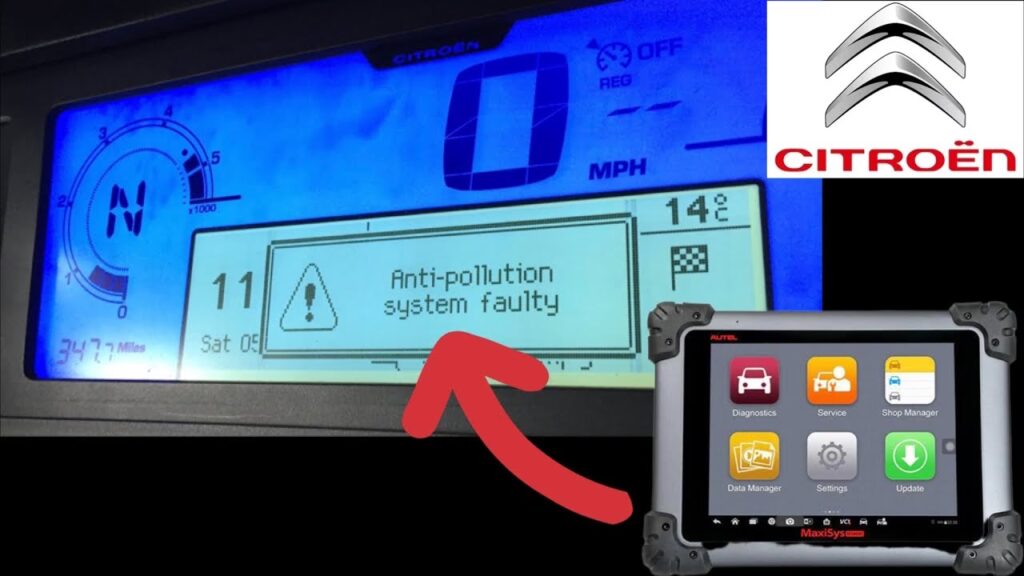

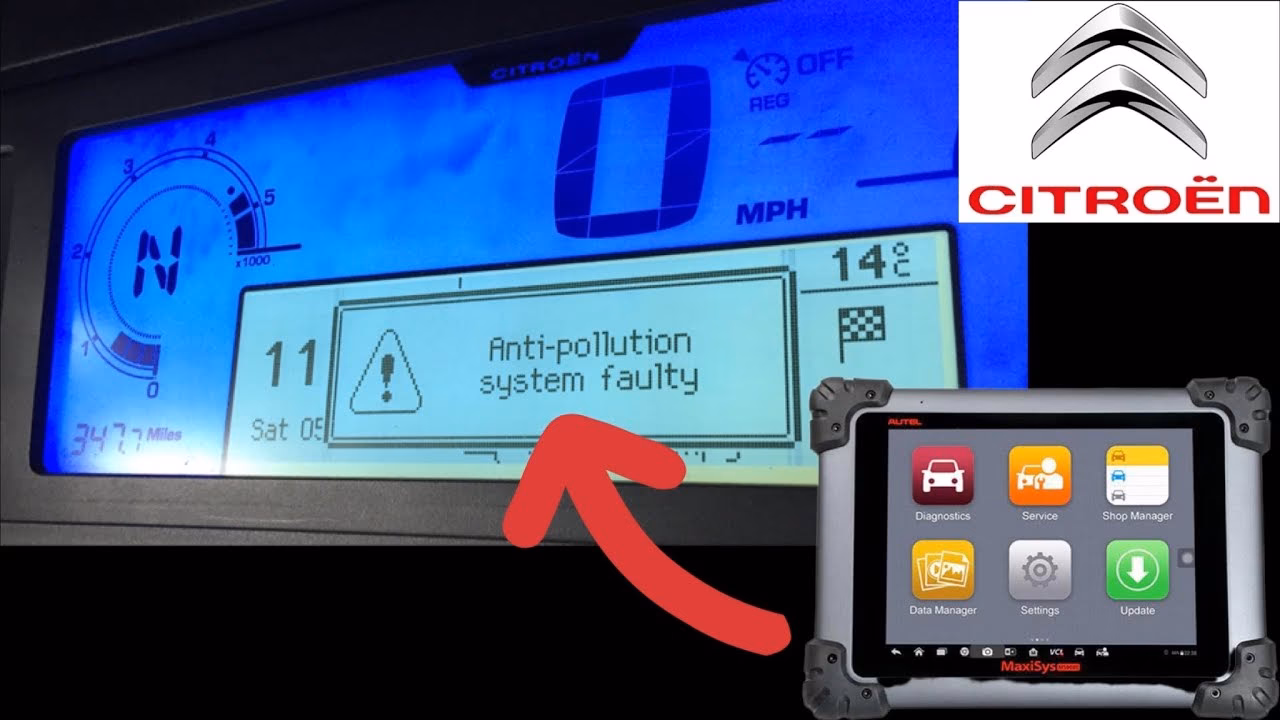

The scenario is all too familiar. A driver might be cruising along, perhaps on a motorway or navigating everyday traffic, when a warning light illuminates. Within seconds, or sometimes minutes, the engine loses power dramatically, often leading to a complete stall. The message on the dashboard typically reads 'Depollution System Faulty'. Upon stopping, the car may restart after a short period, but the underlying issue remains, often leaving owners and garages baffled. This intermittent nature makes diagnosis particularly challenging, as the fault doesn't always present itself when the vehicle is in for repair.

Common Causes and Potential Culprits

The 'Depollution System' refers to a complex network of components designed to minimise harmful emissions from your vehicle. When this system malfunctions, it can trigger a range of warnings and performance issues. Based on owner reports and technical discussions, several key areas are frequently implicated:

1. The Ubiquitous Fusebox Issue

One of the most commonly cited culprits for this particular problem, especially in models like the C4 Picasso, is a faulty engine bay fusebox. Specifically, a poor or intermittent contact within the fusebox, often related to fuse F1, can disrupt the power supply to critical engine components. This can manifest as a variety of warnings, including the depollution fault, and can lead to power loss or complete engine cut-out. Some technicians are aware of this as a known issue, particularly affecting newer Citroen models, and it's often a primary suspect when fault codes are present but the cause isn't immediately obvious. The recommendation is for garages to check for a known faulty fusebox and consider replacement if this is suspected.

2. Exhaust Gas Recirculation (EGR) Valve Issues

The EGR system helps to reduce nitrogen oxide emissions. A faulty or sticking EGR valve can disrupt the combustion process, leading to poor performance and triggering the depollution warning. In one reported case, a faulty EGR butterfly valve was identified as the root cause, requiring the replacement of its assembly. This can also be linked to wiring issues within the loom supplying the valve.

3. The Diesel Particulate Filter (DPF) Dilemma

For diesel vehicles, the DPF is a critical emissions control component. It traps soot particles, which are then burned off during a process called regeneration. If the DPF becomes clogged or the regeneration process fails, it can lead to reduced engine performance and the dreaded depollution warning. Issues with the DPF can be complex, involving sensor failures, incomplete regenerations, or blockages. The presence of a DPF can be confirmed by checking the vehicle's chassis number or looking for a separate EOLYS additive tank near the rear wheel.

4. The EOLYS Additive System

Some diesel engines, particularly those with a DPF, utilise an additive called EOLYS. This fluid is injected into the fuel to aid in the DPF regeneration process. If the EOLYS additive level is low or the system malfunctions, it can trigger depollution warnings. The system typically operates by dispensing a small amount of fluid each time the fuel cap is opened, hence the advice to fill the tank when it's nearly empty rather than making frequent small top-ups. The EOLYS fluid is stored in a separate tank, often located near the rear wheel arch.

5. Wiring Loom and Connection Problems

Intermittent faults are often the hallmark of poor electrical connections or damaged wiring. A broken connection within the wiring loom can cause a cascade of errors, affecting various systems in the car and leading to the depollution warning. This was a contributing factor in one owner's prolonged repair saga, where a broken wire within the main loom was found to be throwing faults back into the system. Diagnosing these issues requires meticulous inspection of the entire wiring harness.

6. Turbocharger and Air Intake Issues

While less common, problems with the turbocharger or associated air intake pipes can also manifest as depollution warnings and power loss. A perforated air pipe on the turbo, for instance, could lead to a loss of boost pressure and affect emissions control, prompting the warning light.

Diagnostic Challenges and Garage Experiences

A significant part of the frustration for owners is the difficulty in diagnosing these faults. The intermittent nature means that by the time the car reaches a garage, the fault may not be present, and diagnostic computers might not log any historical data. Even when fault codes are present, such as P0409 and P1166 mentioned in one case, pinpointing the exact cause can be a challenge for technicians. Some garages may resort to replacing components based on common issues rather than definitive diagnosis, leading to unnecessary expense and continued problems.

The experience of 'madsprog' highlights this difficulty. Despite multiple visits to the main dealer, the intermittent engine failure and depollution warning persisted. The initial diagnosis of cleaned terminals proved insufficient. Even when fault codes were present, the dealer struggled to identify the root cause, initially happy to return the car to the owner despite the significant safety risk. This underscores the importance of a thorough and persistent diagnostic approach.

Resolving the Issue: What to Expect

When a solution is found, it often involves a combination of repairs:

• Fusebox Replacement: If the fusebox is identified as the culprit, replacement under warranty (if applicable) is the recommended course of action.
• EGR Valve Repair/Replacement: Cleaning or replacing the EGR valve and its associated components can resolve issues related to emissions control.
• DPF Cleaning or Replacement: If the DPF is blocked, a professional cleaning or, in severe cases, replacement may be necessary.
• Wiring Loom Repair: Identifying and repairing broken or corroded connections in the wiring harness is crucial for intermittent electrical faults.
• Software Updates: In some instances, manufacturer software updates can help manage emissions control systems more effectively.

Advice for Citroen Owners

If you are experiencing similar symptoms with your Citroen, here's some advice:

• Document Everything: Keep a detailed log of when the faults occur, the specific warnings displayed, and any symptoms you notice. This information is invaluable for your mechanic.
• Seek a Specialist: While main dealers have access to specific diagnostic tools (like Lexia or Proxia), consider a reputable independent Citroen specialist if your main dealer is struggling to diagnose the problem. Sometimes, a fresh pair of eyes can make all the difference.
• Be Persistent: Don't accept a diagnosis that doesn't feel right, especially if the problem persists. The safety implications of an engine cutting out unexpectedly are significant.
• Research Common Faults: Familiarise yourself with common issues for your specific model and engine. Forums and online communities can be a great resource for shared experiences and potential solutions.
• Check Warranty and Service History: Ensure your vehicle is within its warranty period. If not, understand the costs associated with potential repairs.

Frequently Asked Questions (FAQs)

Q1: My Citroen C4 has the 'Depollution System Faulty' warning. What does it mean?
It means there's an issue with the vehicle's emissions control system. This can range from problems with the diesel particulate filter (DPF), exhaust gas recirculation (EGR) valve, or even electrical faults. It often leads to reduced engine performance or complete engine failure.

Q2: My car cut out on the motorway. Is it dangerous?
Yes, an unexpected engine failure on a motorway or any busy road is extremely dangerous and can lead to serious accidents. It's vital to have the issue diagnosed and resolved immediately.

Q3: The garage can't find the fault. What should I do?
If your garage is unable to diagnose the intermittent fault, consider seeking a second opinion from another qualified mechanic or a Citroen specialist. Provide them with all the details you have documented about the issue.

Q4: Is the fusebox a common problem for this fault?
Yes, based on owner reports, a faulty engine bay fusebox, particularly a poor connection on fuse F1, is a frequently identified cause for the 'Depollution System Faulty' warning and engine cut-out in certain Citroen models.

Q5: My car has lost power but hasn't cut out yet. What could be wrong?
Loss of power can be an early symptom of a developing depollution system issue. It could indicate problems with the DPF, EGR valve, turbocharger, or an electrical fault. It's advisable to get it checked before it leads to a complete breakdown.

Dealing with a 'Depollution System Faulty' warning and associated engine problems can be a stressful and costly experience. By understanding the potential causes and working closely with a knowledgeable mechanic, you can increase the chances of getting your Citroen back to reliable running order.
