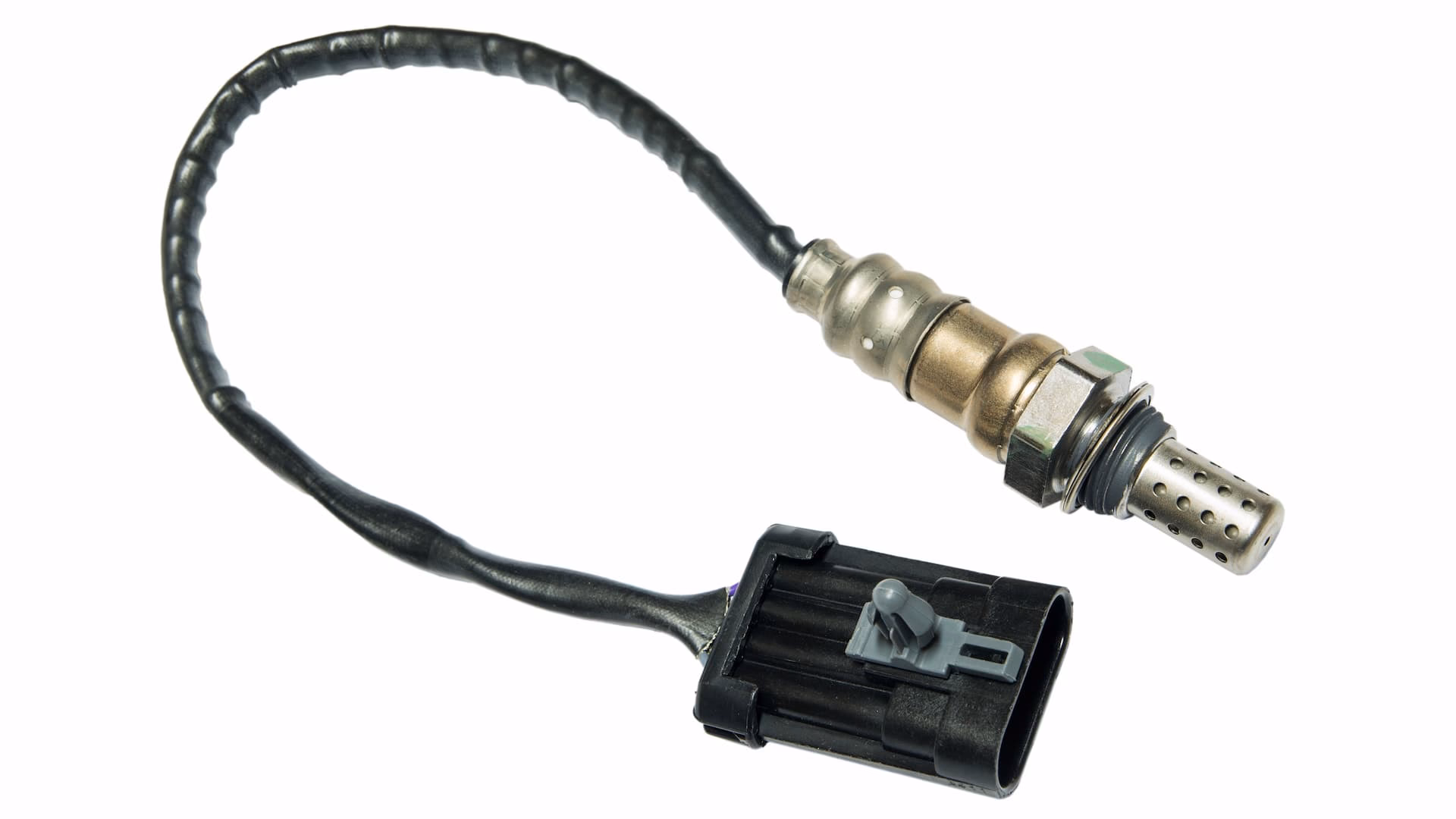

Spotting a Failing O2 Sensor

Every vehicle manufactured since the early 1980s relies on one or more Oxygen (O2) sensors integrated into its exhaust system. These crucial components act as the vigilant guardians of your engine's air-fuel ratio, ensuring the correct mixture reaches the combustion chambers. By meticulously measuring the amount of unburnt oxygen exiting the engine, O2 sensors provide the Engine Control Unit (ECU) with vital data to maintain optimal performance and minimise emissions.

The Vital Role of O2 Sensors

O2 sensors are indispensable to your vehicle's emission control system, a sophisticated network designed to minimise the release of harmful gases into the environment. The sensor's primary function is to gauge the oxygen level within the exhaust gases. This information is then relayed to the ECU, which analyses it to determine if the air-fuel mixture is too lean (too much oxygen, leading to a lean burn) or too rich (too little oxygen, resulting in a rich burn). Based on this feedback, the ECU makes real-time adjustments to the air-fuel ratio, ensuring efficient combustion and reduced pollution. A malfunctioning O2 sensor can significantly impair your vehicle's efficiency and environmental impact.

Recognising the Signs of O2 Sensor Failure

While O2 sensors are physically integrated into the exhaust system and can be difficult to access for direct observation, several tell-tale warning signs can alert you to a potential problem. Ignoring these symptoms can lead to more significant and costly issues down the line.

Common Symptoms of a Failing O2 Sensor:

• Reduced Fuel Economy: One of the most noticeable symptoms is a significant drop in your vehicle's miles per gallon (MPG). An inefficient air-fuel mixture means the engine is not burning fuel optimally.
• Rotten Egg Smell from Exhaust: A distinctive smell of sulphur, often described as rotten eggs, emanating from your exhaust pipe can indicate a catalytic converter issue, which is frequently linked to a faulty O2 sensor. This is due to unburnt fuel passing through and overheating the catalytic converter.
• Illuminated Check Engine Light (CEL): The Check Engine Light is often the first and most direct indicator of an O2 sensor problem. The ECU will log specific diagnostic trouble codes (DTCs) when it detects an anomaly. Common codes related to O2 sensors include general O2 sensor circuit issues or specific 'heater circuit malfunction' codes like PO141.
• Rough Idling: An unstable or rough idle can be a symptom of an incorrect air-fuel mixture caused by a faulty O2 sensor. The engine may sputter or vibrate more than usual when stationary.
• Difficulty Starting: In some cases, a failing O2 sensor can contribute to difficulty in starting the engine, as the ECU struggles to establish the correct initial air-fuel mixture.

The Importance of Testing Before Replacing

While the symptoms might point towards a faulty O2 sensor, it's important to remember that these sensors can be relatively expensive to replace. Furthermore, the problem might not originate with the O2 sensor itself. Other issues, such as vacuum leaks, ignition system faults, or even a clogged fuel injector, can mimic O2 sensor symptoms. Therefore, it is highly recommended to test the O2 sensor thoroughly before committing to a replacement. This diagnostic step can save you money and prevent unnecessary part replacements.

O2 Sensor Testing Procedures

O2 sensors can be tested both in situ (while installed on the vehicle) and after removal. Removing the sensor allows for a visual inspection, which can sometimes reveal physical damage or contamination that might indicate a fault. However, the most definitive testing involves measuring the sensor's electrical output.

Using a Digital Voltmeter (DVOM)

Testing an O2 sensor with a Digital Voltmeter (DVOM) requires a methodical approach. The results of these tests may necessitate further investigation into other vehicle components if the sensor appears to be functioning correctly.

Possible underlying issues that could affect O2 sensor readings include:

• Loose Vacuum Hoses: A vacuum leak can introduce unmetered air into the engine, causing the O2 sensor to register a higher-than-normal oxygen level, leading to an incorrect lean reading.
• Loose Sensor Connections: A poor electrical connection to the O2 sensor can lead to erratic or inaccurate readings of the exhaust gases.

Step-by-Step Testing with a DVOM:

1. Identify the Sensor: Modern vehicles can have up to five O2 sensors. Your vehicle's Diagnostic Trouble Codes (DTCs), obtained via an OBD-II scanner, will typically pinpoint the specific sensor requiring testing. Consult your owner's manual to locate this sensor and identify its signal wire, as many O2 sensors have multiple wires.
2. Required Tools: You will need a digital voltmeter with a high impedance, ideally 10 megohms, and the ability to read millivolts (mV) on a DC scale.
3. Initial Setup: Start the vehicle and allow the engine to reach its normal operating temperature. This can take up to 20 minutes. Once at operating temperature, turn off the engine.
4. Connecting the Voltmeter: Connect the positive (red) probe of your DVOM to the O2 sensor's signal wire. Connect the negative (black) probe to a reliable ground point on the vehicle's chassis.
5. Performing the Test: Restart the engine. Observe the voltage readings on the DVOM. A healthy O2 sensor's voltage should fluctuate consistently within the range of 100mV to 900mV (0.10V to 0.90V).

Interpreting the Readings:

If the voltage readings fall within the specified range and fluctuate steadily, the O2 sensor is likely functioning correctly. If the readings are consistently high, consistently low, or do not fluctuate, it indicates a potential problem with either the sensor itself or another engine component.

Testing for Lean and Rich Conditions:

To further diagnose the O2 sensor's response, you can simulate lean and rich fuel conditions:

Simulating a Lean Condition:

1. Disconnect the hose from the Positive Crankcase Ventilation (PCV) valve, typically found on the valve cover. This introduces additional air into the engine, creating a lean mixture.
2. Observe the voltmeter. The reading should drop to approximately 200mV (0.20V) as the sensor detects the increased oxygen.
3. If the voltmeter does not respond as expected, the O2 sensor may be faulty and require replacement.
4. Reconnect the PCV hose.

Simulating a Rich Condition:

1. Disconnect the air intake hose connected to the air cleaner assembly.
2. Temporarily block the opening of this hose with a rag. This restricts airflow into the engine, creating a richer mixture.
3. Check the voltmeter. The reading should increase to approximately 800mV (0.80V) due to the reduced oxygen in the exhaust.
4. If the sensor fails to respond correctly, it is likely malfunctioning and needs to be replaced.
5. Reconnect the air intake hose.

Post-Test Analysis:

If the O2 sensor responded correctly to both the lean and rich fuel tests, the issue may lie elsewhere in the engine's management system. Potential culprits include vacuum leaks, ignition system problems, or issues with the fuel delivery system.

However, if the O2 sensor did not respond appropriately during these tests, it is almost certainly the source of the problem and will require replacement.

Conclusion

Addressing O2 sensor issues promptly can prevent more severe and costly engine problems from developing. By understanding the symptoms and performing the necessary diagnostic tests, you can accurately determine if your O2 sensor needs replacement. Replacing a faulty O2 sensor yourself can be a rewarding task that not only restores your vehicle's performance and fuel efficiency but also saves you a significant amount on labour costs at a garage. Always ensure you use the correct replacement part for your specific vehicle make and model.

Key Takeaways:

• Symptoms: Reduced MPG, rotten egg smell, check engine light, rough idle, hard starting.
• Testing is Crucial: Always test before replacing to avoid unnecessary expenses.
• DVOM Test: Monitor voltage fluctuations (100mV-900mV) and response to lean/rich conditions.
• Other Causes: Vacuum leaks and ignition issues can mimic O2 sensor faults.

Frequently Asked Questions:

Q1: How often should O2 sensors be replaced?
There's no fixed interval, but they typically last between 60,000 to 100,000 miles. Replacement is usually based on failure symptoms or diagnostic codes.

Q2: Can I drive with a faulty O2 sensor?
While your car might still run, a faulty O2 sensor will lead to poor fuel economy, increased emissions, and can potentially damage your catalytic converter over time.

Q3: What's the difference between upstream and downstream O2 sensors?
Upstream sensors (before the catalytic converter) measure exhaust gases to help the ECU adjust the air-fuel mixture. Downstream sensors (after the catalytic converter) monitor the converter's efficiency.

Q4: Is it difficult to replace an O2 sensor?
Replacement can range from moderately easy to difficult depending on sensor location and accessibility. Specialized O2 sensor sockets are often required.

Q5: Will a bad catalytic converter cause O2 sensor codes?
Yes, a failing catalytic converter can lead to incorrect O2 sensor readings and trigger related diagnostic codes.
