Wiggins Fast Fuel Systems Explained

In the demanding world of heavy off-road machinery, efficiency and safety are paramount. Traditional refuelling methods, often referred to as "splash fuelling," are not only time-consuming but also present significant risks of spills, environmental contamination, and potential worker injury. This is where Wiggins Service Systems, and specifically their innovative Fast Fuel Systems, have emerged as a game-changer since their inception in 1967. Designed to drastically reduce refuelling times and enhance operational safety, Wiggins systems have become a trusted name, even setting standards for major manufacturers like Caterpillar.

The Wiggins Advantage: Speed, Safety, and Savings

At its core, a Wiggins Fast Fuel System is engineered to deliver fuel (and other essential fluids) to heavy machinery with unparalleled speed and minimal fuss. The system typically comprises a high-flow fuel nozzle and a corresponding receiver on the vehicle's tank. This pairing creates a secure, "dry break" connection that allows for rapid fuel transfer, often at rates of up to 150 gallons per minute (gpm) or even higher with specific nozzle variants. This is a stark contrast to traditional methods, which might struggle to achieve a fraction of that flow rate.

The benefits of this accelerated refuelling are manifold:

• Reduced Downtime: Less time spent at the fuel pump means more time operating the machinery, directly impacting productivity and profitability.
• Enhanced Safety: The "dry break" design minimises the risk of fuel spills, which not only reduces the cost and complexity of cleaning hazardous materials but also significantly lowers the chance of slips and falls for operators.
• Environmental Protection: By preventing fuel spillage, Wiggins systems contribute to a cleaner environment, crucial for operations in sensitive areas.
• Cost Efficiency: Beyond spill clean-up, faster refuelling can lead to lower labour costs associated with the task.

Key Components of a Wiggins Fast Fuel System

Wiggins offers a range of components designed to cater to various needs and vehicle types. Understanding these components is key to appreciating the system's effectiveness:

Fuel Receivers

The fuel receiver is the port on the vehicle where the fuel nozzle connects. Wiggins receivers are designed for a secure and efficient coupling:

• Centralised or External/Remote Mounting: Receivers can be strategically placed for ease of access, often allowing operators to refuel from ground level, adhering to Occupational Health and Safety (OHS) requirements. This is a significant improvement over climbing onto machinery.
• Colour Poppet Options: These can be used for identification, potentially distinguishing between different fuel types or services.
• ZN2CV Check Valve Receiver: This specific type of receiver incorporates a check valve, preventing fuel theft and ensuring that fuel only flows into the tank when the correct nozzle is engaged.

Fuel Nozzles

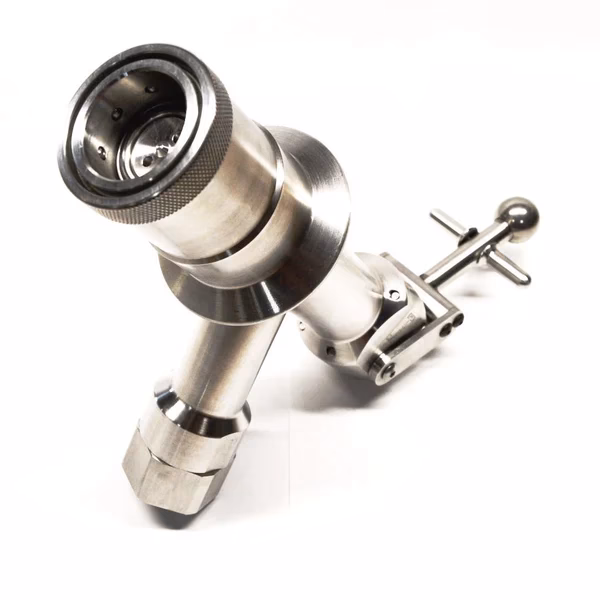

The nozzle is the business end of the system, responsible for the actual fuel transfer:

• ZZ9A1 Fuel Nozzle: This is a popular model capable of delivering fuel at rates up to 150 gpm. Its lightweight composite construction makes it user-friendly. The "elasto-dogs" are designed not to damage the receiver, and it is non-conductive for added safety.
• VR301 High Rate Fueling Fuel Nozzle: For exceptionally large vehicles with tank capacities exceeding 1000 gallons, the VR301 offers even higher flow rates, reaching up to 300 gpm. This dramatically cuts down refuelling times for the biggest machines.

Non-Pressurized Fast Fuel Systems

A significant innovation from Wiggins is their patented non-pressurized fast fuel systems. These are particularly important for vehicles equipped with lightweight or composite fuel tanks, which might not be designed to withstand the pressure generated by traditional fast-fill systems. These systems maintain the high-flow benefits without pressurising the tank.

VR306 Jet Sensor

This component is crucial for the accurate and reliable operation of non-pressurized systems. The VR306 features:

• Patented Level Sensing: It accurately detects when the tank is full.
• High Flow Rate Accuracy: Works effectively with flow rates from 200 to 340 gpm.
• Reliability: With no moving parts, it eliminates common failure points like floats, valves, or electronics, leading to increased uptime and reduced maintenance.

Beyond Diesel: Wiggins for Comprehensive Fluid Management

While initially renowned for diesel refuelling, the Wiggins system's versatility extends to other essential fluids, revolutionising maintenance operations:

Crankcase Oil Change

Traditionally, changing the oil in large machinery can be a messy and time-consuming process. Wiggins systems can be adapted for rapid oil evacuation and refilling. A complete oil change, which might have taken 30 minutes or more, can potentially be reduced to as little as 5 minutes with a centralised Wiggins fluid service station. This dramatically improves the efficiency of routine maintenance.

Transmission Fluid and Hydraulic Oil

Similarly, the systems facilitate quick and clean changes of transmission fluid and hydraulic oil. The closed-loop nature of the system prevents contamination and spills, ensuring the integrity of these vital fluids and reducing the risk of component damage.

Cooling Fluid Fill

Topping up or replacing coolant is also streamlined with Wiggins technology, ensuring that engines remain at optimal operating temperatures with minimal interruption.

Wiggins in Action: Industry Adoption

The effectiveness and reliability of Wiggins Service Systems are underscored by their widespread adoption. Since becoming a standard for Caterpillar in 1969, Wiggins systems are now factory equipment on the majority of large mining and construction vehicles produced globally. Major mining operations, in particular, overwhelmingly rely on Wiggins for their heavy-duty equipment. This widespread trust speaks volumes about the system's ability to meet the rigorous demands of these industries.

FloSolve: Your Partner for Wiggins Systems

Companies like FloSolve play a crucial role in supplying, installing, and maintaining Wiggins Fast Fill Systems. As exclusive agents or distributors for companies like AdelWiggins Group, they ensure that operators have access to genuine Wiggins components and expert support. Their Mastra™FILL-SAFE (MFS) Fueling Systems, for example, integrate these high-quality Wiggins components to deliver complete fast and safe fuelling solutions.

Addressing Common Questions

What makes Wiggins fueling systems fast?

Wiggins systems utilise high-flow nozzles and receivers that create a "dry break" connection, allowing fuel to be transferred at significantly higher rates (up to 150-300 gpm) compared to traditional methods. This drastically reduces the time required to fill a tank.

How do Wiggins systems improve safety?

The "dry break" coupling prevents fuel spillage, minimising environmental hazards and the risk of slips and falls for operators. Non-conductive nozzle materials and secure connections further enhance safety.

Can Wiggins systems be used on any fuel tank?

Wiggins offers specific non-pressurized fast fuel systems designed for use with lightweight or composite fuel tanks, which may not withstand the pressure of traditional fast-fill systems. The VR306 Jet Sensor is key to the reliable operation of these systems.

What other fluids can Wiggins systems handle?

Beyond diesel, Wiggins technology is effectively used for rapid and clean changes of crankcase oil, transmission fluid, hydraulic oil, and coolant, improving overall fluid management efficiency.

Why is Wiggins considered the market leader?

Wiggins has been a pioneer in fueling system technology since 1967, consistently innovating with products like non-pressurized systems. Their systems are factory-approved by major Original Equipment Manufacturers (OEMs) and are the standard on most large mining and construction vehicles worldwide, demonstrating their reliability and performance.

Conclusion

Wiggins Fast Fuel Systems represent a significant leap forward in how heavy machinery is refuelled and maintained. By prioritising speed, safety, and environmental responsibility, these systems deliver tangible benefits in terms of reduced downtime, lower operating costs, and a safer working environment. Their widespread adoption across demanding industries is a testament to their robust design and reliable performance, making them an indispensable tool for modern fleet operators.
