The Unseen Heroes: Brake Caliper Clips

When it comes to your vehicle's braking system, most drivers are familiar with the main components: the brake pads and the calipers. However, there's a vital, often overlooked, element that plays a crucial role in the efficiency and longevity of your brakes – the humble brake caliper clip. These small but mighty components are far more than mere accessories; they are instrumental in ensuring your disc braking system operates smoothly, safely, and quietly. Their primary purpose extends beyond simply holding things in place; they actively help push the brake pad away from the rotor, contributing to cooler brakes, reduced noise, limited vibration, and ultimately, extending the life of your brake pads.

Understanding the intricacies of these clips can save you from unnecessary repairs and enhance your driving safety. While they might seem minor, their functions are anything but. From preventing annoying squeals to safeguarding your brake discs, these clips are silent guardians of your vehicle's stopping power.

What Exactly is a Brake Caliper Clip?

If you've ever opened a new box of brake pads, you might notice that some pads look identical, yet one might feature a small, metallic clip. This often leads to confusion: what is this clip for? Does it truly matter? Will it complicate the installation process? The truth is, the term 'clip' in a braking system can refer to several distinct components, each with its own vital function. This is why a mechanic might ask you to identify the specific clip you're enquiring about.

Abutment Clips

One common type you'll encounter are abutment clips. These clips are typically found at the ends of the brake pads, fitting into the caliper bracket. Their primary role is to provide a uniform, smooth surface for the brake pads to slide against. Many abutment clips also incorporate 'fingers' or specific designs that help to secure the pad firmly within its position. Crucially, these clips are engineered with an anti-rattle feature, designed to prevent the brake pads from vibrating or moving excessively within the caliper, which can otherwise lead to annoying noises and premature wear.

Retaining Clips

Beyond abutment clips, you'll also find retaining clips. These are often made from aluminium or steel and are arguably among the most important of the bunch for keeping the brake pad firmly in place. Their function is quite straightforward: to prevent the pad from moving around excessively within the caliper assembly. This stability is paramount for consistent and effective braking performance.

Squealer Clips: The Wear Indicator

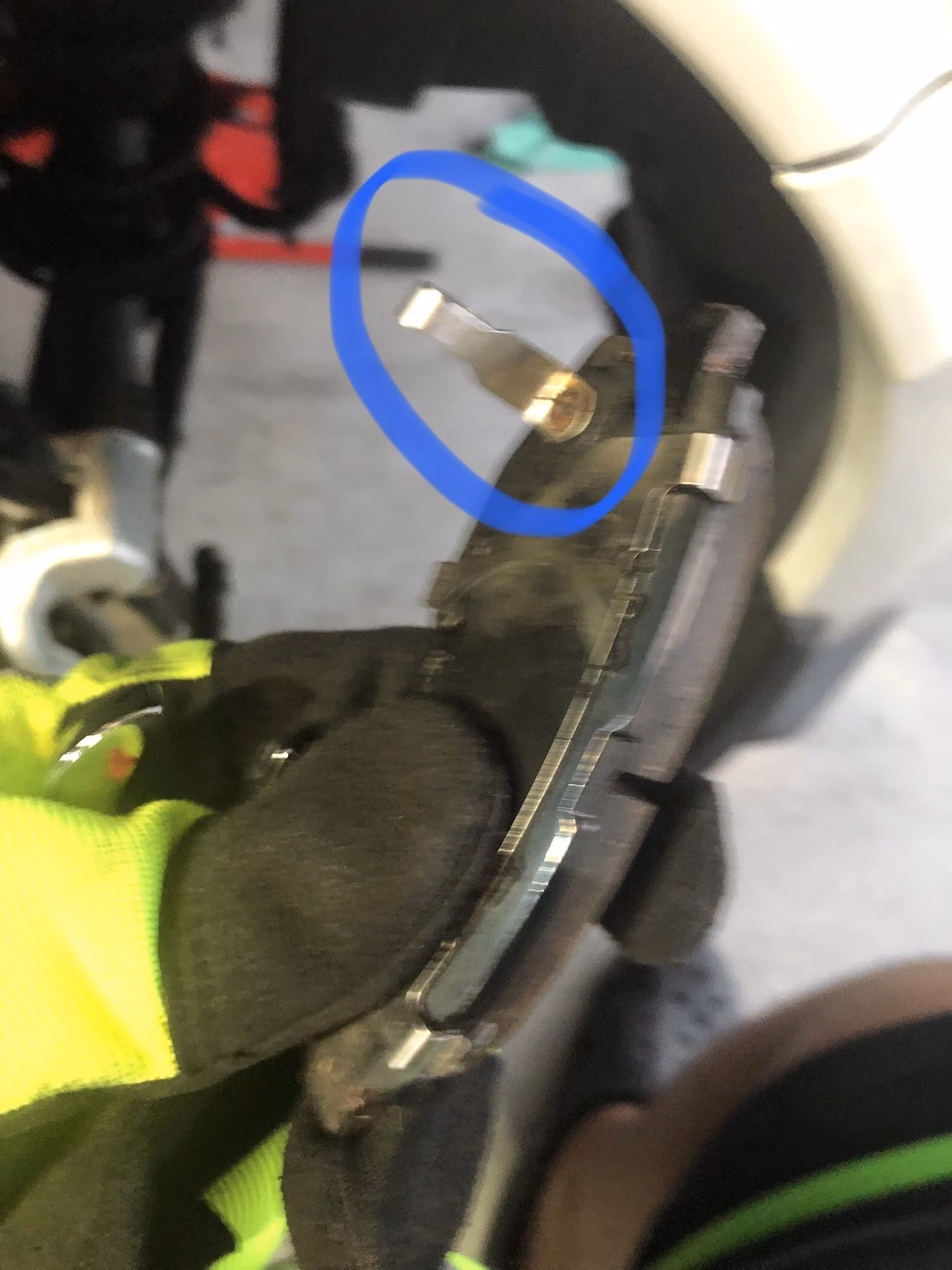

However, the clip that most drivers are likely curious about, and the one often found attached directly to a new brake pad, is the squealer clip, more accurately known as the wear indicator clip. This small metal tab is a critical safety feature, designed to alert you when your brake pads have worn down to an unsafe level. It's this particular clip that often sparks questions and concerns amongst vehicle owners.

The Critical Function of Wear Indicator Clips

The name 'squealer clip' might not immediately convey its profound importance, but 'wear indicator clip' is far more descriptive. This clever little metal tab serves as an ingenious protective mechanism for your entire braking system. Its function is elegantly simple yet incredibly effective: to signal when your brake pads are nearing the end of their useful life by producing a distinct, irritating squealing sound.

So, how exactly do these clips track a pad's health? As your brake pad gradually wears down through normal use, the wear indicator clip, which is strategically positioned, comes progressively closer to the metal rotor. Eventually, when the pad thickness deteriorates to unsafe levels, the clip makes contact with the rotating brake disc. This metal-on-metal contact generates that unmistakable, high-pitched squealing noise. While the sound itself can be quite bothersome, it serves as an indispensable warning, letting you know that the pad's thickness has diminished to a point where replacement is urgently required.

Ignoring this warning can have severe consequences. A worn-out pad, if left unchecked, can cause significant and often irreparable damage to the brake disc itself, leading to costly repairs. Furthermore, incorrect installation of the brake pad with the wear indicator clip can inadvertently eliminate this crucial warning system, putting your braking system, and ultimately your safety, at considerable risk.

Strategic Placement: Where the Clip-Equipped Pad Belongs

When installing new brake pads, a common question arises: where exactly does the pad with the wear indicator clip go? The answer is straightforward: the brake pad equipped with the wear indicator clip should always be installed on the inside – that is, on the side closest to the caliper piston assembly. This is a standard practice amongst mechanics, and there's a very good reason for it.

What happens if you install the pad with the clip on the wrong side? In most cases, nothing immediately catastrophic will occur. The pad will continue to function, and you shouldn't expect it to break or wear out faster than usual simply because of its incorrect orientation. However, the critical consequence is that you will lose the vital warning function of the squealer clip. Without it positioned correctly, it won't be able to make contact with the rotor when the pad wears down, meaning you won't receive the audible warning that your pads need replacing. This necessitates much more frequent manual checks of your brake pad thickness to prevent the brake disc from suffering permanent harm due to excessive wear.

Why the Inner Brake Pad Wears Out Faster

The primary reason mechanics place the pad with the wear indicator clip on the inside is because the inner brake pad typically wears out faster than the outer one. But why is this the case?

The inner pad generally absorbs the brunt of the braking force when a car stops. This is because the caliper piston, which is responsible for pushing the brake pad to clamp down on the rotor, is located on the inner side of the caliper assembly. When you apply the brakes, the piston directly pushes the inner pad, which then presses against the rotor. The outer pad is pulled along by the caliper's sliding action, but the initial and primary force is exerted on the inner pad.

While a small difference in wear (typically 2 to 3mm) between the inner and outer pads is considered normal, a significant disparity in their wear rates should be a cause for concern and warrants immediate investigation. Several factors can contribute to uneven brake pad wear:

• Seized Caliper Guide Pin: If a caliper guide pin becomes seized, it can prevent the caliper from sliding freely, causing uneven pressure on the pads.
• Damaged Caliper Piston Seal: A compromised rubber seal on the caliper piston can prevent the piston from fully retracting to its rest position, keeping the inner pad in constant contact with the rotor.
• Master Cylinder Issues: While less common for localised uneven wear, a failing master cylinder can sometimes contribute to inconsistent braking pressure across different wheels, indirectly affecting wear patterns.
• Uneven Rotor Thickness: If the brake rotor has inconsistent thickness levels, the brake pad that makes contact with the flatter or thinner sections of the rotor will deteriorate faster, leading to uneven wear.
• Aggressive Braking Habits: Frequently slamming on the brakes, or consistently braking hard, can sometimes cause one brake pad to wear out faster than the other due to uneven heat distribution or application of force.
• Corrosion or Sticking Caliper: Look for signs of corrosion on the brake caliper itself, especially if it appears to be sticking. Corrosion can impede the caliper's ability to move freely.
• Debris on the Brake Caliper: Accumulation of dirt, dust, or other debris on the brake caliper can interfere with the piston's ability to slide smoothly, leading to uneven contact.
• Corroded Slide Pins: The slide pins are crucial for allowing the caliper to float and move. If they corrode, the caliper's movement becomes restricted, resulting in uneven pad wear.
• Misaligned Brake Pads: If the brake pads were not installed correctly and are misaligned, they will make uneven contact with the rotor, leading to accelerated wear on certain areas or pads.

If you notice a tangible and significant difference in the rate at which your inner and outer brake pads are wearing out, it is highly advisable to take your car to a qualified mechanic. Addressing the underlying cause promptly can prevent more extensive damage to your braking system.

Do All Brake Pads Have Anti-Wear Clips?

The majority of modern brake pads do come equipped with wear indicator clips. While your mechanic might refer to them by a slightly different name, their fundamental function remains consistent across manufacturers. They are designed to provide that critical audible warning when your pads are nearing their minimum safe thickness.

However, the absence of these clips from a set of brake pads shouldn't necessarily cause alarm, as the brake pads themselves can still perform their primary function of stopping the vehicle without them. Yet, it's important to recognise that wear indicator clips offer a highly convenient and crucial safety feature by keeping you apprised of your brake pads' health without requiring manual inspection. Their absence from a new brake pad set, especially from a reputable brand, might warrant questioning the quality or authenticity of the product. It's always best to opt for pads that include these indicators for added peace of mind and safety.

A Step-by-Step Guide to Installing Brake Pads with Clips

The process of installing brake pads generally follows a standard procedure, and the presence of wear indicator clips does not significantly complicate the overall task. However, knowing the specific considerations for these clips is important for proper function.

Here's a general overview of the brake pad installation process, with specific notes on handling the clips:

1. Source a Suitable Brake Pad Set: Ensure that the new brake pad set is the correct fit for your vehicle. If your previous set included anti-wear clips or 'squealer shims', it's highly recommended to choose a new set that also features these components. Counterfeit or low-quality products may omit these crucial safety features. When in doubt, consult your car's manufacturer or a reputable parts supplier for recommendations.
2. Prepare for Safety: Always turn your car off and allow the brake system to cool down completely before you begin work, as brake components can become extremely hot. Loosen the lug nuts on the wheel you'll be working on while the car is still on the ground.
3. Lift and Secure the Vehicle: Use a robust jack to lift the car, and then place jack stands under the vehicle for stability and safety. Crucially, add wheel chocks or blocks behind the wheels that remain on the ground to prevent the vehicle from rolling.
4. Remove the Wheel: Once the car is safely supported, fully remove the loosened lug nuts and then carefully take off the wheel.
5. Access the Caliper: Locate and remove the caliper bolts that secure the brake caliper to the caliper bracket. This will allow you to either swing the caliper up or remove it entirely, depending on your vehicle's design.
6. Remove the Old Brake Pads: Carefully slide out the old brake pads. This step is usually straightforward, whether the pads simply slide out or have clips that 'snap' them into place. Some older or corroded pads might require a bit more force to dislodge.
7. Prepare for New Pad Installation: Before installing the new pads, it's often necessary to compress the caliper piston(s) back into the caliper housing to make room for the thicker new pads. This typically requires a specific brake caliper tool or a C-clamp.
8. Install the New Brake Pads: Carefully push the new brake pads into their respective slots. Remember, the brake pad with the wear indicator clip should be installed on the inner side of the caliper assembly.
9. Reassemble the Caliper: Once the new pads are in place, carefully reposition the caliper over the new pads and rotor, then reinsert and tighten the caliper bolts to the manufacturer's specified torque.
10. Reinstall Wheel and Lower Vehicle: Replace the wheel, hand-tighten the lug nuts, then lower the vehicle. Once on the ground, fully tighten the lug nuts in a star pattern to the correct torque specification.
11. Pump the Brakes: Before driving, pump the brake pedal several times until it feels firm. This re-seats the caliper piston against the new pads.

Specifics for Wear Indicator Clips

When it comes to the wear indicator clips themselves, here's what you should know:

• Location: As previously mentioned, these components will be found on the brake pad, typically on the inner pad, and are often held securely in place by the retaining clips or integrated into the pad's backing plate.
• Lubrication: It is common practice and highly recommended to apply a thin layer of high-temperature brake grease to the back of the brake pad, where it contacts the caliper piston or caliper bracket. You can also apply a small amount to the front side of the anti-squeal clip itself, where it might contact the caliper. Some mechanics and manufacturers recommend using a specialised anti-squeal compound or shim adhesive for this purpose. This lubrication helps to prevent noise and ensures smooth operation.
• Directional Arrows: Some wear indicator clips feature small arrows. If present, these arrows are critical: they indicate the direction of forward rotation for the wheel. Ensure that when you install the clips, these arrows point in the direction the wheel turns when the vehicle moves forward. Incorrect orientation can prevent the clip from functioning as intended.

While the presence of an indicator clip might seem like an added complexity, it generally does not complicate the installation process for anyone who has some experience with brake pad replacement. The clips are designed to integrate seamlessly. Only if you are completely new to brake pad installation might these clips cause momentary confusion, but understanding their purpose and proper placement makes the task straightforward.

Frequently Asked Questions About Brake Caliper Clips

Understanding these small but critical components can lead to better brake performance and safety. Here are some common questions drivers have:

Q1: Can I drive my car if my brake pads are squealing due to worn clips?

A1: While you can technically drive for a short period, it is highly advisable to get your brake pads inspected and replaced immediately. The squealing sound is a deliberate warning that your brake pads have worn down to an unsafe level. Continuing to drive will lead to metal-on-metal contact between the brake disc and the pad's backing plate, which can severely damage the brake disc, leading to much more expensive repairs. Prioritise safety and address the issue promptly.

Q2: What if my new brake pads don't come with wear indicator clips?

A2: Most reputable brake pad manufacturers include wear indicator clips with their new pads. If a new set of pads does not have them, it could be an indication of a lower-quality or generic product. While the pads will still function to stop your car, you will lose the crucial audible warning system. This means you'll need to be much more diligent about visually inspecting your brake pad thickness frequently to ensure they haven't worn too thin.

Q3: Is all brake squealing caused by worn pads or clips?

A3: No, while a high-pitched squeal is often the sign of worn pads hitting the wear indicator clip, it's not the only cause. Other reasons for brake squealing can include: new pads that haven't been properly bedded in, debris lodged between the pad and rotor, excessive brake dust, cheap or low-quality brake pads, glazed brake pads or rotors, or issues with caliper components (like sticky guide pins or pistons). However, if you hear a consistent squeal, especially under light braking, worn pads should always be your first suspicion.

Q4: Can I reuse the old brake caliper clips when installing new pads?

A4: It is generally not recommended to reuse old clips, especially the wear indicator and abutment clips. New brake pad sets often come with new clips, and it's always best practice to use these new components. Old clips can be corroded, fatigued, or deformed, which can compromise their effectiveness in preventing noise, securing the pads, or providing accurate wear indication. For optimal performance and safety, always replace clips with new ones provided with the new brake pad set.

Q5: What's the difference between anti-squeal shims and anti-squeal clips?

A5: Both aim to reduce brake noise, but they do so differently. Anti-squeal shims are thin layers (often made of rubber, steel, or composite materials) that are placed on the back of the brake pad. Their purpose is to absorb vibrations and dampen noise, preventing the high-frequency vibrations that cause squealing. Anti-squeal clips can refer to the wear indicator clips that create noise when pads are worn, or they can refer to certain types of abutment or retaining clips that are designed with anti-rattle features to prevent general noise from pad movement. So, shims are primarily for vibration damping, while clips can be for wear indication, retention, or general anti-rattle.

Q6: Do I need to grease all types of brake clips?

A6: Not all clips require grease, but specific ones do benefit from it. You should apply high-temperature brake grease to the areas where the brake pad's backing plate contacts the caliper or caliper bracket. This often includes the contact points for abutment clips and the back of the wear indicator clip (where it touches the pad's backing plate or caliper). Do NOT apply grease to the friction surface of the brake pad or the rotor. The purpose of the grease is to prevent noise and ensure smooth movement of components, not to lubricate the braking surface.
