Brake Shims: Why Quiet Brakes Need Them

That high-pitched squeal every time you touch the brake pedal can be more than just annoying; it can be a sign that something isn't quite right with your vehicle's braking system. Often, the unsung heroes in preventing this cacophony are small, thin plates attached to your brake pads: brake shims. While they might seem insignificant, these components play a pivotal role in ensuring your braking experience is not only effective but also remarkably quiet. If you've ever pondered why some brake pads come equipped with these metallic or composite layers, or perhaps why your brakes still make a racket despite having them, you're about to delve into the fascinating world of brake pad shims.

You see, braking isn't just about friction; it's a complex interplay of forces, heat, and vibrations. Without proper dampening, the very act of slowing down could turn your daily commute into a symphony of unpleasant noises. Brake pad shims are specifically engineered to mitigate these unwanted sounds, acting as crucial intermediaries that absorb and dissipate vibrations before they can amplify into that dreaded squeal. This article will unravel the purpose, benefits, and various types of brake pad shims, ultimately shedding light on why they are indispensable for a smooth and silent stop, and what might happen when they don't quite do their job.

What Exactly Are Brake Pad Shims?

At their core, brake pad shims are precisely engineered, thin plates typically affixed to the steel backing plate of a brake pad. They are positioned between the brake pad itself and the caliper piston or caliper fingers. While their appearance might suggest simplicity, their construction and material composition are anything but. Shims come in a variety of materials, ranging from robust steel to lightweight aluminium, and more advanced composite materials that often incorporate rubber, acrylic, or even viscoelastic layers. Each material and design choice is meticulously selected to address specific challenges within the braking system, primarily focusing on managing vibrations and heat.

Their design isn't arbitrary either. Shims are often cut with specific shapes, sometimes featuring tabs, slots, or adhesive backing, ensuring they fit perfectly and securely to the brake pad's backing plate. The thickness of a shim is also critical, as it contributes to its dampening capabilities and thermal properties. In essence, these seemingly minor components are a testament to the intricate engineering required to make your car stop safely and quietly.

The Core Mission: Silencing the Squeal

One of the most common and irritating issues drivers face is brake squeal. This high-pitched noise typically arises from vibrations within the braking system, specifically between the brake pad and the rotor. When the brake pad is applied to the spinning rotor, a phenomenon known as 'stick-slip' friction can occur. This is similar to dragging your finger across a wet glass; it sticks, then slips, sticks, then slips, creating a high-frequency vibration. When these vibrations resonate at frequencies audible to the human ear (typically between 1 kHz and 12 kHz), they manifest as that infamous squeal.

This is where brake pad shims become indispensable. They are designed to act as acoustic dampeners and vibration isolators. By placing a shim between the brake pad and the caliper, it introduces an additional layer that absorbs and dissipates these high-frequency vibrations. Think of it like a shock absorber for sound. The shim's material and multi-layer construction convert kinetic energy from the vibrations into heat, effectively preventing them from transferring to the heavier caliper components, which would otherwise amplify the noise. This dampening effect is crucial for a quiet braking experience, making shims a fundamental component in modern brake systems.

Beyond Quiet: Heat Management and Performance Boost

While noise reduction is a primary function, brake pad shims offer significant benefits beyond just silencing your stops. They also play a crucial role in thermal management and can even contribute to overall braking performance.

• Thermal Management: Braking generates an immense amount of heat due to the friction between the pads and rotors. This heat needs to be dissipated efficiently to prevent brake fade (loss of braking power due to overheating) and premature wear of components. Some shims, particularly those made with certain metallic layers or composite materials, are designed to help conduct and dissipate this heat away from the brake pad and into the caliper. By preventing excessive heat build-up in the pad, shims help maintain consistent braking performance and extend the life of both the pads and rotors. They act as a thermal barrier, protecting the caliper piston seals from direct heat, which could otherwise lead to premature wear or failure.
• Improved Performance: In certain applications, shims can subtly influence the overall feel and responsiveness of the brake system. By ensuring a consistent and stable interface between the pad and the caliper, shims can contribute to a more predictable pedal feel. They help maintain the correct friction coefficient, which is vital for optimal stopping power and stability, especially under varied driving conditions. For high-performance vehicles where precise braking control is paramount, shims help achieve that consistent bite and modulation, enhancing driver confidence and safety.

A Closer Look at Shim Varieties

The world of brake pad shims is more diverse than you might initially imagine, with various types designed to meet specific needs and performance criteria. Understanding these types can help appreciate the engineering behind your vehicle's quiet stops.

• Standard Shims: These are the most common type, typically made from a single layer of steel or a simple multi-layer design (e.g., steel with a rubber coating). Their primary function is basic noise reduction by providing a dampening layer between the pad and the caliper. They are cost-effective and widely used in many everyday vehicles.
• Composite Shims: Moving up in complexity, composite shims are crafted from a blend of materials, often combining metallic layers (like steel) with non-metallic layers (such as rubber, acrylic, or other viscoelastic polymers). This multi-layer construction is particularly effective at absorbing a broader range of vibration frequencies. For example, a common design might be a three-layer shim: steel-rubber-steel. The rubber layer is excellent at dampening vibrations, while the steel layers provide structural integrity and heat resistance. These offer superior noise reduction and improved thermal management compared to standard shims.
• Anti-Squeal Shims: These are highly specialised shims engineered specifically to combat persistent brake squeal. They often incorporate unique designs or advanced materials, such as high-damping polymers or adhesive layers that bond firmly to the pad or caliper, further inhibiting vibration. Some may feature a textured surface to better grip the caliper piston, reducing micro-movements that can generate noise. They are usually found in higher-end brake pads or as an aftermarket upgrade for vehicles prone to squeal.

Here's a quick comparison of common shim types:

When Shims Don't Seem to Work: Why Your Brakes Might Still Be Noisy

While brake shims are designed to prevent noise, it's a common frustration for drivers to still experience squealing or grinding sounds even when their brake pads are equipped with shims. If your brakes are making noise despite having shims, it often points to an underlying issue that's either preventing the shims from doing their job or is unrelated to the shims themselves.

• Improper Installation: This is a leading cause of shim-related noise. If shims are not installed correctly, they cannot effectively dampen vibrations. Common installation errors include:
  • Lack of Proper Lubrication: Shims require a thin, even layer of high-temperature brake lubricant (often silicone-based) applied to their contact points with the caliper. This lubricant helps them move slightly and absorb vibrations. Without it, the shim can bind or resonate, leading to noise.
  • Incorrect Seating: If the shim is bent, not sitting flush against the pad's backing plate, or incorrectly positioned relative to the caliper piston, it won't function as intended.
  • Damaged or Missing Adhesive: Some shims come with an adhesive layer to secure them to the pad. If this layer is compromised or missing, the shim can vibrate independently.
  • Wrong Shim Type: Using shims not specifically designed for your brake pads or vehicle can lead to fitment issues and reduced effectiveness.
• Worn or Damaged Shims: Shims are durable but not indestructible. Over time, they can corrode, become bent, or their dampening layers can degrade. A damaged shim can no longer absorb vibrations effectively, potentially becoming a source of noise itself. If you notice rust, bends, or missing layers on your shims during a brake inspection, they should be replaced.
• Other Brake System Issues: Often, the shims are blamed when the real culprit lies elsewhere in the braking system:
  • Worn Brake Pads: If the friction material on your pads is severely worn, the metal backing plate can start contacting the rotor, causing a loud grinding noise that shims cannot prevent.
  • Worn or Damaged Rotors: Rotors that are warped, have excessive runout, or are grooved can cause vibrations that overwhelm the shims' ability to dampen them. Glazed rotors (hardened surface due to overheating) can also contribute to noise.
  • Caliper Issues: A sticking caliper piston or slide pins that are seized can prevent the brake pad from moving freely, leading to uneven wear and persistent noise.
  • Contamination: Oil, grease, or dirt on the brake pad or rotor can drastically alter friction characteristics, leading to squealing.
  • Poor Quality Components: Low-quality brake pads or shims may simply not have the necessary dampening properties or precise manufacturing tolerances to prevent noise effectively.

It's crucial to understand that shims are a component of a larger system. If any other part of that system is compromised, the shims' effectiveness will be severely limited, and noise will likely persist.

Why Some Pads Go Shim-Less

While shims are a common and effective solution for noise reduction, not all brake pads come with them. Some manufacturers employ alternative strategies to achieve quiet braking, often integrating noise-reduction features directly into the brake pad design or friction material itself.

• Integrated Dampening Layers: Some premium brake pads feature an integrated dampening layer directly bonded to the backing plate, essentially making the shim an inseparable part of the pad. This eliminates the need for a separate shim.
• Specific Friction Material Formulations: Brake pad manufacturers invest heavily in developing friction materials that inherently produce less noise. These formulations might have a lower coefficient of friction or specific material compounds that minimise the 'stick-slip' phenomenon.
• Chamfers and Slots: Many brake pads are designed with chamfers (angled edges) and slots (cuts) in the friction material. These features help to break up vibrations, reduce contact points, and channel away dust and gases, all of which contribute to noise reduction.
• Adhesive-Backed Pads: Some pads come with an adhesive layer on the backing plate that sticks directly to the caliper piston, effectively dampening vibrations without a separate shim.

The choice to include or omit shims depends on the manufacturer's design philosophy, the intended application of the brake pad, and the overall braking system's engineering. Regardless of the approach, the goal remains the same: to deliver quiet and efficient braking.

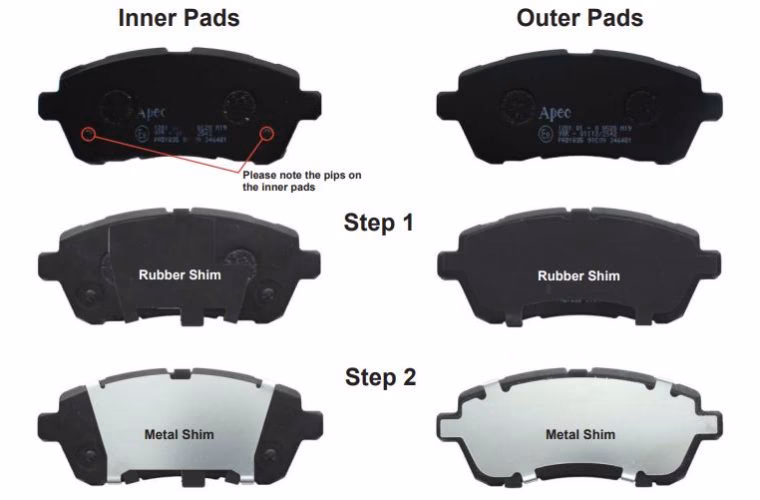

The Art of Proper Shim Installation

Given their critical role, the proper installation of brake pad shims is paramount. Incorrect installation can negate their benefits and even lead to new problems. While it's tempting for DIY enthusiasts to tackle brake jobs, it's always best to have brake components, including shims, installed by a qualified mechanic, particularly if you're not experienced.

Key aspects of proper installation include:

• Thorough Cleaning: Before installing new shims and pads, the caliper, caliper bracket, and rotor surfaces must be meticulously cleaned. Old brake dust, rust, and grime can interfere with proper shim seating and operation.
• Appropriate Lubrication: A crucial step often overlooked is the application of a thin, even coat of high-temperature, non-petroleum-based brake lubricant (typically silicone or ceramic-based) to the contact points of the shim – where it meets the caliper and potentially the pad backing plate. This lubricant allows for slight movement and prevents metal-on-metal contact that could generate noise.
• Correct Orientation and Seating: Shims must be installed in the correct orientation and seated perfectly flush against the brake pad's backing plate. Any misalignment or bending can compromise their dampening ability.
• Secure Fitment: Ensure the shim is securely attached to the pad or properly positioned within the caliper assembly as per the manufacturer's instructions.

These seemingly small details collectively ensure that the shims can perform their vital role effectively, contributing to a quiet and reliable braking system.

When to Bid Farewell to Your Shims

Brake pad shims are generally designed to last for the lifespan of the brake pads they accompany. However, they are subject to extreme conditions – high temperatures, constant vibration, and exposure to road grime and moisture. Therefore, it's essential to inspect them whenever your brakes are serviced.

You should consider replacing your shims (typically along with new brake pads) if you observe any of the following:

• Visible Damage: This includes bends, cracks, significant corrosion, or tearing of any rubber or composite layers.
• Degraded Adhesive: If the adhesive backing (if present) has lost its stickiness or is peeling away.
• Unusual Noise: If you've recently replaced your brake pads and are experiencing persistent squealing or grinding, it's worth checking the shims for improper installation or damage.
• Part of a Kit: Most new brake pads come with new shims as part of the kit. It's always recommended to use the new shims provided, as they are designed to match the specific pads.

While some mechanics might reuse shims if they appear to be in perfect condition, the best practice for optimal performance and noise reduction is to replace them with new ones every time you replace your brake pads. This ensures you're starting with fresh components designed to perform at their best.

Frequently Asked Questions (FAQs)

1. Why do my brakes make noise even with shims?

There are several reasons why your brakes might still make noise despite having shims. It could be due to improper shim installation (e.g., lack of lubrication, incorrect seating), worn or damaged shims, or more commonly, other underlying issues with your braking system such as worn-out pads, warped or glazed rotors, sticking caliper pistons or slide pins, or even contamination on the brake surfaces. A professional inspection is always recommended to accurately diagnose the cause.

2. Can I install brake pad shims myself?

While it is technically possible for an experienced DIY mechanic to install brake pad shims, it's generally not recommended for novices. Proper installation requires specific knowledge of brake system components, correct lubrication techniques, and ensuring all parts are seated perfectly. Incorrect installation can lead to persistent noise, uneven pad wear, and potentially compromise your vehicle's braking safety. If you're unsure, always defer to a qualified mechanic.

3. How often should I replace my brake pads and shims?

The frequency of brake pad and shim replacement varies significantly depending on your driving habits, vehicle type, and the quality of the brake components. As a general guideline, it's advisable to have your brakes inspected every 6 months or 5,000 to 10,000 miles. Shims are typically replaced along with new brake pads when the friction material wears down to the manufacturer's specified minimum thickness (often around 3mm or 1/8 inch).

4. Can I reuse old brake pad shims?

It is generally not recommended to reuse old brake pad shims. Over time, shims can become worn, corroded, bent, or lose their dampening properties due to heat and stress. Reusing them can lead to persistent brake noise and reduced overall braking performance. Most new brake pad sets come with new shims, and it's always best practice to use these new components for optimal results.

5. What happens if I don't replace my worn or damaged brake pad shims?

Failing to replace worn or damaged shims can lead to increased brake noise (squealing or grinding), excessive vibrations transferred through the brake pedal, and potentially accelerated wear on other brake components like pads and rotors due to inadequate dampening. In extreme cases, a severely damaged shim could even interfere with the proper movement of the brake pad, though this is rare. For optimal comfort, safety, and component longevity, replacing worn shims is crucial.

The Silent Guardians of Your Brakes: Conclusion

Brake pad shims, despite their humble appearance, are truly the silent guardians of your braking system. They are a prime example of how small, often overlooked, components contribute significantly to the overall safety, performance, and comfort of your vehicle. By effectively dampening vibrations and managing heat, they prevent the annoying squeal that can plague many drivers and help maintain the integrity and efficiency of your brakes. Understanding their purpose not only demystifies that high-pitched noise but also underscores the complex engineering that goes into every stop you make. Remember, regular maintenance and ensuring these critical components are correctly installed and in good condition will keep your stops smooth, quiet, and most importantly, safe.
