What is Polyester Resin?
Polyester resin is a synthetic polymer commonly encountered in various manufacturing and repair applications. It's a versatile material known for its affordability, ease of use, and relatively quick curing time. Often used in conjunction with fibreglass, it forms a strong and durable composite material. Understanding its properties and applications is key to selecting the right material for your project. This guide will delve into the world of polyester resin, exploring its composition, characteristics, wide-ranging uses, and how it stacks up against other common resins like epoxy.
The Composition of Polyester Resin
Polyester resin is not a single entity but rather a complex mixture, with each component playing a crucial role in its performance. The typical composition includes:
- Polyester Base (65-70%): This is the core of the resin, forming the polymer chains that give the material its strength and structure once cured.
- Solvent (approx. 30%): Solvents are added to reduce the viscosity of the resin, making it easier to mix, pour, and apply. Common solvents include styrene.
- Initiator (approx. 1.8%): This component, often a peroxide compound, triggers the polymerisation process. It starts the chemical reaction that causes the liquid resin to harden.
- Accelerator (approx. 1.5%): Accelerators, such as cobalt salts, speed up the polymerisation process initiated by the initiator, reducing the curing time.
- Inhibitor: Added in small amounts, inhibitors prevent premature polymerisation during storage, ensuring the resin remains in a liquid state until it's intentionally activated.
The precise ratios of these components can be adjusted to tailor the resin's properties for specific applications.
Key Characteristics and Properties
Polyester resin boasts a range of properties that make it a popular choice for many applications:
- Low Thermal Conductivity: It doesn't conduct heat very well, which can be advantageous in certain insulation applications.
- High Moisture Stability: Once cured, polyester resin is highly resistant to moisture absorption, preventing degradation and maintaining its strength in damp environments.
- Long Service Life: Products made with polyester resin are known for their durability and longevity.
- Resistance to Environmental Factors: It exhibits good resistance to temperature fluctuations, UV radiation, and mechanical stress.
- Chemical Resistance: Polyester resin can withstand exposure to various chemicals, making it suitable for industrial environments.
- Versatility in Application: Its ability to be combined with other materials, particularly fibreglass, opens up a vast array of uses.
- Good Adhesion: It adheres well to a variety of substrates, including metals, wood, and other plastics.
- Electrical Insulation: Polyester resin is a good electrical insulator, making it useful in electrical components.
Where is Polyester Resin Used?
The applications of polyester resin are incredibly diverse, spanning multiple industries:
Automotive Industry
Polyester resin is a staple in automotive repair and manufacturing. It's widely used for:
- Fibreglass Body Repairs: Combined with fibreglass matting, it's used to repair dents, cracks, and holes in car body panels, bumpers, and spoilers.
- Car Body Filler: As a component in automotive putties, it's used to smooth out imperfections on car bodies before painting.
- Manufacturing Auto Parts: It's used to create various car components, including dashboards, interior trim, and even some structural elements, often in combination with fibreglass.
Marine Industry
The marine sector heavily relies on polyester resin for its water resistance and durability:
- Boat Building and Repair: It's the primary material for constructing fibreglass boat hulls and for repairing damage to existing vessels. Its ability to withstand constant exposure to water is crucial here.
- Coating and Sealing: Used as a protective coating for marine components to prevent water ingress and corrosion.
Construction and Architecture
In construction, polyester resin finds use in:
- Plumbing Fixtures: Manufacturing baths, sinks, and shower trays due to its water resistance and ability to be moulded into various shapes.
- Artificial Stone and Countertops: Used in casting processes to create durable and aesthetically pleasing artificial stones, countertops, and decorative elements.
- Architectural Mouldings: Creating ornate cornices, window sills, and decorative figurines through casting.
- Flooring: Used as a component in floor fillers and coatings, providing a durable and seamless finish.
Other Applications
- Adhesives and Sealants: Formulated into strong adhesives and sealants for various bonding applications.
- Paints and Varnishes: Used as a binder in some types of paints and varnishes to improve their durability and finish.
- Electrical and Radio Equipment: Used for encapsulating and insulating parts in electrical and radio equipment due to its insulating properties.
- Modelling and Art: Used for creating various figurines and sculptures, often with fibreglass reinforcement.
Polyester Resin vs. Epoxy Resin: A Comparison
While both polyester and epoxy resins are thermosetting polymers used in similar fields, they have distinct differences:
| Feature | Polyester Resin | Epoxy Resin |
|---|---|---|
| Cost | Generally less expensive | Typically more expensive |
| Ease of Use | Easier to work with, less sensitive to mixing ratios | Can be more challenging, requiring precise mixing |
| Curing Time | Cures relatively quickly (minutes to hours) | Cures more slowly (hours to days) |
| Strength | Good strength, but can be brittle | Exceptional strength and toughness |
| Adhesion | Good adhesion to many substrates | Superior adhesion, bonds very strongly |
| Flexibility | Less flexible, more prone to cracking under stress | More flexible and resilient |
| Shrinkage | Can shrink significantly during curing | Minimal shrinkage during curing |
| Durability | Good, but less resistant to chemicals and UV than epoxy | Excellent durability, superior chemical and UV resistance |
| Toxicity | Contains styrene, which has fumes | Less volatile organic compounds (VOCs), but hardeners can be irritants |
When to choose Polyester Resin: For projects where cost and speed are primary concerns, and extreme strength or flexibility isn't critical. Ideal for general fibreglass repairs, basic mould making, and non-structural applications.
When to choose Epoxy Resin: For high-performance applications requiring superior strength, adhesion, and durability. Excellent for structural bonding, high-stress repairs, coatings, and situations demanding resistance to chemicals and harsh environments.
Working with Polyester Resin
Working with polyester resin requires careful attention to detail and safety:
- Read Instructions: Always consult the manufacturer's instructions for specific mixing ratios and application guidelines.
- Mixing: Prepare the resin in small batches, especially if you are a beginner. Gradually add the catalyst (initiator) and accelerator according to the product's specifications. Mix thoroughly but avoid introducing too many air bubbles.
- Application: Apply the mixed resin promptly, as it has a limited working time. The viscosity can be adjusted with solvents if needed.
- Curing: The polymerisation process begins upon mixing. The temperature of the mixture will rise as it cures. If it becomes too hot, you can cool the container in cold water to slow the reaction.
- Gelation and Hardening: Once the resin reaches the gelatinisation stage (typically 20-60 minutes), its consistency changes, and it cannot be easily altered. Full hardening usually takes 2-4 hours, but complete cure can take 7-14 days, during which the material reaches its maximum strength.
Safety Precautions
Polyester resin contains potentially hazardous chemicals, primarily styrene, which can be harmful if inhaled or if it comes into contact with skin. Always:
- Ventilation: Work in a well-ventilated area or use a respirator mask.
- Protective Gear: Wear chemical-resistant gloves, safety glasses, and protective clothing.
- Fire Safety: Keep away from open flames and heat sources, as the resin and solvents are flammable. Have sand or a fire extinguisher readily available.
- Skin Contact: If skin contact occurs, wash the affected area immediately with soap and water. Specialized cleaning agents may be required.
Frequently Asked Questions

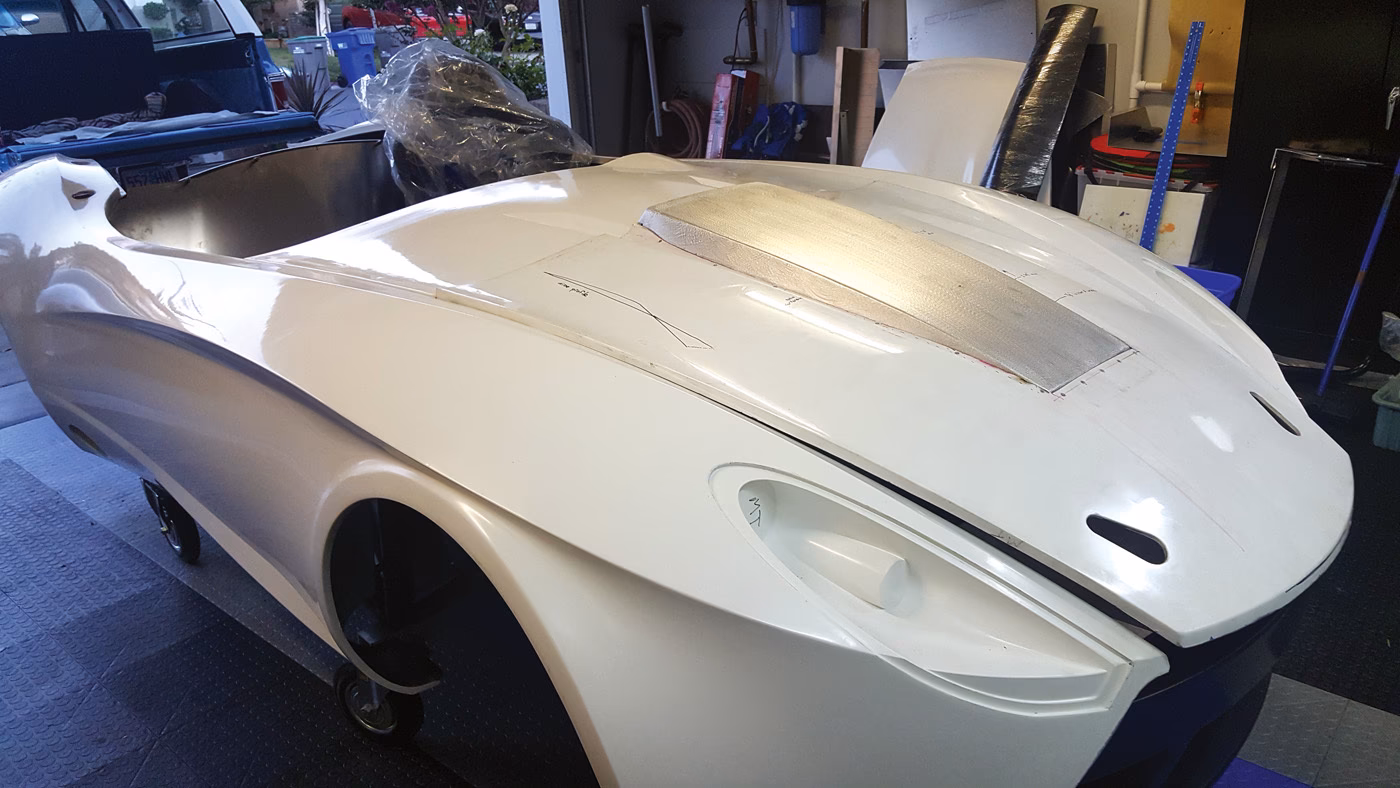

What is polyester filler used for?
Polyester filler, often referred to as car body filler or Bondo, is a paste-like material used to fill dents, scratches, and other imperfections on car bodies. It hardens after application, creating a smooth surface that can be sanded and painted, restoring the appearance of the vehicle's exterior.
What are auto body fillers made of?
Auto body fillers are typically composed of a polyester resin base mixed with a hardener (catalyst). This mixture often includes fillers like talc to achieve the desired thick consistency for easy application and sanding.
Can polyester resin be used for casting?
Yes, polyester resin can be used for casting, particularly when reinforced with fibreglass. It's used to create various items like figurines, architectural elements, and even artificial stones.
Is polyester resin waterproof?
Once fully cured, polyester resin exhibits high moisture stability and is generally considered waterproof, making it suitable for marine applications and plumbing fixtures.
How long does polyester resin take to cure?
The curing process for polyester resin is relatively fast. It typically begins to harden within minutes to a few hours after mixing with the catalyst, though it can take several days to reach its full, hard cure.
Conclusion
Polyester resin is a remarkably versatile and cost-effective material that plays a vital role in numerous industries, from automotive and marine to construction and art. Its ease of use, quick curing time, and good overall properties make it an excellent choice for many projects. However, understanding its limitations, particularly when compared to stronger resins like epoxy, is crucial for making informed decisions. By adhering to safety guidelines and proper working techniques, polyester resin can help you achieve durable and satisfactory results for a wide array of applications.
