How Mini Brake Pads Work: A Detailed Guide

The exhilarating performance and nimble handling of a Mini are legendary, but underpinning all that 'go-kart' fun is a sophisticated braking system designed to bring your vehicle to a safe and controlled stop. At the heart of this system are the brake pads, unassuming yet critically important components that perform a remarkable feat of physics every time you press the brake pedal. Understanding how Mini brake pads work isn't just for mechanics; it's essential knowledge for any owner who values safety, performance, and the longevity of their beloved car.

Essentially, brake pads are sacrificial components designed to create friction against a rotating disc (the rotor), converting the car's kinetic energy into thermal energy (heat). This process slows the vehicle down, eventually bringing it to a complete halt. While the principle is straightforward, the engineering behind modern brake pads, especially those designed for a dynamic car like a Mini, is quite intricate, involving advanced materials and precise design to ensure consistent, reliable stopping power under various conditions.

The Fundamental Principle: Friction and Energy Conversion

Every moving object possesses kinetic energy, which is directly related to its mass and speed. To slow down or stop a vehicle, this kinetic energy must be dissipated. In a car's braking system, this dissipation primarily occurs through the conversion of kinetic energy into heat. This is where brake pads come into play. When you press the brake pedal, hydraulic pressure forces the brake pads to clamp onto the spinning brake rotor (also known as a brake disc). The friction generated between the pad and the rotor creates immense heat, which slows the rotor, and consequently the wheel, down.

The amount of friction generated is crucial. Too little, and the car won't stop effectively; too much, and the brakes might lock up, or the pads could wear out prematurely. The materials used in brake pads are carefully engineered to provide the optimal balance of friction, durability, and heat resistance. This intricate dance of physics is happening hundreds, if not thousands, of times throughout the life of your Mini, highlighting the sheer importance of these relatively small parts.

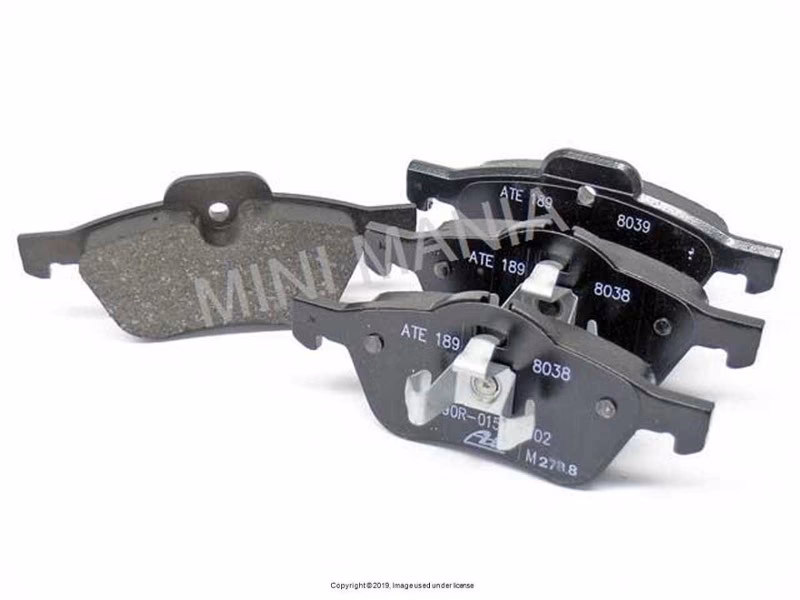

Components of a Mini Brake Pad

Despite their compact size, Mini brake pads are complex assemblies consisting of several layers, each serving a specific purpose:

• Backing Plate: This is the rigid steel plate to which the friction material is bonded. It provides structural integrity and acts as a platform for the caliper piston to push against. It must be strong enough to withstand immense forces and heat without deforming.
• Friction Material: This is the most critical part, responsible for generating friction. It's a carefully formulated composite blend of various materials, designed to provide consistent braking performance across a range of temperatures, resist wear, and minimise noise and dust. The exact composition varies significantly depending on the type of pad.
• Shims: Often found on the back of the backing plate, these thin layers of rubber or metal are designed to absorb vibrations and reduce noise (squealing or grinding) during braking. They act as an insulator, dampening the high-frequency vibrations that cause noise.
• Adhesive Layer: A high-strength adhesive bonds the friction material securely to the backing plate, ensuring they remain fused even under extreme heat and pressure.

The Braking Process: Step-by-Step

Let's trace the journey from when you press the brake pedal to your Mini coming to a stop:

1. Pedal Depression: When you press the brake pedal, it activates a pushrod connected to the master cylinder.
2. Hydraulic Pressure: Inside the master cylinder, a piston is pushed, forcing brake fluid through the brake lines under high pressure.
3. Caliper Activation: This pressurised fluid travels to the brake calipers at each wheel. The caliper houses one or more pistons.
4. Piston Movement: The hydraulic pressure forces the caliper piston(s) to extend outwards.
5. Pad-to-Rotor Contact: The extended piston(s) push the inner brake pad against the brake rotor. Simultaneously, the caliper itself slides, pulling the outer pad into contact with the other side of the rotor.
6. Friction Generation: As the pads clamp onto the spinning rotor, friction is generated. This friction converts the Mini's kinetic energy into heat.
7. Deceleration: The heat generated dissipates through the rotor and pads, slowing the rotation of the wheels and, consequently, the entire vehicle.
8. Vehicle Stop: As the wheels slow, the Mini decelerates and eventually comes to a complete stop. When you release the pedal, the hydraulic pressure drops, and the pads retract slightly from the rotor, allowing the wheels to spin freely again.

Types of Brake Pads for Minis

The choice of brake pad material significantly impacts braking performance, lifespan, noise, and dust production. For Minis, a range of options are available, catering to different driving styles and preferences:

Organic (Non-Asbestos Organic - NAO) Pads

These pads are made from a blend of organic materials like glass, rubber, carbon, and Kevlar, bound together with resins. They are typically quieter and produce less dust than other types, making them a good choice for everyday driving and those who prioritise comfort over aggressive performance. However, they tend to wear faster and may offer reduced performance under high-heat or extreme braking conditions.

Semi-Metallic Pads

Comprising 30-65% metal (iron, copper, steel wool, etc.) mixed with organic fillers and binders, semi-metallic pads are a popular choice for their balance of performance and durability. They offer good stopping power across a wide temperature range and are more resistant to fade than organic pads. The trade-off is often increased noise, more brake dust, and potentially more wear on the rotors due to their abrasive nature.

Ceramic Pads

Ceramic brake pads are the premium option, made from ceramic fibres, filler materials, and bonding agents. They are known for their extremely quiet operation, very low dust production (the dust they do produce is lighter in colour and less noticeable), and excellent performance across various temperatures, including very high heat. Ceramic pads generally last longer than organic or semi-metallic pads and are gentler on rotors. Their main drawback is usually a higher upfront cost.

Comparative Table: Mini Brake Pad Types

Factors Affecting Brake Pad Performance and Lifespan

Several factors influence how well your Mini's brake pads perform and how long they last:

• Driving Style: Aggressive driving, with frequent hard braking, will significantly shorten pad life. Smooth, progressive braking extends it.
• Road Conditions: Driving in hilly areas or heavy stop-and-go city traffic puts more stress on brakes than motorway driving.
• Vehicle Load: A heavily loaded Mini requires more braking force to stop, leading to increased wear.
• Brake System Health: A properly functioning brake system (calipers, rotors, fluid) is crucial. Sticking calipers or warped rotors can accelerate pad wear.
• Pad Material: As discussed, different materials have inherent durability characteristics.
• Rotor Condition: Smooth, true rotors allow for even pad wear and optimal contact. Grooved or warped rotors can cause uneven wear and reduced performance.

Signs of Worn Brake Pads

Ignoring worn brake pads is not only dangerous but can also lead to more expensive repairs down the line. Be vigilant for these common indicators:

• Squealing or Grinding Noises: Many pads have a built-in wear indicator – a small metal tab that scrapes against the rotor when the pads are thin, producing a high-pitched squeal. If you hear a grinding noise, it usually means the friction material is completely worn away, and metal is rubbing on metal, which can severely damage your rotors.
• Vibrations Through the Pedal: This can indicate warped rotors, often caused by excessive heat from worn pads or improper braking.
• Longer Stopping Distances: If your Mini isn't stopping as quickly or as responsively as it used to, it's a clear sign of brake system inefficiency.
• Dashboard Warning Light: Many modern Minis have a brake pad wear sensor that illuminates a warning light on the dashboard when pads are due for replacement.
• Visual Inspection: You can often visually inspect your pads through the wheel spokes. If the friction material looks very thin (less than 3mm), it's time for replacement.

The Importance of Quality Brake Pads for Your Mini

Given the Mini's reputation for agile handling and spirited driving, the quality of its braking system cannot be overstated. High-quality brake pads are not merely a maintenance item; they are a performance component that directly contributes to your safety and driving enjoyment. Inferior pads can compromise stopping distances, lead to brake fade (loss of braking power due to overheating), and even cause premature wear on other brake components like rotors and calipers.

Opting for reputable brands and the correct type of pad for your driving style ensures that your Mini retains its characteristic responsiveness and, most importantly, its ability to stop safely and predictably in all situations. Remember, the 'go-kart' feel is only truly enjoyable when you know you can stop on a sixpence.

Maintenance Tips for Your Mini's Brake Pads

Regular maintenance is key to ensuring your Mini's brake pads perform optimally and last as long as possible:

• Regular Inspections: Have your brake pads inspected during every service, or at least once a year. A qualified technician can assess the remaining pad life and check for any uneven wear or other issues.
• Listen for Noises: Pay attention to any unusual sounds when braking. Squeals, grinds, or clunks are often early warning signs.
• Check Brake Fluid: Ensure your brake fluid is at the correct level and replaced according to Mini's recommended schedule. Old or contaminated fluid can reduce braking efficiency.
• Consider Rotor Condition: Brake pads and rotors work in tandem. If your rotors are grooved, warped, or worn below minimum thickness, new pads alone won't restore optimal braking performance. They should ideally be replaced together or at least machined (skimmed) if within tolerance.
• Proper Bedding-In: After new pads are installed, follow the manufacturer's 'bedding-in' procedure. This involves a series of moderate stops to properly transfer a layer of friction material to the rotor, optimising performance and reducing noise.

Frequently Asked Questions About Mini Brake Pads

How often should Mini brake pads be replaced?

There's no fixed interval as it depends heavily on driving style, road conditions, and pad material. However, as a general guideline, front pads might last 30,000-50,000 miles, while rear pads can last longer, perhaps 40,000-70,000 miles. Always refer to your Mini's service schedule and have them inspected regularly.

Can I replace Mini brake pads myself?

While it is possible for experienced DIY mechanics, brake pad replacement requires specific tools, knowledge of torque settings, and understanding of brake system safety. Incorrect installation can lead to brake failure. If you're not confident, it's always best to have a qualified mechanic perform the work.

What's the difference between front and rear Mini brake pads?

Front brakes typically do about 70-80% of the braking work due to weight transfer during deceleration, so front pads and rotors are usually larger and wear out faster than rear ones. Rear pads are generally smaller and designed for less aggressive stopping duties, often aiding in stability and parking brake function.

Do Mini brake pads need 'bedding in'?

Yes, 'bedding in' (or 'burnishing') new brake pads is crucial. It involves a series of controlled, moderate stops to properly seat the pads with the rotors and transfer a layer of friction material onto the rotor surface. This process optimises performance, reduces noise, and extends pad life. Consult the pad manufacturer's instructions for the specific procedure.

Why do my new Mini brake pads squeal?

New pads can sometimes squeal due to various reasons: improper bedding-in, a lack of anti-squeal shims or grease, cheap pad material, or even just the normal characteristics of some performance pads (like semi-metallics) when cold. If squealing persists after bedding-in and is very loud, it's worth having them checked.

In conclusion, the brake pads on your Mini are far more than just simple components; they are a critical part of its safety system and performance characteristics. Understanding how they work, recognising the signs of wear, and ensuring timely maintenance will not only keep you safe on the road but also preserve the exhilarating driving experience that makes owning a Mini so special. Always prioritise quality and professional advice when it comes to your brakes – they are, after all, your ultimate stopping power.
