Mastering ECU File Editing Software

In the dynamic world of automotive performance and efficiency, the Engine Control Unit (ECU) stands as the brain of your vehicle. It dictates everything from fuel injection and ignition timing to turbo boost and emissions. To truly unlock a car's hidden potential, or to fine-tune it for specific purposes, one must delve into the realm of ECU file editing. This intricate process requires specialised software, designed to interpret, modify, and rewrite the complex data maps within your ECU. Choosing the right software is paramount, as it directly impacts the safety, reliability, and ultimate performance gains you can achieve.

Understanding ECU File Editing Software

ECU file editing software serves as the interface between a tuner and the vehicle's electronic brain. These sophisticated programs allow users to view, analyse, and modify the parameters that govern engine operation. Think of it as accessing the source code of your car's performance. By adjusting these parameters, tuners can optimise the engine's behaviour for various goals, be it increased performance, improved fuel efficiency, or enhanced engine reliability. The software typically displays complex data in a more manageable format, often using maps or tables, which represent different operational conditions of the engine.

The core function of this software is to enable the modification of calibration data. This data includes, but is not limited to, fuel maps (determining the air/fuel ratio), ignition timing maps, boost pressure maps for turbocharged engines, torque limiters, and even rev limits. A skilled tuner, using the right software, can meticulously adjust these parameters to extract more horsepower and torque, smooth out power delivery, or even adapt the engine for different fuel types or modifications.

Popular ECU Tuning Software Options

The market offers a range of ECU file editing software, each catering to different levels of expertise and specific tuning requirements. Some are highly complex, offering granular control, while others provide more automated, user-friendly experiences. Here are some notable examples:

WinOLS: The Professional's Choice

WinOLS is widely regarded as one of the most powerful and comprehensive ECU remapping software solutions available. Developed by EVC Electronic, it is a favourite among professional tuners for its unparalleled depth and flexibility. WinOLS allows users to analyse, modify, and manage the data content of ECUs. It features a highly detailed interface that can seem daunting to beginners but offers immense control to experienced users. With WinOLS, tuners can identify and modify specific maps within the ECU file, compare different versions of files, and even implement checksum corrections to ensure file integrity.

Its strength lies in its ability to open and work with almost any ECU file, regardless of the vehicle manufacturer or ECU type. This makes it an incredibly versatile tool for those who work on a wide variety of vehicles. However, its complexity means that a significant learning curve is involved, and it requires a deep understanding of engine dynamics and ECU structures to be used effectively and safely.

ECM Titanium: Professional Yet Accessible

ECM Titanium, often referred to simply as ECM, offers a more streamlined and arguably more user-friendly experience compared to WinOLS, without sacrificing professional capabilities. Developed by Alientech, ECM Titanium is known for its "Drivers," which are pre-defined sets of parameters that simplify the identification and modification of common maps within an ECU file. This feature makes it easier for tuners to locate and adjust specific areas like fuel, ignition, and turbo maps without having to manually search for them.

While still a professional-grade tool, ECM Titanium can be a good stepping stone for tuners who are moving beyond simpler solutions but aren't yet ready for the full complexity of WinOLS. It provides a robust set of features for remapping, including checksum correction and the ability to work with various ECU types. It strikes a good balance between power and ease of use, making it popular amongst a broad spectrum of professional remappers.

StageX: Simplicity for Specific Changes

For those looking for a more straightforward approach, or for specific, pre-defined modifications, software like StageX (offered by VIEZU) provides a much simpler interface. These types of software solutions are designed to apply a selection of common changes with minimal input from the user, often at the click of a button. They typically come with pre-configured maps for common 'stages' of tuning, such as Stage 1 (performance optimisation for stock vehicles) or Stage 2 (for vehicles with minor hardware upgrades).

StageX, and similar simplified platforms, are ideal for tuners who want to offer popular remapping services without delving into the complex, byte-level editing required by tools like WinOLS. They abstract away much of the underlying complexity, providing a quick and efficient way to apply tried-and-tested modifications. While they offer less granular control than advanced software, their ease of use and speed make them attractive for high-volume operations or for those new to the tuning world who want to offer basic remapping services safely.

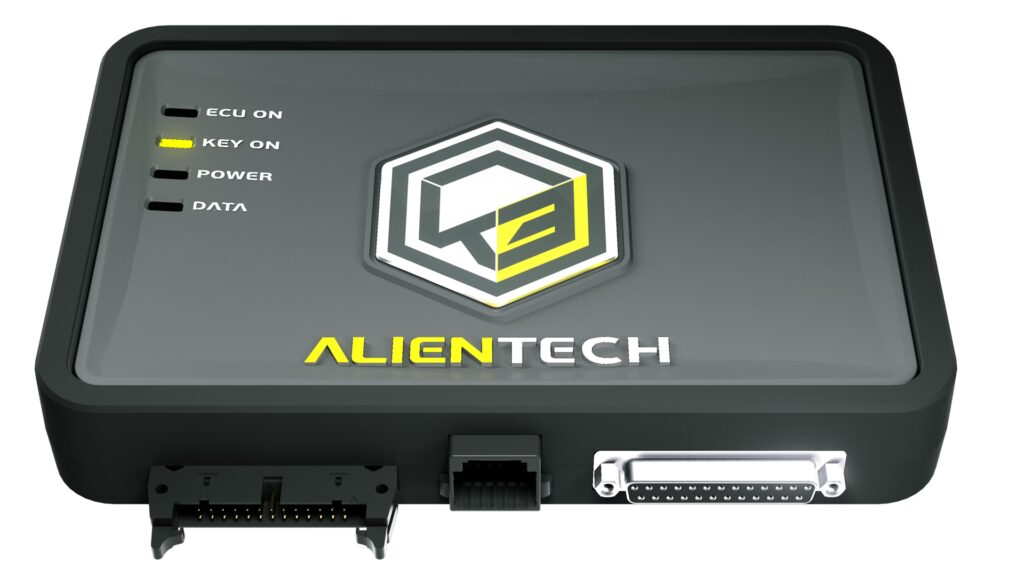

Tuning Methods: OBD, Bench, and Boot Explained

The method used to read and write an ECU file significantly impacts the choice of tuning tool and, by extension, the software compatibility. Understanding these methods is crucial for any tuner.

OBD (On-Board Diagnostics) Tuning

In most modern vehicles, the ECU can be accessed directly through the OBD (On-Board Diagnostics) port, which is typically located under the dashboard. This is the simplest and most common method for reading and writing ECU files. It involves connecting a tuning tool to the OBD port, which then communicates with the ECU. This method is non-intrusive, as it doesn't require removal of the ECU from the vehicle. However, some ECUs are 'tune-protected' or have specific security measures that prevent OBD tuning, especially newer models.

Bench Tuning

If OBD tuning is not possible due to ECU protection or specific vehicle requirements, the ECU often has to be removed from the vehicle and programmed on a work bench. Bench tuning involves directly connecting to specific connection pins on the ECU's circuit board. This method bypasses the vehicle's wiring harness and allows for a direct read/write operation. It offers a more robust and reliable connection, often enabling access to areas of the ECU that are not accessible via OBD. Bench mode is typically used when the ECU has anti-tuning measures or when a more complete backup of the ECU's data is required.

Boot Tuning

Boot tuning (or Boot Mode) is akin to bench mode but takes the process a step further. It requires the ECU to be opened, and direct connections are made to specific parts of the ECU circuit board, often including the processor itself, as well as connections to specific connection pins. This method is used for ECUs that have very advanced anti-tuning protections or when the ECU has been 'bricked' (rendered inoperable) during a previous tuning attempt. Boot mode provides the deepest level of access to the ECU's memory, allowing for full reads and writes, and often enabling recovery of damaged ECUs. It is the most intrusive method and should only be performed by experienced professionals due to the risk of damaging the ECU.

Comparative Table of Tuning Methods

Master vs. Slave Tools: A Crucial Distinction

When entering the world of ECU tuning, you'll inevitably encounter the terms 'Master' and 'Slave' tools. This distinction is vital, as it defines your level of control over the ECU files and your operational model as a tuner.

Master Tuning Tools

Master tools are the most expensive type of tuning tool, and for good reason. They provide the user with full, unrestricted access to the ECU file. When a file is read from a vehicle using a master tool, it is an 'open' file, meaning it can be directly accessed and edited using software like WinOLS or ECM Titanium. As a master tuner, you have the flexibility to write files in your own time, and can make exactly the changes you want to make, making as many changes as you would like without incurring additional cost per file. This offers complete autonomy and is ideal for tuners who have the expertise and desire to develop their own custom maps from scratch. They can choose to edit the files themselves or send them to any master file service for modification. This path offers maximum control but requires significant investment in both tools and expertise.

Slave Tuning Tools

Slave tools are a more cost-effective entry point into the tuning business. When a file is read from a vehicle using a slave tool, it is encrypted and 'locked' to a specific master tool or file service. This means the slave tuner cannot directly access or edit the raw ECU file themselves using editing software. Instead, they must send the encrypted file to their designated master tuner or file service (like VIEZU's file service), who then modifies the file and sends it back, still encrypted, for the slave tuner to write back to the vehicle. As a slave tuner, you benefit from decades of experience in tuning, and access to a team of full-time professional file writers, who know how to extract the best possible performance whilst also working within the safe working limits of a vehicle. This model is excellent for those who want to offer tuning services without the steep learning curve and significant investment required for master tools and in-depth file editing knowledge. It provides a supportive network and ensures quality-assured work, often with guarantees and training provided by the master service.

Comparative Table of Master vs. Slave Tools

The DIY Approach: Can You Remap Yourself?

For enthusiasts who wish to tune their own vehicle, the concept of DIY remapping has become increasingly accessible. Companies like VIEZU offer home tuning tools, such as the v-switch, which are specifically designed to allow individuals to tune their own vehicles safely and easily. These tools typically work as a simplified slave device, pre-loaded with a selection of custom-made files for your specific vehicle.

The process is often straightforward: you plug the tool into your vehicle's OBD port, and it guides you through selecting and writing one of the pre-purchased files to your car. This usually takes just a few minutes and comes with clear, step-by-step guidance. The benefit is convenience, cost-effectiveness (compared to professional services for multiple vehicles), and the ability to switch between different tunes (e.g., performance vs. economy) as desired. However, it's crucial to understand that while the process is simplified, the underlying files are still created by professional tuners, ensuring safety and optimal results within the vehicle's safe operating limits. This approach avoids the need for complex software knowledge or deep understanding of ECU mapping for the end-user.

Key Considerations When Choosing ECU Remapping Software

Selecting the best remapping software is not a one-size-fits-all decision. It hinges on your specific needs, your level of technical expertise, and the make and model of the vehicles you intend to tune. Here are critical factors to consider:

• User Interface and Ease of Use: Is the software intuitive, or does it require extensive training? For beginners, a simpler interface like StageX might be preferable, while seasoned professionals might appreciate the depth of WinOLS.
• Compatibility: Does the software support the specific ECU types and vehicle models you plan to work on? Some software excels with certain brands or types of ECUs.
• Features and Functionality: Beyond basic read/write, does it offer advanced features like checksum correction, map identification ('drivers'), data logging, or real-time tuning capabilities?
• Support and Updates: What kind of technical support is offered? Are there regular updates to ensure compatibility with new vehicles and to fix bugs? A robust support network is invaluable, especially when encountering complex issues.
• Safety and Diagnostics: Crucially, does the software have integrated safety features or diagnostics capabilities? Avoid software that lacks essential diagnostics, such as ABS/SRS (Anti-lock Braking System / Supplemental Restraint System) diagnostics capability. These features are vital for ensuring the overall health and safety of the vehicle after a tune.
• Cost: Software licenses can vary significantly in price. Consider the initial investment versus the long-term benefits and revenue potential.

Frequently Asked Questions About ECU Tuning and Software

Does ECU tuning really work?

Absolutely, ECU tuning can be highly effective. It works by optimising the engine’s air/fuel ratio, ignition timing, and other critical parameters to increase horsepower and torque. Beyond raw power, a well-executed tune can also significantly improve engine reliability by ensuring optimal operating conditions, and it can achieve better fuel consumption, especially when the tune is focused on efficiency rather than outright performance. The key is professional, safe tuning within the vehicle's design limits.

What’s the difference between OBD, Bench and Boot?

These terms refer to the different methods of physically accessing and programming a vehicle's ECU. OBD (On-Board Diagnostics) is the least intrusive, done via the vehicle's diagnostic port, typically used for most modern cars. Bench tuning involves removing the ECU and connecting directly to its pins on a workbench, used when OBD access is restricted. Boot tuning is the most intrusive, requiring the ECU to be opened and direct connections made to specific points on the circuit board, often for highly protected ECUs or recovery from failed programming attempts. Each method requires specific tools and a different level of technical expertise.

Can you do a remap yourself?

Yes, it is possible to remap your vehicle yourself, particularly with user-friendly tools designed for home tuning. For instance, VIEZU sells a home tuning tool called v-switch, which is specifically designed to allow you to tune your own vehicle. With such tools, you purchase a selection of custom-made files for your vehicle, then simply plug the tool in and choose which file to write to your car. The process typically takes only a few minutes and comes with clear, step-by-step guidance, making it accessible even for those without in-depth tuning knowledge.

What is the difference between a master tuning tool and a slave tuning tool?

The difference lies in file access and business model. Master tools are more expensive as they allow the user full, unrestricted access to the ECU file using editing software (like WinOLS). This gives the master tuner complete flexibility to create and modify maps independently. Slave tools, on the other hand, are less expensive and 'lock' the files to a specific master. Slave tuners send their read files (which are encrypted) to their master tuner or file service, who then modifies and returns them. This model benefits slave tuners by providing access to professional expertise and support without needing deep file editing knowledge themselves. VIEZU offers file services for both master and slave tool operators globally, ensuring fast turnaround times and quality-assured work.

What is the best remapping software?

The 'best' remapping software is subjective and depends entirely on your specific requirements and the vehicles you'll be working on. There isn't a single universal best. It's crucial to research and consider factors such as the user interface, compatibility with your vehicle fleet, the level of technical support provided, and the features offered. For example, for highly advanced, bespoke tuning, WinOLS might be considered best. For a balance of professional capability and ease of use, ECM Titanium is excellent. For simpler, pre-defined stage tuning, software like StageX could be ideal. A critical point is to avoid software that lacks essential ABS/SRS diagnostics capability, as this indicates a potentially incomplete or unsafe solution.

Conclusion

Navigating the world of ECU file editing software can seem daunting, but armed with the right knowledge, you can make informed decisions that align with your tuning goals. Whether you aspire to be a professional master tuner with full control, a service provider leveraging a slave tool network, or an enthusiast keen on a DIY approach, there's a software and tool solution for you. Always prioritise safety, invest in quality tools, and ensure you understand the capabilities and limitations of your chosen software to unlock your vehicle's true potential responsibly.
