Have you ever pondered the intricate dance of fuel and air within an engine, a fundamental process that powers everything from your daily commute to heavy industrial machinery? Modern engineering has gifted us with sophisticated solutions, and one such marvel is the port injection system. This technology plays a pivotal role in ensuring the air/fuel mixture is meticulously controlled, leading to enhanced performance, superior fuel economy, and a cleaner environmental footprint. This article will delve into the workings of port injection, exploring its operational nuances across various applications and highlighting its significance in today's automotive and industrial landscapes.
What Exactly is Port Injection?

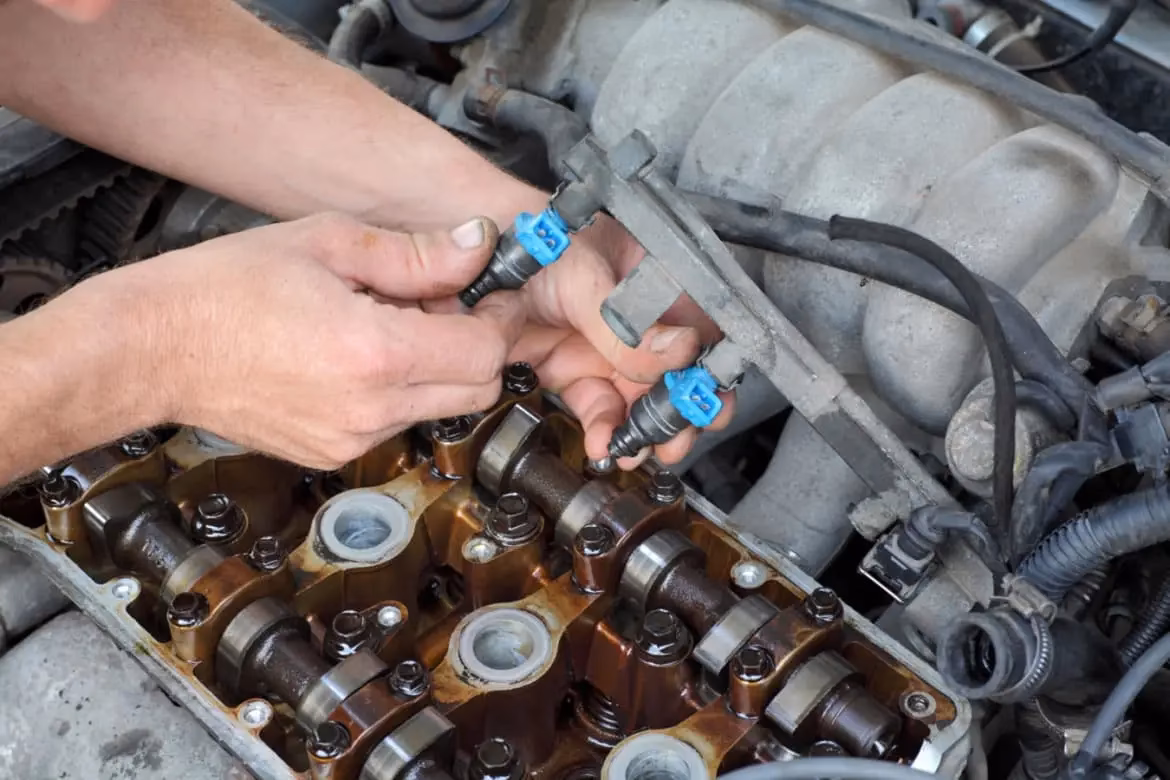

At its core, a port injection system is an engine fuel delivery mechanism. Unlike older methods that might premix fuel and air before it reached the cylinders, port injection injects fuel directly into the intake port of each cylinder. Think of it as a highly targeted delivery service. Each cylinder is equipped with a fuel injector, essentially a precisely engineered nozzle, strategically positioned next to the intake valve. This injector serves as the dedicated 'port' through which atomised fuel enters the combustion chamber. The beauty of this system lies in its ability to deliver the fuel at the opportune moment, allowing for a more controlled and efficient combustion process. This direct approach to fuel delivery is a significant leap forward from earlier, less precise methods.
The Step-by-Step Process of Port Injection
Understanding how port injection operates involves looking at the coordinated actions of several key components and a carefully orchestrated sequence of events. It's a symphony of sensors, calculations, and precise timing:
1. Sensor Monitoring: The Eyes and Ears of the Engine
The entire process begins with a sophisticated network of sensors. These are the 'eyes and ears' of the engine's control unit, constantly gathering vital information about the engine's operating conditions. Key sensors include those that monitor:
- Engine Speed (RPM): How fast the engine is turning.
- Air Temperature: The temperature of the air entering the engine.
- Airflow Rate: The volume of air being drawn into the engine.
- Throttle Position: How much the driver is pressing the accelerator.
- Oxygen Levels (Lambda Sensors): Measuring the amount of unburnt oxygen in the exhaust gases, which indicates the efficiency of combustion.
This continuous stream of data provides the engine's central computer with a comprehensive understanding of the immediate demands being placed upon it.
2. Computer Calculations: The Brains of the Operation
The data collected by the sensors is then fed into the vehicle's Engine Control Unit (ECU), often referred to as the 'brain'. The ECU is a powerful microcomputer that processes this information in real-time. Using complex algorithms and pre-programmed maps, it calculates the exact air/fuel ratio required to meet the current operating demands. This calculation is critical for optimising performance, fuel efficiency, and emissions. The ECU determines not only the precise amount of fuel needed but also the exact moment it should be injected into the intake port.
3. Timed Fuel Injection: The Precision Delivery

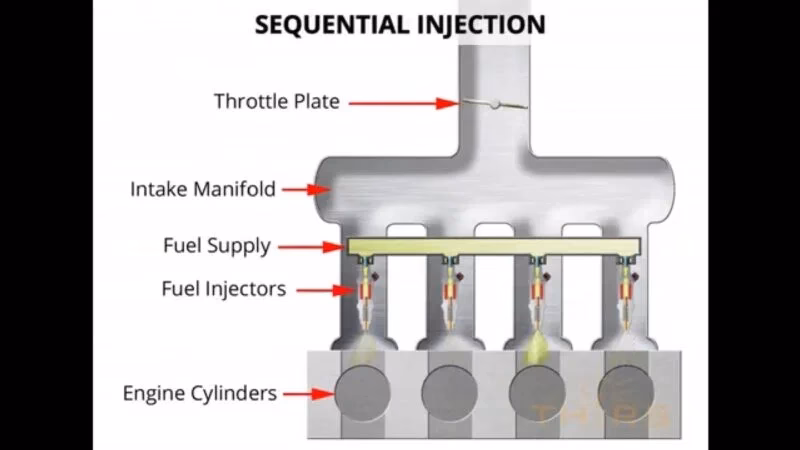

This is where the 'injection' part truly comes into play. As the intake valve for a specific cylinder opens, allowing air to rush in, the fuel injector nozzle associated with that port is activated. It sprays a finely atomised mist of fuel for a precisely calculated duration, typically measured in milliseconds. This atomised fuel then mixes with the incoming air within the intake port itself. The result is a homogeneous and optimal air/fuel mixture ready for combustion. The ECU's ability to control this injection timing and duration with such minute accuracy is what sets port injection apart.
4. Ignition and Combustion: Unleashing the Power
Once the metered air and fuel have combined in the cylinder, the spark plug fires. This ignition event ignites the highly combustible mixture, creating a controlled explosion. This explosion generates the pressure that pushes the piston down, driving the engine's crankshaft and ultimately producing power. The efficiency of the port injection system ensures that this combustion is as complete and powerful as possible, minimising wasted fuel and maximising energy output. The entire cycle then repeats for the next cylinder in sequence, creating the continuous power delivery that propels the vehicle.
Advantages of Port Injection Systems
The widespread adoption of port injection in modern vehicles isn't without good reason. It offers several compelling advantages over older fuel delivery methods:
| Benefit | Explanation |
|---|---|
| Increased Fuel Efficiency | By precisely controlling the amount and timing of fuel delivery, the ECU can ensure the optimal air/fuel ratio for various driving conditions. This minimises fuel wastage and maximises miles per gallon (or kilometres per litre). |
| Reduced Emissions | A more complete and efficient combustion process means fewer unburnt hydrocarbons and other pollutants are released into the atmosphere. This is crucial for meeting stringent environmental regulations. |
| Better Performance and Power Output | The ability to precisely meter fuel allows for more aggressive ignition timing and optimal combustion conditions, leading to improved throttle response, increased horsepower, and greater torque. |
| Enhanced Cold Start Capability | Port injection systems can deliver a richer fuel mixture more effectively during cold starts, ensuring smoother engine operation and quicker warm-up compared to less precise systems. |
| Improved Engine Longevity | Consistent and precise fuel delivery can reduce stress on engine components, potentially contributing to a longer engine lifespan. |
Maintaining Your Port Injection System
While port injection systems are designed for reliability and longevity, like any complex mechanical system, they do require occasional maintenance to ensure they continue to operate at peak performance. Neglecting these aspects can lead to a decline in efficiency and potential issues.
Common Maintenance Needs:
- Injector Clogging: Over time, deposits from fuel additives or impurities can build up within the injector nozzles. This can restrict fuel flow, leading to a less effective spray pattern and an imbalanced air/fuel mixture. Symptoms can include rough idling, misfires, and reduced power.
- Faulty Sensors: While generally robust, sensors can fail or become inaccurate due to age, heat, or contamination. If a sensor provides incorrect data (e.g., an inaccurate airflow reading), the ECU will make incorrect calculations, negatively impacting performance and efficiency.
- Fuel Pressure Issues: The fuel pump and regulator must maintain a specific fuel pressure for the injectors to operate correctly. Leaks in the fuel lines or a failing fuel pump can disrupt this pressure, leading to various drivability problems.
- Air Intake Leaks: Any leaks in the intake system after the airflow sensor can introduce unmetered air into the engine, disrupting the calculated air/fuel ratio and causing the engine to run lean.
Routine Maintenance Recommendations:
To keep your port injection system running smoothly and efficiently, consider the following routine maintenance practices:
- Regular Fuel Filter Replacement: A clogged fuel filter can restrict fuel flow and put extra strain on the fuel pump. Replacing it at recommended intervals is a simple yet crucial maintenance step.
- Fuel Injector Cleaning: Periodically, it can be beneficial to have the fuel injectors professionally cleaned. This can be done through a fuel system cleaning service or by using high-quality fuel system cleaners added to the fuel tank.
- Leak Checks: A mechanic can perform checks for fuel leaks in the lines, connections, and around the injectors.
- Ensuring Proper Fuel Pressure: The fuel system's pressure can be tested to ensure it falls within the manufacturer's specifications.
- Using Quality Fuel: Opting for fuel from reputable stations and considering fuels with good additive packages can help minimise deposit buildup.
Most qualified mechanics are well-versed in diagnosing and servicing issues related to port injection systems. Regular servicing according to your vehicle manufacturer's recommendations is the best way to ensure the longevity and optimal performance of this critical system.
Frequently Asked Questions about Port Injection
Q1: What's the difference between port injection and direct injection?
A: Port injection (PFI) injects fuel into the intake port, before the intake valve. Direct injection (GDI) injects fuel directly into the combustion chamber. GDI generally offers even greater precision and efficiency but can be more complex and prone to carbon buildup on intake valves.
Q2: Can I clean my fuel injectors myself?
A: While you can use fuel system cleaners added to your fuel tank, professional cleaning services that remove the injectors for ultrasonic cleaning or bench testing are more thorough and effective.
Q3: How often should my fuel injectors be cleaned?
A: This depends on driving conditions, fuel quality, and vehicle usage. A general guideline is every 30,000 to 50,000 miles, but it's best to consult your vehicle's service manual or a trusted mechanic.
Q4: What are the signs of a failing port injection system?
A: Common signs include rough idling, engine misfires, loss of power, poor fuel economy, check engine lights, and difficulty starting.
Q5: Is port injection better than carburettors?
A: Yes, port injection offers significantly better control over the air/fuel mixture, leading to improved efficiency, lower emissions, and more consistent performance compared to carburettor systems.
Conclusion
In summary, port injection systems represent a sophisticated and highly effective method for delivering fuel to internal combustion engines. By precisely controlling the air/fuel mixture delivered directly into the intake ports, these systems enable engines to operate with remarkable power, impressive efficiency, and a reduced environmental impact. While the underlying technology is advanced, understanding the basic sequence of sensor monitoring, ECU calculations, timed injection, and combustion provides valuable insight into the vital systems that power most modern vehicles and machinery. Regular maintenance and attention to potential issues will ensure your port injection system continues to deliver optimal performance for years to come.
