Connecting a Diagnostic Tool to Your Peugeot 307

Understanding and addressing issues with your vehicle can often feel like a daunting task, particularly when the dreaded Engine Management Light illuminates on your dashboard. For owners of the popular Peugeot 307, gaining insight into what's happening under the bonnet is made significantly easier with the use of a Diagnostic Tool. This comprehensive guide will walk you through the precise steps to locate your Peugeot 307's crucial OBD2 Port and connect a diagnostic scanner, empowering you to read and understand those mysterious Fault Codes that can save you time and money on potential garage visits. Let's demystify vehicle diagnostics together, ensuring your 307 remains a reliable companion on the road.

Unveiling the Mystery: Where's Your Peugeot 307's OBD2 Port?

Locating the On-Board Diagnostics II (OBD2) port in your Peugeot 307 is the vital first step before you can connect any diagnostic equipment. While its placement can vary slightly depending on the specific year of manufacture (from 2001 to 2008), there are a couple of primary spots where you're most likely to find it. Knowing these common locations will save you considerable time and effort.

The Driver's Side Compartment Method

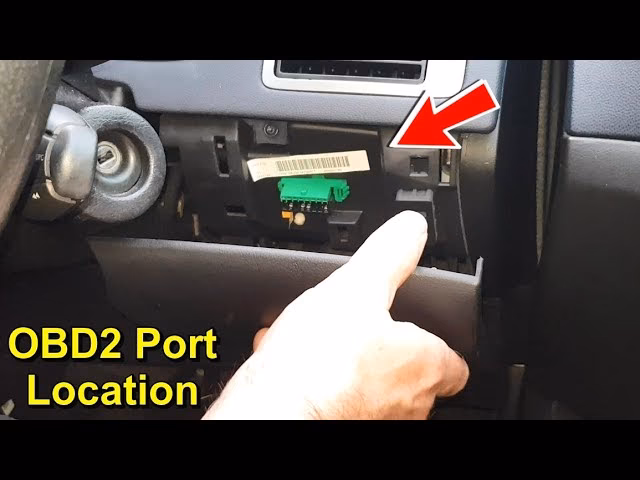

For many Peugeot 307 models, particularly those produced earlier in its run, the OBD2 port is cleverly tucked away within a small compartment on the driver's side dashboard. To access it, begin by entering the vehicle from the driver's door. Look to the far left of the dashboard, usually below the steering wheel and close to the door jamb. You should spot a small, often unassuming, compartment or panel. This isn't just a storage cubby; it often serves as a discreet cover for the diagnostic port. To open it, you might need to insert your car key into a small lock mechanism on the compartment's cover and give it a turn. Once unlocked and opened, you will reveal the 16-pin trapezoidal OBD2 port, ready for your diagnostic scanner. This method is often the simplest and most straightforward.

Alternative Locations: Check Under the Ashtray and Steering Column

Should the driver's side compartment method not yield results, don't despair; your Peugeot 307 may have its OBD2 port in one of two other common locations. For some models, particularly later iterations or specific trim levels, the port is situated underneath a panel below the ashtray in the centre console. To check this, you might need to gently pry open or remove a small trim panel in that area. Be careful not to use excessive force to avoid damaging the interior trim. Another frequent location, particularly for models between 2001 and 2008, is behind a panel positioned between the steering column and the driver's door. This area is typically just to the right of your left knee when seated in the driving position. Again, you might need to gently unclip or remove a small access panel to expose the port. Always proceed with caution when removing interior trim pieces to prevent any inadvertent damage.

Connecting Your Diagnostic Tool: A Step-by-Step Guide

Once you've successfully located the OBD2 port in your Peugeot 307, connecting your diagnostic tool is a straightforward process. However, a few preparatory steps and considerations will ensure a smooth and effective connection.

Pre-Connection Checklist

Before plugging in your diagnostic scanner, ensure your vehicle's ignition is off. While some scanners can be connected with the ignition on, it's generally safer and recommended to start with the ignition off to prevent any potential communication glitches. Also, ensure your diagnostic tool is fully charged or has fresh batteries if it's a wireless or standalone unit. Have your vehicle's owner's manual handy, as it might offer specific guidance on diagnostic procedures for your model.

The Connection Process

With the ignition off, carefully align the connector end of your diagnostic tool's cable with the 16-pin trapezoidal shape of your Peugeot 307's OBD2 port. The connector is designed to fit only one way, so do not force it. Gently push the connector firmly into the port until you hear or feel a click, indicating a secure connection. Once connected, turn your vehicle's ignition to the 'ON' position (without starting the engine). Most diagnostic tools will power up automatically once connected and the ignition is on, displaying a welcome screen or prompting you to select your vehicle's make and model. Follow the on-screen instructions on your scanner to initiate a scan for Fault Codes.

Initial Scan and Interpretation

After the tool powers on and establishes communication with your Peugeot 307's onboard computer (ECU), select the option to 'Read Codes' or 'Scan' from the tool's menu. The scanner will then communicate with your car's various control modules, retrieving any stored diagnostic trouble codes (DTCs). These codes will typically appear as a 'P' (Powertrain) followed by four digits, e.g., P0170. Your diagnostic tool should also provide a brief description of each code. While the description offers an initial clue, further research might be necessary to fully understand the underlying issue. Remember, a code indicates a fault in a specific circuit or system, not necessarily a faulty component itself. It's a starting point for deeper investigation.

Understanding the OBD2 System in Your Peugeot 307

The OBD2 system is far more than just a port; it's a standardised diagnostic interface that revolutionised how vehicle issues are identified. Understanding its function and importance is key to effective Preventative Maintenance and troubleshooting for your Peugeot 307.

What Exactly is an OBD2 Port?

OBD2, or On-Board Diagnostics II, is a self-diagnostic and reporting system in vehicles that monitors emissions-related components and performance. Mandated for all cars sold in the US since 1996 (and subsequently adopted globally, including Europe), it provides a standardised way for technicians and owners to access critical vehicle information. The 16-pin connector is a universal interface, meaning any compliant diagnostic tool can plug into any OBD2-equipped vehicle. This system continuously monitors various sensors and systems, such as the engine, transmission, and exhaust, looking for anomalies. When a parameter falls outside its specified range, the system stores a Diagnostic Trouble Code (DTC) in the vehicle's computer memory and often illuminates the Engine Management Light on the dashboard. This standardisation is what allows a generic Diagnostic Tool to communicate with diverse vehicles like your Peugeot 307.

Why is Diagnostic Testing Crucial for Your 307?

Regular diagnostic testing, even without an illuminated warning light, offers numerous benefits for your Peugeot 307. Firstly, it enables early detection of potential issues. By identifying minor problems before they escalate, you can often save significantly on costly repairs down the line. For instance, a small sensor malfunction might trigger a code long before it causes noticeable drivability issues or serious damage. Secondly, it provides precise information. Instead of guessing the cause of a problem, a diagnostic scan tells you exactly which system or circuit is reporting an issue, narrowing down the troubleshooting process. This precision means you or your mechanic can focus directly on the problem area, leading to quicker and more accurate repairs. Lastly, it empowers you as a car owner. Understanding the Fault Codes gives you valuable insight into your vehicle's health, allowing you to make informed decisions about repairs and maintenance, potentially saving money by performing simple fixes yourself or having a clearer discussion with your garage.

Common Fault Codes for the Peugeot 307: What They Mean

The Peugeot 307, like any vehicle, has its common quirks and frequently reported diagnostic trouble codes. Knowing these can provide a valuable head start in diagnosing issues. Here are some of the most common Fault Codes reported for the Peugeot 307, along with their general meaning and implications:

P0170: Fuel Trim System Malfunction

This generic fault code is frequently encountered by mechanics working on the Peugeot 307. P0170 indicates a problem with the fuel trim system. In essence, the vehicle's onboard computer (ECU) has detected that the air-fuel mixture is either consistently too rich (too much fuel, not enough air) or too lean (too much air, not enough fuel) for optimal engine performance and emissions. The fuel trim system constantly adjusts the amount of fuel injected into the engine based on sensor readings to maintain an ideal air-fuel ratio. If these adjustments reach their limits, a P0170 code is triggered. Common causes can include a faulty oxygen sensor, vacuum leaks, a clogged fuel filter, a weak fuel pump, or issues with the mass air flow (MAF) sensor. Left unaddressed, a prolonged rich or lean condition can lead to reduced fuel economy, poor engine performance, and even damage to catalytic converters.

P0106: Manifold Absolute Pressure/Barometric Pressure Circuit Range/Performance Problem

Closely related to fuel mixture issues, P0106 points to a problem with the Manifold Absolute Pressure (MAP) sensor or Barometric Pressure (BARO) sensor circuit. The MAP sensor measures the pressure inside the intake manifold, which the ECU uses to calculate engine load and adjust fuel delivery and ignition timing. If the sensor's readings are inconsistent, outside expected ranges, or do not correlate correctly with other engine parameters, this code will be set. A faulty MAP sensor can lead to incorrect fuel calculations, resulting in poor engine performance, rough idling, hesitation, or reduced fuel efficiency. Given its role in the air-fuel mixture, a P0106 code can sometimes accompany a P0170, suggesting a more complex issue with the engine's air intake or fuel delivery system.

P1327: Knock Sensor Circuit Malfunction (Manufacturer Specific)

Unlike the previous two, P1327 is a manufacturer-specific fault code, meaning its exact definition can vary slightly between car makers, but for the Peugeot 307, it typically relates to the knock sensor circuit. The knock sensor is a crucial component that detects abnormal vibrations or 'knocking' within the engine, often caused by pre-ignition or detonation (when the air-fuel mixture ignites prematurely). When the sensor detects knocking, it sends a signal to the ECU, which then adjusts ignition timing to prevent engine damage. A P1327 code suggests an issue with the sensor itself, its wiring, or the circuit it operates on. A malfunctioning knock sensor can lead to the ECU not detecting harmful knocking, potentially causing engine damage, or conversely, it might unnecessarily retard ignition timing, leading to reduced power and fuel efficiency. It's worth noting that persistent P0170 or P0106 issues (incorrect air-fuel mixture) can sometimes lead to engine knocking, indirectly triggering a P1327, highlighting the interconnectedness of these systems.

Table: Common Peugeot 307 Fault Codes

Choosing the Right Diagnostic Tool for Your Peugeot 307

With a plethora of diagnostic tools available on the market, selecting the right one for your Peugeot 307 can seem overwhelming. However, understanding the basic categories can help you make an informed decision.

Basic Code Readers vs. Advanced Scanners

At the entry level, you'll find basic Diagnostic Tools, often called 'code readers'. These are typically inexpensive, handheld devices that can connect to your OBD2 port, read and display generic P-codes (like P0170, P0106), and often clear them. They are excellent for quick checks when the Engine Management Light comes on and for confirming basic issues. For the average Peugeot 307 owner looking to perform simple diagnostics and clear codes, a basic code reader is often sufficient and a great investment for Preventative Maintenance.

On the other hand, advanced diagnostic scanners offer much more functionality. These tools can read manufacturer-specific codes (like P1327), provide live sensor data (e.g., engine RPM, oxygen sensor readings, fuel trim values), perform component activation tests, and even re-code certain modules. While significantly more expensive, they offer a deeper level of insight into your vehicle's health and are invaluable for professional mechanics or serious DIY enthusiasts who want to perform more complex troubleshooting or tune-ups on their Peugeot 307.

Compatibility Considerations

When purchasing a diagnostic tool, always ensure it is OBD2 compliant. Since your Peugeot 307 is a post-2001 vehicle, it will be. While most generic code readers will work, some advanced features or manufacturer-specific codes might require a tool that specifically states compatibility with Peugeot vehicles or European models. Reading reviews and product specifications is crucial. Additionally, consider whether you prefer a standalone handheld device, a PC-based software solution that connects via a cable, or a Bluetooth-enabled adapter that pairs with a smartphone app. Each has its pros and cons in terms of convenience and functionality.

Frequently Asked Questions (FAQs)

Is it safe to connect a diagnostic tool to my Peugeot 307?

Yes, connecting a standard OBD2 Diagnostic Tool to your Peugeot 307 is generally very safe. The port is designed for this purpose, and the tools are engineered to read data without interfering with the vehicle's systems. Just ensure the tool is properly connected before turning the ignition on, and always follow the manufacturer's instructions for both your vehicle and the diagnostic tool.

Can I clear fault codes myself using a diagnostic tool?

Most basic and advanced diagnostic tools have a function to clear Fault Codes. However, clearing a code only turns off the Engine Management Light and removes the code from the ECU's memory; it does not fix the underlying problem. If the fault persists, the code will reappear. It's important to investigate and rectify the cause of the code before clearing it, as repeatedly clearing codes without addressing the issue can mask a serious problem.

Will a diagnostic tool fix my car's problems?

No, a diagnostic tool does not fix anything. It is purely a diagnostic instrument. It reads information from your Peugeot 307's computer and displays Fault Codes, which are indicators of potential issues. It's like a doctor's thermometer; it tells you if you have a fever, but it doesn't cure the illness. The tool provides the information needed to pinpoint the problem, allowing you or a mechanic to perform the necessary repairs.

What's the difference between OBD and OBD2?

OBD (On-Board Diagnostics) refers to the first generation of diagnostic systems, which were less standardised and provided limited information, typically through flashing lights or basic codes unique to each manufacturer. OBD2 is the second generation, introduced in the mid-1990s, offering a much more comprehensive and standardised system. This means all OBD2-compliant vehicles (like your Peugeot 307) use the same 16-pin connector and a common set of diagnostic trouble codes, making diagnosis universally accessible.

How often should I check for fault codes on my Peugeot 307?

You should definitely check for Fault Codes whenever your Engine Management Light illuminates. For Preventative Maintenance, some owners choose to perform a quick scan every few months or before a long journey, even without a warning light. This can sometimes catch pending codes (issues that haven't yet triggered a light) or provide peace of mind about your Peugeot 307's overall system health.
