Peugeot OBD2 Port Location: Your Essential Guide

Understanding your Peugeot's health is paramount for any responsible car owner, and the first step in this journey often begins with locating the On-Board Diagnostics (OBD2) port. This unassuming connector is your gateway to a wealth of information about your vehicle's performance, allowing you to read fault codes, monitor live data, and even reset certain system warnings. For Peugeot owners across the UK, knowing precisely where to find this vital port can save time, money, and considerable frustration, whether you're a seasoned DIY mechanic or simply curious about that illuminated 'check engine' light on your dashboard.

The OBD2 system, a standardised protocol implemented in all petrol cars sold in Europe since 2001 and diesel cars since 2004, acts as your car's internal communication hub. It continuously monitors various vehicle systems, from engine performance and emissions to transmission and ABS, recording any anomalies as Diagnostic Trouble Codes (DTCs). Accessing these codes through the OBD2 port is the primary method for identifying why your 'check engine' light might be on, or to proactively assess your vehicle's condition before a more serious issue arises. For your Peugeot, this means a direct line to its Engine Control Unit (ECU), the brain of your car.

Unveiling the Mystery: Common OBD2 Port Locations in Peugeot Vehicles

While the exact location of the OBD2 port can vary slightly between different Peugeot models and production years, there are several common areas where manufacturers typically place this crucial connector. Knowing these general hotspots will significantly narrow down your search and help you quickly get connected to your vehicle's diagnostic system.

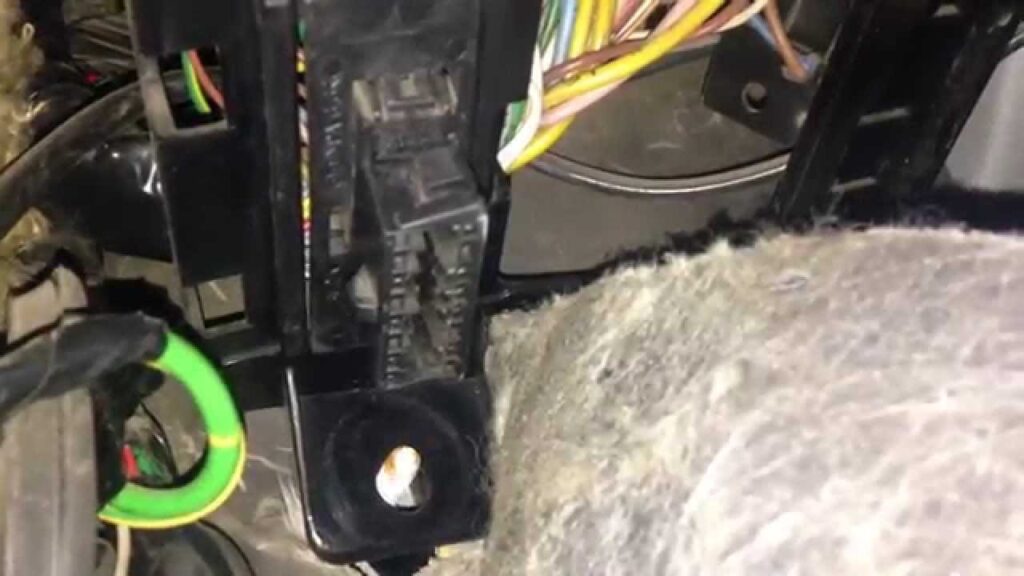

• Under the Dashboard (Driver's Side): This is by far the most prevalent location for the OBD2 port across a wide range of vehicles, including many Peugeot models. Often, it's situated beneath the steering column, near the pedals. You might need to crouch down and look up from the footwell area. It can sometimes be tucked away, requiring you to feel around for it.
• Behind a Small Panel: To maintain a neat interior aesthetic, some Peugeot models conceal the OBD2 port behind a small, removable cover or flap. This panel might be located in the lower dashboard section, often near the driver's knee or below the fuse box. Look for a small plastic cover that might have a slot or a small indentation for prying it open.
• Centre Console Area: Less common but still possible, the port might be found within the centre console. This could be inside the armrest storage compartment, beneath the handbrake lever, or even in a small cubby hole in front of the gear stick.
• Glove Compartment: In some instances, the OBD2 port can be located inside the glove compartment itself, usually on the back wall or on the top interior section. It might be integrated into the plastic moulding or again, hidden behind a small removable panel.
• Near the Fuse Box: Given that the OBD2 system draws power from the vehicle's electrical system, the port is sometimes co-located with the main fuse box, which is typically found under the dashboard on the driver's side, or occasionally on the passenger side.

When searching, it's always a good idea to use a torch or your phone's light to illuminate the dark recesses of the footwell and dashboard. The port is a distinct, trapezoidal-shaped connector with 16 pins, making it relatively easy to recognise once you spot it.

General Peugeot OBD2 Port Location Areas

A Closer Look: How to Identify the OBD2 Connector

Once you've narrowed down the potential locations, identifying the OBD2 port itself is straightforward. The connector is standardised across all OBD2-compliant vehicles, including your Peugeot. It is a 16-pin, D-shaped (trapezoidal) female connector, approximately 1.5 inches wide. It has two rows of eight pins each. The unique shape ensures that an OBD2 scanner can only be plugged in one way, preventing incorrect connections. Familiarising yourself with its appearance beforehand can significantly speed up your search.

Your Diagnostic Toolkit: Scanners and Software for Your Peugeot

To interact with your Peugeot's OBD2 system, you'll need an OBD2 scanner. These devices range from simple code readers to sophisticated diagnostic tools. For most home mechanics and DIY enthusiasts, a basic handheld scanner or a Bluetooth OBD2 dongle paired with a smartphone app will suffice. These generic scanners can read and clear universal Diagnostic Trouble Codes (DTCs), which are standard across all manufacturers.

However, it's important to note that while generic scanners are excellent for common issues, Peugeot, like other manufacturers, also uses proprietary, manufacturer-specific codes that provide more detailed information about specific system failures. For deeper diagnostics, particularly for issues beyond the powertrain (e.g., BSI, ABS, airbags, specific module programming), professional-grade Peugeot-specific software such as PP2000/DiagBox (for older and newer models respectively) coupled with a compatible interface is often required. These tools offer advanced functionalities, including live data streaming, component activation, and coding/programming, which generic scanners cannot provide. For simply finding and understanding common engine-related fault codes, a standard OBD2 scanner is perfectly adequate.

Step-by-Step: Locating and Accessing Your Peugeot's OBD2 Port

1. Prepare Your Vehicle: Ensure your Peugeot is parked safely on a level surface, with the ignition off. It’s not necessary to disconnect the battery.
2. Consult Your Owner's Manual: This is always the best first step. Your Peugeot's owner's manual often contains a diagram or description of the OBD2 port's exact location. Look under sections related to 'diagnostics', 'fuse box', or 'technical specifications'.
3. Begin Your Search: Start with the most common area: the driver's side footwell, beneath the dashboard. Use a torch to aid visibility.
4. Look for the Connector: Systematically check all potential locations mentioned above – under the steering column, behind small panels, in the centre console, or within the glove compartment.
5. Identify the Port: Once you spot the distinctive 16-pin, D-shaped connector, you've found it!
6. Access if Necessary: If it's behind a panel, gently pry it open using a plastic trim tool or a flat-head screwdriver wrapped in tape to avoid scratching.
7. Connect Your Scanner: Align your OBD2 scanner's cable with the port and firmly push it in until it clicks into place.
8. Power Up: Turn your Peugeot's ignition to the 'ON' position (don't start the engine unless your scanner requires it for specific tests). Your scanner should now power on and establish communication with the vehicle's ECU.

Troubleshooting Tips: When the Port Plays Hide-and-Seek

Occasionally, despite your best efforts, the OBD2 port can seem elusive. Here are some troubleshooting tips if you're struggling to locate it:

• Check Your Manual Again: Sometimes, a quick skim isn't enough. Read the relevant section thoroughly.
• Feel Around: Even if you can't see it, try feeling for the connector with your hand in the suspected areas. It's often tucked up high or recessed.
• Look from Different Angles: Get down low in the footwell, or even try looking from the passenger side if the dashboard layout permits.
• Search Online Forums: Peugeot owner forums or model-specific communities are excellent resources. Other owners with your exact model and year might have posted pictures or detailed descriptions of the port's location.
• Check for Aftermarket Additions: If your Peugeot has had previous modifications (e.g., alarm systems, tracking devices), sometimes the OBD2 port might be slightly relocated or have a splitter attached to it.
• Consider Professional Help: If all else fails, a quick visit to a trusted mechanic or Peugeot specialist will resolve the issue. They will know exactly where to find it.

Beyond Location: Why Understanding OBD2 is Crucial for Peugeot Owners

Locating the OBD2 port is just the beginning. Understanding its significance empowers you as a Peugeot owner in numerous ways:

• Proactive Maintenance: By regularly scanning for codes, you can identify minor issues before they escalate into costly breakdowns. A pending code might indicate a developing problem that hasn't yet triggered the check engine light.
• Saving Money on Repairs: Knowing the specific DTC can help you diagnose the problem yourself, potentially saving on diagnostic fees from garages. Even if you don't perform the repair, you'll be better informed when discussing the issue with your mechanic, reducing the chance of unnecessary work.
• Emissions Compliance: The OBD2 system plays a critical role in monitoring vehicle emissions standards. Faults related to emissions (e.g., catalytic converter efficiency, oxygen sensor issues) will trigger a warning. Addressing these promptly ensures your Peugeot remains compliant and passes its MOT emissions test.
• Understanding Your Vehicle: Learning what different codes mean (even common generic ones) helps you understand the complex systems within your Peugeot, fostering a deeper connection with your car.
• Pre-Purchase Inspections: When buying a used Peugeot, plugging in an OBD2 scanner can reveal hidden issues or cleared fault codes that the seller might not disclose, providing invaluable insight into the vehicle's history.

Frequently Asked Questions (FAQs)

Is my Peugeot OBD2 compliant?

In the UK and across Europe, all new petrol cars sold from 2001 onwards and all new diesel cars sold from 2004 onwards are legally required to be OBD2 (or EOBD) compliant. So, if your Peugeot was manufactured after these dates, it will definitely have an OBD2 port and system.

What's the difference between generic and manufacturer-specific fault codes?

Generic codes (starting with P0xxx) are universal and defined by the Society of Automotive Engineers (SAE). They cover common powertrain issues like misfires, oxygen sensor faults, or catalytic converter problems. Manufacturer-specific codes (starting with P1xxx, Bxxx, Cxxx, Uxxx) are unique to Peugeot (or any specific car maker) and provide more detailed information about issues that are particular to their vehicle's design or components. You typically need a more advanced, manufacturer-specific scanner (like PP2000/DiagBox for Peugeot) to read these.

Can I damage my car by using an OBD2 scanner?

No, generally not. OBD2 scanners are designed to read data from your vehicle's ECU. They are passive devices that listen to the car's communication. Unless you are using a very cheap, poorly made scanner or attempting to reprogram modules without proper knowledge (which most basic scanners cannot do), there is virtually no risk of damaging your Peugeot's systems.

What if my OBD2 scanner doesn't connect to my Peugeot?

Several reasons could prevent a connection: the ignition isn't in the 'ON' position, the scanner isn't fully plugged in, the car's battery is too low, or there's a blown fuse in the OBD2 circuit (check your car's fuse box diagram for the diagnostic port fuse). Less commonly, there could be a fault with the OBD2 port itself or the vehicle's communication bus.

Do I need special Peugeot software for every diagnostic?

Not for every diagnostic. For reading and clearing common engine-related fault codes (those that trigger the check engine light), a generic OBD2 scanner and a general app are usually sufficient. However, for deeper diagnostics, accessing non-engine modules (like airbags, ABS, body control), performing adaptations, or coding new components, you will require Peugeot-specific diagnostic software and hardware, such as the aforementioned PP2000/DiagBox.

What does the check engine light mean on my Peugeot?

The check engine light (or Malfunction Indicator Lamp - MIL) illuminates when the ECU detects a fault within the vehicle's emissions or engine management system. It can range from something minor, like a loose fuel cap, to something serious, like a catalytic converter failure. An OBD2 scanner is essential to read the specific fault code that triggered the light and understand the underlying issue.

How often should I use my OBD2 scanner on my Peugeot?

There's no strict rule. Many owners only use it when the check engine light comes on. However, performing a quick scan every few months, or before a long journey, can help identify pending codes that haven't yet triggered a warning light, allowing for proactive maintenance and peace of mind.

Ultimately, locating the OBD2 port in your Peugeot is the first step towards taking control of your vehicle's maintenance and understanding its inner workings. With this guide, you should be well-equipped to find this essential gateway, connect your scanner, and begin your journey into vehicle diagnostics. Empower yourself with knowledge, and keep your Peugeot running smoothly on the UK roads for years to come!
