The Art of Diesel Fuel Injection
Diesel engines are renowned for their robustness, fuel efficiency, and torque. At the heart of their operation lies a sophisticated and precisely timed process: fuel injection. Unlike their petrol counterparts, diesel engines do not rely on spark plugs to ignite the fuel. Instead, they utilise the heat generated by extreme compression to ignite the atomised fuel, a principle that underpins their unique combustion cycle. This article delves into the fascinating world of how fuel is injected into a diesel engine, exploring the critical stages, influencing factors, and the underlying technology that makes it all possible.
Understanding the Diesel Combustion Cycle
The combustion process in a diesel engine is a complex ballet of physics and chemistry, and until relatively recently, its finer details remained somewhat elusive. While early understanding was based on empirical observations, advancements in technologies like high-speed photography, sophisticated computational fluid dynamics (CFD) modelling, and crucially, laser-sheet imaging in the 1990s, have significantly illuminated the mechanisms at play. The fundamental principle is to introduce fuel into the cylinder at the precise moment when the compressed air is hot enough to cause spontaneous ignition. This method is primarily described as mixing-controlled combustion, meaning the rate at which fuel mixes with air dictates the speed of the burning process, although some degree of premixed combustion can occur.
The Injection Event: A High-Pressure Ballet

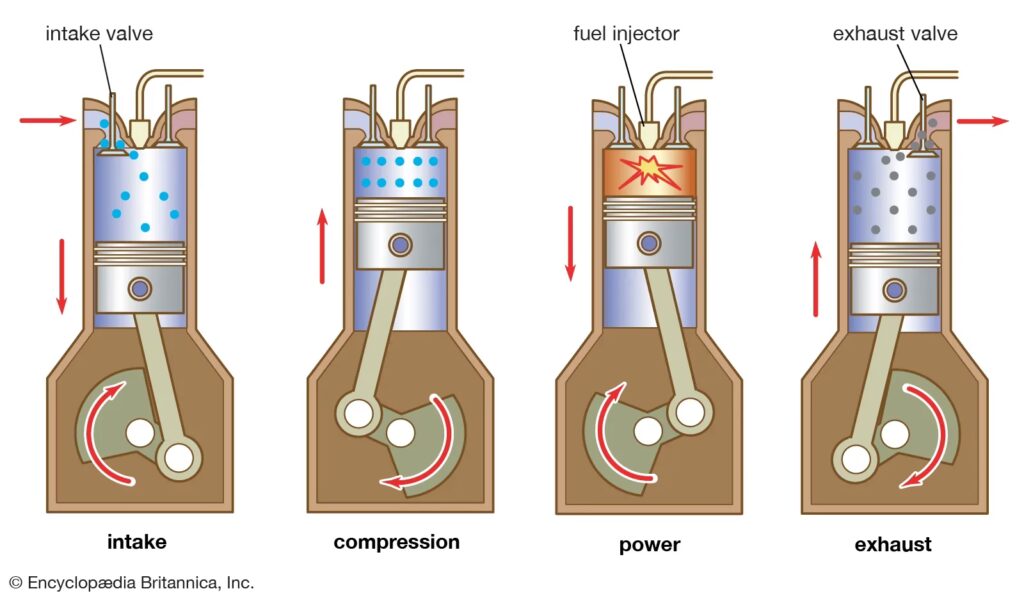

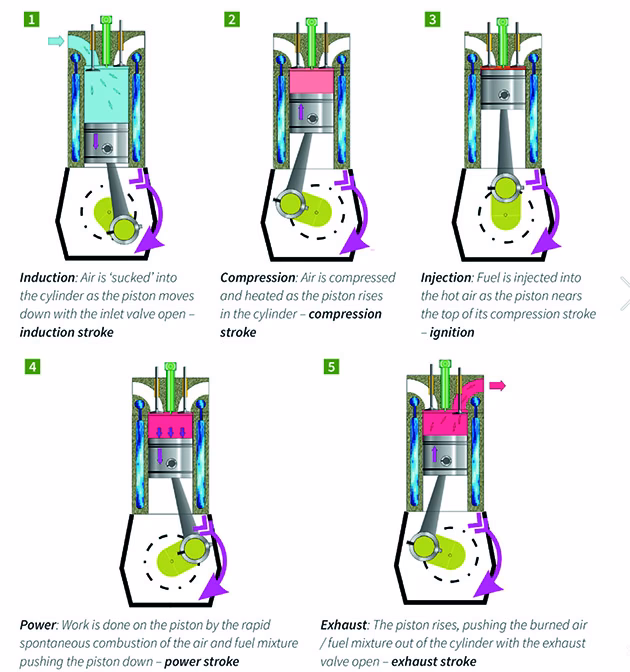

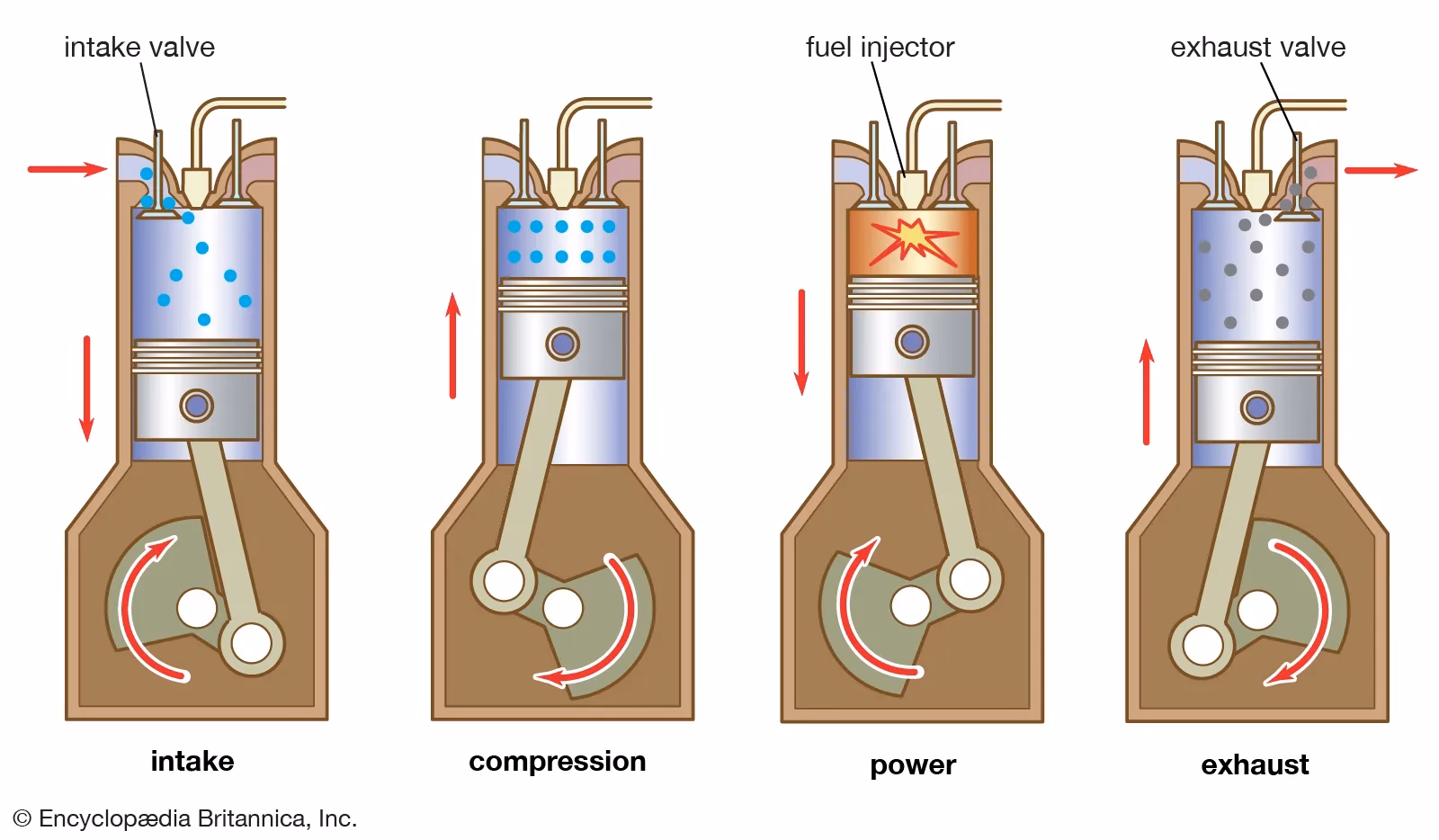

The journey of diesel fuel into the combustion chamber is a high-energy event. Typically, fuel injection occurs very late in the compression stroke, often just a few degrees of crankshaft rotation before the piston reaches Top Dead Centre (TDC). The fuel is forced through tiny orifices in the injector nozzle at incredibly high pressures, sometimes exceeding 2000 bar (approximately 29,000 psi). This high-pressure injection is critical for several reasons:
- Atomisation: The high pressure causes the liquid fuel to break down into an extremely fine mist of tiny droplets. This process, known as atomisation, is paramount for efficient combustion. The smaller the droplets, the larger the surface area available for heat transfer and vaporisation.
- Penetration: The injected fuel forms a high-velocity spray that penetrates deep into the combustion chamber, seeking out the highly compressed and heated air.
- Vaporisation: As the fuel droplets encounter the hot, compressed air (which can reach temperatures of 700-900°C or 1300-1650°F), they rapidly absorb heat, vaporise, and begin to mix with the air.
The Ignition Delay Period
Once injected, there's a brief but crucial period known as the ignition delay. This is the time between the start of injection and the actual ignition of the fuel-air mixture. During this phase, the fuel continues to atomise, vaporise, and mix with the air. The length of this delay is influenced by several factors, including fuel properties, air temperature, pressure, and the degree of turbulence within the combustion chamber. A shorter ignition delay generally leads to a more efficient and smoother combustion process.
Ignition and Combustion Phases
As the piston continues its upward travel towards TDC, the temperature of the air-fuel mixture rises to the fuel's auto-ignition point. At this critical juncture, a portion of the fuel that has already mixed with air ignites almost instantaneously. This rapid ignition marks the beginning of combustion and is characterised by a sharp increase in cylinder pressure. This initial combustion event, often referred to as the 'premixed' phase, further compresses and heats the remaining unburned fuel and air, accelerating its vaporisation and mixing, and thus shortening the ignition delay for subsequent fuel injection.
The majority of the fuel then burns in a 'diffusion' or 'mixing-controlled' phase. In this stage, the rate of combustion is primarily determined by how quickly the vaporised fuel can mix with the available oxygen. The continuous injection of fuel into the combustion chamber, coupled with the swirling motion of the air within the cylinder, ensures a steady supply of reactants for a controlled burn. This sustained combustion process drives the piston downwards, generating the engine's power.
The Role of Air-Fuel Ratio
Diesel engines inherently operate with a lean overall air-fuel (A/F) ratio. This means there is significantly more air present in the cylinder than is theoretically required for complete combustion of the injected fuel. Even at peak torque conditions, the A/F ratio is typically maintained above 25:1, far exceeding the stoichiometric ratio (the chemically ideal ratio for complete combustion) of around 14.4:1 for diesel fuel. In turbocharged diesel engines, the A/F ratio at idle can be as high as 160:1. This excess air plays a vital role:
- Smoke Reduction: It helps to ensure complete combustion of the fuel, minimising the formation of soot and smoke.
- Exhaust Gas Treatment: The excess oxygen in the exhaust gases aids in the oxidation of harmful pollutants like unburned hydrocarbons (HC) and carbon monoxide (CO), converting them into less harmful substances like water and carbon dioxide.
Despite the lean overall ratio, locally, within the fuel spray, the mixture can be rich enough to burn. The excess air effectively scavenges the combustion zone, promoting cleaner combustion.
Key Factors Influencing Diesel Combustion
The efficiency and quality of diesel combustion are influenced by a multitude of factors, which can be broadly categorised into primary and secondary influences:
Primary Factors:
These are the most critical elements directly impacting the combustion process:
- Inducted Charge Air: Its temperature, density, and kinetic energy (turbulence) are fundamental. Higher air temperatures and greater turbulence promote faster mixing and ignition.
- Injected Fuel: The fuel's atomisation quality, spray penetration, temperature, and chemical composition (cetane number) are paramount. A higher cetane number indicates a fuel that ignG;s more readily.
Secondary Factors:
These factors indirectly influence the primary factors, thereby affecting combustion:
- Intake Port Design: Affects the swirl and tumble of the air as it enters the cylinder, influencing mixing rates. It can also influence charge air temperature through heat transfer.
- Intake Valve Size: Determines the volume of air that can be inducted into the cylinder within a given time.
- Compression Ratio: A higher compression ratio leads to higher air temperatures at the end of the compression stroke, promoting better fuel vaporisation and mixing.
- Injection Pressure: Higher injection pressure generally leads to better atomisation and finer spray penetration.
- Nozzle Hole Geometry: The size, shape, and length of the injector nozzle holes significantly impact spray atomisation, penetration, and the overall spray pattern.
- Spray Geometry: The angle and shape of the fuel spray are crucial. An incorrect spray angle can lead to fuel impinging on the piston crown or cylinder walls, causing incomplete combustion, smoke, and potential engine damage. A well-designed spray pattern ensures the fuel is optimally distributed within the combustion bowl for efficient air utilisation.
- Valve Configuration: The number of valves and their arrangement influence injector position. Four-valve designs, for instance, often allow for a more central and vertical injector placement, leading to more symmetrical fuel sprays and improved air-fuel mixing compared to older two-valve designs that might necessitate an angled injector.
- Top Piston Ring Position: The clearance between the top piston ring groove and the piston crown can trap air, creating a small volume of dead space. Air trapped in this space may not participate effectively in combustion, slightly reducing overall efficiency.
It is clear that the diesel combustion system is not merely about the injector and the combustion bowl; it encompasses the entire engine design and operating parameters that influence the critical air-fuel mixing and ignition processes.
Common Diesel Injection System Types
Over the years, various diesel injection systems have been developed, each with its own advantages and complexities. The evolution has been driven by the need for greater precision, improved emissions, and enhanced fuel economy.
| System Type | Description | Key Characteristics | Advantages | Disadvantages |
|---|---|---|---|---|
| Mechanical Direct Injection (MDI) | Fuel is pumped directly to the injector by a mechanically driven injection pump. The pump controls both the timing and the amount of fuel injected. | High injection pressures, mechanically controlled timing and quantity. | Simplicity, robustness, lower initial cost. | Less precise control over injection timing and quantity, higher emissions (especially NOx and particulates) compared to modern systems. |
| Unit Injector System (UIS) | Each cylinder has a unit containing a pump and injector, integrated into a single assembly and driven by the camshaft. | High injection pressures (up to 2000 bar), precise timing control possible, no high-pressure fuel lines between pump and injector. | Excellent atomisation, good power output, precise control. | More complex and expensive than MDI, engine complexity increases with number of cylinders. |
| Common Rail Direct Injection (CRDI) | A high-pressure pump maintains a constant pressure in a common fuel rail, which supplies fuel to electronically controlled injectors. | Extremely high and constant fuel pressure, precise electronic control over injection timing, duration, and multiple injections per cycle. | Superior fuel economy, significantly reduced emissions (NOx and particulates), quieter operation, greater flexibility in tuning. | High system cost, complex electronics, sensitive to fuel contamination. |
| Pump-Nozzle System (PDE) | Similar to UIS, but the pump and nozzle are separate components within the unit, still driven by the camshaft. | High injection pressures, integrated pump and nozzle. | Good atomisation and power. | Less precise than common rail, more complex than MDI. |
Frequently Asked Questions
Q1: What is the main difference between petrol and diesel fuel injection?
Petrol engines typically inject fuel into the intake manifold or directly into the cylinder before or during the intake stroke, and ignition is spark-initiated. Diesel engines inject fuel directly into the cylinder at the end of the compression stroke, relying on the heat of compression for ignition.
Q2: Why are diesel injection pressures so high?
High injection pressures are necessary to achieve fine atomisation of the fuel, allowing it to vaporise and mix efficiently with the hot compressed air in the short time available, leading to rapid ignition and complete combustion.
Q3: What is the significance of the Common Rail system?
The Common Rail system revolutionised diesel engine technology by allowing for extremely high and precisely controlled fuel pressures. This enables multiple, small injections per combustion cycle, leading to significant improvements in fuel efficiency, power output, and a dramatic reduction in emissions.
Q4: Can I use petrol in a diesel engine?
Absolutely not. Using petrol in a diesel engine can cause severe damage. Diesel fuel acts as a lubricant for the injection system, and petrol lacks these lubricating properties. Furthermore, the ignition characteristics are entirely different, and petrol would not ignite properly under diesel compression conditions, potentially leading to engine failure.
Conclusion
The process of fuel injection in a diesel engine is a marvel of engineering, balancing high pressures, precise timing, and sophisticated control to achieve efficient and powerful combustion. From the initial atomisation of fuel into a fine mist to the controlled burning within the cylinder, each step is critical. Understanding these principles not only demystifies the operation of these workhorse engines but also highlights the ongoing innovation in diesel technology aimed at improving performance, reducing environmental impact, and enhancing fuel economy.
