Honda ATV Fuel Injection: A Comprehensive Guide

For enthusiasts and professionals alike, the performance and reliability of an All-Terrain Vehicle (ATV) are paramount. Over the years, advancements in engine technology have significantly transformed these workhorses and recreational vehicles, with one of the most impactful being the widespread adoption of fuel injection. This precise fuel delivery system has revolutionised how ATVs start, run, and perform, particularly under varying conditions. For Honda, a brand synonymous with quality and innovation in the ATV market, the journey into fuel injection marked a pivotal moment, enhancing everything from cold-weather starts to high-altitude performance and overall fuel efficiency.

The Dawn of Fuel Injection in Honda ATVs

While fuel injection technology has been around in various forms for decades, including early applications on Honda motorcycles like the 1982 CX500TC Turbo, its integration into Honda's ATV lineup specifically began to gain traction in the late 1990s. This move was driven by the desire to provide riders with more consistent power delivery, improved fuel economy, and reduced emissions compared to traditional carburettor systems.

One of the earliest notable Honda ATV lines to embrace programmed fuel injection was the Foreman series. The Honda Foreman 400 models, for instance, had access to PGM-FI (Programmed Fuel Injection) from 1998 to 2004. This period saw a number of improvements to the Foreman line, including enhanced suspension travel and updated instrumentation. The Foreman 500 also continued this trend, integrating advanced technologies like the Electric Shift Program, TraxLok, Electric Power Steering, and crucially, Programmable Fuel Injection, solidifying its reputation as a reliable and high-performing machine.

The Rancher Revolution: EFI Takes Centre Stage

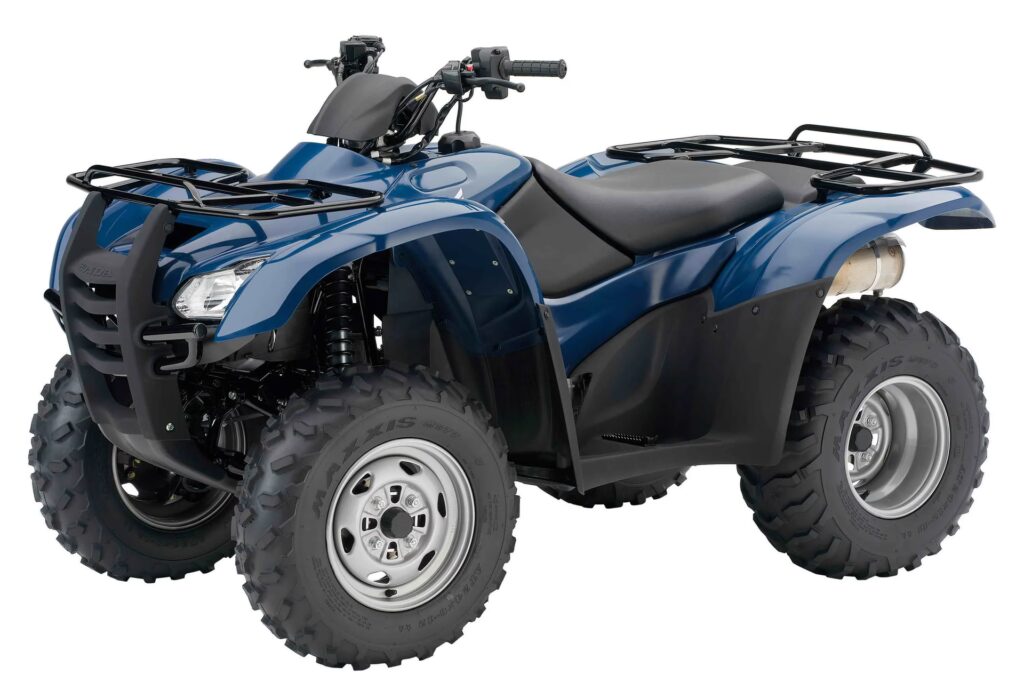

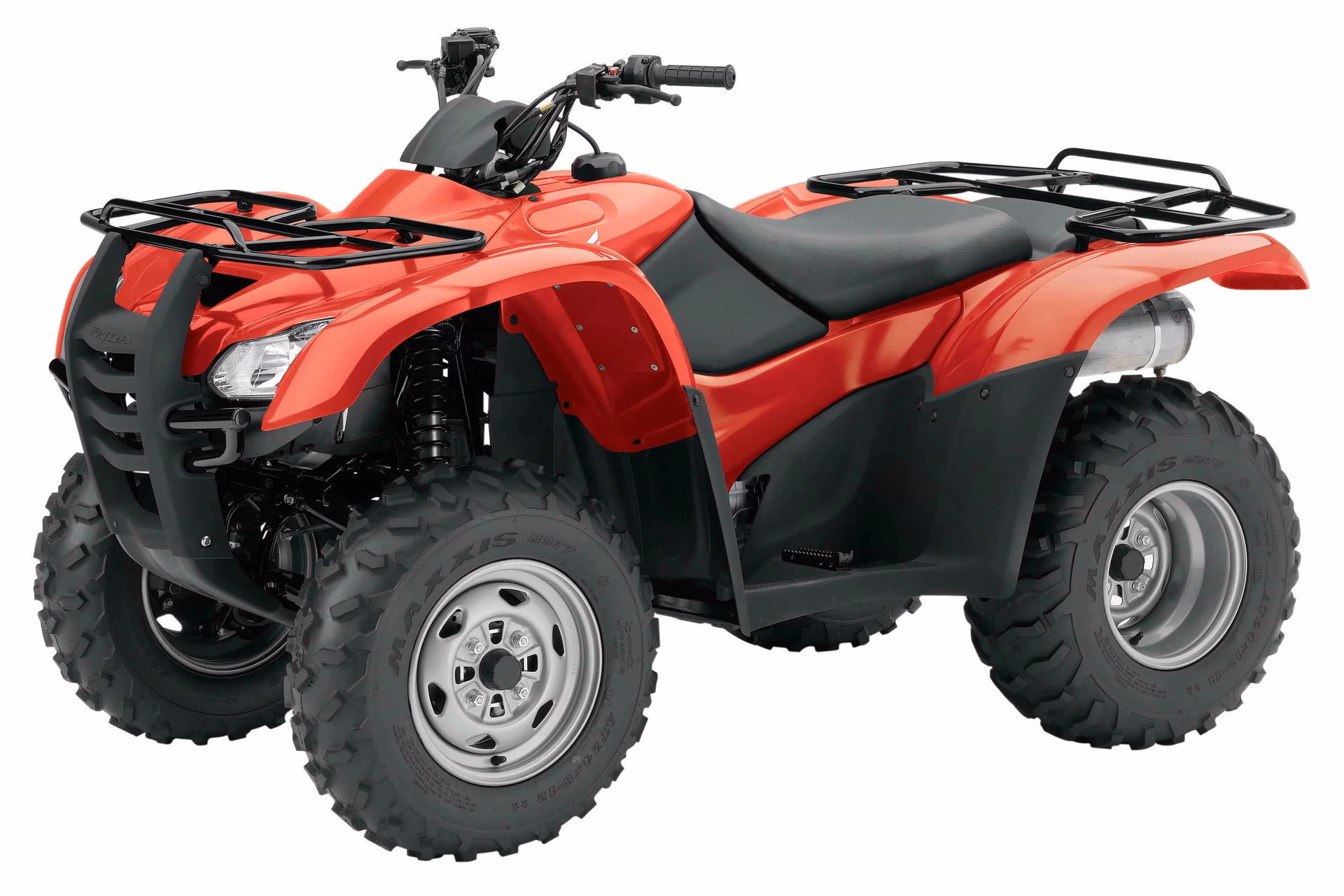

A significant leap forward for Honda ATV fuel injection occurred with the comprehensive update of the Rancher line. Following the TRX350 and TRX400 Rancher ATV models, Honda completely redesigned the range to enhance every aspect of the ATV. Among the most impactful changes introduced with the new TRX420 models in 2007 was the incorporation of electronic Programmed Fuel Injection (PGM-FI). This upgrade was a game-changer, bringing a host of benefits that riders immediately appreciated.

The 2007 TRX420 Rancher was introduced with a brand-new, tough, OHV liquid-cooled, fuel-injected 420cc engine. This engine design allowed for direct driveshaft alignment to both the front and rear wheels, maximising drivetrain effectiveness. The PGM-FI system itself is meticulously engineered, featuring a 34mm throttle body, a 12-hole injector, and an oxygen sensor. This sophisticated setup allows the fuel mapping to instantly adjust to any riding condition, ensuring optimal performance, trouble-free operation in the cold, and consistent power at various altitudes. Furthermore, this precision control contributes to reduced emissions and improved fuel efficiency, making the Rancher a more environmentally conscious and economical choice.

The evolution of the Rancher continued. In 2008, Honda unveiled the TRX420FA (4WD Automatic), also known as the Rancher AT, alongside electronic power steering. While earlier Rancher models had automatic transmissions, the TRX420 AT introduced a simpler and more reliable twin-clutch architecture, providing quick and smooth shifting. This was a significant improvement over the Hondamatic Transmission, which used oil pressure and a swash plate for continuous output ratio changes. The integration of fuel injection across these models ensured that even with diverse transmission options, the core engine performance remained consistently high.

The Continued Presence of EFI in Honda's Line-up

Fuel injection quickly became a standard feature across many of Honda's popular ATV models. For example, the 2011 Honda FourTrax Foreman 4X4 TRX500FM debuted with a precision fuel-injected engine, paired with a manual 5-speed gearbox. This model was lauded for its focus on fundamental, unpolished ATV-building skills, offering reliable performance for both work and play without unnecessary frills.

Similarly, the 2011 Honda Rancher 420, a full-size ATV, also featured a torquey liquid-cooled, fuel-injected 420cc engine, alongside other impressive standard features like a torque-sensitive front differential and selectable 4WD/2WD TraxLok. The 2012 Honda Foreman continued this trend with a new liquid-cooled and electronically fuel-injected motor. By 2017, the Foreman 500 model line-up still offered tried-and-true features, including potent 475cc overhead-valve engines with fuel injection, reinforcing its status as an unmatched hard-working value.

Why Fuel Injection Reigns Supreme: Advantages for ATV Riders

The shift from carburettors to fuel injection in ATVs has brought about numerous advantages, making EFI systems vastly superior for nearly all riding conditions and rider needs. Here’s a breakdown of why fuel-injected ATVs are generally preferred:

• Consistent Performance: Fuel injection systems precisely meter the air-fuel mixture, adapting instantly to changes in altitude, temperature, and throttle input. This results in smoother power delivery, more consistent idling, and better overall engine response.
• Reliable Starting: One of the most noticeable benefits is effortless cold starting. With a carburettor, cold starts often require choking and multiple attempts. Fuel-injected engines, however, start without needing to touch the accelerator pedal, as the injector accurately sprays fuel into the engine from the moment the key is turned.
• Improved Fuel Efficiency: By delivering the exact amount of fuel needed for combustion, EFI systems minimise waste, leading to better fuel economy compared to carburettor-equipped engines, which can be less precise.
• Reduced Emissions: The precise control over the air-fuel ratio also means more complete combustion, resulting in fewer harmful emissions. This is increasingly important as environmental regulations become stricter.
• Altitude Compensation: Carburettors struggle with changes in atmospheric pressure at different altitudes, often requiring manual adjustments to run optimally. EFI systems automatically compensate for these changes, ensuring consistent performance whether you're at sea level or tackling mountain trails.

Carburettor vs. Fuel Injection: A Comparative Look

To further illustrate the benefits, let's consider a direct comparison:

Identifying a Fuel-Injected Engine

The simplest way to determine if an ATV engine is fuel-injected is by its cold-start behaviour. When you turn the key in a fuel-injected engine, it typically starts without you having to touch the accelerator pedal. The injector automatically spritzes fuel into the engine, ensuring a smooth and immediate ignition. Carburetted engines, on the other hand, often require the choke to be engaged and a bit of throttle input to get going when cold.

The Honda TRX450R and Fuel Injection

The Honda TRX450R, a championship-winning quad produced from 2004 to 2014, was a powerhouse in the racing world. Despite its robust construction and dominance on podiums, it's notable that this model, which many expected to eventually feature a fuel-injected powertrain, primarily relied on carburettor technology throughout its production run. While it cemented its legacy with victories in gruelling races like the Baja 1000, the mainstream shift to fuel injection for high-performance sport ATVs happened after its era, with roll-cage-equipped vehicles dominating the sport ATV field.

Key Honda ATV Technologies Beyond EFI

While fuel injection is a critical advancement, Honda ATVs also integrate other cutting-edge technologies that enhance the riding experience:

• Automatic DCT (Dual Clutch Transmission): Featured on models like the Rancher, this transmission offers strong internals, quick shifts, superb control, and real compression-braking capability. Its automatic program manages upshifts and downshifts, allowing the rider to focus on navigating challenging terrain.
• Independent Rear Suspension (IRS): Available on models like the Rancher Automatic DCT with IRS, this system provides over 8 inches of travel and 9 inches of ground clearance. Its primary benefits include keeping tyres in constant contact with the ground for better grip and providing a smoother ride across unforgiving terrain, significantly improving rider comfort and control.
• Front and Rear Cargo Racks: Designed with substantial flat areas and sturdy steel construction, these racks on models like the Rancher are built for versatility. They are made to be simple to mount and detach various cargo boxes and accessories from Honda's Pro-ConnectTM line, enhancing the ATV's utility for work or recreational hauling.

Frequently Asked Questions (FAQs)

When did Honda ATV start fuel injection?

Honda began integrating fuel injection into its ATV models around the late 1990s. The Foreman 400 models had access to PGM-FI from 1998 to 2004, and the Rancher line received electronic Programmed Fuel Injection (PGM-FI) with the TRX420 models introduced in 2007.

Does Honda Rancher have fuel injection?

Yes, modern Honda Rancher models feature fuel injection. Honda completely updated the Rancher line in 2007 with the TRX420, introducing electronic Programmed Fuel Injection (PGM-FI) as a key enhancement. Subsequent models like the 2011 Rancher 420 also come with a liquid-cooled, fuel-injected engine.

Does Honda Foreman have fuel injection?

Yes, many Honda Foreman models have fuel injection. Foreman models, including the Foreman 400 from 1998-2004 and the Foreman 500, have access to PGM-FI. Later models like the 2011, 2012, and 2017 Honda Foreman 500 also feature precision fuel-injected engines.

Are ATVs with fuel injection better?

Generally, yes, ATVs with fuel injection are considered better. They offer unmatched flexibility in adapting to any required air-fuel mixture, leading to more reliable starting, consistent performance at varying altitudes and temperatures, improved fuel efficiency, and reduced emissions. While potentially more complex to troubleshoot, their benefits largely outweigh those of carburettor systems for most riders.

Can a fuel-injected engine have a carburettor installed?

Converting a fuel-injected engine to a carburettor involves removing the OEM ECU, harness, sensors, and vacuum lines. You would then need to install a manifold, one or more carburettors, and a new fuel delivery system (e.g., a low-pressure pump or pressure regulator). A carburetted distributor, which has an advance, would also be required as the EFI distributor lacks this feature. This is a significant modification.

Can a carburettor engine have fuel injection installed?

Converting a carburettor engine to fuel injection is a complex process. It typically involves acquiring a "donor" vehicle's OEM fuel-injected parts, including the entire engine harness, ECU, vacuum lines, MAF sensor, solenoids, sensors, a high-pressure fuel pump, and the stock EFI distributor and igniter. Ensuring compatibility between parts from different years is crucial to avoid issues.

How can you tell if a motor uses fuel injection?

The simplest way is by how it cold-starts. A fuel-injected engine will typically start immediately without needing to touch the accelerator pedal, as the injector automatically sprays fuel into the engine. A carburetted engine often requires the choke and some throttle input to start when cold.

Are fuel injectors used in a 2007 Honda Foreman 500?

Yes, the 2007 Honda Foreman 500 features Programmable Fuel Injection (PGM-FI) as part of its advanced technologies, alongside the Electric Shift Program, TraxLok, and Electric Power Steering.

Does the 2011 Honda Foreman have fuel injection?

Yes, the 2011 Honda FourTrax Foreman 4X4 TRX500FM features a precision fuel-injected engine, providing reliable performance for various tasks and recreational riding.

Does the 2012 Honda Foreman have fuel injection?

Yes, the 2012 Honda Foreman is equipped with a new liquid-cooled motor featuring electronic fuel injection.

Does the 2017 Honda Foreman have fuel injection?

Yes, the 2017 Honda Foreman 500 model lineup continues to offer potent 475cc overhead-valve engines with fuel injection, maintaining its reputation for hard-working value.

Does the 2007 Honda Rancher 420 have fuel injection?

Yes, the 2007 Honda Rancher 420 (TRX420) was a significant update, featuring a brand-new, liquid-cooled, fuel-injected 420cc engine for enhanced performance and efficiency.

Does the 2011 Honda Rancher 420 have fuel injection?

Yes, the 2011 manual-shift FourTrax Rancher 4x4 comes with a torquey liquid-cooled, fuel-injected 420cc engine, among other standard features.

Are Honda TRX vehicles fuel-injected?

Many modern Honda TRX vehicles are fuel-injected, particularly utility and recreational models like the Rancher and Foreman. While some older sport models like the TRX450R remained carburetted, the trend across the Honda ATV lineup has been a widespread adoption of fuel injection for its performance and efficiency benefits.

What's new in a Honda Rancher ATV?

The Honda Rancher line has seen significant updates over its generations. A major improvement introduced with the TRX420 in 2007 was the larger, more powerful 420cc engine, electronic Programmed Fuel Injection (PGM-FI), liquid cooling, and the ability to switch from 2WD to 4WD on equipped models. Later models, like the TRX420FA (Rancher AT) in 2008, introduced electronic power steering and a more reliable dual-clutch automatic transmission, while maintaining the fuel-injected engine.

Conclusion

The integration of fuel injection into Honda ATVs represents a significant milestone in their evolution. From the early Foreman models to the revolutionary Rancher series, PGM-FI has consistently delivered superior performance, reliability, and efficiency. Riders can now enjoy effortless cold starts, consistent power delivery across diverse terrains and altitudes, and improved fuel economy, making their Honda ATV a more dependable and enjoyable machine. As technology continues to advance, fuel injection remains a cornerstone of Honda's commitment to building robust and high-performing ATVs for work and leisure across the UK's varied landscapes.
