Strut & Wheel Hub Alignment Guide

Understanding Struts and Wheel Hub Alignment

The suspension system of any vehicle is a complex network of components working in harmony to provide a smooth and controlled ride. Among these, the strut stands out as a multi-functional element, often integrated into the steering and suspension assembly. Commonly found on front-wheel-drive vehicles, their prevalence is expanding across all wheels of modern cars. A strut is not just a shock absorber; it's a structural part of the suspension, designed to support the vehicle's weight and maintain the wheel's alignment. Understanding how to correctly align a wheel hub with a strut is crucial for proper vehicle handling, tyre wear, and overall safety.

The design of a strut is inherently linked to its repairability. For most modern vehicles, especially compact ones that cannot accommodate a traditional coil spring suspension with separate upper and lower control arms, the strut assembly is the go-to solution. This integrated design means that when a strut fails or needs replacement, it's generally recommended to replace the entire unit. This includes the shock absorber, coil spring, and mounting hardware. Attempting to disassemble the strut without the proper tools, specifically a spring compressor, is extremely dangerous. The compressed spring within the strut assembly can violently dislodge if the top nut is removed without pre-compressing the spring, posing a significant risk of injury.

The Art of Strut Replacement: Navigating Common Challenges

Replacing a strut can present several mechanical hurdles. One common issue encountered is a seized lower control arm ball joint. This joint connects the strut assembly to the lower control arm and can become frozen in place due to rust and corrosion. When faced with a stubborn ball joint that refuses to separate, a forceful approach is sometimes necessary. Using a sledge hammer to strike the lower control arm in the vicinity of the ball joint mounting can help break the bond and free the joint. Remember to aim for the control arm itself, not the ball joint stud.

Another critical aspect of strut replacement involves maintaining alignment. When removing the strut from the wheel hub bracket, it's imperative to mark the original position of the strut. This can be done using a paint marker or scribe. These marks serve as a reference point, helping to re-install the strut in a manner that closely approximates the original camber settings. Failure to do so can lead to significant misalignment, resulting in uneven tyre wear and compromised handling.

Ensuring Proper Alignment: The Importance of Sway Bar and CV Shafts

Safety and ease of access are paramount when working on suspension components. It's vital to ensure the vehicle is properly supported. When replacing front struts, both front wheels must be elevated off the ground. This is because the struts are often connected to the sway bar via extensions. The sway bar, made of spring steel, is designed to resist body roll. If only one side of the vehicle is lifted, the sway bar will be twisted, making it difficult to detach and re-attach the sway bar end links to the strut assembly.

On front-wheel-drive vehicles, the constant velocity (CV) shafts must typically be removed to allow the wheel hub to swing downwards, providing sufficient clearance for the strut to be withdrawn. Sometimes, the CV shaft can be reluctant to separate from the wheel hub. In such cases, a brass drift and a hammer are used to gently tap the shaft out. It is crucial to use only a soft-faced hammer or a dead blow rubber mallet. Hitting the CV shaft with a solid steel hammer can damage the shaft itself and, more critically, the transmission, leading to expensive repairs.

Re-installation: Aligning the Hub and Strut

The re-installation of a new strut assembly can be as challenging as its removal. Aligning the lower control arm ball joint back into its socket can require some persuasion. A large pry bar is often an invaluable tool here. By leveraging the pry bar against the strut or suspension components, you can apply upward force to help seat the ball joint into its mounting point. Ensure the spring is correctly positioned before applying this force.

When the wheel hub itself needs to be aligned with the strut mounting points, and the ball joint was not disconnected during removal, precision is key. If the holes don't readily line up, a common technique is to insert one bolt partially. Then, using the strut as leverage, push or pull the assembly to bring the second bolt hole into alignment. This often involves pressing the strut towards the engine compartment. Remember those marks you made earlier? They are invaluable now for re-establishing the approximate camber settings. Getting the camber settings correct is vital for ensuring your new tyres wear evenly and your vehicle tracks straight.

Why Wheel Alignment is Essential After Strut Replacement

Even with careful marking and re-installation, suspension components can shift slightly during the process. Therefore, it is highly recommended that after replacing struts, a professional wheel alignment should be performed. This ensures that all suspension angles, including camber, caster, and toe, are set to the manufacturer's specifications. Proper alignment not only maximizes tyre life but also contributes significantly to the vehicle's stability, steering response, and overall safety.

Installing Wheel Studs

Wheel studs are the threaded bolts that pass through the wheel hub and allow you to attach the wheel with lug nuts. Installing them requires care to ensure they are seated correctly and securely. When inserting wheel studs into the hub, pay close attention to any anti-rotation locks or keying mechanisms within the wheel hub. These are designed to prevent the stud from spinning when the lug nut is tightened. Gently tap the studs into place until they are fully seated against the hub collar. The flattened side of the wheel stud head, if present, should sit flush against the wheel hub.

Are Wheel Studs Still Used?

Yes, wheel studs are still very much in use on the vast majority of passenger vehicles. While some performance or specialized vehicles might use wheel bolts, the traditional wheel stud and lug nut combination remains the standard for most cars and light trucks. They offer a robust and reliable method for securing a wheel to the hub.

What is a Wheel Alignment Tool?

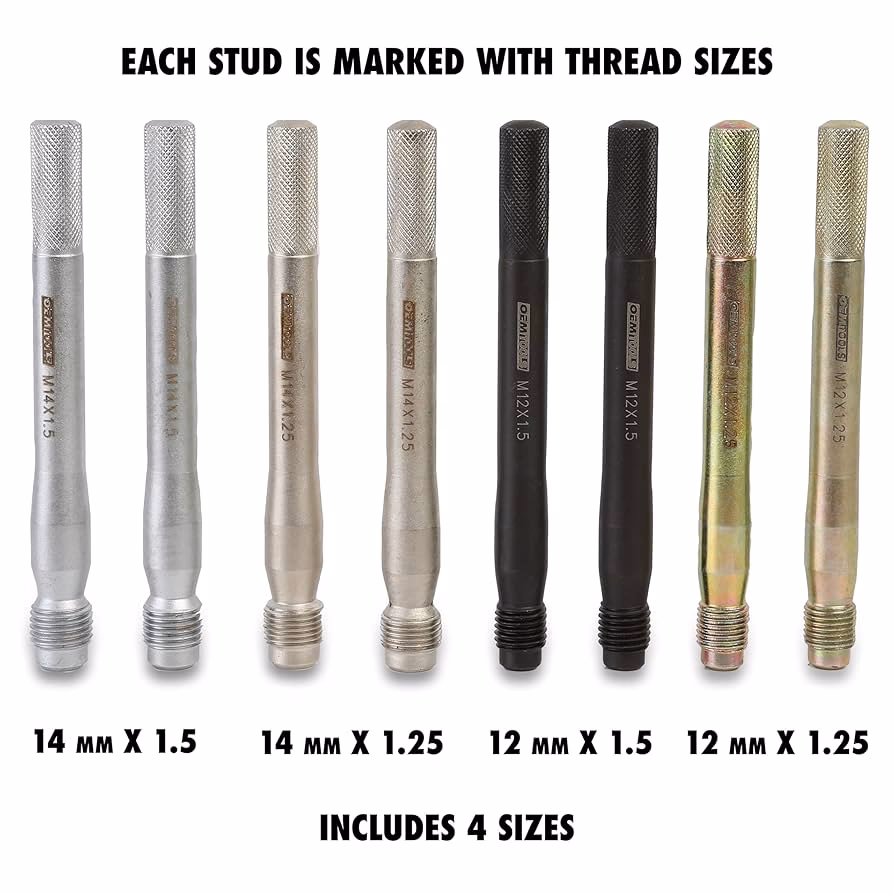

A wheel alignment tool, often referred to as a pilot bearing puller or wheel stud alignment pin, is a simple yet incredibly useful gadget for mechanics. Its primary function is to assist in the removal and installation of wheels, particularly when dealing with heavy or awkwardly positioned wheels. During tyre removal, it can be used to support the wheel once the last lug nut is removed, preventing it from falling. Conversely, during installation, it helps to align the wheel's lug holes with the studs on the hub, making it much easier to get the wheel mounted correctly and to start threading the lug nuts. This tool effectively acts as a temporary guide, simplifying a task that can otherwise be frustrating and potentially damaging.
