Wheel Alignment & ADAS: A Crucial Link

In the realm of modern automotive engineering, the sophistication of vehicle systems has reached unprecedented levels. Among these advancements, Advanced Driver-Assistance Systems (ADAS) stand out, offering enhanced safety and convenience. However, the efficacy of these cutting-edge technologies is intricately linked to the fundamental mechanical integrity of the vehicle. One area that has a surprisingly profound impact on ADAS performance is wheel alignment. While seemingly a straightforward mechanical adjustment, incorrect wheel alignment can significantly degrade the functionality of systems designed to keep us safe. In this comprehensive article, we will delve into the causes of misaligned wheels, explore the critical consequences for ADAS, and outline what needs to be considered to maintain optimal vehicle performance and avoid costly issues.

Understanding Wheel Alignment

Before we explore its impact on ADAS, it’s essential to grasp what wheel alignment truly entails. Wheel alignment refers to the precise adjustment of the angles of the wheels to the manufacturer's specifications. These angles dictate how your wheels are oriented with respect to the road surface and to each other. Correct alignment ensures that your tyres make optimal contact with the road, leading to improved handling, reduced tyre wear, and enhanced fuel efficiency. The key angles involved in wheel alignment are:

• Camber: The inward or outward tilt of the top of the wheel when viewed from the front of the vehicle.
• Caster: The forward or backward tilt of the steering axis when viewed from the side of the vehicle.
• Toe: The inward or outward angle of the wheels when viewed from above.
• Included Angle: The sum of the camber and steering axis inclination (SAI) angles.
• Steering Axis Inclination (SAI): The inward tilt of the steering axis when viewed from the front of the vehicle.

These angles are meticulously set by vehicle manufacturers to ensure optimal steering response, stability, and tyre longevity. Even minor deviations from these specifications can have cascading effects throughout the vehicle's systems.

Causes of Incorrect Wheel Alignment

Several factors can lead to your vehicle's wheel alignment falling out of specification. Understanding these causes is the first step in prevention:

• Impacts and Potholes: Driving into a deep pothole or experiencing a significant jolt, such as hitting a kerb, can easily knock your wheels out of alignment. The force of the impact can bend or shift suspension components.
• Worn Suspension Components: Over time, parts like ball joints, tie rod ends, and bushings can wear out. This wear creates play and looseness in the suspension, allowing the wheels to move beyond their intended alignment.
• Accidents and Collisions: Even minor fender benders can cause subtle damage to the chassis or suspension, affecting wheel alignment. More severe accidents will almost certainly require a thorough alignment check.
• Incorrect Tyre Inflation: While not a direct cause of misalignment, significantly under-inflated or over-inflated tyres can put uneven stress on the suspension and steering components, potentially exacerbating existing alignment issues or contributing to premature wear.
• Modifications: Altering suspension components, such as fitting lowering springs or larger wheels, can change the vehicle's geometry and necessitate a professional alignment to compensate for these changes.

The Critical Link: How Misalignment Affects ADAS

ADAS technologies rely on a precise understanding of the vehicle's position and orientation relative to its surroundings. Cameras, radar sensors, and lidar units are mounted on the vehicle, and their readings are interpreted by sophisticated software. If the vehicle's fundamental geometry is compromised by poor wheel alignment, the data these sensors receive can become inaccurate, leading to a cascade of problems:

1. Camera-Based Systems (Lane Keep Assist, Traffic Sign Recognition)

Many ADAS features, such as Lane Keep Assist (LKA) and Traffic Sign Recognition (TSR), use forward-facing cameras to monitor lane markings and road signs. These cameras are often mounted behind the windscreen or on the dashboard. For these systems to function correctly, the camera needs to have a clear and accurate view of the road ahead, and the software needs to know precisely where the vehicle is positioned within its lane.

If your wheels are misaligned, the vehicle might be subtly pulling to one side, or the steering wheel might not be perfectly centred when driving straight. This slight deviation means that the camera's perceived 'straight ahead' is no longer truly straight relative to the vehicle's actual direction of travel. The LKA system, expecting the vehicle to be centred in the lane based on the camera's input, might make incorrect steering corrections or fail to detect lane departures accurately. Similarly, TSR systems might misinterpret traffic signs if the camera's angle is skewed due to misalignment.

2. Radar and Lidar Systems (Adaptive Cruise Control, Autonomous Emergency Braking)

Adaptive Cruise Control (ACC) and Autonomous Emergency Braking (AEB) systems often utilise radar and lidar sensors, typically mounted in the front grille or bumper. These sensors are responsible for detecting the distance and speed of vehicles and objects in front of the car.

Wheel alignment directly impacts the 'aim' of these sensors. If the front wheels are pointing slightly off-centre, the entire vehicle is subtly angled relative to the direction its sensors are pointing. For example, if the front wheels are misaligned outwards (toe-out), the vehicle might be travelling slightly sideways to the direction the radar is scanning. This can lead to the radar misinterpreting the position of other vehicles, potentially causing ACC to brake unnecessarily, accelerate too late, or fail to detect a vehicle altogether. AEB systems could also be compromised, failing to detect an imminent collision or triggering a false alarm.

3. Parking Assist and Surround View Cameras

Even systems like parking assist and surround-view cameras, which are more focused on low-speed manoeuvring, can be affected. These systems use multiple cameras and ultrasonic sensors to provide a comprehensive view of the vehicle's surroundings. If the vehicle's geometry is off due to misalignment, the 'stitch' of the surround-view cameras might be inaccurate, or the parking sensors might not accurately gauge the distance to obstacles.

The Importance of Professional Calibration

It's crucial to understand that many ADAS systems require recalibration after any work that could affect their alignment or sensor positioning. This includes:

• Wheel alignment adjustments
• Replacement of windscreens (as cameras are often mounted there)
• Suspension repairs or replacements
• Tyre changes (especially if there's a significant difference in tyre diameter)
• Accident repairs

Simply performing a standard wheel alignment may not be sufficient. Modern vehicles often require specific calibration procedures for their ADAS sensors, using specialised equipment and software to ensure they are precisely aligned with the vehicle's actual orientation. Failure to recalibrate can render ADAS features unreliable or inoperable.

Consequences of Neglecting Wheel Alignment and ADAS

The repercussions of ignoring wheel alignment issues, particularly in the context of ADAS, can be significant:

• Compromised Safety: The most critical consequence is the reduction in safety. If ADAS features malfunction, the vehicle's ability to prevent accidents is diminished.

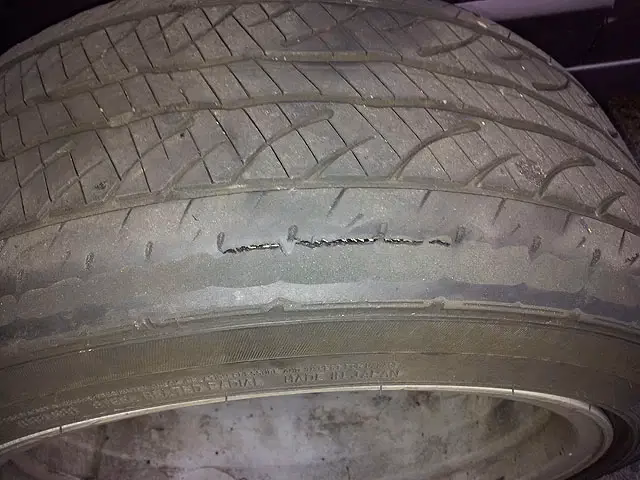

• Increased Tyre Wear: Misaligned wheels cause tyres to drag or scrub against the road surface, leading to rapid and uneven tyre wear. This is not only costly but also reduces tyre grip and performance.
• Poor Handling and Stability: Incorrect alignment can result in the vehicle pulling to one side, steering wheel vibration, and a general feeling of instability, making driving less comfortable and more dangerous.
• Reduced Fuel Efficiency: Increased tyre drag from misalignment also leads to higher rolling resistance, consuming more fuel.
• Costly Repairs: Ignoring minor alignment issues can lead to premature wear of other suspension and steering components, resulting in more extensive and expensive repairs down the line. Furthermore, improper ADAS calibration can lead to costly diagnostic and recalibration work.

Maintaining Optimal Alignment for ADAS

To ensure your ADAS functions as intended and to avoid the pitfalls of misalignment, follow these guidelines:

• Regular Checks: Have your wheel alignment checked periodically, especially after hitting a pothole or kerb, or if you notice any signs of misalignment (e.g., pulling to one side, uneven tyre wear).

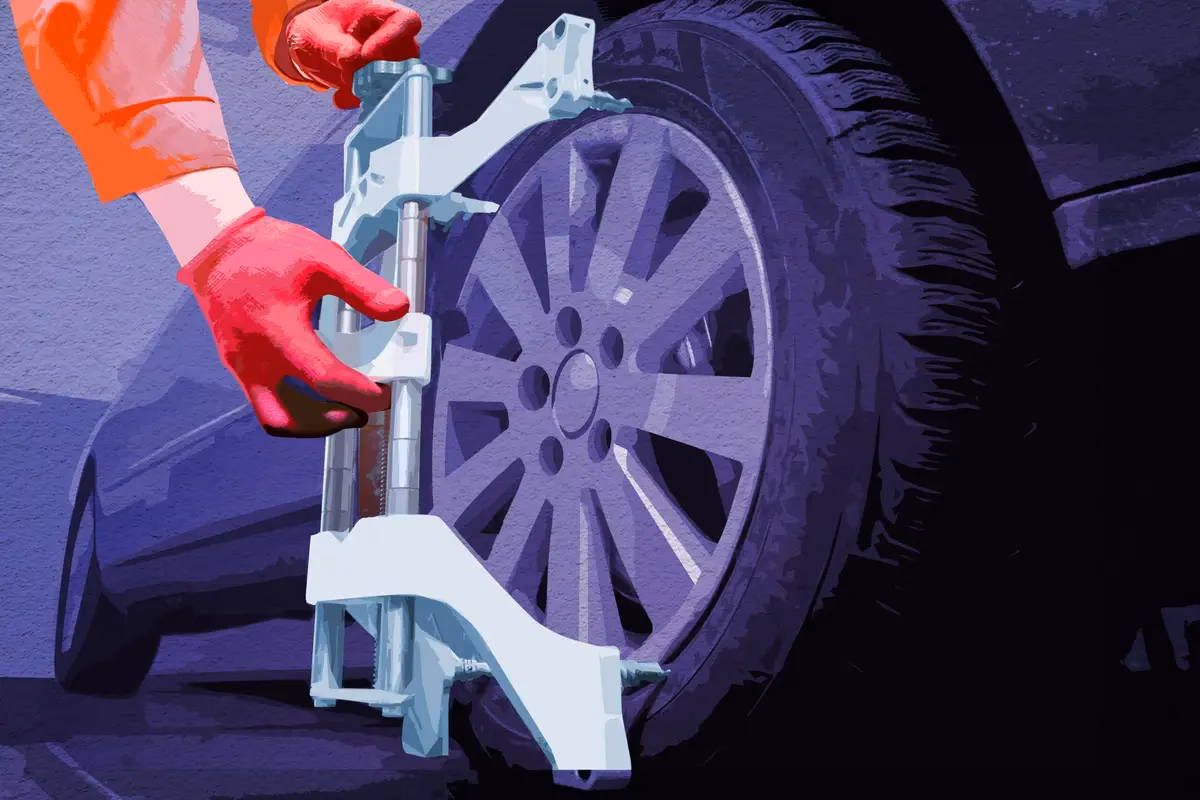

• Professional Alignment: Always opt for professional wheel alignment services from reputable garages. They have the correct equipment and expertise to perform the job accurately.
• ADAS Awareness: When undergoing any significant vehicle work, specifically ask your mechanic if ADAS recalibration is necessary. Don't assume it's included in a standard service.
• Tyre Maintenance: Ensure your tyres are always correctly inflated and check them regularly for signs of uneven wear, which can indicate alignment problems.

Comparative Table: Impact of Misalignment on ADAS

Here's a summary of how specific ADAS features can be affected by incorrect wheel alignment:

Frequently Asked Questions

Q1: Can I tell if my wheel alignment is off just by looking?

While severe misalignment might cause obvious issues like the steering wheel being crooked when driving straight, minor misalignments can be subtle. The best indicators are uneven tyre wear, the car pulling to one side, or a steering wheel that vibrates. Regularly checking for these signs is crucial.

Q2: My car had a new windscreen fitted. Do I need ADAS recalibration?

In most modern vehicles, front-facing cameras for ADAS are mounted on or behind the windscreen. If the windscreen is replaced, the camera's position can be altered, even by a fraction of a millimetre, which is enough to affect ADAS performance. Therefore, recalibration is almost always necessary after a windscreen replacement.

Q3: How often should wheel alignment be checked?

It's recommended to have your wheel alignment checked at least once a year, or more frequently if you drive on rough roads, hit a significant pothole, or notice any symptoms of misalignment. It's also a good practice to check it whenever you replace tyres.

Q4: Is ADAS recalibration expensive?

The cost of ADAS recalibration can vary depending on the vehicle manufacturer and the complexity of the system. However, it's generally a worthwhile investment to ensure the safety features of your car are functioning correctly and to avoid potentially higher costs associated with accidents or malfunctioning systems.

Conclusion

The intricate relationship between wheel alignment and ADAS performance cannot be overstated. As vehicles become more reliant on sophisticated driver-assistance technologies, maintaining the fundamental mechanical integrity of the car is paramount. Misaligned wheels can subtly but significantly corrupt the data that ADAS systems rely on, leading to compromised safety, increased wear, and potential system failures. By understanding the causes of misalignment, being vigilant for its signs, and ensuring professional alignment and recalibration when necessary, you can safeguard both your vehicle's performance and your own safety on the road.
