Maserati GranTurismo Wheel Alignment Guide

Understanding Your Maserati GranTurismo's Wheel Alignment

The Maserati GranTurismo is a symphony of Italian design and performance, a car that demands precise handling to match its potent V8 engine. While often perceived as a unique beast, its fundamental alignment principles share common ground with many other performance vehicles. However, understanding the specific nuances and recommended settings for your GranTurismo is crucial to unlocking its full potential and ensuring a safe, engaging driving experience. This guide delves into the intricacies of Maserati GranTurismo wheel alignment, covering everything from factory settings to common issues and the importance of professional adjustment.

Why Wheel Alignment Matters for Your GranTurismo

A properly aligned vehicle is paramount for several key reasons, especially in a car like the Maserati GranTurismo, where performance and driver connection are paramount. Incorrect alignment can lead to:

• Uneven Tyre Wear: This is perhaps the most common and costly consequence. If your wheels aren't pointing in the correct direction, tyres will scrub against the road surface, leading to premature wear on the inside or outside edges. For a high-performance car like the GranTurismo, replacing specialised tyres can be a significant expense.
• Compromised Handling: Misaligned wheels can make your car pull to one side, feel unstable during cornering, or exhibit unpredictable behaviour. This detracts from the exhilarating driving dynamics Maserati is renowned for.
• Increased Fuel Consumption: Tyres that are fighting against each other due to incorrect alignment create more rolling resistance, forcing the engine to work harder and consuming more fuel.
• Reduced Safety: In extreme cases, poor alignment can affect steering response and stability, potentially compromising your safety on the road.

Maserati GranTurismo: Factory Alignment Settings (General Overview)

Maserati, like many performance car manufacturers, sets its vehicles up with specific alignment parameters to optimise handling characteristics. For the GranTurismo, particularly the earlier models powered by the 4.2-litre V8 producing 405 HP, the focus is on achieving a balance between sharp turn-in and stability at higher speeds. A key characteristic often observed is a degree of negative camber, especially on the rear wheels. This means the top of the wheel is tilted inwards towards the car.

Why Negative Camber?

Negative camber is employed to maximise the tyre's contact patch with the road during cornering. As a car corners, centrifugal force tends to push the outer tyre outwards, causing it to roll onto its outer edge. Negative camber counteracts this by keeping more of the tyre's surface flat on the tarmac, thereby increasing grip. While beneficial for cornering, it can lead to faster wear on the inside edge of the tyre if the car is primarily driven in a straight line or if the alignment isn't precise.

Key Alignment Angles to Consider:

It's important to note that specific alignment figures can vary slightly depending on the exact model year and specification of your GranTurismo. Always refer to the manufacturer's recommended settings, which are usually available from your Maserati dealer or specialist mechanic.

Common Alignment Issues in Maserati GranTurismo

Even with its robust construction, a GranTurismo can develop alignment issues over time due to:

• Impacts: Hitting potholes, kerbs, or debris on the road can easily knock your alignment out of specification.
• Wear and Tear: Suspension components like bushings, ball joints, and tie rod ends can wear over time, leading to play and affecting alignment.
• Accidents: Even minor collisions can impact suspension geometry.
• Tyre Pressure: Incorrect tyre pressures can sometimes mimic or exacerbate alignment problems, so always ensure your tyres are inflated to the recommended levels.

Signs of Misalignment:

• The car pulls to one side when driving on a straight, level road.
• The steering wheel is not centred when the car is going straight.
• Tyres show unusual wear patterns (e.g., feathering, cupping, or excessive wear on one edge).
• The steering feels vague, heavy, or wanders.
• Decreased fuel efficiency.

The Importance of a Professional Alignment

While the basic principles of alignment are universal, achieving the precise settings for a Maserati GranTurismo requires specialised knowledge and equipment. The mention of an "eccentric adjustment on the QP" (Quattroporte, but the principle applies) hints at the fact that some Maserati models, and performance cars in general, utilise eccentric bolts or adjustable components to fine-tune alignment angles. This allows for more granular control over camber and caster, enabling mechanics to dial in the perfect setup.

What to Expect from a Professional Alignment Service:

1. Pre-Alignment Inspection: A good technician will first inspect your suspension and steering components for any signs of wear or damage. Addressing these issues is critical before attempting an alignment, as worn parts will prevent the alignment from holding.

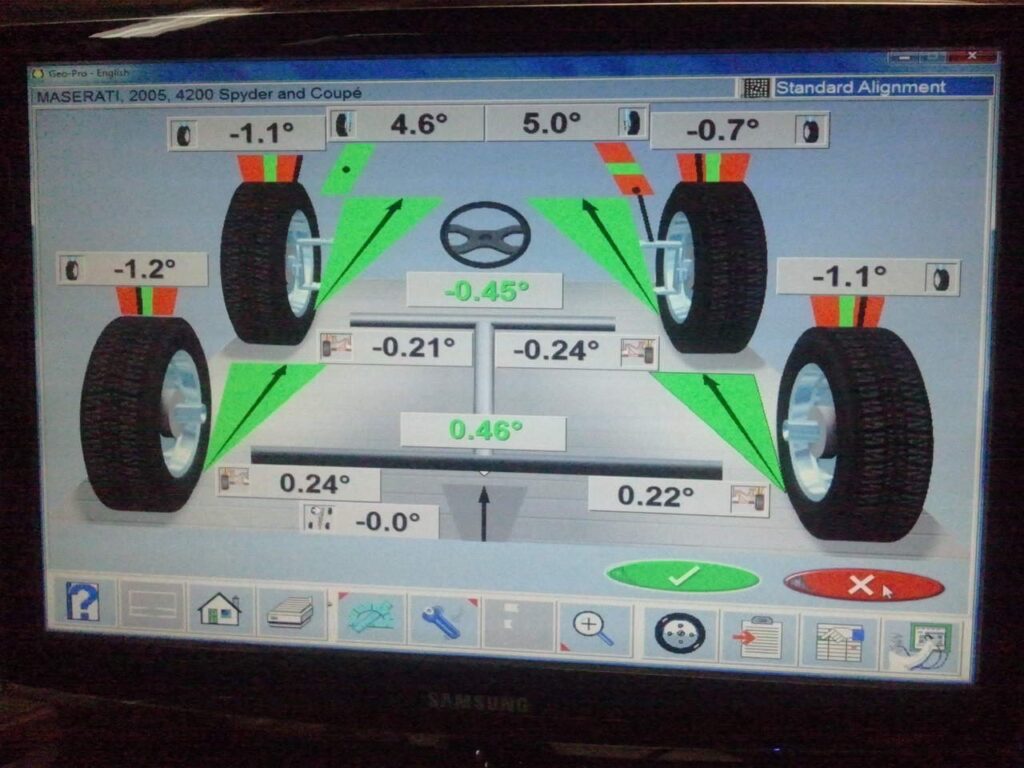

2. Computerised Alignment Machine: Modern alignment machines, such as Hunter systems, use sophisticated sensors and software to measure all relevant angles accurately.
3. Simulating Driving Load: As suggested by forum discussions, a crucial step for performance cars is to simulate the weight of a driver and passenger. This is often done by placing calibrated weights (around 150-200 lbs) in the driver's seat and sometimes the passenger seat. This ensures the alignment is set with the suspension under load, mimicking real-world driving conditions.
4. Adjustment Process: The technician will adjust the various bolts and components to bring the camber, toe, and caster angles within the manufacturer's specifications. For Maserati, achieving perfectly even camber and toe from left to right is paramount. A difference of more than 0.1 degrees between sides for camber can significantly impact handling.
5. Post-Alignment Check and Printout: After adjustments, the technician will re-measure everything and provide you with a printout detailing the before and after alignment readings. This document is invaluable.

Tips for a Successful GranTurismo Alignment

• Choose a Reputable Specialist: Opt for a garage with experience in high-performance or Italian vehicles. They will be more familiar with the specific requirements and complexities of your Maserati.
• Demand a Printout: Always ask for the alignment printout. This serves as proof of the work done and allows you to verify the technician's accuracy.
• Check for Left-to-Right Consistency: Pay close attention to the camber and toe readings. As mentioned, significant differences between the left and right sides are unacceptable for optimal performance. Minor deviations (within 0.1 degrees) are generally considered acceptable.
• Consider Your Driving Style: While the factory settings are designed for a balance of performance and usability, some owners may wish to fine-tune their alignment for specific driving conditions (e.g., track days). Discuss this with your technician, but be aware that deviations from factory specs can lead to increased tyre wear and potentially affect road manners.
• Allow the Suspension to Settle: After adjustments, driving the car for a short period (e.g., a few miles) allows the suspension to settle before a final check. This is especially important if significant adjustments were made.
• Tyre Choice Matters: The type of tyres you choose can also influence how the alignment affects wear. High-performance tyres, especially those with asymmetric tread patterns, may be more sensitive to alignment variations.

Frequently Asked Questions (FAQs)

Q1: How often should I get my Maserati GranTurismo's alignment checked?

A: It's advisable to have your alignment checked at least once a year, or whenever you notice any of the signs of misalignment mentioned above. It's also a good practice to check it after hitting a significant pothole or kerb.

Q2: Can I adjust the alignment myself?

A: While some basic toe adjustments might be possible on certain cars, the complex geometry of a Maserati GranTurismo, particularly its adjustable camber and caster, makes a professional alignment using specialised equipment highly recommended. Attempting it yourself without the right tools and knowledge can lead to further problems.

Q3: What is the cost of a wheel alignment for a Maserati GranTurismo?

A: The cost can vary depending on your location and the garage you choose, but expect to pay between £150 and £300 for a comprehensive four-wheel alignment on a GranTurismo. This includes the inspection, adjustment, and printout.

Q4: My GranTurismo pulls to the left. What could be the cause?

A: This is a classic symptom of misalignment. It could be due to incorrect toe settings, uneven camber, or even a difference in tyre pressures. A professional alignment check will diagnose and rectify the issue.

Q5: Is it okay to have slightly different camber readings between the front and rear?

A: Yes, it is normal and often desirable for front and rear camber to be different, as they serve different purposes. However, the camber on the left side should be very close to the camber on the right side for the same axle. Significant discrepancies between the left and right sides indicate a problem that needs to be corrected.

Conclusion

Maintaining the correct wheel alignment on your Maserati GranTurismo is not just about preventing premature tyre wear; it's about preserving the car's legendary handling characteristics and ensuring a safe, exhilarating driving experience. By understanding the key alignment angles, recognising the signs of misalignment, and entrusting the job to experienced professionals, you can keep your GranTurismo performing at its peak for years to come. Remember, precision is key, and a thorough alignment performed with care will undoubtedly enhance your connection with this exceptional Italian sports car.
