Tyre Pressure: The Foundation of Wheel Alignment

When it comes to maintaining your vehicle's health and ensuring a smooth, safe driving experience, few things are as crucial as proper wheel alignment. However, a step often overlooked, yet absolutely fundamental to achieving accurate alignment, is ensuring your tyres are correctly inflated. It might seem like a minor detail, but the truth is, without the right tyre pressure, any attempt at setting your wheel alignment is, quite simply, futile.

Imagine building a house on a shaky foundation; it's destined to fall apart. Similarly, trying to adjust the intricate angles of your vehicle's wheels when the tyres aren't at their specified pressure is like trying to level that house on shifting ground. This article will delve into why tyre pressure is the non-negotiable first step, what wheel alignment entails, why it's vital for your vehicle, and provide some detailed technical data for specific models.

The Indispensable Role of Tyre Pressure in Alignment

Before any mechanic even thinks about connecting alignment equipment to your vehicle, the very first thing that must be checked, and adjusted if necessary, is the tyre pressure. But why is it so critically important?

• Distortion of Tyre Shape: Tyres are designed to perform optimally at a specific pressure. If under-inflated, the tyre's sidewalls bulge, and the contact patch (the part of the tyre touching the road) becomes distorted. Over-inflation, conversely, causes the centre of the tread to bear most of the load, reducing the contact patch and making the tyre overly rigid. These distortions directly affect how the wheel sits on the ground and how alignment sensors read its position.
• Inaccurate Readings: Modern wheel alignment systems use highly precise sensors attached to the wheels. If the tyre is not uniformly inflated, the sensor will not sit correctly, or the weight distribution across the tyre will be uneven. This leads to inaccurate measurements of crucial angles like toe, camber, and castor, rendering any subsequent adjustments incorrect.
• Compromised Results: Even if adjustments are made based on flawed readings, once the tyres are eventually inflated to the correct pressure, the alignment will be off. This means wasted time, money, and potentially accelerated tyre wear or compromised handling.
• Consistent Reference Point: Correct tyre pressure provides a consistent and stable reference point for the alignment technician. It ensures that the vehicle's suspension and steering components are under the intended load conditions, allowing for a true and accurate assessment of the wheel geometry.

Therefore, it is absolutely essential that you have the tyres inflated to the correct pressure as specified by the manufacturer before checking or setting wheel alignment. Alongside this, the vehicle must be on flat, level ground, and crucially, the vehicle should be unladen – meaning no heavy cargo or passengers that would alter its ride height and suspension geometry.

Understanding Wheel Alignment: Toe, Camber, and Castor

Wheel alignment, often referred to as 'tracking', is the process of adjusting the angles of the wheels so they are parallel to each other and perpendicular to the ground. These angles are vital for your vehicle's performance, safety, and the longevity of your tyres. The three primary angles are:

• Toe: This refers to how much the front of the tyres points inward or outward relative to each other. Think of it as looking down at your feet: if your toes point inwards, that's 'toe-in'; if they point outwards, that's 'toe-out'. Incorrect toe settings are a leading cause of rapid and uneven tyre wear.
• Camber: This is the inward or outward tilt of the tyre when viewed from the front of the vehicle. If the top of the tyre tilts outwards, it's 'positive camber'; if it tilts inwards, it's 'negative camber'. Proper camber ensures the tyre makes full contact with the road, distributing weight evenly.
• Castor: This refers to the angle of the steering pivot when viewed from the side of the vehicle. It influences steering stability, cornering ability, and the steering wheel's tendency to return to the centre after a turn. Castor doesn't typically cause tyre wear but significantly impacts handling.

Why Correct Wheel Alignment is Crucial

Beyond the immediate benefit of accurate settings, proper wheel alignment offers a multitude of advantages that impact your driving experience and your wallet:

• Extended Tyre Life: Misaligned wheels cause tyres to drag, scuff, and wear unevenly, drastically shortening their lifespan. Correct alignment ensures even wear across the tread, saving you money on premature tyre replacement.
• Improved Fuel Economy: When wheels are misaligned, they create more rolling resistance, forcing the engine to work harder. This directly translates to increased fuel consumption.
• Enhanced Driving Safety: A properly aligned vehicle handles predictably. It steers straight, responds accurately to steering input, and maintains stability, especially at higher speeds or during emergency manoeuvres.
• Better Handling and Ride Comfort: You'll notice a significant improvement in how your vehicle feels on the road. Steering will be smoother, and the vehicle will track straight without constant correction.
• Reduced Component Wear: Misalignment places undue stress on steering and suspension components, leading to premature wear and potentially costly repairs down the line.

Signs You Need a Wheel Alignment Check

Your vehicle often provides clear indicators that its alignment is off. Pay attention to these signs:

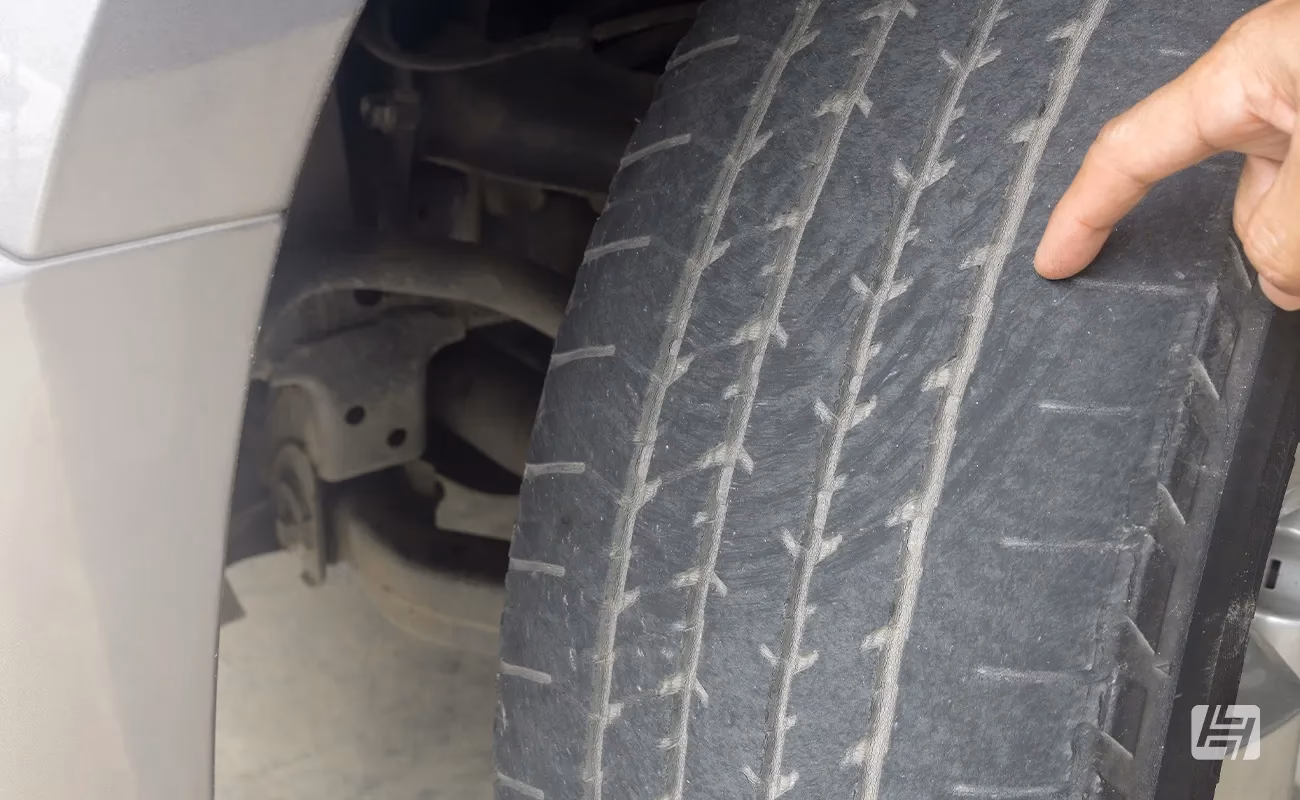

• Uneven or Rapid Tyre Wear: This is often the most noticeable symptom. Look for feathering, excessive wear on one side of the tyre, or bald spots.
• Vehicle Pulling to One Side: If you find your vehicle constantly drifting or pulling to the left or right when driving on a straight, level road, alignment is likely the culprit.
• Crooked Steering Wheel: When driving straight, your steering wheel should be centred. If it's off-centre, even slightly, it's a strong sign of misalignment.
• Steering Vibrations or Looseness: While often related to balancing, alignment issues can also contribute to vibrations felt through the steering wheel. A loose or unresponsive steering feel can also be a symptom.
• Squealing Tyres: Tyres squealing, especially when turning corners, can indicate excessive toe-in or toe-out.

DIY vs. Professional Wheel Alignment: A Clear Choice

The checking and setting of wheel geometry requires the use of specialist equipment and considerable expertise. While there are guides online for DIY attempts, in the wrong hands, you could make things significantly worse than when you began. Precision is paramount, and even a slight miscalculation can have detrimental effects.

It is genuinely worth the peace of mind of letting a professional handle your vehicle's geometry. For instance, getting the tracking on your van set can cost around £40 for a four-wheel alignment at places like Halfords. Considering the potential cost of premature tyre replacement, reduced fuel efficiency, and compromised safety, this is a modest investment.

Detailed Wheel Alignment Data

For those interested in the specific technical data, the following tables provide detailed wheel alignment specifications for various 2WD and 4WD Syncro models. Please note, these are precise measurements that require professional tools to interpret and adjust.

Detailed Wheel Alignment Data for 2WD Models 1983-1989

Detailed Wheel Alignment Data for 4WD Syncro Models 1985-1991

Rear Alignment Data for 4WD Syncro Models 1985-1991

Transporter Syncro with 5.5×14 Wheels (Toe-out Data)

Transporter Syncro with 5.5×16 Wheels (Toe-out Data)

Note on Adjustments

For those with a technical inclination, understanding how these adjustments are made can be insightful, though it reinforces the need for professional tooling and expertise:

• Camber Adjustment: The camber is typically adjusted by the long bolt that passes through the inner end of the front upper wishbones. This bolt allows for the tilting of the wheel.
• Tracking (Toe) Adjustment: The tracking, or toe, is adjusted by undoing the lock nuts on the threaded parts of the track arm next to the track rod end. Loosening these nuts allows the track rod to be lengthened or shortened, thereby adjusting the toe angle.

Frequently Asked Questions About Wheel Alignment

How often should I get my wheel alignment checked?

It's generally recommended to have your wheel alignment checked every 10,000 to 15,000 miles, or at least once a year. However, it's also advisable to get it checked after:

• Hitting a significant pothole or kerb.
• Replacing steering or suspension components (e.g., tie rod ends, control arms).
• Getting new tyres.
• Noticing any of the alignment warning signs mentioned above.

Can I do wheel alignment myself?

While basic 'string alignment' methods exist, achieving precise and accurate wheel alignment requires specialist equipment that measures angles to fractions of a degree. Without this equipment and the necessary expertise, attempting DIY alignment can easily lead to incorrect settings, worsening tyre wear, handling, and safety. For reliable results, it's always best to consult a qualified technician.

What happens if I don't get my wheel alignment done?

Ignoring alignment issues can lead to several costly problems, including accelerated and uneven tyre wear (requiring premature tyre replacement), reduced fuel efficiency, compromised vehicle handling and stability, and increased wear on steering and suspension components. Ultimately, it can lead to a less safe and more expensive driving experience.

Does tyre pressure affect tracking?

Absolutely, yes. As discussed extensively in this article, correct tyre pressure is fundamental for accurate tracking (toe) adjustments. Incorrect pressure distorts the tyre shape, leading to inaccurate measurements and compromised alignment results. Always ensure tyres are at the correct pressure before any alignment work begins.

What's the difference between 2-wheel and 4-wheel alignment?

A 2-wheel alignment (typically front-end alignment) focuses only on adjusting the front wheels, ensuring they are parallel to each other. This is often sufficient for vehicles with solid rear axles where the rear wheels are not adjustable. A 4-wheel alignment, on the other hand, adjusts both the front and rear wheels. It's essential for vehicles with independent rear suspensions, as it ensures all four wheels are parallel to each other and the vehicle's geometric centreline. Most modern vehicles, especially those with advanced handling systems, benefit greatly from a full 4-wheel alignment.

Conclusion: A Small Step for Big Savings and Safety

In the world of vehicle maintenance, attention to detail often yields the greatest rewards. Ensuring your tyres are correctly inflated before any wheel alignment work is not just a best practice; it's a fundamental requirement. This simple step lays the groundwork for accurate alignment, which in turn leads to prolonged tyre life, better fuel economy, improved safety, and superior handling. Don't underestimate the power of correct tyre pressure – it's the invisible hero that supports your vehicle's stability and performance on every journey.
