Hunter Wheel Alignment: Precision Explained

Ensuring your vehicle’s wheels are correctly aligned is paramount for safe driving, optimal tyre wear, and fuel efficiency. Among the leading names in automotive service equipment, Hunter Engineering stands out for its innovative and precise wheel alignment systems. This article delves into the intricacies of how Hunter Engineering's alignment systems operate, exploring the technology, components, and benefits that make them a preferred choice for professionals across the globe.

The Core Principles of Wheel Alignment

Before we explore Hunter's specific technology, it's crucial to understand the fundamental principles of wheel alignment. Alignment refers to the adjustment of a vehicle's suspension components so that the wheels are set to the correct angles. The primary angles involved are:

• Camber: The inward or outward tilt of the tyre when viewed from the front. Too much or too little camber can cause uneven tyre wear and affect steering.
• Caster: The forward or backward tilt of the steering axis when viewed from the side. Caster influences steering stability and returnability.
• Toe: The inward or outward angle of the tyres when viewed from above. Correct toe settings are critical for preventing tyre scrub and ensuring straight-line tracking.
• Thrust Angle: The angle of the vehicle's reference line relative to its longitudinal centerline. An incorrect thrust angle indicates a misaligned rear axle, causing the vehicle to 'dog track' or pull to one side.

When any of these angles are incorrect, it can lead to a host of problems, including premature tyre wear, poor handling, and increased fuel consumption. Hunter Engineering's systems are designed to meticulously measure and adjust these parameters with unparalleled accuracy.

Hunter's Advanced Alignment Technology

Hunter Engineering has consistently pushed the boundaries of alignment technology. Their systems typically utilise a combination of sophisticated hardware and intuitive software to provide a comprehensive alignment solution. Key components and technologies often include:

1. Imaging Wheel Alignment Systems

Hunter is renowned for its pioneering use of imaging technology in wheel alignment. Unlike older systems that relied on mechanical methods or laser beams, Hunter's imaging systems use high-resolution cameras and sophisticated targets attached to each wheel. Here's how it works:

• Targets: Special reflective targets are mounted onto each wheel. These targets are designed to be accurately read by the system's cameras, regardless of minor wheel imperfections.
• Cameras: Multiple high-definition cameras are strategically positioned around the vehicle, often mounted on a separate frame or integrated into the lift. These cameras continuously monitor the position and orientation of the wheel targets.
• Software: The real magic happens in the software. Hunter's proprietary software processes the data from the cameras in real-time. It precisely calculates the camber, caster, toe, and thrust angles by analysing the position of the targets in 3D space. The system can even detect subtle movements of the wheels during the alignment process.

This imaging technology offers several significant advantages: it's fast, highly accurate, and less susceptible to interference from environmental factors like wind or vibrations compared to laser systems. It also allows for quick setup and measurement, significantly reducing service time.

2. Integrated Lift and Alignment Systems

Hunter often integrates its alignment systems with their advanced vehicle lifts. This integration streamlines the entire alignment process. Features often include:

• Self-Centred Turnplates: These are essential for accurate caster and toe adjustments. They allow the front wheels to be turned precisely without introducing unwanted forces that could skew the readings.
• Slip Plates: Located at the rear of the lift, slip plates accommodate the movement of the rear wheels during the alignment procedure, ensuring that only the adjustments being made are measured.
• Electronic Wheel Clamps: Hunter's wheel clamps are designed for quick and secure attachment to various wheel sizes and types, including alloy wheels, minimising the risk of damage.
• Commitment to Accuracy: Hunter's commitment to precision engineering ensures that all components work in harmony to provide the most accurate alignment readings possible.

3. Advanced Software and User Interface

Hunter's alignment systems are powered by intuitive and powerful software. Key software features include:

• 3D Measurement: The imaging systems provide a true three-dimensional measurement of wheel angles, offering a level of detail and accuracy that older technologies couldn't match.
• Vehicle Database: A comprehensive database containing OEM alignment specifications for a vast range of vehicles. This allows technicians to quickly select the correct specifications for any given vehicle.
• Step-by-Step Guidance: The software guides technicians through the alignment process, often with visual aids and clear instructions, ensuring that no steps are missed and that adjustments are made correctly.
• Reporting: Detailed before-and-after alignment reports can be generated, providing transparency for the customer and a record of the service performed.
• Live Measurement Display: Technicians can see the alignment angles change in real-time as they make adjustments, allowing for immediate feedback and fine-tuning.

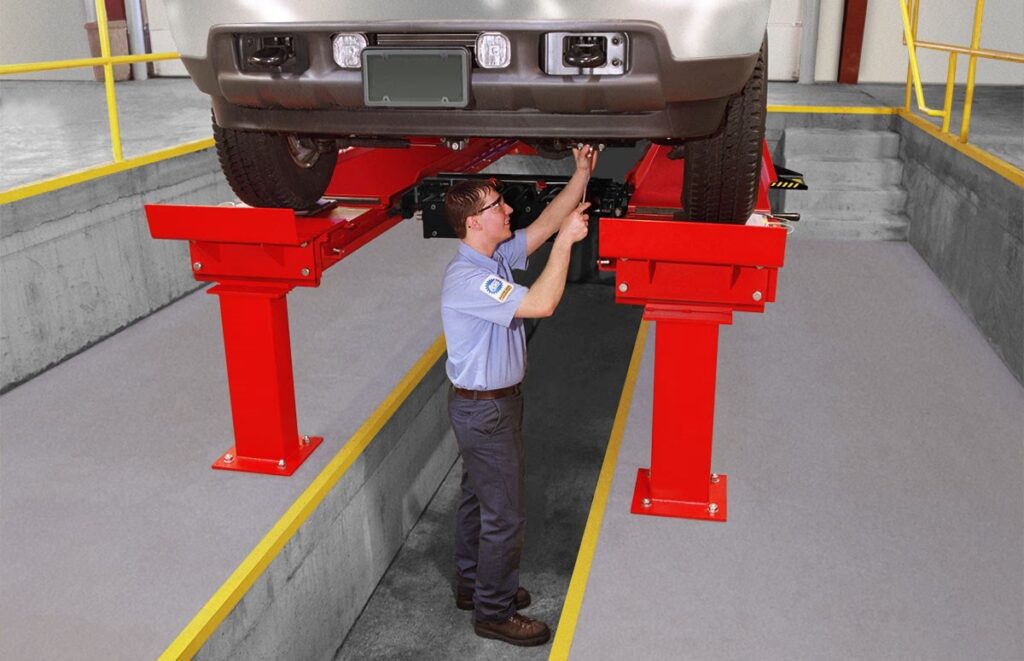

Hunter's Pit Racks and Their Benefits

For workshops with specific infrastructure, Hunter also offers pit racks, which are designed to facilitate easier access for alignment work. As noted, Hunter's pit racks boast impressive capacity, often 18,000-lb, and feature two 9,000-lb capacity swing jacks for supporting the vehicle. These are capable of servicing vehicles with wheelbases up to 158 inches for 4-wheel alignments, with 2-wheel alignment flexibility limited primarily by surrounding space.

The distinction between a deep center and a shallow pit is significant for workshop workflow:

• Deep Center Pit: Offers ample room for technicians to work comfortably underneath the vehicle, facilitating easier access to suspension components for adjustments and repairs.
• Walk-around Shallow Pit: Provides excellent accessibility to the alignment instrumentation and targets, making the setup and adjustment process more fluid and less physically demanding for the technician.

Both configurations are engineered to support precise alignment work, with the choice often depending on the workshop's layout and preferred working style.

Tyre Changers: A Complementary Service

While this article focuses on wheel alignment, it's worth noting that Hunter Engineering is also a world leader in tyre changing equipment. Their range, from the fully-automatic Revolution™ tyre changer to the TCX family of table-top equipment, ensures that workshops have reliable tools for all aspects of tyre service. Correct wheel alignment is intrinsically linked to tyre health, and having high-quality tyre changers complements the benefits of precise alignment by ensuring tyres are fitted correctly and balanced.

Why Choose Hunter for Wheel Alignment?

The adoption of cutting-edge technology by Hunter Engineering translates into tangible benefits for both the workshop and the vehicle owner:

• Increased Accuracy: Minimises errors and ensures alignment is within OEM specifications.
• Faster Service Times: Reduced setup and measurement times mean more vehicles can be serviced efficiently.
• Improved Customer Satisfaction: Correct alignment leads to better driving experience, reduced tyre wear, and enhanced fuel economy, all of which contribute to happier customers.
• Durability and Reliability: Hunter equipment is built to last in demanding workshop environments.
• Comprehensive Solutions: From lifts to alignment machines and tyre changers, Hunter offers integrated solutions for modern workshops.

Frequently Asked Questions

What is the most common cause of wheel misalignment?

The most common causes include hitting potholes, driving over curbs, wear and tear on suspension components (like ball joints or tie rod ends), and improper installation of suspension parts. Even minor impacts can knock a vehicle's alignment out of specification over time.

How often should I have my wheel alignment checked?

It's generally recommended to have your wheel alignment checked annually, or whenever you notice signs of uneven tyre wear, the vehicle pulling to one side, or if you've recently hit a significant obstacle. Many tyre shops and service centres offer alignment checks as part of routine maintenance.

Can a wheel alignment improve fuel economy?

Yes, properly aligned wheels roll more freely and with less resistance. When wheels are misaligned, they can 'scrub' against the road surface, increasing rolling resistance and thus reducing fuel efficiency. Correcting misalignment can therefore lead to noticeable improvements in MPG.

What is the difference between a 2-wheel and a 4-wheel alignment?

A 2-wheel alignment typically adjusts only the front wheels, often on vehicles with non-adjustable rear suspensions. A 4-wheel alignment adjusts all four wheels and is crucial for vehicles where the rear axle can also be out of alignment (indicated by a thrust angle), ensuring the vehicle tracks straight and true.

How long does a wheel alignment take with a Hunter system?

With the speed and efficiency of Hunter's imaging systems, a complete alignment can often be performed in as little as 10-15 minutes once the vehicle is positioned and targets are attached, although the total service time will depend on the complexity of adjustments required and other associated services.

In conclusion, Hunter Engineering's wheel alignment systems represent the pinnacle of automotive service technology. By leveraging advanced imaging, integrated hardware, and intelligent software, these systems deliver the accuracy, speed, and reliability that modern workshops demand. Understanding how these systems work highlights the importance of precision in vehicle maintenance and the significant role Hunter plays in ensuring vehicles perform at their best.
