Mastering Mustang II Alignment: Caster & Beyond

When you're building a classic car with a modern twist, like a '61 Comet wagon sporting a Mustang II front suspension, the quest for optimal performance often leads to intricate questions about handling. Moving away from the original shock tower suspension and steering box to a rack and pinion setup introduces a world of possibilities, but also demands a fresh approach to fundamental aspects like front end alignment. While your primary use might be the street, occasional forays onto the drag strip mean you need a setup that offers both comfortable drivability and high-speed stability. The standard alignment specifications for a 1974 Mustang II, or indeed your original '61 Comet, simply won't cut it for a truly performance-oriented vehicle.

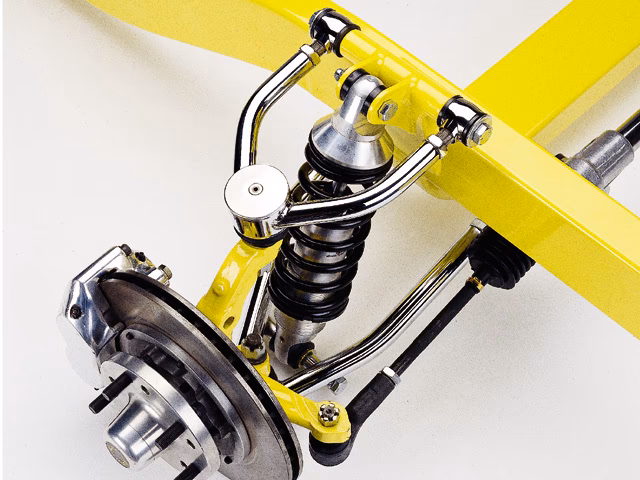

The Mustang II, produced from 1974 to 1978, was a compact and somewhat maligned pony car, yet its front suspension design became a popular choice for hot rodders and custom builders due to its compact nature and independent wheel movement. However, the factory alignment settings – typically around +¾-degree caster, +½-degree camber, and ⅛-inch total toe-in – were designed for economy and ease of manufacturing, not for spirited driving or high-speed runs. To truly harness the potential of your modified setup, we need to delve deeper into the science of suspension geometry.

Understanding the Core Alignment Parameters

Before we discuss specific numbers, it’s crucial to grasp what each alignment parameter controls and why it matters. There are three primary angles that define your wheel alignment: caster, camber, and toe. Each plays a vital role in how your car handles, steers, and even how long your tyres last.

Caster: The Key to Stability

Caster refers to the forward or rearward tilt of the steering axis when viewed from the side of the car. Imagine a line running through the upper and lower ball joints – this is your steering axis. If the top of this line is tilted towards the rear of the car, you have positive caster. If it tilts towards the front, it's negative caster.

• Positive Caster: This is generally desirable for performance and stability. It helps the steering wheel return to the centre after a turn, similar to the front wheels on a shopping trolley. More positive caster increases straight-line stability, especially at higher speeds, which is excellent for both motorway cruising and drag strip passes. It also improves steering feel and provides a more predictable response. The trade-off is slightly increased steering effort, though with power steering, this is rarely an issue. For your application, aiming for a significant amount of positive caster is highly recommended.
• Negative Caster: This makes steering lighter but severely compromises straight-line stability and steering returnability. It should be avoided in almost all performance and street applications.

Camber: Cornering Grip

Camber is the inward or outward tilt of the tyre when viewed from the front of the car. If the top of the tyre leans inwards towards the car's body, it's negative camber. If it leans outwards, it's positive camber.

• Negative Camber: This is widely preferred for performance handling. When a car corners, the body rolls, causing the outside tyre to lean outwards (positive camber). Negative camber pre-compensates for this, keeping more of the tyre's contact patch flat on the road during a turn, thus maximising grip. A mild negative camber setting of around -0.5 degrees is a great starting point for improved corner entry and overall handling without significantly impacting tyre wear for street use.
• Positive Camber: This means the top of the tyre tilts outwards. It reduces the contact patch during cornering and is generally undesirable for performance.

Toe: Tyre Wear and Steering Response

Toe refers to whether the front edges of the tyres are closer together or further apart than their rear edges when viewed from above. It's usually measured in fractions of an inch or millimetres, or as an angle.

• Toe-in: The front edges of the tyres are closer together than the rear edges. A small amount of toe-in (e.g., 1/32-inch per side, 1/16-inch total) is typically preferred for street cars. As the vehicle moves forward, aerodynamic and road forces tend to push the leading edges of the tyres outwards. A slight toe-in helps to counteract this, resulting in the tyres running almost perfectly straight down the road, which maximises tyre life and provides stable straight-line tracking.
• Toe-out: The front edges of the tyres are further apart than the rear edges. Excessive toe-out makes a car feel very "twitchy" or responsive, but it leads to rapid and uneven tyre wear because the tyres are constantly scrubbing across the road surface. While some race setups use slight toe-out for aggressive turn-in, it's generally not recommended for a street vehicle.
• Zero Toe: Tyres are perfectly parallel. Can be good for minimal tyre wear, but sometimes lacks the stability of slight toe-in on the street.

The Critical Aspect of Bump Steer

While caster, camber, and toe are static alignment settings, bump steer is a dynamic phenomenon that can profoundly affect your car's handling and safety. It describes the tendency of a wheel to steer itself (toe-in or toe-out) as the suspension moves through its travel (during compression or rebound).

In a typical unequal-length control arm suspension, the movement of the front tyre as it travels up and down follows an arc determined by the control arm lengths. Ideally, the steering arm, extending from the rack and pinion to the spindle, should scribe an identical arc. However, in many production cars, and especially in custom builds where components are integrated, this isn't always the case. A mismatch in these arcs causes the outer tie-rod to move differently than the spindle, leading to an unwanted toe change as the suspension compresses or extends.

If bump steer is excessive, hitting a bump can literally yank the steering wheel out of your hands, making the car incredibly unstable and potentially dangerous. We've witnessed situations where it makes a car almost impossible to drive safely. While a perfectly zero bump steer curve is the holy grail for race cars (like those in NASCAR or SCCA Trans Am), it's often not achievable or strictly necessary for a street car. As long as the bump steer isn't extreme, a car can still drive perfectly fine, especially with taller tyre sidewalls that can absorb some of the toe change through 'slip angle'. However, it's crucial to ensure it's not dangerously high.

Recommended Alignment Specs for Your Modified Comet

Given your setup with a Mustang II front suspension and rack and pinion steering, the stock 1974 Mustang II specs are far from ideal for your street and occasional drag strip use. Here are some generic recommendations that should get you much closer to an optimal setup:

Let's look at a comparison:

• Caster: Aim for as much positive caster as you can achieve, typically in the range of +4 to +6 degrees. This will significantly enhance your straight-line stability, which is paramount for both high-speed motorway driving and those occasional drag strip blasts. The increased steering effort associated with high positive caster is largely mitigated by your rack and pinion power steering system.
• Camber: A mild negative camber setting of around -0.5 degrees will greatly improve your car's cornering ability by optimising the tyre's contact patch during turns. This subtle change provides a noticeable improvement in handling without causing excessive tyre wear for typical street driving.
• Toe: For a street-driven car with occasional drag strip use, a slight amount of toe-in is ideal for maximising tyre life and ensuring stable straight-line tracking. Aim for about 1/32-inch per side, making a total of 1/16-inch toe-in. This setting helps to counteract the natural tendency of the tyres to splay outwards under driving forces, ensuring they run true down the road.

Finding the Right Specialist

One of the biggest challenges with modified vehicles is finding an alignment shop that understands custom setups. Many standard garages might be reluctant to work on anything outside of stock specifications, or their technicians might lack the dynamic understanding required for performance alignment. It's a common misconception that modern electronic alignment machines cannot handle custom specs; this is simply not true. High-quality equipment, like the Hunter four-wheel alignment machines, are perfectly capable of allowing a skilled operator to input and achieve custom settings.

The real issue is finding a specialist who possesses a deep understanding of suspension dynamics. Seek out a performance or custom shop that has experience with modified vehicles. They will often have a wealth of hands-on expertise and can offer insights specific to your unique build. Listen to their recommendations, compare them to the general guidelines provided here, and work with them to fine-tune your setup. A good technician will be able to not only set the static alignment but also assess for issues like bump steer and advise on solutions if necessary.

Beyond the Numbers: The Holistic Approach

While precise alignment is crucial, it's only one piece of the puzzle. The overall performance and safety of your vehicle are a sum of its parts. Don't compromise on other critical components:

• High-Quality Tyres: Even the best alignment in the world won't compensate for cheap, low-quality tyres. Investing in good tyres will pay dividends in terms of handling, braking performance, ride quality, and overall safety. They are your car's only direct contact with the road, so choose wisely.
• Quality Shock Absorbers: Your shocks control suspension movement and are vital for maintaining tyre contact with the road. For a vehicle used on both street and strip, consider adjustable shock absorbers from reputable brands like QA1, Viking, Fox, or RideTech. These allow you to fine-tune the damping characteristics to suit different driving conditions, offering greater control over handling and ride comfort.
• Overall Suspension Health: Ensure all other suspension components – bushes, ball joints, control arms – are in excellent condition. Worn or fatigued parts can significantly undermine even the best alignment settings.

Frequently Asked Questions (FAQs)

Q: Can I just use the stock 1961 Comet or 1974 Mustang II alignment specs?

A: While you technically could, it's highly advised against for a modified vehicle intended for performance and stability. Stock specs are typically conservative, designed for comfort and manufacturing ease, not for the enhanced handling or high-speed stability you'd want from your custom build. The recommended settings will provide a far superior driving experience.

Q: Will these performance settings cause excessive tyre wear on the street?

A: The recommended settings – mild negative camber and slight toe-in – are carefully chosen to balance performance with acceptable tyre wear for street use. Excessive negative camber or toe-out causes rapid wear, but the suggested values are designed to prevent this while still offering significant handling improvements.

Q: My local shop says their machine can't do custom alignment specs. Is this true?

A: It's unlikely. Most modern, professional alignment machines (like Hunter systems) are fully capable of accepting custom specifications. This response often indicates a lack of experience or willingness on the part of the technician to deviate from standard factory settings. Seek out a specialist shop that deals with modified vehicles.

Q: Is power steering a necessity if I run high positive caster?

A: While high positive caster does increase steering effort, it's significantly less noticeable with power steering. For a street car, power steering makes these settings comfortable and practical. Without power steering, the increased effort might be fatiguing, especially during parking or low-speed manoeuvres, but the stability benefits would still be present at speed.

Q: What is 'slip angle' in relation to tyres?

A: Slip angle is the difference between the direction a wheel is pointing and the actual direction the tyre is travelling. Tyres are not perfectly rigid; they deform slightly under load. This deformation, or 'slip', allows the tyre to generate cornering force. In the context of bump steer, a tyre's sidewall flexibility can absorb some minor toe changes without the driver feeling a harsh reaction through the steering wheel.

In conclusion, transforming your '61 Comet wagon with a Mustang II front suspension from a classic cruiser into a balanced, capable machine for both street and strip requires a thoughtful approach to alignment. By understanding and optimising your caster, camber, and toe settings, and addressing potential issues like bump steer, you can unlock your vehicle's true potential. Pair this precise alignment with quality tyres and adjustable shock absorbers, and you'll experience a profound difference in stability, handling, and overall driving enjoyment. Don't settle for mediocre; your custom build deserves nothing less than a professionally dialled-in setup.
