Understanding Car Alignment and Its Consequences

A car's wheel alignment is a crucial aspect of its mechanical setup, ensuring that your wheels are pointing in the correct direction. When this delicate balance is disrupted, it can lead to a cascade of problems, most notably an accelerated and uneven wear on your tyres. Understanding what alignment is, why it's important, and what happens when it goes awry is key to maintaining your vehicle's performance, safety, and longevity.

What is Wheel Alignment?

Wheel alignment, often referred to as tracking, is the process of adjusting the angles of the wheels of your vehicle so that they are set in the most efficient way. These adjustments ensure that your wheels are perpendicular to the ground and parallel to each other. The primary angles adjusted are:

• Camber: This is the inward or outward tilt of the top of the tyre when viewed from the front of the car. Negative camber means the top of the tyre tilts inward, while positive camber means it tilts outward.
• Caster: This refers to the angle of the steering axis in relation to a vertical line when viewed from the side. Positive caster helps the steering wheel return to centre after a turn.
• Toe: This is the angle of the tyres when viewed from above. If the leading edges of the tyres are closer together than the rear edges, it's called toe-in. If they are further apart, it's called toe-out.

When these angles are correctly set, they optimise tyre contact with the road, provide stable steering, and minimise unnecessary stress on suspension components.

Consequences of Poor Wheel Alignment

A misalignment, even a minor one, can have significant detrimental effects on your vehicle. The most immediate and noticeable consequence is uneven tyre wear. Here's how different types of misalignment affect your tyres:

Impact on Tyre Wear

The provided data from a 2009 Toyota Corolla illustrates this perfectly. The mention of 'cupping' on the front tyres and 'feathering' on the rear set indicates that the wheels are not rolling straight. Let's break down how specific misalignments contribute to these issues:

• Excessive Toe: Whether toe-in or toe-out, if it's outside the manufacturer's specifications, it causes the tyres to scrub against the road surface as they rotate. This scrubbing action leads to rapid wear on the edges of the tyre tread. Feathering, where the tread blocks wear down on one edge more than the other, is a classic sign of incorrect toe settings.
• Incorrect Camber: Negative camber, if too extreme, will cause the inner edge of the tyre to wear down faster. Conversely, excessive positive camber will wear out the outer edge. If the camber is significantly off, you'll see premature wear across the entire shoulder of the tyre.
• Incorrect Caster: While caster primarily affects steering feel and stability, extreme deviations can indirectly contribute to tyre wear by making the vehicle harder to keep in a straight line, leading to compensatory steering inputs from the driver, which can induce scrubbing.

Other Consequences

Beyond tyre wear, poor alignment can also lead to:

• Poor Handling and Steering: The car may pull to one side, the steering wheel might not be centred when driving straight, or the vehicle might feel vague and unstable, especially at higher speeds.
• Increased Fuel Consumption: Tyres that are not rolling efficiently due to misalignment create more rolling resistance, which can lead to a slight, yet noticeable, increase in fuel consumption.
• Stress on Suspension Components: Constant misalignment puts undue stress on ball joints, tie rod ends, and other steering and suspension parts, potentially leading to premature failure and costly repairs.

Analysing the Corolla's Alignment Data

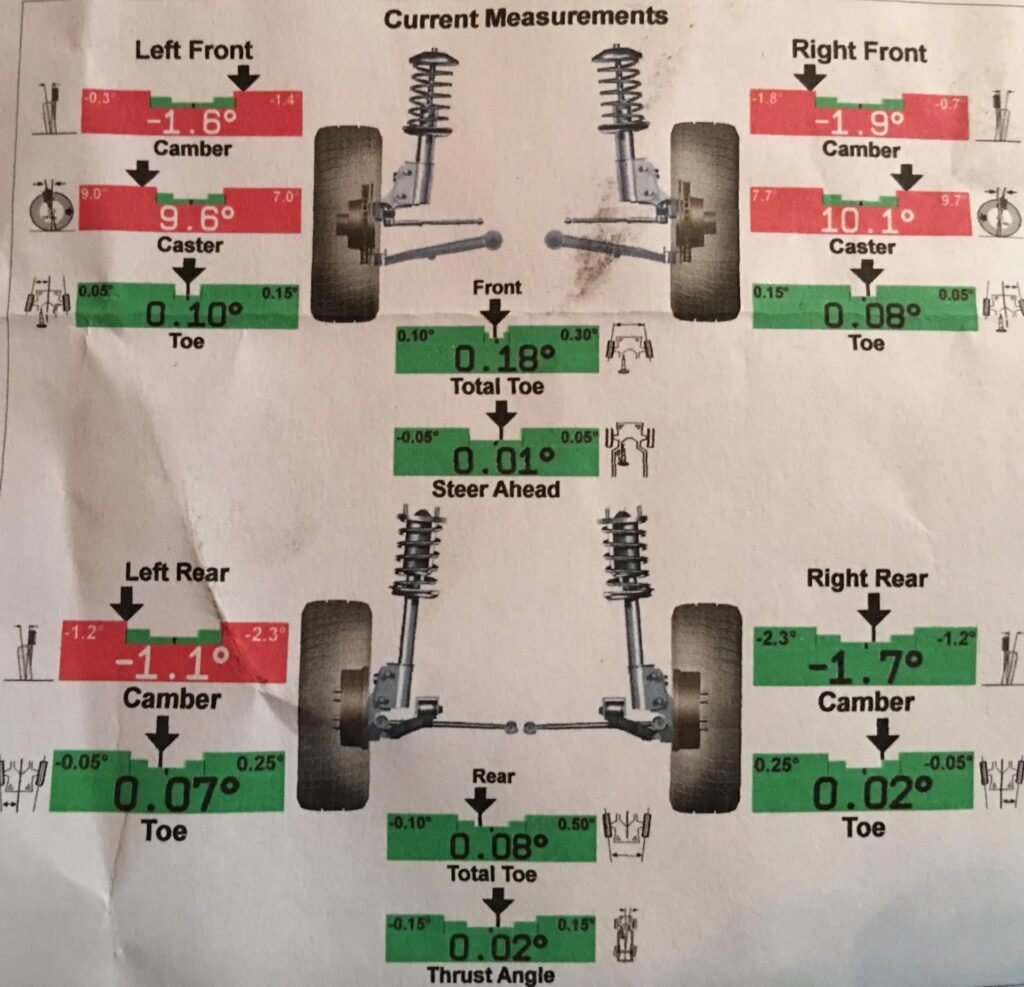

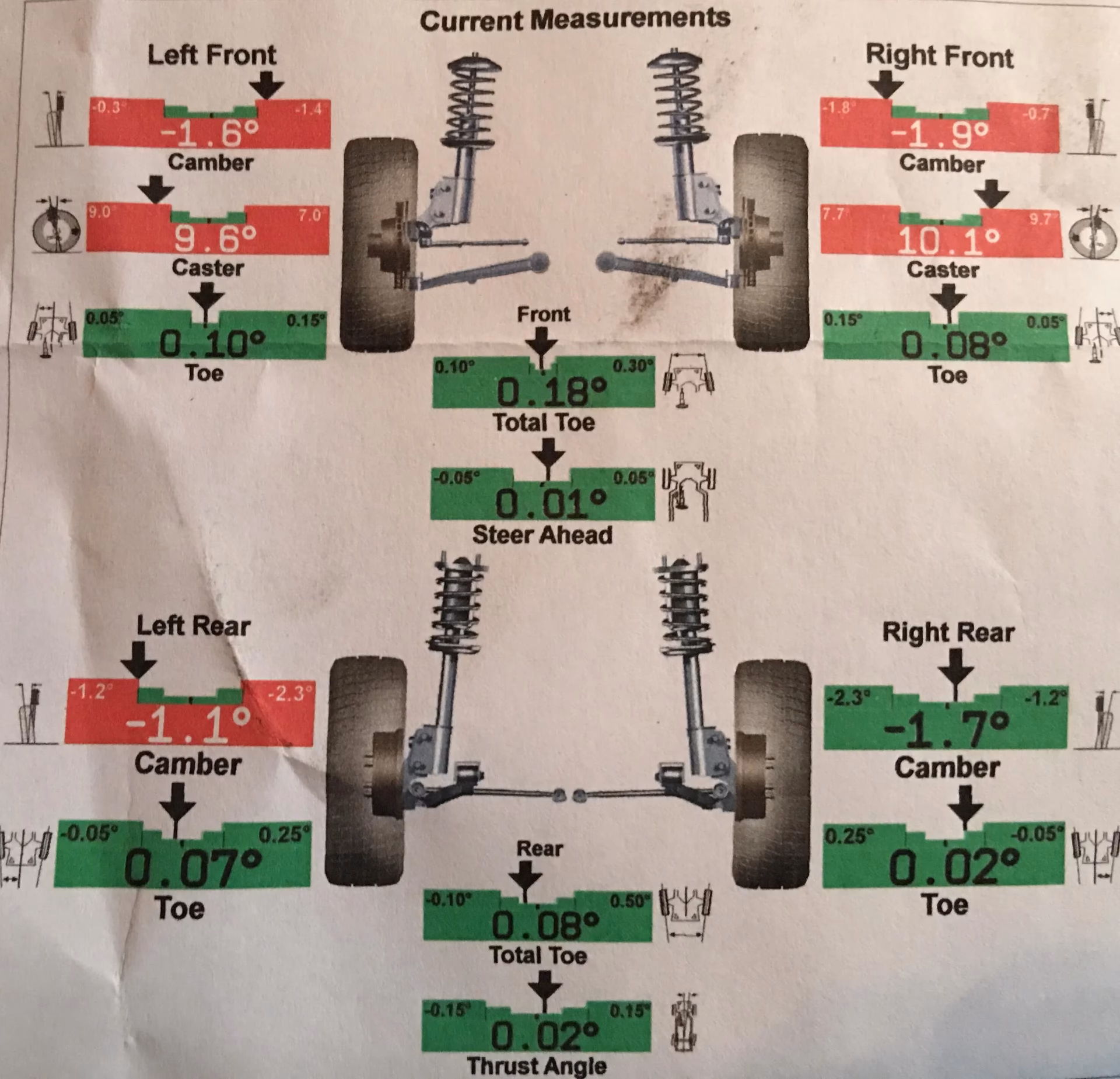

Let's look at the measurements provided for the 2009 Toyota Corolla:

Front Alignment:

The front alignment was adjusted and brought within specification, which is good. However, the note that adjusting the front 'threw the rear left toe OUT OF factory specs' is critical.

Rear Alignment:

The asterisk (*) indicates that these measurements are outside the manufacturer's specifications. The rear axle in this Corolla is likely a semi-independent torsion beam axle, which typically has limited or no adjustment for camber and toe from the factory. However, the measurements clearly show that the rear wheels are not correctly aligned.

Specific Concerns Raised:

• Rear Toe: The left rear toe is at 0.28 degrees (0.02 degrees out of spec, towards toe-out) and the right rear toe is at -0.02 degrees (0.03 degrees out of spec, towards toe-out). While these deviations are small, they are enough to cause the 'feathering' wear observed on the rear tyres. A toe-out condition causes the tyres to drag sideways, leading to accelerated wear on the outer edges.
• Rear Camber: The left rear camber is -1.10 degrees and the right rear camber is -2.10 degrees. The right rear camber is significantly out of specification (-0.10 degrees beyond the -2.0 degree limit). This excessive negative camber on the right rear wheel will cause the inner edge of that tyre to wear much faster than the rest of the tread.

General Rule for Alignment's Effect on Wear

A common rule of thumb is that for every degree of misalignment in toe, you can expect to lose approximately 1 mile of tyre life. While this is a simplification, it highlights how quickly small toe errors can decimate tyre longevity. For camber, even half a degree of incorrect camber can cause noticeable wear within 10,000 miles. The cumulative effect of both toe and camber issues, especially on a car with a fixed rear axle where adjustments might be limited or require special shims, can dramatically shorten tyre life.

Regarding your question about how long your tires *should* have lasted: with 41,000 miles on the original tyres, and assuming they were rotated regularly and driven under normal conditions, this is a respectable lifespan. However, if the alignment was off for a significant portion of that mileage, the wear pattern suggests they might have failed to reach their full potential lifespan.

Can a Wheel Alignment Be Done at Home?

Yes, a wheel alignment can be done at home, but it requires precision, the right tools, and a good understanding of the process. The article provided offers excellent insights into DIY alignment:

DIY Alignment Tools and Techniques:

• Level Surface: A perfectly flat and level surface is paramount. Using a laser level and a carpenter's square can help ensure your working area is true.
• String Method: This is a classic and effective way to measure toe. By stretching strings precisely around the vehicle, you create parallel lines to measure the distance between the front and rear of the tyres.
• Camber/Caster Gauge: An inexpensive caster/camber gauge (around $60) is essential for accurate measurement of these angles.
• Tools for Adjustment: While measuring is one thing, making the actual adjustments often requires specific wrenches and sometimes specialised parts like shims, especially if the manufacturer doesn't offer built-in adjustability.

Considerations for DIY Alignment:

• Accuracy is Key: Even slight errors in measurement or adjustment can lead to further issues.
• Fixed Axles: For vehicles with fixed rear axles, like your Corolla, achieving precise rear alignment can be challenging. It might involve fabricating or purchasing adjustable brackets, or using shims to correct camber and toe, which adds complexity.
• Time and Patience: A DIY alignment is not a quick job. It requires patience and meticulous attention to detail.
• Safety: Always ensure the vehicle is securely supported on jack stands if you are working underneath it.

Frequently Asked Questions (FAQ)

Q1: How bad is a right toe reading of 0.28 degrees and a left toe of -0.02 degrees?

A1: While these are small deviations, they are enough to cause premature tyre wear, particularly feathering on the edges. The 0.28 degrees of toe-out on the left rear will cause that tyre to scrub sideways, wearing the outer edge. The -0.02 degrees of toe-out on the right rear is also problematic, though less severe. Your instinct that it subtly reduces tyre life and could be mitigated by rotation is correct, but proper alignment is the ideal solution.

Q2: Is a left camber reading of -2.1 degrees (0.1 below spec) problematic?

A2: Yes, a camber reading of -2.1 degrees is 0.1 degrees beyond the specified -1.0 to -2.0 range. This will cause increased wear on the inner edge of the left rear tyre. Over time, this can lead to uneven wear patterns and a reduction in tyre lifespan.

Q3: How long should my tyres have lasted?

A3: A typical tyre lifespan can range from 40,000 to 70,000 miles or more, depending on the tyre type, driving habits, and maintenance. Your original tyres lasting 41,000 miles is within this range, but the alignment issues noted suggest they may not have reached their maximum potential life. Regular tyre rotation helps to even out wear, but it cannot compensate for significant alignment problems.

Q4: My mechanic said the rear axle isn't adjustable. What does that mean?

A4: It means that the manufacturer did not design the rear suspension with built-in adjustment mechanisms for camber and toe. Often, vehicles with solid rear axles or torsion beam axles have these angles fixed. To adjust them, a mechanic would typically need to use specialised shims or aftermarket components, which can be more complex and costly.

Q5: What's the best way to address the rear alignment on my Corolla?

A5: Given that the rear axle is not designed for adjustment, the best approach is to consult a reputable alignment shop that has experience with non-adjustable axles. They may be able to use shims to bring the camber and toe within acceptable limits. If the chassis itself has a slight bend or if components are worn, this might be more difficult to correct perfectly.

Conclusion

Maintaining correct wheel alignment is not just about preventing premature tyre wear; it's about ensuring your vehicle handles predictably, steers accurately, and remains safe on the road. The situation with your 2009 Toyota Corolla highlights how even minor deviations, particularly on non-adjustable axles, can lead to observable tyre wear patterns. While DIY alignment is possible, understanding the complexities and having the right tools is crucial. For most drivers, a professional alignment check and adjustment are the most reliable way to keep your car driving straight and your tyres wearing evenly.
