Wheel Alignment Machines: Your Car's Perfect Stance

In the intricate world of automotive maintenance, ensuring your vehicle performs optimally isn't just about regular oil changes or brake inspections. A critical, yet often overlooked, aspect is wheel alignment. Your car's wheels aren't merely bolted on; they're set at precise angles to ensure a smooth ride, even tyre wear, and predictable handling. But how do mechanics achieve this precision? The answer lies in the sophisticated technology of a wheel alignment machine, coupled with a deep understanding of alignment principles. This comprehensive guide will delve into what these machines are, the tools involved, and why maintaining proper alignment is paramount for your vehicle's health and your safety on the road.

What Exactly is a Wheel Alignment Machine?

At its core, a wheel alignment machine is a diagnostic tool designed to measure and adjust the angles of your vehicle's wheels to meet the manufacturer's specifications. It's far more than just a fancy gadget; it's an essential piece of equipment in any modern garage, allowing technicians to identify deviations in wheel angles that are invisible to the naked eye. These machines utilise advanced sensors, cameras, or lasers to gather data from each wheel, feeding it into a computer system. The computer then compares these real-time measurements against a vast database of vehicle specifications, highlighting any discrepancies.

The process involves attaching sensors or targets to each wheel. These sensors communicate with a central computer, which displays a detailed graphical representation of the vehicle's current alignment. This visual feedback allows the technician to see exactly how much each angle – camber, caster, and toe – is out of specification. From there, they can make precise adjustments to the suspension components, bringing the wheels back into perfect harmony. Without such a machine, achieving the necessary level of accuracy would be virtually impossible, making it the backbone of professional alignment services.

The Pivotal Role of Wheel Alignment

Proper wheel alignment is not just about making your car drive straight; it's fundamental to its overall performance, safety, and economic operation. When your wheels are correctly aligned, several key benefits emerge:

• Enhanced Safety: A car with poor alignment can pull to one side, making it harder to control, especially during emergency braking or on uneven roads. Proper alignment ensures predictable steering and stability.
• Extended Tyre Life: Misaligned wheels cause tyres to drag or scrub, leading to uneven and premature wear. This means you'll be replacing expensive tyres far more frequently than necessary. Correct alignment ensures even wear across the tyre tread.
• Improved Fuel Efficiency: When wheels are fighting against each other due to misalignment, the engine has to work harder to propel the vehicle forward. This increased effort translates directly into higher fuel consumption.
• Better Handling and Ride Comfort: A properly aligned vehicle will steer more precisely, feel more stable at speed, and generally provide a smoother, more enjoyable driving experience. You'll notice less vibration and a more responsive steering wheel.

Decoding the Angles: Camber, Caster, and Toe

To understand what a wheel alignment machine measures, it's crucial to grasp the three primary angles involved:

Camber

Camber refers to the inward or outward tilt of the wheel when viewed from the front of the vehicle. If the top of the wheel tilts outward, it's positive camber. If it tilts inward, it's negative camber. While slight negative camber is often designed into performance vehicles for better cornering, excessive camber in either direction can lead to uneven tyre wear. Too much positive camber wears the outer edge of the tyre, while too much negative camber wears the inner edge.

Caster

Caster is the angle of the steering pivot when viewed from the side of the vehicle. It influences steering stability, straight-line tracking, and cornering effectiveness. Positive caster means the steering axis is tilted towards the rear of the vehicle at the top, which helps the wheels to self-centre and improves high-speed stability. Negative caster, where the axis tilts forward, can make steering feel light and unstable. Correct caster is vital for maintaining a straight path without constant steering corrections.

Toe

Toe refers to how much the front of the tyres turns inward or outward relative to each other when viewed from above. If the fronts of the wheels point slightly inwards, it's known as toe-in. If they point outwards, it's toe-out. Toe is perhaps the most critical alignment angle for tyre wear. Even a small amount of incorrect toe can cause significant scrubbing of the tyres, leading to rapid and uneven wear patterns across the tread. It also affects straight-line stability and steering response.

Tools of the Trade: From DIY to Professional Precision

While professional garages rely on advanced alignment machines, it's possible to perform basic checks and adjustments at home, although with significantly less accuracy.

Basic Tools for the Enthusiast (with a caveat)

For those brave enough to attempt a DIY alignment, a few fundamental tools are required:

• Tape Measure: For basic toe measurements.
• Spool of String: Used in conjunction with jack stands to create a reference line for measuring toe and sometimes camber.
• Four Jack Stands: Essential for levelling the vehicle and creating a stable platform for string alignment (if doing all four wheels).
• Camber Gauge: A magnetic tool that attaches to the wheel hub to measure camber angle.
• 24mm Wrench or Adjustable Wrench: For adjusting tie rod ends and other suspension components.
• 13mm Wrench: Another common size for various adjustment points.
• Control Arm Shims: Sometimes needed to adjust camber and caster on older vehicles or those with specific suspension designs.

It's crucial to understand that while these tools can provide a rough alignment, achieving the millimetre-perfect precision of a professional machine is extremely difficult, if not impossible, at home. DIY methods should be considered a temporary fix or a last resort, as inaccuracies can still lead to the problems listed above.

The Professional's Arsenal: Alignment Machines

Professional workshops invest heavily in alignment machines because they offer unparalleled accuracy and efficiency. There are several types:

• CCD (Charge-Coupled Device) Sensor Systems: These use multiple sensors (typically one per wheel) that communicate wirelessly or via cables. Each sensor emits an infrared beam to the sensor on the opposite wheel, measuring angles. They are robust and offer good accuracy.
• Laser Alignment Systems: As the name suggests, these use advanced lasers to determine wheel positions with very high precision. The data is relayed to a computer, which provides detailed recommendations for adjustments. They are known for their speed and accuracy.

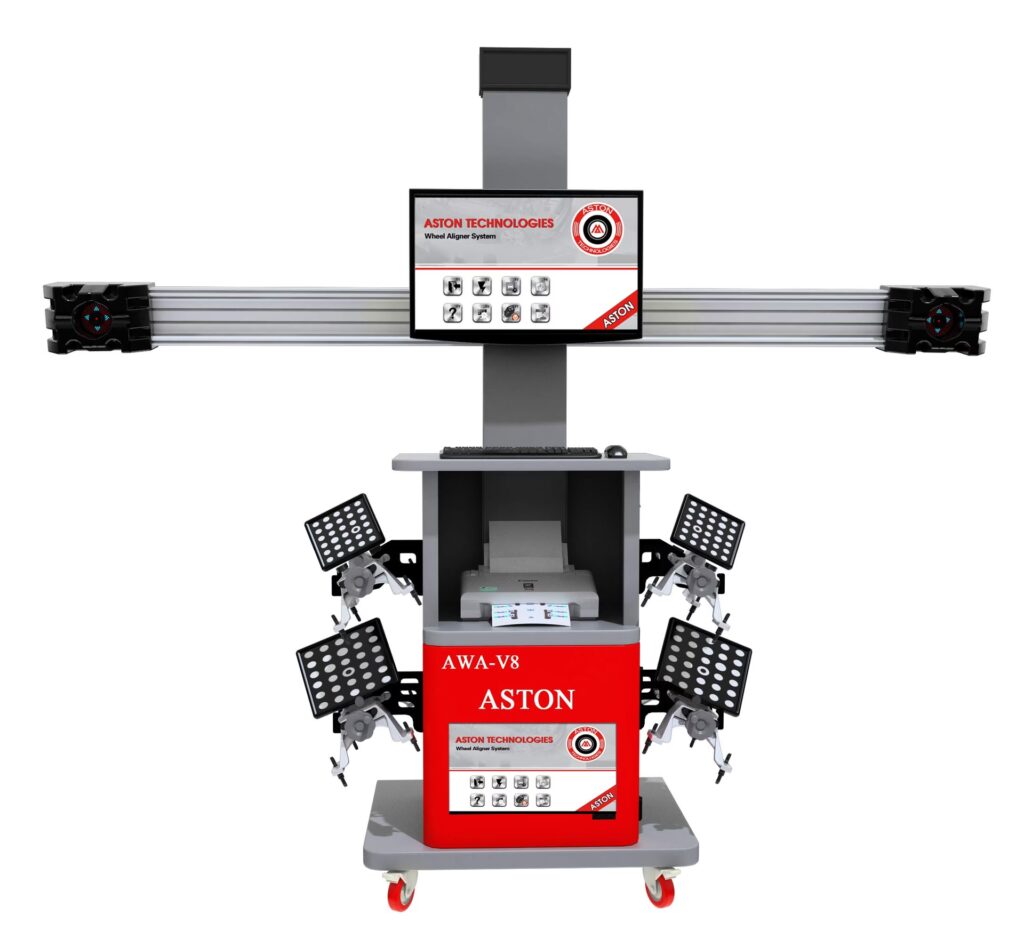

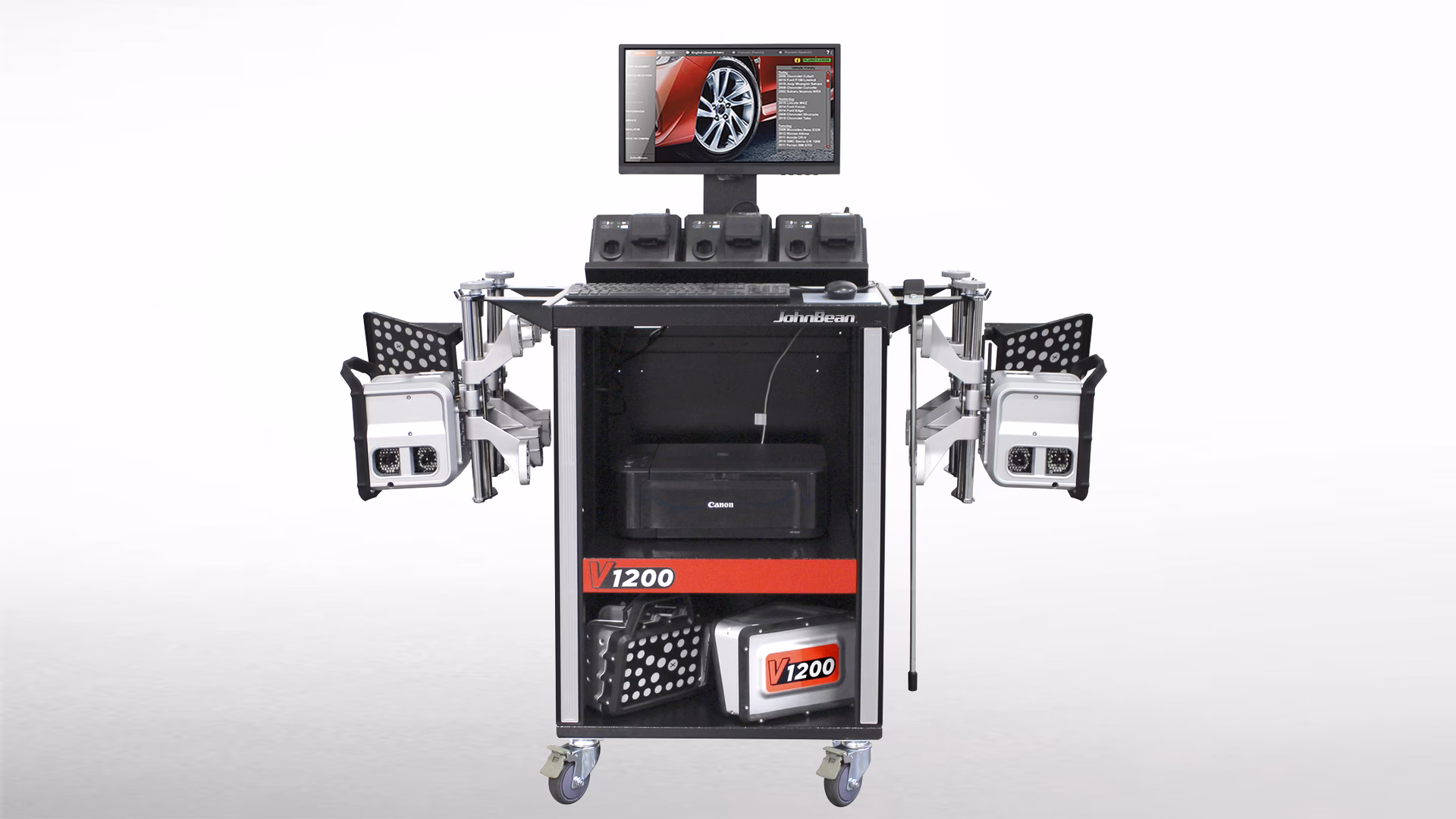

• 3D Imaging Alignment Systems: These are the most advanced and common in modern garages. They use high-resolution cameras to capture images of targets mounted on each wheel. Software then constructs a 3D model of the vehicle's suspension geometry, providing incredibly precise and real-time measurements. They are exceptionally fast and accurate, often completing a full measurement in minutes.

Each type offers varying levels of precision, speed, and cost, but all provide a level of accuracy far beyond manual methods.

Comparison of Alignment Machine Types

Wheel Alignment vs. Wheel Balancing: Understanding the Difference

It's common for people to confuse wheel alignment with wheel balancing, but they are distinct processes addressing different issues. Both are crucial for tyre health and vehicle performance.

Wheel Alignment

As discussed, wheel alignment focuses on adjusting the angles of your wheels so they are parallel to each other and perpendicular to the ground, according to manufacturer specifications. It addresses issues like a crooked steering wheel, the car pulling to one side, or uneven tyre wear.

Wheel Balancing

Wheel balancing, on the other hand, deals with the even distribution of weight around the entire circumference of the tyre and wheel assembly. Tyres and wheels are rarely perfectly uniform in weight. A wheel balancer machine spins the wheel and tyre assembly to detect heavy spots. Small weights are then added to the rim to counterbalance these heavy spots, ensuring the wheel spins smoothly. Unbalanced wheels typically cause vibrations that can be felt in the steering wheel, floor, or seat, especially at higher speeds.

Wheel Alignment vs. Wheel Balancing

The Alignment Procedure: What to Expect at the Garage

When you take your vehicle in for a professional wheel alignment, here's a general overview of what happens:

1. Vehicle Preparation: The technician will inspect the suspension and steering components for any wear or damage that could affect the alignment. Any worn parts must be replaced before an alignment can be accurately performed.
2. Mounting the Equipment: The car is driven onto an alignment rack, which ensures a level surface. Sensors or targets are then attached to each wheel.
3. Initial Measurements: The alignment machine takes initial readings of the vehicle's current camber, caster, and toe angles.
4. Comparison to Specifications: The computer compares these readings against the vehicle manufacturer's specifications, highlighting any angles that are out of tolerance.
5. Adjustments: The technician then makes precise adjustments to the tie rods, control arms, or other suspension components to bring the angles back into specification. This is often done while the vehicle is on the rack, with real-time feedback from the machine.
6. Final Verification: Once all adjustments are made, the machine takes a final set of measurements to ensure everything is within tolerance. A printout is usually provided, showing the before and after readings.

When is an Alignment Necessary? Signs to Look Out For

It's not always obvious when your car needs an alignment. However, several signs should prompt you to visit a garage:

• Your steering wheel isn't straight when you're driving in a straight line.
• Your vehicle consistently pulls or drifts to one side.
• You notice uneven or accelerated wear on your tyres.
• Your steering feels loose or overly responsive.
• You've recently hit a large pothole, curb, or been involved in a minor accident.
• You've had any suspension or steering components replaced.

Even without obvious symptoms, many manufacturers and tyre experts recommend a wheel alignment check at least once a year, or every 10,000-12,000 miles, as part of routine maintenance.

Frequently Asked Questions (FAQs)

What are wheel alignment and balancing tools?

To perform a professional wheel alignment, you primarily need a sophisticated alignment machine, which uses sensors (CCD, laser, or 3D imaging) and a computer system to measure and guide adjustments of wheel angles (camber, caster, and toe). For balancing, a dedicated wheel balancing machine is used to detect and correct weight imbalances in the tyre and wheel assembly. For very basic, less accurate DIY alignment, one might use a tape measure, string, jack stands, a camber gauge, and various wrenches (e.g., 24mm, 13mm) along with control arm shims. However, these manual tools lack the precision and comprehensive diagnostics of professional equipment.

Which is better, wheel alignment or wheel balancing?

Neither is inherently 'better' as they serve different, but equally important, purposes. Wheel balancing should be performed regularly, typically every 5,000 to 6,000 miles, or whenever new tyres are fitted, to prevent vibrations and extend tyre lifespan by ensuring even weight distribution. Wheel alignment, on the other hand, should be done when you notice specific symptoms like pulling, uneven tyre wear, or after suspension work, to correct the angles of the wheels. Both procedures are crucial for optimal tyre performance, vehicle handling, fuel efficiency, and overall safety. They are complementary aspects of proper vehicle maintenance.

Do you need a machine to do an alignment?

Yes, for a truly accurate and effective wheel alignment, the use of a professional alignment machine is essential. While rudimentary checks can be attempted with basic tools, only a machine can precisely measure the intricate wheel angles (camber, caster, and toe) against the vehicle's original specifications. These machines provide real-time data, allowing technicians to make precise, factory-standard adjustments. Relying solely on manual methods risks inaccuracies that can still lead to premature tyre wear, poor handling, and compromised safety.

Should my steering wheel be straight after an alignment?

Absolutely, yes. After a correctly performed wheel alignment, your steering wheel should be perfectly straight when you are driving in a straight line on a level road. If the steering wheel is off-centre, even slightly, it's a strong indicator that the alignment was not completed correctly, or that there might be an underlying issue with a steering or suspension component that was not addressed. You should always return to the garage if your steering wheel is not straight after an alignment.

What is the most accurate alignment method?

Currently, the most accurate alignment methods are laser alignment and, more commonly today, 3D imaging alignment systems. These advanced systems use high-precision lasers or cameras to determine the exact positions and angles of the wheel shafts and suspension components. The information is then processed by sophisticated computer software, which provides precise, real-time recommendations for adjustments. 3D imaging systems, in particular, offer unparalleled accuracy, speed, and comprehensive diagnostics, making them the preferred choice in modern, high-quality garages.

Should I do alignment or balance first?

If you're experiencing general issues like vibrations at speed, it is usually recommended to get wheel balancing done first. Balancing addresses common wear and tear issues related to uneven tyre weight distribution. However, if you're noticing your car pulling to one side, uneven tyre wear, or a crooked steering wheel, then an alignment is the priority. While wheel alignment and wheel balancing are not directly interdependent in their processes, it's always best to have a professional inspect your tyres and vehicle to correctly diagnose any underlying issues and recommend the appropriate service.

Ultimately, a wheel alignment machine is more than just a piece of equipment; it's a critical tool for maintaining the integrity and performance of your vehicle. Regular alignment checks, especially when combined with proper wheel balancing, contribute significantly to your safety, save you money on tyre replacements and fuel, and ensure a more comfortable driving experience. Don't underestimate the power of a perfectly aligned set of wheels – it truly makes all the difference.
