Mastering Driveshaft Alignment: A UK Guide

The driveshaft, often overlooked but absolutely crucial, is a vital component in your vehicle's drivetrain, responsible for transmitting power from the engine and gearbox to the wheels. A perfectly aligned and balanced driveshaft ensures smooth power delivery, minimises wear on other components, and contributes significantly to your vehicle's overall performance and safety. However, when a driveshaft falls out of alignment or experiences issues, the consequences can range from irritating vibrations to catastrophic mechanical failures. Understanding how to identify proper driveshaft alignment and recognising the warning signs of problems is essential for any responsible vehicle owner in the UK.

What Exactly is a Driveshaft?

Also known as a propeller shaft, the driveshaft is a mechanical component designed to transmit power and torque from your vehicle's engine or transmission to its wheels. Typically, it's a long, cylindrical metal shaft that links the transmission's output shaft to the differential's input shaft. This robust component is engineered to endure the immense forces and stresses generated by the engine and the vehicle's motion, often rotating at high speeds.

The configuration of driveshafts varies depending on your vehicle's drive type:

• Rear-Wheel Drive (RWD) Vehicles: In these vehicles, a single driveshaft connects the transmission at the front to the rear axle, which then drives the rear wheels.
• Four-Wheel Drive (4WD) Vehicles: More complex, 4WD systems typically feature two driveshafts. One connects the transmission to a transfer case, which distributes power, and another connects the transfer case to the front axle, supplementing the rear driveshaft.
• Front-Wheel Drive (FWD) Vehicles: While FWD vehicles don't have a traditional long driveshaft running to the rear, they utilise what are often called 'half-shafts'. These are shorter driveshafts that connect the transaxle (transmission and differential combined) directly to the front wheels. Each half-shaft incorporates Constant Velocity (CV) joints to allow for steering and suspension movement.

Crucially, driveshafts are equipped with universal joints (U-joints) at each end. These flexible joints are designed to accommodate the changing angles and movements of the vehicle as it navigates uneven terrain, ensuring power can be transmitted efficiently despite variations in suspension travel and driveline angles.

Why Proper Driveshaft Alignment is Paramount

The importance of correct driveshaft alignment, also known as phasing, cannot be overstated. Driveshafts are manufactured with the yokes at each end of the tube precisely aligned. If these yokes are not in sync, the driveshaft is incorrectly phased. This meticulous alignment is not merely a suggestion; it's a critical safety and performance requirement. Failure to phase and align a driveshaft properly will inevitably lead to a cascade of destructive consequences:

• Severe Vibrations: An out-of-phase driveshaft will induce significant vibration throughout the vehicle, particularly noticeable at certain speeds. These vibrations are not just an annoyance; they are a clear sign of impending mechanical failure.
• Component Damage: Prolonged vibration from a misaligned driveshaft can quickly destroy not only the driveshaft itself but also connected components such as the transmission, differential, and even the engine. The forces generated can cause premature wear on bearings, seals, and gears, leading to costly repairs.
• Reduced Performance: Improper alignment leads to power loss, as energy is wasted in creating vibrations rather than being efficiently transmitted to the wheels. This compromises your vehicle's acceleration and fuel economy.
• Safety Hazard: Perhaps the most critical concern is safety. When a driveshaft reaches its failure point due to improper phasing, it can snap or detach, potentially causing serious bodily harm to occupants or others on the road. A driveshaft breaking at speed is an extremely dangerous scenario.

Therefore, being smart and being safe means ensuring your driveshaft is always correctly aligned and phased.

How to Determine if Your Driveshaft is Aligned (Phased Correctly)

Checking the alignment, or phasing, of your driveshaft is a crucial inspection that can prevent significant issues. Manufacturers build driveshafts with precision, ensuring that the yokes at both ends of the tube are perfectly aligned. Here are the key indicators and methods to verify correct driveshaft phasing:

1. Yoke Alignment

The most fundamental check involves the U-joints and their yokes. When correctly phased, the yokes at each end of the driveshaft tube should be perfectly aligned with each other. Imagine drawing a straight line through the centre of both U-joints; these lines should be parallel and in the same plane. If one yoke appears twisted or offset relative to the other, the driveshaft is incorrectly phased.

2. Alignment Arrows

Many driveshafts are manufactured with visual cues to aid in correct assembly and alignment. Look for alignment arrows or marks showing the correct orientation between the two driveshaft ends. These are typically painted or etched onto the shaft and its components. These arrows serve as a quick visual confirmation that the shaft is assembled in phase as intended by the factory.

3. Internal Stamped Arrow

Beyond external markings, some driveshafts feature an arrow stamped inside the tube itself. This internal arrow should align with the corresponding end of the driveshaft. This specific marking indicates that the shaft is in phase and aligned precisely as it was when it underwent its balancing procedure at the factory. This factory balance is critical for smooth operation.

4. Serial Numbers on the Same Plane

Another reliable method to confirm proper phasing and alignment is to inspect the serial numbers. All serial numbers stamped on the driveshaft components should be on the same plane. This consistent positioning of serial numbers also signifies that the driveshaft is in the correct phase and aligned as it was at the factory when balanced. It's a subtle but effective indicator of integrity.

Regular visual inspection using these methods can help you identify potential phasing issues before they escalate into major problems. If you notice any discrepancies, it's advisable to consult a professional mechanic.

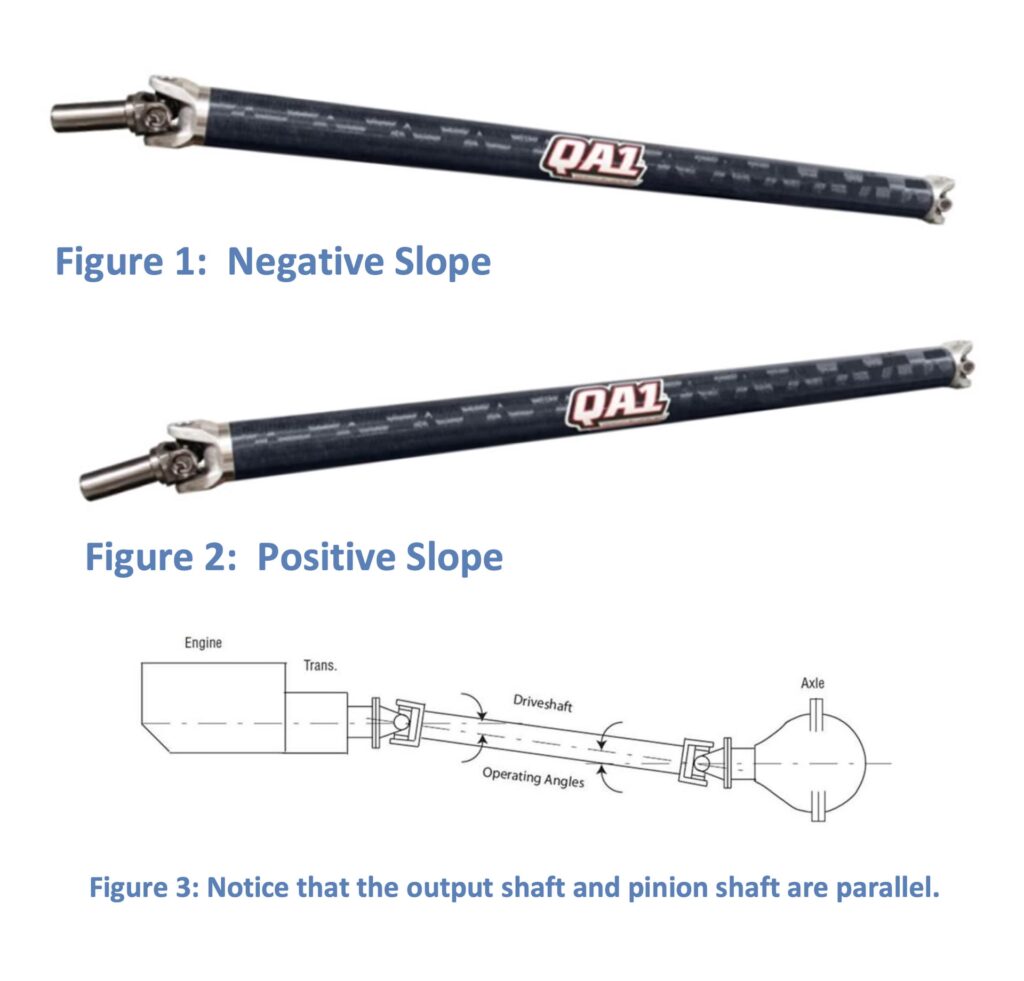

Understanding Driveline Angle (Pinion Angle)

Beyond the internal phasing of the driveshaft itself, the overall driveline angle is another critical aspect of a healthy drivetrain, particularly for rear-wheel drive vehicles. The driveline angle refers to the alignment of the driveshaft relative to both the transmission output shaft and the differential pinion gear. Achieving the correct driveline angle is paramount for ensuring smooth power transfer, minimising vibrations, and extending the lifespan of your drivetrain components.

What is Pinion Angle?

The pinion angle is specifically the angle between the driveshaft and the pinion gear of the differential. This angle is not always zero; a slight angle is often necessary to allow the U-joints to operate effectively and prevent binding. Correct pinion angle is vital for smooth power transfer and significantly reduces drivetrain vibrations. For high-performance applications, such as drag racing, precise pinion angle adjustment is crucial for maximising power output and minimising drivetrain losses.

Why Driveline Angle Matters

• Vibration Reduction: An incorrect driveline angle can induce resonant vibrations that not only compromise driving comfort but also lead to premature wear of the driveshaft, U-joints, and differential components.
• Power Transfer Efficiency: Proper alignment ensures that the maximum amount of engine power is transferred efficiently to the wheels, without energy being wasted through misalignment and friction.
• Component Longevity: By reducing stress on the driveshaft, universal joints, and other drivetrain components, correct angles significantly extend their operational lifespan, saving you money on repairs.

Setting Up the Correct Driveline Angle

While often more relevant for modified or performance vehicles, understanding the principles is useful. Setting the correct angle typically involves:

1. Measuring Current Angles: Using an angle finder to measure the angles of the transmission output shaft and the pinion gear.
2. Determining Desired Angles: For most applications, a small, specific angle is targeted to allow U-joints to operate correctly without binding. For performance vehicles, this might involve compensating for suspension squat under acceleration.
3. Adjusting Suspension: Achieving the desired pinion angle often requires adjusting rear suspension components, such as control arms or leaf springs.
4. Rechecking and Testing: After adjustments, angles are re-measured, and test runs are performed to fine-tune and ensure optimal performance and minimal vibrations.

For the average road user, significant driveline angle adjustments are rarely needed unless modifications have been made. However, vibrations originating from this area should prompt a professional inspection.

Common Signs of Driveshaft Problems (Beyond Alignment)

While misalignment is a critical issue, driveshafts can suffer from various other problems. Recognising these symptoms early can save you from more extensive damage and costly repairs.

1. Persistent Vibrations

One of the most common and tell-tale signs of a driveshaft issue is vibration. In front-wheel drive vehicles, this often manifests as a vibration while driving in a straight line, typically starting subtly at speeds like 20, 30, 40, 50, or even 60 mph. You might be able to 'drive through' it, but it will reappear when you return to that specific speed, especially under load (e.g., going uphill, accelerating, or towing a caravan). A key diagnostic tip: if you depress the clutch (for manual gearboxes) and the vibration disappears, it's a strong indicator of a worn driveshaft.

If you're unsure which side is causing the vibration in an FWD vehicle, try this: with the vehicle safely supported, hold the driveshaft bar near the inner CV boot. Lift, twist, and pull it. Immediately do the same on the other side. You'll often feel more play or looseness in one, which is likely the culprit. Of course, the most reliable method is always a professional inspection.

2. Clicking or Knocking Noises

If you hear a clicking or knocking sound, particularly when turning corners, this is almost always indicative of a worn outer CV joint. Counter-intuitively, the noise often comes from the opposite side to your turn. For instance, if you hear clicking when turning right, suspect a worn left-hand outer CV joint. If it clicks when turning left, the right-hand outer CV joint is likely worn.

3. Damaged CV Joint Gaiters (Boots)

A high proportion of CV joint and driveshaft failures stem directly from ripped or leaking gaiters (the rubber or thermoplastic boots that protect the CV joints). These gaiters keep lubricating grease in and harmful contaminants like dirt, water, and grit out. A damaged gaiter allows grease to escape and foreign material to enter, quickly leading to joint wear and failure. Always inspect these boots regularly and ensure they are secured with good quality metal ties (avoid plastic ties, as they can fail). When replacing boots, clean out all old grease thoroughly and refill with a good quality CV grease, such as molybdenum or lithium-based types. While thermoplastic (hard plastic) boots are available, and even supplied by some main dealers, neoprene (rubber) boots are generally preferred as they offer a better, more secure seal.

4. Squeaking Noises

A squeaking driveshaft usually points to a universal joint on the prop shaft that is tight or binding in one place. This can also lead to vibrations, particularly in rear-wheel drive and 4x4 vehicles, often indicating a worn universal joint or centre bearing.

5. Snapped Driveshaft Bar

On some vehicle makes, notably certain Honda and Nissan models, the driveshaft bar itself can snap. This unusual failure is often attributed to a rubber damper located in the middle of the shaft. This damper can trap water, leading to rust eating into and weakening the bar over time. Many specialists advocate for the removal of these anti-vibration dampers, as they are often considered unnecessary and a potential point of failure. Driveshaft lifespan varies greatly, but they typically last from 30,000 to 95,000 miles, though some have been known to exceed 200,000 miles.

Other Common Driveshaft Problems

• Bent or Damaged Driveshaft: A physically bent or damaged driveshaft, perhaps from an impact, will cause significant vibration and noise, especially at higher speeds.
• Worn Universal Joints: Beyond just alignment, the U-joints themselves can wear out over time, leading to clunking noises when accelerating or shifting gears, as well as vibrations.
• Imbalanced Driveshaft: Even if perfectly phased, a driveshaft can become imbalanced if it loses a balancing weight or sustains damage. An imbalanced shaft will cause noticeable vibration and noise, particularly at speed.
• Loose or Worn Centre Bearing: In longer driveshafts, a centre bearing supports the shaft in the middle. If this bearing becomes loose or worn, it can lead to vibration and noise.
• Transmission or Differential Problems: Sometimes, what appear to be driveshaft issues can actually originate from problems within the transmission or differential, such as worn bearings or gears.

Symptoms and Potential Causes Table

To help you diagnose potential driveshaft issues, here's a quick reference guide:

Frequently Asked Questions About Driveshafts

Q1: What happens if my driveshaft is misaligned or out of phase?

A misaligned or out-of-phase driveshaft will almost immediately cause severe vibrations throughout the vehicle. These vibrations can lead to rapid wear and tear on the driveshaft itself, the universal joints, the transmission, the differential, and potentially even the engine. In severe cases, it can cause the driveshaft to fail catastrophically, posing a significant safety hazard.

Q2: How often should I check my driveshaft for problems?

While there isn't a strict mileage interval for driveshaft checks, it's good practice to inspect the CV joint gaiters (boots) during routine servicing, especially during tyre rotations or oil changes. Any time you notice unusual vibrations, noises (clicking, clunking, squeaking), or fluid leaks from under your vehicle, you should have the driveshaft and entire drivetrain inspected immediately by a qualified mechanic.

Q3: Can I repair a driveshaft myself, or do I need a professional?

While basic visual inspections and checking for play can be done by a competent DIY mechanic, significant repairs, balancing, or alignment (phasing) of a driveshaft typically require specialised tools and expertise. Incorrect repairs or reassembly can lead to serious safety issues and further damage. For anything beyond a simple boot replacement, it is highly recommended to consult a professional driveshaft specialist or a qualified mechanic. They have the precision equipment to diagnose and resolve complex driveshaft and driveline angle issues safely and effectively.

When to Seek Professional Help

Given the critical role of the driveshaft in your vehicle's operation and safety, it is paramount to address any suspected issues promptly. If you experience persistent vibrations, unusual noises, or any of the symptoms detailed above, it is always best to have your vehicle inspected by a qualified mechanic. They possess the expertise and the precision equipment necessary to accurately diagnose the problem and provide the correct driveline solutions, whether it's replacing a worn CV joint, rebalancing a prop shaft, or addressing complex alignment issues. Don't delay; a proactive approach can prevent minor issues from escalating into major, costly, and potentially dangerous failures.
