Steering Angle Sensor: Symptoms & Fixes

Modern vehicles are a marvel of engineering, packed with an array of sophisticated sensors that work in harmony with the car's central computer, or PCM, to ensure optimal performance, safety, and stability. Among these vital components is the steering angle sensor. This crucial device plays a pivotal role in your car's stability and traction control systems, often going by various manufacturer-specific names like Electronic Stability Control (ESC), Traction Control System (TCS), or Dynamic Stability Control (DSC). Regardless of the moniker, the underlying technology is fundamentally the same, all relying on accurate input from the steering angle sensor.

Understanding the function and potential failure of this sensor is key to maintaining your vehicle's handling and safety. This article will delve into the common symptoms of a malfunctioning steering angle sensor, its typical location within your vehicle, and provide insights into the associated replacement costs. Let's start by exploring the tell-tale signs that might indicate your steering angle sensor is on the fritz.

Symptoms Of A Bad Steering Angle Sensor

Like any electronic component subjected to constant use and the rigours of driving, car sensors have a finite lifespan. As a steering angle sensor begins to wear out or fail, it will often provide clear indications, alerting you to a potential problem and prompting timely action. Ignoring these signs can lead to compromised vehicle stability and potentially more significant issues down the line.

Here's a more detailed breakdown of the symptoms to watch out for:

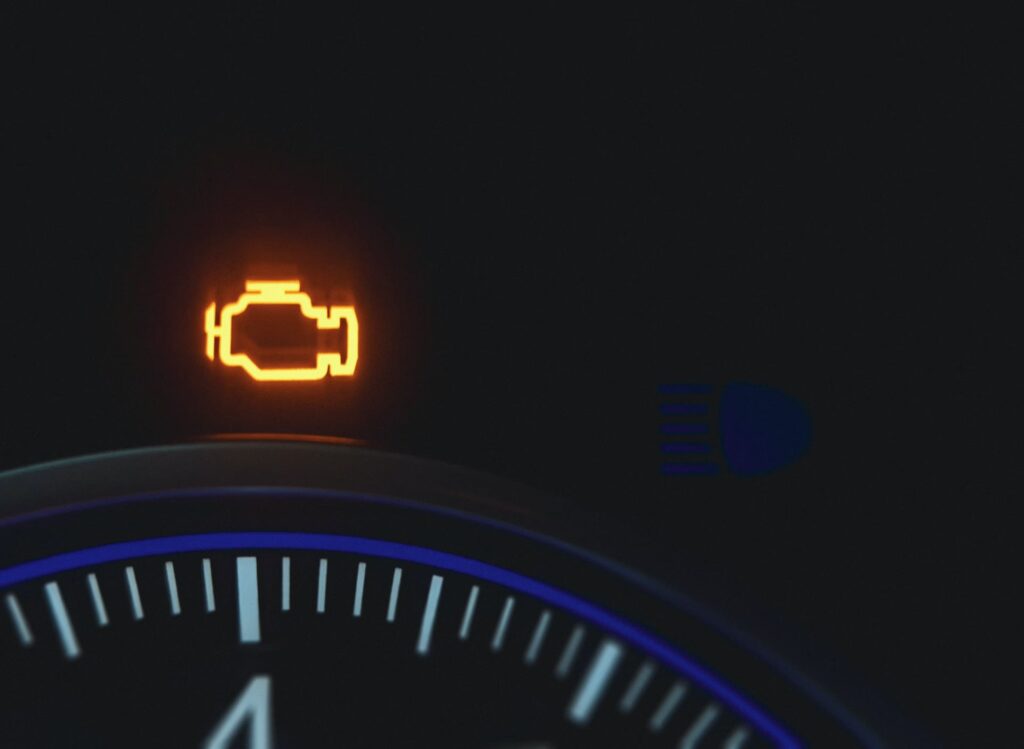

1. Check Engine Light Illuminates

In older vehicles, sensors directly communicated with the Engine Control Unit (ECU). The 'Check Engine' light is a universal indicator of powertrain-related problems. The steering angle sensor's input is critical for both the traction control and engine control units. If the signal from this sensor becomes faulty or is absent, it can trigger the Check Engine light. Therefore, if this ubiquitous warning light illuminates on your dashboard, a failing steering angle sensor is a definite possibility.

2. Traction Control Light Illuminates

This is perhaps the most direct and common symptom. The steering angle sensor is intrinsically linked to the traction control system. This system relies on the sensor's data to understand how much the driver is turning the steering wheel. This information is then used to make subtle adjustments to braking and engine power, especially on slippery surfaces, to prevent skids and maintain control. When the steering angle sensor fails to provide accurate or any signal, the traction control system cannot function correctly, resulting in the illumination of the traction control warning light. In some cases, you might also notice other related warning lights, such as the ABS (Anti-lock Braking System) or even the Airbag light. This is because the steering angle sensor is often integrated into the clock spring assembly, which also houses the airbag and other steering wheel controls. Damage or failure in this area can affect multiple systems.

3. Heavy Steering Wheel Turning

Most modern cars benefit from Electric Power Steering (EPS) systems. For the EPS to operate effectively, it needs to know the steering angle to activate the power steering pump or motor and provide the right amount of assistance. The steering angle sensor is responsible for relaying this crucial information. If the sensor provides inaccurate data to the car's onboard computer, it can lead to erratic or excessive power steering assistance. In more severe cases, a complete failure of the sensor means no information reaches the ECU, potentially disabling the power steering altogether. This not only makes steering difficult but will also likely trigger the traction control warning light.

4. Car Behaving Strangely After Wheel Alignment

This symptom is particularly relevant for vehicles equipped with electric power steering. If your car exhibits unusual handling characteristics or feels 'off' even after a professional wheel alignment, a faulty or improperly reset steering angle sensor could be the culprit. It is a standard procedure to reset the steering angle sensor after performing a wheel alignment. If this crucial step is overlooked by the mechanic, the car's computer will not be aware of the new 'straight' position of the wheels relative to the steering input. This discrepancy can confuse the stability control systems and lead to the symptoms described. In such a scenario, it is advisable to return to your mechanic to have the sensor reset and recalibrated.

What Is a Steering Angle Sensor?

As mentioned, modern vehicles are equipped with a multitude of sensors designed to inform the vehicle's onboard computer about various operating conditions. The steering angle sensor is one such indispensable component, vital for the overall performance, safety, and handling of your car. Its primary function, as its name clearly suggests, is to detect the precise angle and, in many cases, the rate of rotation of the steering wheel.

There are two primary types of steering angle sensors commonly found in vehicles today: analog and digital. While both serve the same fundamental purpose, they employ different mechanisms to achieve this.

The digital type, which is the more prevalent in contemporary vehicles, typically utilises an LED (Light Emitting Diode) and a sensor array to determine the steering wheel's angle and rotational speed. This data is then transmitted to the ECU, which uses it to fine-tune the operation of systems like the traction control and electronic stability control, ensuring the vehicle behaves predictably and safely under various driving conditions.

Location of the Steering Angle Sensor

The precise location of the steering angle sensor can vary slightly between vehicle manufacturers and models, but it is most commonly found nestled behind the steering wheel, integrated into the steering column. It is typically part of a larger assembly known as the clock spring or spiral cable, which allows electrical connections to be maintained as the steering wheel turns. In some less common instances, the sensor might be integrated directly into the steering gear itself. It's also worth noting that some high-performance vehicles may be equipped with two steering angle sensors for redundancy and enhanced accuracy, making it important to identify the correct sensor for replacement.

Accessing the steering angle sensor usually requires the removal of the steering wheel, and sometimes other trim components around the steering column. This is a job best left to experienced technicians with the correct tools and knowledge.

Diagnosis of a Failing Steering Angle Sensor

Diagnosing a faulty steering angle sensor is often straightforward for a qualified mechanic equipped with the appropriate diagnostic tools. While it might be technically possible to test certain aspects with a multimeter, it is generally difficult and not recommended for DIY diagnosis. The most effective method involves using a professional OBD-II (On-Board Diagnostics) scanner.

Here’s how the diagnostic process typically works:

1. Connect Diagnostic Tool: The mechanic will connect a diagnostic scanner to the vehicle's OBD-II port.
2. Access Live Data: The tool will then be used to access the live data streams from the car's computer, specifically focusing on the signals being sent by the steering angle sensor, often found within the traction control or ESP modules.
3. Check Sensor Readings: With the steering wheel held perfectly straight, the sensor should ideally report a reading of 0 degrees. The mechanic will then observe the sensor's readings as the steering wheel is turned slowly to the left and then to the right. A healthy sensor will show a corresponding change in the degree reading, reflecting the steering input. If the sensor's readings remain static, fluctuate erratically, or do not change at all, it strongly indicates a fault.
4. Verify Power and Ground: If the diagnostic readings are inconclusive or suggest a fault, the mechanic will proceed to check if the steering angle sensor is receiving the necessary power and ground signals. If the sensor has proper power and ground but still fails to provide correct data, it is almost certainly faulty and requires replacement.

Steering Angle Sensor Replacement Cost

The cost of replacing a steering angle sensor can vary significantly, typically ranging from £150 to £500, depending on several factors including the vehicle's make and model, the specific sensor required, and the labour rates in your area. The steering angle sensor unit itself can cost anywhere from £120 to £250, while the labour involved in diagnosing, replacing, and recalibrating the sensor usually falls between £80 and £250.

Several reasons contribute to this price variation:

• Vehicle Make and Model: Luxury or performance vehicles often have more complex and expensive components.
• Sensor Integration: Some steering angle sensors are standalone units, while others are integrated into the clock spring assembly or even the entire steering column control module. Replacing a more integrated unit will naturally be more costly.
• Brand of Part: Genuine manufacturer parts are typically more expensive than aftermarket alternatives.

It is crucial to find a reputable mechanic who possesses the necessary diagnostic equipment and expertise to correctly diagnose, replace, and, most importantly, calibrate the new steering angle sensor. Calibration is a critical step that ensures the vehicle's stability control systems correctly interpret the sensor's data. In some rare cases, if the steering angle sensor is integrated with the vehicle's main steering column control unit, it may require programming or coding to the car's computer system. This specialised procedure can add to the overall cost, but it is essential for proper functionality.

Frequently Asked Questions (FAQs)

Q1: Can I drive with a bad steering angle sensor?
A1: While your car may still be drivable, it is strongly advised not to. A faulty steering angle sensor compromises the effectiveness of your vehicle's stability and traction control systems. This significantly increases the risk of losing control, especially in adverse weather conditions or during emergency manoeuvres. It's best to have the issue addressed as soon as possible.

Q2: Does a steering angle sensor affect my car's alignment?
A2: The steering angle sensor itself does not directly affect your wheel alignment. However, as mentioned, if the sensor is not reset after an alignment, it can cause the car's stability systems to behave erratically, making it seem like there's an alignment issue. Conversely, a severely damaged steering system could potentially damage the sensor.

Q3: How long does it take to replace a steering angle sensor?
A3: The replacement process, including diagnosis and recalibration, typically takes anywhere from 1 to 3 hours, depending on the complexity of the vehicle and the mechanic's efficiency.

Q4: Is steering angle sensor calibration necessary?
A4: Yes, calibration is absolutely essential. Without proper calibration, the car's computer won't know the neutral or straight-ahead position of the steering wheel, leading to incorrect operation of stability and traction control systems, and potentially triggering warning lights again.

Q5: Can I replace the steering angle sensor myself?
A5: Replacing a steering angle sensor is a complex task that requires specialised tools and knowledge, particularly for the calibration process. It is generally recommended to have this job performed by a qualified automotive technician to ensure it is done correctly and safely.
