The Critical Connection: Wheel Alignment & ADAS Sensors

In the rapidly evolving world of automotive technology, Advanced Driver Assistance Systems (ADAS) have become an indispensable feature in modern vehicles, offering an extra layer of safety and convenience. From helping you stay in your lane to preventing collisions, these intelligent systems rely on a complex network of sensors and cameras. However, what many drivers and even some technicians might not realise is the profound and often overlooked relationship between seemingly routine car maintenance, such as wheel alignment, and the precise functionality of these sophisticated ADAS features. The integrity of your vehicle's ADAS is inextricably linked to the accuracy of its wheel alignment, a critical factor that directly impacts how these crucial safety systems perceive and react to the world around them.

How Wheel Alignment Affects ADAS

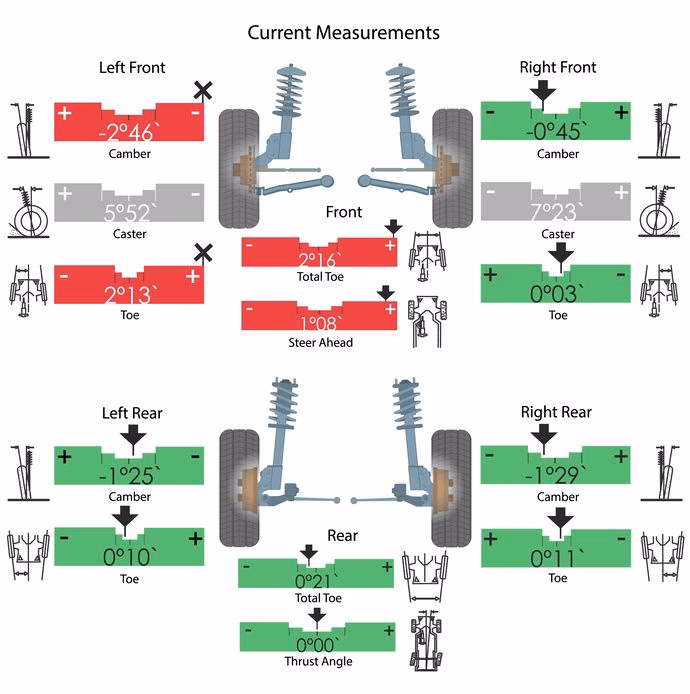

The very foundation of accurate ADAS operation lies in the vehicle's precise geometric configuration. Think of your car's sensors as its eyes; for them to see correctly, they must be perfectly aligned with the vehicle's true direction of travel. Even the slightest alteration in wheel alignment – specifically parameters like toe, camber, or thrust angle – can subtly yet significantly shift the vehicle's driving direction relative to the 'point of view' of its ADAS sensors. When a wheel alignment changes, even by a fraction of a degree, it means the angle at which your vehicle is travelling down the road is no longer precisely what the factory-calibrated sensors expect. This discrepancy creates a 'skew' in the data collected by cameras and radar units, leading to potentially inaccurate readings and compromised system performance. It's not just about tyre wear; it's about the very perception of your car's advanced brain.

Understanding ADAS Sensor Functionality

Modern ADAS systems employ an array of sophisticated sensors, including radar, lidar, ultrasonic sensors, and high-resolution cameras, strategically mounted around the vehicle. These sensors are the 'eyes and ears' of your car, constantly scanning the environment for lane markings, other vehicles, pedestrians, obstacles, and traffic signs. Their effectiveness hinges entirely on their precise calibration and their alignment with the vehicle's geometric centreline. If a vehicle's wheels are misaligned, the angle at which the vehicle is travelling differs from the angle its sensors are 'looking'. For instance, a camera designed to see lane markings directly ahead might be slightly angled off to the side, causing it to misinterpret lane boundaries or even fail to detect them altogether. Similarly, a radar sensor intended to track the vehicle directly in front might be pointing slightly askew, leading to incorrect distance calculations or target identification. This subtle misalignment can lead to critical errors, such as delayed warnings, false alerts, or, most dangerously, a complete failure of the system to intervene when needed. The precision of these sensors is paramount for safety.

Specific ADAS Features Impacted by Misalignment

The ripple effect of poor wheel alignment extends to a wide range of ADAS features, each relying on accurate sensor data to function correctly. Understanding these impacts highlights why calibration is non-negotiable:

• Lane Departure Warning (LDW) and Lane Keeping Assist (LKA)

  These systems are perhaps the most immediately affected. They use forward-facing cameras to identify lane markings and monitor the vehicle's position within them. If the wheels are misaligned, the vehicle's true trajectory deviates from what the camera 'sees' as straight ahead. This can cause the system to either issue false warnings when the car is perfectly centred or, more critically, fail to alert the driver when the vehicle genuinely begins to drift out of its lane. This compromise can lead to unnecessary driver stress or, worse, a preventable accident.

• Adaptive Cruise Control (ACC)

  ACC systems utilise radar and sometimes cameras to maintain a set distance from the vehicle in front, automatically adjusting speed. If the vehicle's thrust angle (the direction the rear wheels are pushing) is off, the radar sensor, though physically pointing straight ahead, will be 'looking' at an angle relative to the actual direction of travel. This can result in the ACC system misidentifying the lead vehicle, tracking the wrong car, or struggling to maintain a consistent distance, leading to erratic braking or acceleration that can be unsettling and dangerous.

• Automated Emergency Braking (AEB)

  This life-saving feature relies on radar and camera data to detect impending collisions and apply brakes automatically if the driver doesn't react. A misaligned vehicle can cause these sensors to either miss a crucial obstacle entirely or trigger unnecessary braking due to misinterpretation, potentially creating a new hazard from behind. The system's ability to accurately perceive threats is severely hampered.

• Blind Spot Monitoring (BSM)

  While primarily using radar sensors mounted in the rear bumpers, the overall geometry of the vehicle, including its thrust angle, can influence the accuracy of these systems. If the vehicle is crabbing slightly due to misalignment, the blind spot sensors might not be perfectly oriented to detect vehicles in the true blind spot, leading to missed warnings when changing lanes.

• Parking Assist Systems

  Even systems like park assist, which use ultrasonic sensors and cameras for spatial awareness, can be affected by the overall vehicle stance. While less critical for high-speed safety than other features, their accuracy and effectiveness in guiding the vehicle into a parking space can be diminished, leading to frustrating experiences or minor scrapes.

Why ADAS Calibration After Wheel Alignment is Critical

Given the intricate reliance of ADAS sensors on a vehicle's geometric integrity, it becomes clear why calibration after a wheel alignment isn't merely a recommendation but a mandatory safety procedure. When your vehicle undergoes a wheel alignment, the angles of its wheels are adjusted to meet manufacturer specifications. This fundamentally alters the vehicle's driving dynamics and its precise relationship with the road. Without subsequent ADAS calibration, the sensors continue to operate under the assumption of the previous, pre-alignment geometry. This mismatch between the vehicle's actual state and the sensors' programmed reference point creates a dangerous disconnect. Failing to recalibrate means your vehicle's advanced safety features are effectively 'blind' or 'misinformed', operating with inaccurate data. This poses serious safety risks to the driver, passengers, and other road users, as the systems may not function as intended during critical moments, potentially leading to accidents that ADAS was designed to prevent.

Key Benefits of ADAS Calibration After Wheel Alignments

Beyond the fundamental safety imperative, performing ADAS calibration immediately following a wheel alignment offers several tangible benefits to vehicle owners and ensures the longevity and effectiveness of these sophisticated systems.

• Optimised Sensor Accuracy

  This is the most direct benefit. Calibration ensures that every sensor – be it camera, radar, or lidar – is precisely aligned with the vehicle's new geometric configuration and its true direction of travel. This eliminates any discrepancies caused by alignment adjustments, guaranteeing that the sensors' 'point of view' perfectly matches the vehicle's actual movement. The result is consistently accurate data acquisition, leading to reliable performance of all ADAS features, just as the manufacturer intended.

• Enhanced Driver Safety

  By ensuring sensor accuracy, calibration directly translates into improved driver safety. When ADAS systems receive precise data, they can reliably provide accurate warnings, timely interventions, and consistent assistance. This means features like AEB will apply brakes only when necessary and effectively, LDW will warn you precisely when you drift, and ACC will maintain distances correctly. You gain the full, intended safety benefits that these cutting-edge systems were designed to provide, significantly reducing the risk of accidents and enhancing overall road security.

• Maintaining System Reliability and Preventing False Alarms

  A properly calibrated system is a reliable system. Misaligned sensors can lead to intermittent or false warnings, which can be irritating and cause drivers to distrust the system, potentially leading them to ignore genuine alerts when they are truly needed. Calibration eliminates these false positives, ensuring that when an ADAS system alerts you, it's for a legitimate reason, thereby building driver confidence and trust in the technology.



• Preserving Vehicle Value and Manufacturer Warranty

  Many automakers now explicitly require ADAS calibration after specific events, including wheel alignments, suspension repairs, or windscreen replacements. Neglecting this crucial step could not only compromise safety but also potentially void parts of your vehicle's warranty relating to ADAS components. Furthermore, a vehicle with fully functional and correctly calibrated ADAS systems retains its value better on the secondary market, appealing to future buyers who prioritise safety and technological integrity.

All-in-One ADAS/Alignment Racks & Modern Alignment Technology

Recognising the critical interdependence of wheel alignment and ADAS calibration, the automotive service industry has evolved rapidly. Leading ADAS equipment providers have developed innovative solutions, most notably the 'all-in-one' ADas/alignment racks. These specialised systems allow workshops to perform both precise wheel alignments and subsequent ADAS calibrations on the same equipment, often in a single, streamlined process. This integration offers significant advantages: it saves time for the technicians and the customer, reduces the need to move the vehicle between different bays, and crucially, ensures the highest level of accuracy by maintaining the vehicle's position throughout both procedures.

It's also vital to understand the distinction in alignment technology. Traditional 'laser alignment' systems, while once sufficient, often lack the precision and data integration capabilities required for modern ADAS-equipped vehicles. For accurate ADAS calibration, a 'computerised wheel alignment' system, often utilising Bluetooth technology and 3D imaging, is essential. These advanced systems provide incredibly precise measurements of all alignment angles, including thrust angle, and are designed to integrate seamlessly with ADAS calibration targets and software. They take the guesswork out of the process, ensuring the foundational alignment is perfect before the intricate sensor calibration begins. When seeking service, always insist on a centre equipped with these modern, computerised alignment systems.

The Importance of Professional Service and Approved Centres

Given the complexity and safety implications, ADAS calibration is not a task for the inexperienced or for facilities lacking the proper equipment. It requires highly trained technicians and specific, often manufacturer-mandated, calibration tools and software. If you've had a wheel alignment, or even minor suspension work or a windscreen replacement on an ADAS-equipped vehicle, it is imperative to explicitly request and ensure that ADAS calibration is performed afterwards. Do not leave it to chance.

Seek out 'Approved ADAS Centres' or specialists who are certified and equipped to handle these intricate procedures. These centres typically use the latest computerised wheel aligners capable of providing the precise alignment data required for successful ADAS calibration. They will follow strict manufacturer protocols to ensure every sensor is recalibrated correctly, restoring the vehicle's safety systems to their optimal functionality. Insisting on both operations being carried out at the same time by a qualified centre is the safest approach. Remember, an ADAS system is only as good as its calibration, and its calibration is only as good as the underlying wheel alignment.

Comparison: Aligned & Calibrated vs. Misaligned & Uncalibrated ADAS

Frequently Asked Questions (FAQs)

Q: How often should I have my ADAS systems calibrated?

A: ADAS calibration isn't typically part of routine service unless specific conditions are met. It is always required after a wheel alignment, suspension work, windscreen replacement (for camera-based systems), significant impact or accident repair, or if a diagnostic trouble code indicates a sensor issue. Always consult your vehicle's manufacturer guidelines, as requirements can vary by make and model.

Q: Can any garage perform ADAS calibration after an alignment?

A: No. ADAS calibration requires specialised equipment, specific targets, manufacturer-specific software, and highly trained technicians. Many general garages may not have these capabilities. It's crucial to choose an approved or specialist ADAS calibration centre that is certified and equipped for your specific vehicle make and model.

Q: What happens if I don't get my ADAS calibrated after a wheel alignment?

A: Failing to calibrate means your ADAS sensors will be operating with inaccurate data, as their 'view' of the road no longer aligns with the vehicle's actual direction of travel. This can lead to false warnings, system malfunctions, or, most dangerously, a complete failure of safety features to activate when needed, significantly increasing accident risk. It compromises the very purpose of these safety systems.

Q: Is "laser alignment" sufficient for ADAS-equipped vehicles?

A: While traditional laser alignment provides basic wheel alignment, it typically lacks the precision and data integration required for modern ADAS calibration. For ADAS-equipped vehicles, a computerised, 3D wheel alignment system is essential, as it offers the minute precision and comprehensive data necessary for subsequent sensor calibration. Always opt for computerised alignment for ADAS-equipped cars.

Q: How long does ADAS calibration take after an alignment?

A: The duration can vary depending on the vehicle model, the number of systems requiring calibration, and the workshop's equipment. However, with modern all-in-one racks, the process can be efficiently integrated, often adding a relatively short amount of time to the overall alignment service, typically within an hour or two on top of the alignment itself. Always ask your service centre for an estimated timeframe.

Conclusion

The era of advanced driver assistance systems has undeniably made our roads safer, but their efficacy is profoundly dependent on fundamental mechanical precision. The relationship between wheel alignment and ADAS sensors is not merely tangential; it is a direct and critical dependency. Every adjustment to your vehicle's alignment necessitates a corresponding recalibration of its ADAS sensors to ensure they operate with the utmost accuracy and reliability. By understanding this crucial link and insisting on proper, professional ADAS calibration following any alignment service, you are not just maintaining your vehicle; you are actively safeguarding yourself, your passengers, and others on the road, ensuring your car's intelligent features continue to deliver the safety and assistance they were designed for. Don't compromise on what keeps you secure; ensure your ADAS is always perfectly calibrated.
