Understanding Wheel Alignment: Specs & Post-Suspension Checks

Ensuring your vehicle drives straight, handles predictably, and gets the most out of its tyres hinges on one critical factor: wheel alignment. Often overlooked until an issue arises, proper alignment is fundamental to your car's safety, performance, and long-term running costs. It’s not just about making sure your wheels point forward; it's a precise calibration that dictates how your tyres meet the road.

What Exactly Are Wheel Alignment Specifications?

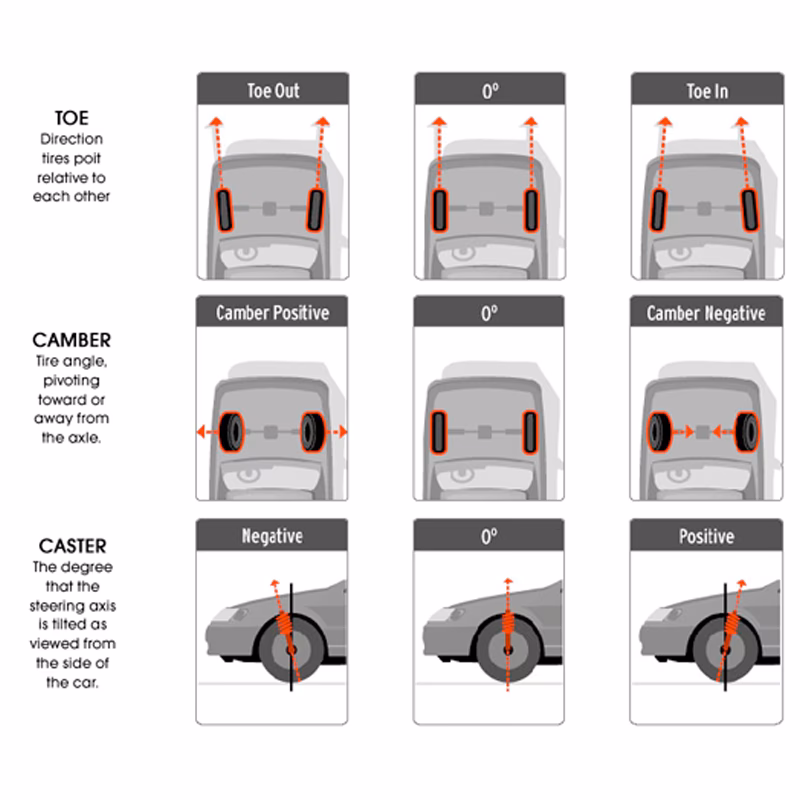

At its core, wheel alignment refers to the precise angles of your vehicle's wheels, which are meticulously set by the manufacturer to ensure optimal handling, minimise tyre wear, and promote fuel efficiency. These angles are not arbitrary; they are specific measurements that dictate how the wheels sit relative to each other and to the road surface. There are three primary angles that technicians adjust to achieve perfect alignment:

• Camber: This is the inward or outward tilt of the wheel when viewed from the front of the vehicle. If the top of the wheel tilts outwards, it's called positive camber; if it tilts inwards, it's negative camber. Incorrect camber can lead to uneven tyre wear on one side of the tyre tread and can affect the vehicle's stability during cornering.
• Caster: Viewed from the side, caster refers to the forward or backward tilt of the steering axis. Positive caster means the steering axis tilts towards the rear of the vehicle at the top, much like the front wheel of a bicycle. This angle is crucial for steering stability, helping the wheels return to a straight-ahead position after turning, and reducing steering effort. Too little or too much caster can lead to wandering or heavy steering.
• Toe: This is arguably the most critical alignment angle for tyre wear. Toe refers to how much the front of the wheels points inward or outward relative to each other when viewed from above. If the fronts of the wheels point slightly inward, it's called "toe-in"; if they point slightly outward, it's "toe-out". Even a minuscule deviation here can cause rapid and severe tyre wear, making your tyres scrub against the road rather than roll smoothly. It also significantly impacts straight-line stability and steering response.

The "alignment specs" are the exact, precise values (usually in degrees and minutes) for these camber, caster, and toe angles, as prescribed by your vehicle's manufacturer. These specifications are unique to each make and model, accounting for the vehicle's design, weight distribution, and intended performance characteristics. Achieving these exact specifications requires specialised, high-precision equipment, as even a deviation as small as 1mm or half a degree (0.5°) can have a profound impact on your vehicle's overall behaviour, tyre longevity, and fuel consumption.

Do I Need a Wheel Alignment Check After Suspension Work?

The unequivocal answer to this question is: absolutely yes. Any work performed on your vehicle's suspension system, no matter how seemingly minor, will inevitably alter the delicate alignment angles of your wheels. The suspension components are intrinsically linked to how your wheels are positioned relative to the chassis and the road. When these components are replaced or even adjusted, the original alignment settings are disturbed.

Consider the following common suspension procedures that necessitate a subsequent wheel alignment check:

• Shock Absorber or Strut Replacement: These components are fundamental to maintaining wheel position and ride height. Replacing them, even with identical parts, can shift the vehicle's height and thus alter camber and toe.
• Control Arm, Ball Joint, or Bushing Replacement: These parts directly connect the wheel hub to the vehicle's frame. Any wear or replacement here will change the pivot points and the angles at which the wheel sits.
• Tie Rod End Replacement (Inner or Outer): Tie rods are the primary components used to adjust the toe angle. Replacing them makes an alignment check mandatory, as the new component will almost certainly not be set to the exact previous length.
• Steering Rack Replacement: As the central component of your steering system, a new steering rack will require a full alignment to ensure the steering wheel is centred and the wheels are tracking correctly.
• Installation of Lowering or Lifting Kits: Modifying the ride height of your vehicle drastically changes the geometry of the suspension, making a professional alignment crucial to compensate for the new angles.
• Any Repair Involving Disassembly of Steering or Suspension Knuckles: Even if a specific alignment component isn't replaced, simply loosening and re-tightening fasteners on critical suspension points can be enough to throw the precise angles out.

Formula One Autocentres, and indeed most reputable automotive service providers, strongly recommend undertaking an alignment check following any suspension work. This recommendation stems from the understanding that the minute changes, such as the aforementioned 1mm or half a degree, can lead to significant issues over time. Without a post-repair alignment, you risk rapid and uneven tyre wear, compromised handling, a crooked steering wheel, and even reduced fuel efficiency, effectively negating the benefits of your suspension repair.

Why Precision Matters: The Impact of Misalignment

Driving with misaligned wheels is like walking with your feet pointing slightly inwards or outwards – it’s inefficient, uncomfortable, and will eventually cause problems. The precise nature of alignment means that even minor deviations from manufacturer specifications can lead to a cascade of negative effects:

• Accelerated and Uneven Tyre Wear: This is often the first and most costly symptom. Misalignment causes tyres to scrub rather than roll smoothly, leading to feathering (where the tread blocks are worn unevenly across the tyre), cupping (scalloped dips around the tyre's edge), or excessive wear on one side of the tread. This dramatically shortens tyre life, forcing premature and expensive replacements.
• Compromised Handling and Steering: Your vehicle may pull to one side, requiring constant steering correction to keep it going straight. The steering wheel might be off-centre even when driving straight, or the steering could feel loose, vague, or overly heavy. This reduces driver confidence and makes the vehicle less predictable, especially in emergency manoeuvres.
• Reduced Fuel Efficiency: When wheels are not perfectly aligned, they create increased rolling resistance. This means your engine has to work harder to propel the vehicle forward, leading to a noticeable increase in fuel consumption. Over time, this can add up to significant extra costs.
• Safety Hazards: Beyond the wear and tear, misalignment compromises safety. A vehicle that pulls or has unpredictable steering is harder to control, increasing the risk of accidents. Braking distances can also be affected, as unevenly worn tyres have less grip.

Common Signs Your Vehicle Needs an Alignment

Even if you haven't had recent suspension work, it's wise to be aware of the signs that your vehicle might be suffering from misalignment:

• Vehicle Pulling: Your car consistently drifts or pulls to the left or right when driving on a flat, straight road, requiring you to hold the steering wheel off-centre to maintain a straight line.
• Uneven Tyre Wear: Visually inspect your tyres. If you notice significantly more wear on one edge of a tyre, or if the wear patterns are irregular (e.g., feathering or cupping), it's a strong indicator of misalignment.
• Steering Wheel Not Centred: When driving straight, your steering wheel should be perfectly horizontal. If it's tilted to one side, even slightly, your alignment is likely off.
• Squealing Tyres: Tyres that squeal, especially during turns or at low speeds, can indicate that they are dragging or scrubbing due to incorrect angles.
• Loose or Difficult Steering: If your steering feels unusually loose or vague, or conversely, if it feels overly heavy and difficult to turn, alignment issues could be at play.
• Vibrations: While often a sign of wheel balancing issues, vibrations through the steering wheel or seat can sometimes be exacerbated by severe misalignment.

The Professional Alignment Process

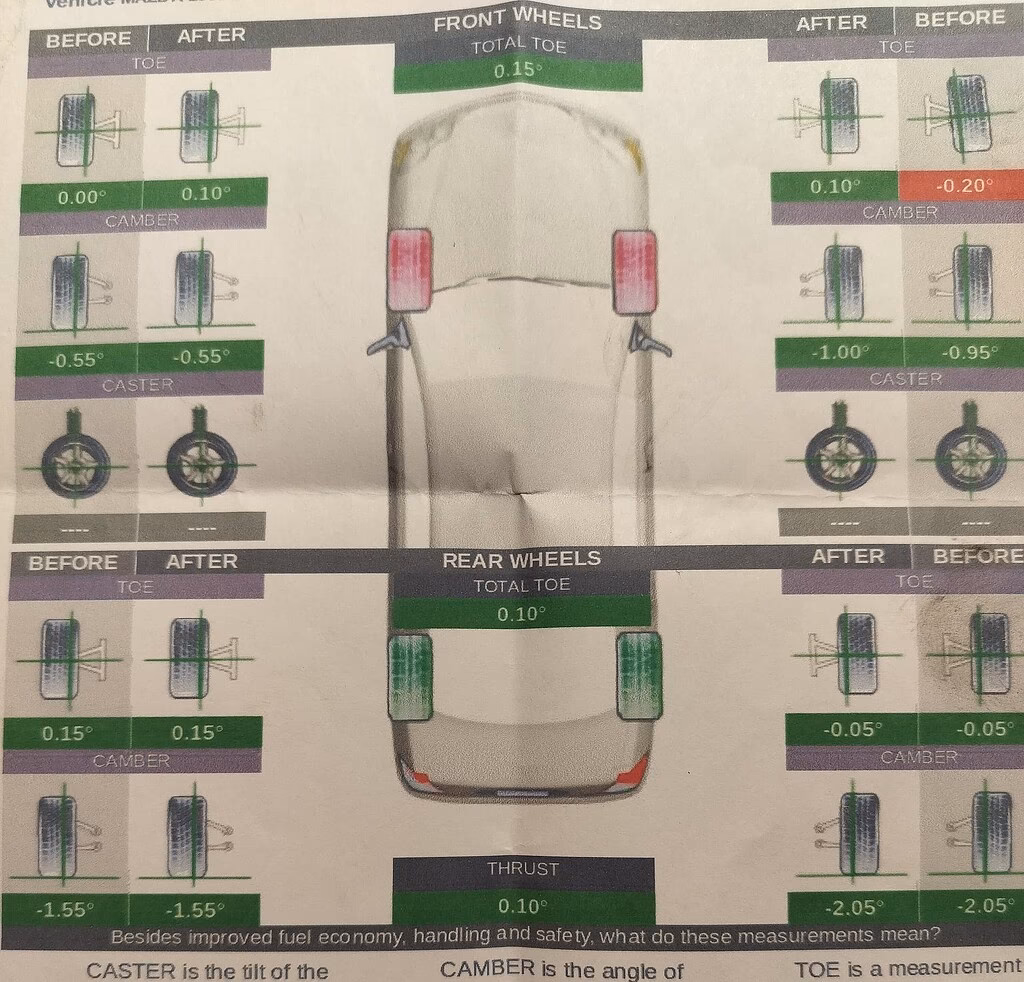

A professional wheel alignment is a precise procedure performed by trained technicians using advanced computerised equipment. Sensors are attached to each wheel, which communicate with a computer displaying the current alignment angles in real-time. The technician then compares these readings to your vehicle's manufacturer specifications.

Using specialised tools, adjustments are made to components like tie rods, camber bolts, and sometimes even subframe positions, to bring all angles back within the specified range. This process ensures that all four wheels are parallel to each other and perpendicular to the ground, allowing for optimal performance and tyre longevity.

Comparative Table: Alignment Issue vs. Symptom vs. Impact

Frequently Asked Questions (FAQs) About Wheel Alignment

How often should I get a wheel alignment check?

It's generally recommended to have your alignment checked every 12,000 to 15,000 miles or at least once a year, as part of your routine maintenance. However, it's absolutely crucial to get it checked immediately after any suspension work, after hitting a significant pothole or curb, or if you notice any of the misalignment symptoms mentioned above.

Is wheel balancing the same as wheel alignment?

No, they are distinct services. Wheel balancing addresses the even distribution of weight around the wheel and tyre assembly. Imbalance causes vibrations, especially at higher speeds. Wheel alignment, on the other hand, adjusts the angles of the wheels themselves relative to your vehicle's body and each other, impacting tyre wear and steering.

Can I perform a DIY wheel alignment at home?

While some basic checks can be done at home, achieving the precise, manufacturer-specified angles required for proper alignment is virtually impossible without professional, computerised equipment. DIY attempts are likely to result in inaccurate settings, leading to the issues described above.

What's the difference between 2-wheel and 4-wheel alignment?

A 2-wheel alignment (often called a front-end alignment) focuses only on the front wheels, typically for vehicles with solid rear axles where the rear alignment is not adjustable. A 4-wheel alignment involves adjusting all four wheels. Most modern vehicles, especially those with independent rear suspensions or front-wheel drive, require a 4-wheel alignment because the rear wheel angles significantly influence the front. For optimal performance and tyre longevity, a 4-wheel alignment is almost always recommended if your vehicle's design allows for it.

How long does a wheel alignment take?

A standard wheel alignment typically takes between 30 minutes to an hour. However, this can vary if seized components need to be freed or if significant adjustments are required.

Conclusion

In summary, understanding wheel alignment specifications and recognising the critical need for an alignment check after any suspension work is paramount for any vehicle owner. It's not just about correcting a pull or saving your tyres; it's about ensuring your vehicle operates safely, efficiently, and predictably. Investing in regular alignment checks and promptly addressing any issues after suspension repairs will not only extend the life of your tyres but also enhance your driving experience and safeguard your vehicle's overall health and value.
