ABS vs Traditional Brakes: Which is Better?

For decades, the humble brake pedal has been our primary interface with a vehicle's ability to stop. Yet, beneath your foot lies a complex system that has evolved dramatically over time. From the simple mechanical linkages of early automobiles to today's sophisticated electronic marvels, braking technology has undergone a revolution aimed squarely at enhancing driver safety and control. This article delves into the fundamental differences between traditional braking systems and modern Anti-lock Braking Systems (ABS), exploring their mechanisms, performance characteristics, and the crucial implications for your driving experience on the UK's diverse roads.

Traditional Braking Systems: A Foundation of Friction

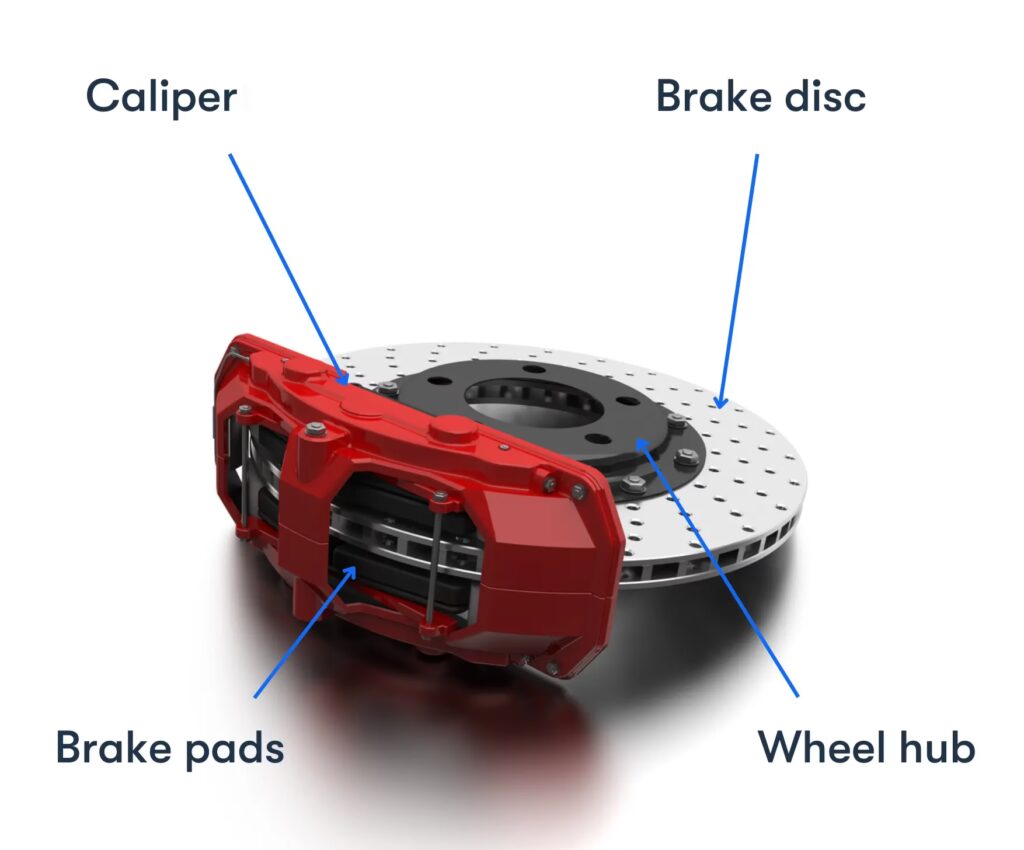

Until the 1970s, almost all consumer automobiles were equipped with standard friction brakes. These systems operate on a straightforward hydraulic principle: when you press the foot pedal, it pressurises brake fluid, which in turn forces brake pads or shoes against a metal disc (rotor) or a metal drum connected to the wheels. This friction generates the force required to slow down or stop the vehicle.

While effective in most dry conditions, traditional brakes possessed a significant limitation: their susceptibility to wheel lock-up. On wet, snowy, or icy roads, or during emergency stops on any surface, applying too much pressure could cause the wheels to stop rotating entirely. When wheels lock, the vehicle loses its directional control, resulting in an unpredictable and often dangerous skid. Historically, driver's education included teaching the technique of 'pumping the brakes' – rapidly applying and releasing pressure – to prevent this lock-up and maintain some degree of steering control. This manual modulation required significant skill and practice to master the precise moment to release pressure just before the tyres lost traction.

The Dawn of Anti-lock Braking Systems (ABS): A Leap in Control

Recognising the inherent dangers of wheel lock-up, automotive manufacturers began introducing Anti-lock Braking Systems (ABS) in the 1970s, initially in luxury models like the Chrysler Imperial. The core idea behind ABS was to automate the 'pumping' action, making it far more rapid and precise than any human could achieve. By the 1980s, ABS was becoming increasingly common, and by the 2000s, it was standard equipment on most new cars. Since 2012, ABS has been mandatory for all new passenger cars sold in many regions, including the UK, fundamentally transforming vehicle safety standards.

The primary objective of ABS is to prevent the wheels from locking up during heavy or emergency braking. By ensuring the wheels continue to rotate, albeit slowly, the system allows the driver to maintain steering control, enabling them to manoeuvre around obstacles even while braking hard. This crucial capability significantly reduces the risk of skidding and improves overall vehicle stability in critical situations.

How ABS Works: The Science of Controlled Braking

An ABS system is a marvel of automotive engineering, comprising three main components: wheel speed sensors, an Electronic Control Unit (ECU), and hydraulic valves within the brake lines.

1. Wheel Speed Sensors: Each wheel is fitted with a sensor that constantly monitors its rotational speed.
2. Electronic Control Unit (ECU): This is the 'brain' of the ABS system. It receives real-time data from all four wheel speed sensors.
3. Hydraulic Valves: These valves are located in the brake lines for each wheel and are controlled by the ECU.

When you apply the brakes forcefully, the ECU analyses the speed data. If it detects that one or more wheels are decelerating much faster than the others – indicating they are about to lock up – the ECU immediately signals the hydraulic valves. These valves then rapidly reduce and re-apply brake pressure to the individual wheel (or wheels) that are on the verge of locking. This pulsing action happens many times per second, far faster than a driver could manually achieve, effectively maintaining the optimal level of braking force without losing traction.

For a driver unfamiliar with ABS, activating the system can be a somewhat alarming sensation. You will typically feel a distinct pulsation or vibration through the brake pedal, and you might hear a grinding, buzzing, or clicking sound coming from the brake system. It is absolutely crucial not to lift your foot off the brake pedal when this occurs. These sensations are completely normal and are simply the sound and feel of the ABS doing its job, rapidly modulating brake pressure to keep you safe.

Braking Techniques: Adapting to Your System

Understanding the correct braking technique for your vehicle's system is paramount for effective and safe driving.

Braking with Traditional (Non-ABS) Brakes

For vehicles without ABS, the 'pumping' technique remains essential, especially on slippery surfaces. The goal is to apply firm pressure until you feel the tyres are just about to break loose and skid, then ease off slightly to allow them to regain grip, and then re-apply. This process is repeated in rapid succession. It requires a keen sense of feel for the vehicle's limits and considerable practice to achieve optimal braking performance without losing control. Over-braking leads to skidding; under-braking leads to longer stopping distances.

Braking with an ABS System

With an ABS-equipped vehicle, the technique is much simpler and more intuitive for emergency situations: 'Stomp, Stay, Steer'.

• Stomp: Press the brake pedal firmly and decisively, as hard as you can.
• Stay: Keep your foot pressed down firmly on the pedal. Do not lift off or try to pump the brakes, even if you feel pulsations or hear noises. The system is designed to do the modulation for you.
• Steer: While maintaining firm pressure on the brake pedal, steer the vehicle to avoid any obstacles. Because the wheels are still rotating, you retain steering control, which is the key advantage of ABS.

Comparative Analysis: ABS vs. Non-ABS

To highlight the fundamental differences, here's a comparative overview of ABS and traditional braking systems:

The Unquestionable Advantage of ABS in Safety

While some traditionalists might argue for the simplicity or 'direct feel' of older braking systems, empirical evidence and countless measurement studies unequivocally demonstrate that ABS is a superior braking system. Its ability to prevent wheel lock-up translates directly into enhanced safety outcomes. In an emergency, maintaining steering control allows a driver to not only slow down but also to steer around an obstacle, potentially avoiding a collision entirely or significantly reducing its severity. This capability is particularly critical on slippery surfaces where traditional brakes are most prone to causing uncontrollable skids.

The advancement of ABS has contributed significantly to the overall improvement in vehicle safety over the past few decades. It's a key component, often integrated with other advanced driver-assistance systems like Traction Control (TCS) and Electronic Stability Control (ESC), to provide comprehensive vehicle dynamics management. This holistic approach to vehicle control further solidifies ABS's position as a foundational safety feature.

Maintenance and Longevity

Both traditional and ABS braking systems require regular maintenance to ensure optimal performance. For traditional brakes, this typically involves routine inspection and replacement of brake pads, discs (or drums/shoes), and regular checks of the brake fluid level and condition. The system's simplicity often means less complex diagnostic procedures when issues arise.

ABS systems, while more complex due to their electronic components, are generally robust. Maintenance still includes the basic checks of pads, discs, and fluid, but also extends to the wheel speed sensors and the ABS ECU. Diagnosing issues with an ABS system often requires specialised diagnostic tools to read fault codes from the ECU. While a repair involving a faulty ABS pump or ECU can be more expensive than a simple pad replacement, the enhanced safety benefits they provide are invaluable.

Frequently Asked Questions (FAQs)

Is ABS always better than traditional brakes?
Yes, in almost all emergency braking situations, especially on slippery surfaces, ABS provides superior performance by preventing wheel lock-up, maintaining steering control, and often reducing stopping distances. While some experienced drivers might argue for non-ABS on specific surfaces like loose gravel, for the vast majority of drivers and conditions, ABS is significantly safer and more effective.

What does it feel like when ABS activates?
When ABS activates, you will typically feel a pulsation or vibration through the brake pedal. You might also hear a grinding or buzzing sound from the brake system. These sensations are completely normal and indicate the system is working as intended, rapidly modulating brake pressure to prevent wheel lock-up. It's crucial not to lift your foot off the pedal when this occurs.

Should I pump the brakes if my car has ABS?
No, absolutely not. Pumping the brakes in a vehicle equipped with ABS will interfere with the system's ability to do its job. For optimum performance, you should apply firm, continuous pressure to the brake pedal and let the ABS computer manage the individual wheel braking.

Can ABS prevent all accidents?
While ABS significantly enhances vehicle control during braking and can help prevent many accidents by allowing drivers to steer away from hazards, it is not a magic bullet. It cannot defy the laws of physics or compensate for excessive speed, poor road conditions, or driver inattention. It is a crucial safety aid, but drivers must still exercise caution and drive responsibly.

Is it expensive to repair an ABS system?
Repair costs for an ABS system can vary depending on the specific component that has failed. Issues with wheel speed sensors are often less costly to fix than problems with the ABS pump or electronic control unit. While potentially more expensive than basic non-ABS brake repairs, the enhanced safety benefits typically outweigh the potential repair costs.

In summary, the evolution from traditional friction-based braking to advanced Anti-lock Braking Systems marks a pivotal moment in automotive innovation and safety. While non-ABS brakes served their purpose for decades, their limitations in preventing wheel lock-up and maintaining steering control in emergency situations are undeniable. ABS, with its sophisticated electronic control, offers a vastly superior solution, empowering drivers to maintain directional stability even under extreme braking. For any driver, understanding the system in their vehicle and applying the correct braking technique is paramount. Ultimately, ABS represents a significant leap forward, making our journeys on the road considerably safer.
