The Enduring Legacy of the Harley-Davidson Sportster

The Harley-Davidson Sportster, a name synonymous with American motorcycling, has carved an indelible mark on the roads since its inception in 1957. For decades, it has served as a quintessential entry point into the Harley-Davidson family, renowned for its agile handling, distinctive rumble, and deeply customisable platform. What began as a successor to the Model K has continuously evolved, embracing technological advancements while steadfastly retaining its core identity. This article delves into the Sportster's remarkable journey, highlighting the significant changes and innovations that have defined its enduring legacy, from crucial engine updates to modern creature comforts.

First hitting the asphalt in 1957, the Harley-Davidson Sportster was designated with the product code 'XL', a prefix that has remained consistent throughout its long production run. It emerged from the lineage of the Model K Sport and Sport Solo motorcycles, which were introduced in 1952. While its predecessors, the K, KK, KH, and KHK models (1952-1956), featured a sidevalve or 'flat head' engine, the inaugural 1957 XL Sportster proudly introduced an overhead valve engine. This marked a pivotal shift in the Sportster's mechanical heart, setting the stage for future performance enhancements. Early Sportster models, however, did inherit several features from the KH, including the frame, fenders, a generously sized fuel tank, and the robust front suspension, blending tradition with newfound engineering.

Key Milestones and Technological Leaps

The Sportster's journey is punctuated by several significant advancements that dramatically altered its ride, performance, and overall appeal. These innovations reflect Harley-Davidson's commitment to adapting to changing rider expectations and environmental standards.

Engine Evolution: From Ironhead to Revolution Max

At the heart of every Sportster lies its engine, and this has seen profound transformations over the decades. The original Sportster engine, affectionately known as the Ironhead, powered these machines from 1957 until 1985. Characterised by its cast iron heads, the Ironhead was available in 883 cc and 1,000 cc configurations. It utilised a distinctive 45° V-twin design where both connecting rods, employing a 'fork and blade' or 'knife & fork' design, shared a common crank pin. This unique construction was a hallmark of Harley-Davidson engineering.

In 1986, a new era dawned with the introduction of the Evolution engine. This updated overhead-valve engine, featuring alloy heads, was initially offered in 883 cc and 1,100 cc sizes, with the 1,100 cc unit being replaced by a 1,200 cc version in 1988. The Evolution engine brought improved reliability, performance, and a more modern feel to the Sportster line, cementing its place for over three decades.

However, the most radical engine change came much later. In 2020, stricter Euro 5 emissions standards led to the discontinuation of the original Sportster line in Europe. This necessitated an entirely new powerplant. The 2021 model year saw the introduction of an all-new model, the Sportster S, equipped with the liquid-cooled Revolution Max 1250T engine. This marked the first time a Sportster bore an engine not derived from the Model K since 1986, signalling a significant departure from tradition and a leap into modern performance metrics. This engine was subsequently followed by the Revolution Max 975T in the new Nightster models, offering impressive horsepower and torque figures for their displacement.

Vibration Management: The Rubber Mount Revolution (2004)

For decades, Sportsters were known for their direct connection to the road, which also meant direct transmission of engine vibrations to the rider. From 1957 through the 2003 model year, the engine was mounted directly to the frame. While this setup contributed to a somewhat lighter bike and more precise handling, the vibrations could be quite noticeable, especially on longer rides.

A monumental change arrived with the 2004 model year redesign: the introduction of rubber engine mounts. This innovation, along with a stiffened frame, added approximately 50 pounds to the bike's weight but profoundly transformed the riding experience. The rubber isolation mounts and tie links were designed to limit engine movement to a single plane, significantly reducing the vibrations felt by the rider. This change was largely welcomed, offering a much smoother and more comfortable ride, particularly for touring or extended journeys. Interestingly, between 2004 and 2006, Sportsters featured these new rubber mounts but still ran on carburetors, creating a unique interim period before the next major technological leap.

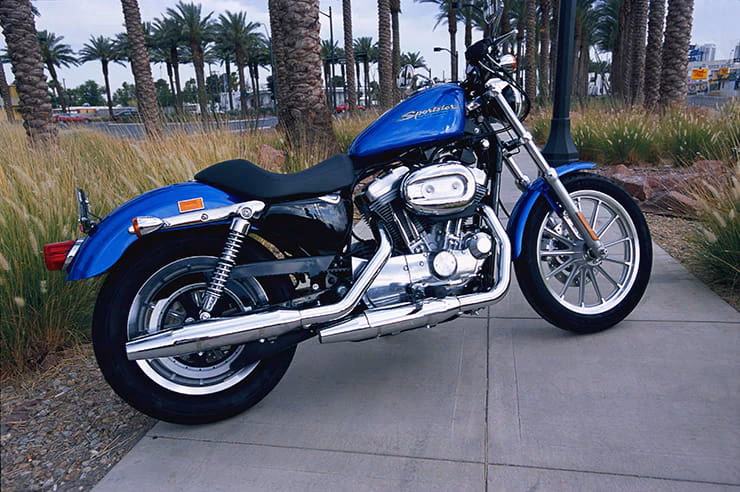

Modern Fuel Delivery: The EFI Era (2007)

The 2007 model year brought another pivotal upgrade: the universal adoption of fuel injection across all Sportster models. This Electronic Sequential Port Fuel Injection (ESPFI) system replaced the traditional carburettors, offering numerous benefits. ESPFI included front and rear O2 sensors, a Throttle Position Sensor, Head Temp sensors, and a fuel pump, enabling closed-loop operation. This system, largely adapted from prior year Dyna models, provided more consistent power delivery, improved fuel efficiency, easier cold starts, and better emissions control, aligning the Sportster with modern automotive standards. This transition marked a significant step forward in performance and usability, making the Sportster more accessible and reliable for a wider range of riders.

Transmission and Drivetrain Developments

Beyond engine and mounting, the Sportster's transmission and drivetrain also saw important advancements. Earlier models (1990 and prior) were equipped with four-speed transmissions. In 1991, this was upgraded to a five-speed transmission, offering a wider gear ratio spread and improved highway cruising. Concurrently, the drivetrain saw a shift from chain drive to belt drive. Initially introduced on the 883 Deluxe and all 1200 models in 1991, belt drive became standard on all Sportsters by 1993, offering quieter operation, less maintenance, and a cleaner aesthetic compared to traditional chains.

Special Editions and Notable Models

Throughout its history, the Sportster has been offered in a myriad of configurations and special editions, catering to diverse rider preferences and showcasing Harley-Davidson's design versatility.

• 50th Anniversary Edition (2007): To commemorate half a century of the Sportster, Harley-Davidson released a special 50th Anniversary edition in 2007, limited to just 2,000 units, making it a highly sought-after collector's item.
• The Nightster (2007): Announced at the Harley-Davidson Winter Dealer Meeting, the Nightster model marked the beginning of the 'blacked-out' themed Sportsters. It featured unique elements like a bobbed rear fender, front fork gaiters, and a side-mount licence plate, pioneering a darker, more minimalist aesthetic that would influence subsequent models like the Iron 883. The Nightster name returned in 2022 with the new Revolution Max 975T engine.
• Cafe Racers and Roadsters: The XLCR 1000 'Cafe Racer' (1977-1979) was a bold design statement, while the XLS Roadster (1979-1985) and later the XL1200CX 'Roadster' (2016) offered a sportier, more aggressive stance with improved suspension and braking.
• Chopper/Bobber Styles: Models like the XL1200X 'Forty-Eight' (2010) and XL1200V 'Seventy-Two' (2012-2016) embraced classic chopper and bobber aesthetics with small peanut tanks, wire wheels, and distinctive styling cues.
• Performance Focus: The XL1200S 'Sport' (1996-2003) was the first road-going Harley to be factory-equipped with fully adjustable sporting suspension, dual spark plug heads, and high-performance cams. The XR1200 (2008-2012), initially released in Europe, was a more sports-orientated bike with inverted forks, reworked XR heads, and a new chassis, even inspiring its own race series.

Significant Changes by Model Year (Selected Highlights)

The New Era: Sportster S and Nightster (Revolution Max)

The Sportster's journey took a dramatic turn in 2021 with the launch of the Sportster S. This model represented a complete redesign, moving away from the air-cooled Evolution engine to the liquid-cooled Revolution Max 1250T stressed member engine. Marketed as a 'sports custom motorcycle', the Sportster S boasts significantly more power and a much lighter wet weight (228 kg) compared to its predecessors, or even the older V-Rod, which, despite similar displacement, was considerably heavier. This new direction aims to position the Sportster S as a high-performance cruiser capable of impressive straight-line acceleration and improved handling through corners.

Following the Sportster S, Harley-Davidson introduced the new Nightster and Nightster Special models. These bikes are powered by a smaller, but still potent, Revolution Max 975T engine, producing 90 HP and 70 LB-FT of torque. The new Nightster models retain some of the 'dark custom' aesthetic while offering modern performance and technology at a more accessible price point. The discontinuation of the Evolution Sportster in November 2022, with the last unit being a Gunship Gray 883, truly marked the end of an iconic chapter and the beginning of a new, performance-oriented future for the Sportster nameplate.

Buell's Influence on Sportster Engine Development

It's also worth noting the significant role Buell Motorcycles played in pushing the boundaries of the Sportster engine. While Buell's product line evolved, a vast majority of their bikes utilised reworked 883 cc and 1200 cc Sportster engines. Erik Buell's innovations included designing new heads, barrels, and implementing fuel injection from 1999, all leading to substantial increases in horsepower. Buell bikes also famously incorporated rubber mounting systems for the Sportster engine as early as 1987, long before it became standard on Harley-Davidson's own Sportster line, and even added a fan to cool the rear cylinder, demonstrating an early focus on performance and heat management that would later influence the core Harley-Davidson brand.

Frequently Asked Questions (FAQs)

What is the Harley-Davidson Sportster?

The Harley-Davidson Sportster is a long-running line of motorcycles produced by Harley-Davidson since 1957. Known for its compact size, V-twin engine, and customisability, it has historically served as an accessible entry point into the Harley-Davidson brand, evolving from traditional cruisers to modern sports customs.

When did Sportsters get fuel injection?

All Harley-Davidson Sportster models transitioned from carburetion to Electronic Sequential Port Fuel Injection (ESPFI) in the 2007 model year, offering improved performance, efficiency, and starting.

Are Sportsters rubber-mounted?

Yes, Sportsters produced from the 2004 model year onwards feature rubber engine mounts. This design change significantly reduced the engine vibrations transmitted to the rider, providing a much smoother and more comfortable riding experience compared to earlier models which had directly frame-mounted engines.

What's the difference between Ironhead and Evolution engines?

The Ironhead engine was the original overhead-valve engine used in Sportsters from 1957 to 1985, characterised by its cast iron heads. The Evolution engine, introduced in 1986, replaced the Ironhead, featuring alloy heads and offering improved reliability, performance, and efficiency. The Evolution engine then powered Sportsters until 2022.

Why was the original Sportster discontinued in Europe?

The original Sportster line, powered by the Evolution engine, was discontinued in Europe in 2020 because its engine failed to meet the stricter Euro 5 emissions standards implemented in the region. This led to the development of the new Revolution Max engine for subsequent Sportster models.

What is the Revolution Max engine?

The Revolution Max is a new liquid-cooled, DOHC (Double Overhead Cam) V-twin engine platform developed by Harley-Davidson. It was first introduced in the Pan America adventure touring bike and subsequently adapted for the new Sportster S (1250T version) and Nightster (975T version), signifying a shift towards more modern, high-performance powerplants for the brand.

The Harley-Davidson Sportster's journey is a testament to continuous adaptation and reinvention while respecting its heritage. From its humble beginnings as a nimble, overhead-valve machine to its transformation into a rubber-mounted, fuel-injected cruiser, and now to the high-performance Revolution Max powered bikes, the Sportster has consistently evolved. It remains a beloved icon in the motorcycling world, demonstrating Harley-Davidson's ability to innovate and meet the changing demands of riders across the globe.
