The 2009 Kawasaki KX450F: EFI & Performance Unleashed

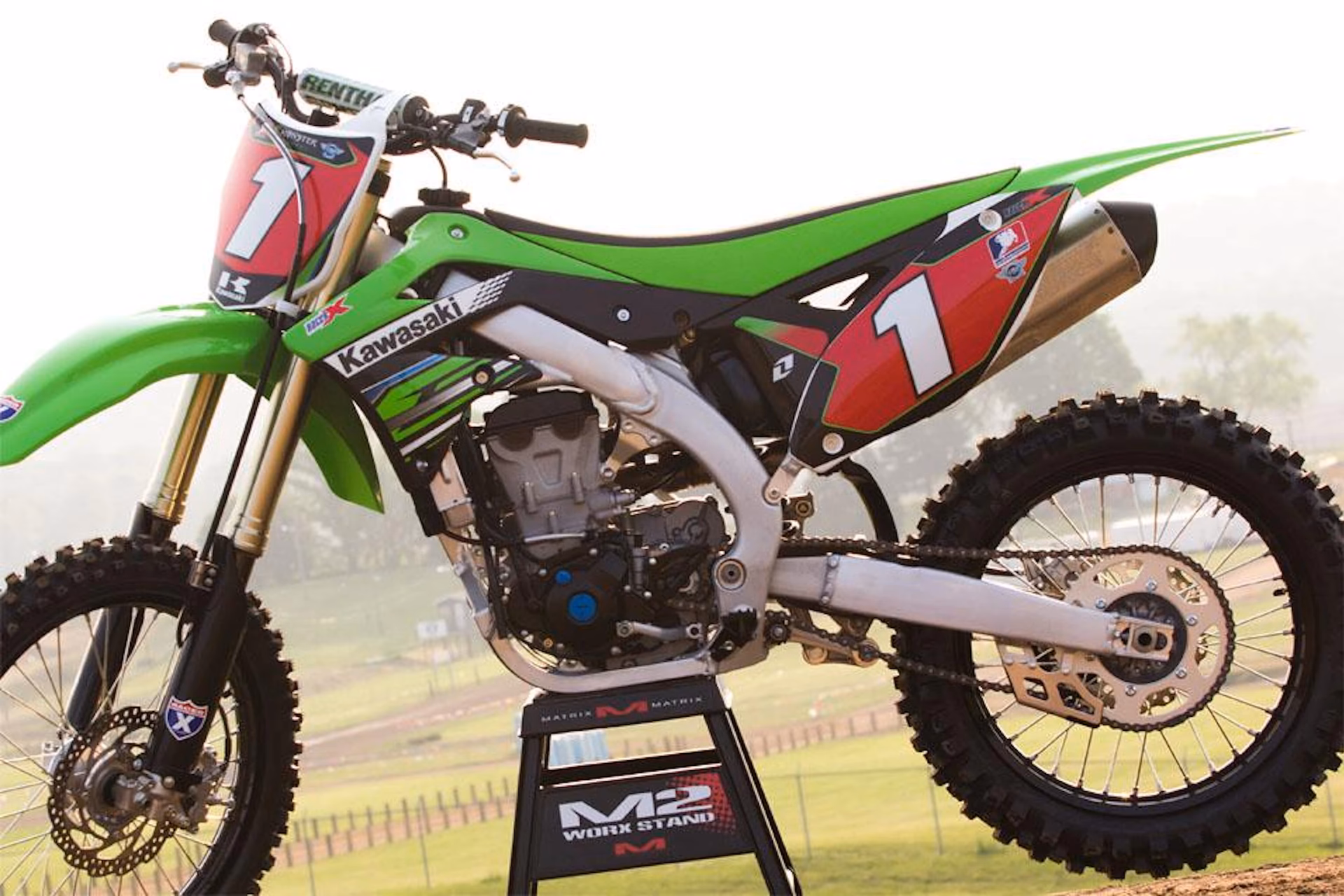

The year 2009 marked a pivotal moment for Kawasaki's flagship motocrosser, the KX450F. Far from a mere cosmetic update, this iteration represented a comprehensive overhaul, transforming an already championship-winning machine into a truly state-of-the-art racing thoroughbred. With a radical shift to Electronic Fuel Injection (EFI), alongside a leaner, stronger chassis and extensively refined ergonomics, the 2009 KX450F was designed from the ground up to offer unparalleled performance, durability, and rider control on the most demanding tracks. This article delves deep into the innovations that made this model a game-changer, exploring how every component, from its revolutionary engine management to its redesigned suspension, contributed to a faster, more responsive, and ultimately, more dominant motocross experience.

Revolutionising Power: The EFI System

At the heart of the 2009 KX450F's transformation was its groundbreaking move to Electronic Fuel Injection. This wasn't just an upgrade; it was a fundamental re-engineering of the power delivery system, eliminating the perpetual need for jetting adjustments that plagued carburetted bikes. Riders could now enjoy stable fuel-metering regardless of track conditions, altitude, or temperature, ensuring consistent, hard-hitting power without the characteristic compromises. The EFI system comprised a lightweight, compact ECU, a finely tuned 43mm throttle body, a newly designed in-tank fuel pump crafted from lightweight aluminium, and a sophisticated, ultra-fine atomising injector. Positioned at an optimal 45-degree angle, the 12-hole injector delivered precise 60-micron fuel particles, a level of atomisation comparable to high-performance road bikes like the 2007 Ninja ZX-10R. This meticulous fuel delivery translated directly into smoother power, particularly in the mid-range, and dramatically improved engine response at partial throttle, giving riders finer control over their machine.

One of the most remarkable feats of engineering in the KX450F's EFI system was its battery-less operation, a crucial innovation for a motocross machine where every gram counts. Kawasaki engineers achieved single-kick start capability by designing the ECU to power up with the initial movement of the kickstarter. The system intelligently sequences the electrical delivery – first to the ECU, then the fuel pump, and finally the injector – ensuring the engine fires within just three rotations of the crankshaft, relying solely on the electricity generated by the kickstarter. This not only saved significant weight by eliminating a battery but also provided reliable starting in any condition.

To support the increased electrical demands of the EFI, a new, larger AC generator rotor was incorporated. This rotor also strategically increased the engine's rotational inertia, which, when balanced with a reshaped and lighter crankshaft (with unchanged rotational inertia), helped reduce engine vibration. Furthermore, a wedge-shaped crank web was introduced, boosting the offsetting moment to achieve a crankshaft balance factor close to 60 percent, a figure on par with Kawasaki's factory racing bikes. The tangible benefits of these intricate changes were a noticeable reduction in engine vibration, a smoother and more linear power delivery, and a significantly snappier throttle response at low RPMs, allowing riders to maintain momentum and exit corners with greater efficiency. The optional ECU setting tool further empowered racers, allowing them to customise fuel injection volume and ignition timing maps, or to log up to six hours of critical engine data for fine-tuning.

Engine Enhancements for Unrivalled Performance

Beyond the revolutionary EFI, the 2009 KX450F engine received a plethora of enhancements designed to boost both performance and durability. The entire engine unit was made more compact and lighter, notably featuring a 5mm shorter cylinder head. This revised head also boasted re-profiled intake and exhaust ports, meticulously engineered to improve engine performance across the entire RPM range. A new piston, with a reshaped top surface, played a critical role in elevating the engine's compression ratio from 12.0:1 to a sharper 12.5:1. This higher compression, coupled with a new one-piece titanium exhaust pipe (which was not tapered and had revised length and diameter), significantly improved low-to-mid range performance, providing a stronger pull out of corners. The exhaust system was completed with a larger-volume silencer body, proactively designed to meet future noise regulations while utilising long-fibre packing for extended service intervals and reduced maintenance.

The 449cc liquid-cooled, DOHC, four-stroke single engine was precisely tuned for a broad, usable powerband, with its torque curve strategically set just below the wheel spin threshold, giving riders maximum traction. High-acceleration cams ensured the engine revved quickly, while an automatic compression release (ACR) system, featuring a dual-weight centrifugal decompression system fitted to the exhaust cam, guaranteed quick and effortless starting. A maintenance-free screw-type automatic cam chain adjuster further simplified upkeep. Inside the airbox, a larger flap was added to prevent mud and water ingress, enhancing durability in harsh conditions. The intake valves, crafted from a new high-strength material with a finer metal grain, offered approximately 50 percent greater resistance to fatigue, ensuring reliable valve control even at high RPMs, aided by double valve springs.

The crankshaft design itself saw significant improvements. Beyond the larger AC generator rotor contributing to increased rotational inertia for better traction, the crankshaft was reshaped to provide weight savings while maintaining its rotational inertia. The unique wedge-shaped crank web elevated the offsetting moment, achieving a high crankshaft balance factor of 60 percent – mirroring the precision found in Kawasaki's factory race bikes. This meticulous balancing resulted in notably reduced engine vibration, smoother power delivery, and a far snappier response at low RPMs. Further bolstering durability, the crankshaft's large bearing featured increased load capacity with 2mm longer bearing rollers, yielding a remarkable 40 percent improvement in longevity, while the crankshaft and connecting rod underwent a carburizing and quenching treatment for enhanced rigidity. Cooling efficiency was also a priority, with very slim, high-capacity Denso radiators featuring tightly packed cores and a fin design delivering superior heat dissipation. Radiator louvers were increased from three to four, and their size and angle adjusted to minimise overlap and maximise airflow, all reinforced by a brace bar for added durability. The smooth-shifting, close-ratio 5-speed transmission, combined with the low-RPM engine, offered riders more gear options, facilitating rhythm on the track and allowing greater focus on racing lines. A sprocket-style chain drive roller also reduced driveline lash, smoothing engine braking and improving corner entry control.

Chassis & Suspension: Precision Handling Redefined

The pursuit of lighter handling and a slimmer chassis with an optimised rigidity balance was paramount in the 2009 KX450F's redesign. Every aspect of the aluminium frame and suspension components was meticulously examined and revised. The main spars saw their cross-sections shrunk, the head pipe became slimmer, and a new swaging process was employed for the down tube, while the sub-frame was reshaped to be both narrower and stronger. This blend of forged, extruded, and cast parts, along with revised chassis dimensions and a reduction in components, resulted in a significant 1.8-pound weight saving for the new aluminium perimeter frame. Crucially, this weight reduction was coupled with an increase in stability and traction, thanks to a finely tuned rigidity balance.

Working in perfect harmony with the frame revisions was a new aluminium swingarm, now pivoting from a 3mm higher position on the frame. This elevated pivot contributed directly to improved rear wheel traction. The swingarm itself featured a more tapered design with a new cross bracket for enhanced rigidity, shedding approximately 0.4 lbs compared to its predecessor. The Uni-Trak rear suspension linkage was innovatively mounted below the swingarm, allowing for a longer rear suspension stroke and, consequently, more precise tuning capabilities. These combined chassis and swingarm modifications translated into enhanced stability, rigidity, and superior rear-wheel traction, allowing riders to put power to the ground more effectively.

The suspension system, with settings specifically optimised for experienced racers, offered a host of new features for superior cornering and sharper handling. The Kayaba Air-Oil-Separate (AOS) fork was a standout, boasting a new Diamond-Like Carbon (DLC) coating on the outer surface of the inner fork tubes. This advanced coating drastically reduced stiction by 15 percent compared to the 2008 model, especially when the fork was subjected to lateral forces that typically impede slide action. The result was a dramatically improved fork response, particularly noticeable during aggressive cornering. Further enhancing the overall smoothness of the suspension action was the friction-reducing Kashima Coat treatment applied to the inside surfaces of the outer fork tubes and the rear shock reservoir.

The front end's rigidity balance was carefully optimised by increasing rigidity in the reshaped upper triple clamp and decreasing it in the new outer fork tubes. Furthermore, adjusting the race-oriented suspension settings and reducing the fork offset from 24mm to 23mm significantly enhanced the KX450F's lighter handling characteristics and boosted front wheel traction. Enlarged, wrap-around black fork tube guards provided greater protection for the inner tubes against debris and impacts.

Matching the smooth, responsive action of the front fork, the Kayaba rear shock also received a new body design and a larger 50mm piston, a notable increase from the previous 46mm. This larger piston contributed to improved response, damping, and bottoming performance, culminating in a better ride feel and increased manoeuvring precision. The rear shock also benefited from the friction-reducing Kashima Coat treatment on its cylinder internals. A key feature for fine-tuning was its easily accessible dual compression adjustability, allowing high-speed and low-speed damping to be tuned separately. This gave mechanics and riders the invaluable ability to precisely dial in the suspension for a wide array of challenging track conditions, ensuring optimal performance at all times.

Durability & Rider Comfort: Built for the Track

Kawasaki's commitment to durability extended beyond internal engine and suspension components. The 2009 KX450F featured a larger, robust resin skid plate that offered superior protection without adding unnecessary weight. The chain guide was also redesigned to be narrower and longer-lasting, further exemplifying the race-oriented durability enhancements evident throughout the machine.

Beyond performance and resilience, rider comfort and ergonomics were a central focus in the 2009 model's complete bodywork revision. The aim was to offer the rider an even slimmer interface, promoting a natural riding position that allowed racers to relax, conserve energy, and ultimately go faster for longer. The sleek new bodywork incorporated one-piece, dual-injected, two-tone green and white plastic shrouds and side number plates, simplifying graphics application and maintenance.

A slimmer new seat design, featuring firmer urethane, a non-slip top surface, and smooth sides, provided excellent seated grip while facilitating superb rider mobility. The frame's profile mirrored this ergonomic approach, remaining slim at the top but widening at the lower end by the ankles to enhance rider feel and control. Completing these crucial rider interface improvements were wider 50mm footpegs, offering increased grip and a more comfortable, stable platform for aggressive riding.

Aesthetically, the 2009 KX450F presented a striking factory appearance in Kawasaki Lime Green, complemented by black alumite-coated rims and aggressive graphics. Other thoughtful additions included a larger front brake lever boot for increased dust protection, a clutch cable boot with a large quick adjuster for on-the-fly adjustments, lightweight short-length grips designed for excellent hold, and a rear caliper guard to prevent damage. The ribless rear hub and butted spokes further contributed to reduced unsprung weight, enhancing overall handling and responsiveness.

Frequently Asked Questions About the 2009 Kawasaki KX450F

Q: What was the most significant new feature on the 2009 KX450F?

A: The most significant innovation was the introduction of Electronic Fuel Injection (EFI), making it one of the first production motocross bikes to feature this technology. This eliminated the need for carburettor adjustments and provided more consistent power delivery.

Q: Does the 2009 KX450F require a battery for its EFI system?

A: No, a remarkable engineering feat allowed the 2009 KX450F to operate its EFI system without a battery. It starts using electricity generated by the kickstarter, powering the ECU, fuel pump, and injector in sequence for reliable, single-kick starting.

Q: How did the chassis change in 2009?

A: The chassis underwent a comprehensive redesign, resulting in a lighter (1.8 lbs lighter), slimmer aluminium perimeter frame with an optimised rigidity balance. Key changes included revised main spars, a slimmer head pipe, a new sub-frame, and a new aluminium swingarm with a higher pivot point for improved traction.

Q: What suspension components were used, and what were their key upgrades?

A: The 2009 KX450F featured Kayaba Air-Oil-Separate (AOS) front forks and a Kayaba rear shock. Upgrades included a Diamond-Like Carbon (DLC) coating on the inner fork tubes for reduced stiction, Kashima Coat treatment on internal surfaces for smoother action, a larger 50mm piston on the rear shock, and dual compression adjustability for precise tuning.

Q: Was engine performance significantly improved?

A: Yes, alongside the EFI, the engine saw numerous improvements. These included a higher compression ratio (12.5:1), revised intake/exhaust ports, a more compact cylinder head, a new titanium exhaust, and a redesigned crankshaft for reduced vibration and smoother, more responsive power delivery across the entire RPM range.

Q: How did Kawasaki improve rider comfort and ergonomics?

A: The bodywork was completely revised for a slimmer rider interface and natural positioning. A new, thinner seat with firmer urethane and a non-slip surface, wider 50mm footpegs, and a frame designed for better ankle grip all contributed to enhanced rider comfort, control, and mobility.

Conclusion: A New Era for Motocross

The 2009 Kawasaki KX450F represented more than just an annual model update; it was a bold statement from Kawasaki, demonstrating a profound commitment to innovation and racing excellence. By embracing Electronic Fuel Injection and meticulously refining every aspect of the engine, chassis, suspension, and ergonomics, Kawasaki delivered a motocrosser that was not only faster and more powerful but also more controllable, durable, and rider-friendly. This machine truly set a new benchmark for the 450cc class, offering a sophisticated package designed to empower riders to push their limits and achieve championship-winning performance on any track. It remains a testament to engineering ingenuity and a significant milestone in the evolution of motocross bikes.
