Understanding Bike Brake Pads

The Essential Stopping Power: A Deep Dive into Bike Brake Pads

As cyclists, we often take for granted the magical ability of our bikes to slow down and stop on command. This seemingly simple action is, in reality, a sophisticated interplay of mechanical components, and at the very heart of this system lies the humble yet incredibly important brake pad. Without properly functioning brake pads, your cycling adventures would be fraught with peril, making their understanding and maintenance a fundamental aspect of responsible cycling. This article will delve into the world of bike brake pads, exploring what they are, the different types available, how they work, and crucial information regarding their maintenance and replacement.

What Exactly Are Bike Brake Pads?

At their core, bike brake pads are the components that create friction against the wheel's rim or rotor, converting the kinetic energy of your moving bicycle into heat, thus slowing you down. They are typically made from materials designed to withstand significant wear and tear while providing reliable stopping power. The design and material composition of brake pads are critical, as they directly influence braking performance, durability, and even the longevity of your wheel rims or rotors.

The Mechanics of Stopping: How Brake Pads Work

The operation of brake pads is elegantly simple, yet profoundly effective. When you squeeze the brake lever, a cable (or hydraulic fluid in hydraulic systems) is actuated, which in turn pushes the brake caliper or mechanism. This mechanism forces the brake pads to press firmly against the braking surface of the wheel. The friction generated between the pad material and the rim or rotor is what slows the wheel's rotation. The harder you squeeze the lever, the greater the force applied, and thus, the more intense the friction and braking effect.

A Spectrum of Stopping: Types of Bike Brake Pads

The world of cycling boasts a variety of brake systems, and consequently, a variety of brake pad types to match. Understanding these differences is key to selecting the right pads for your bike and riding conditions. The most common types can be broadly categorised:

1. Rim Brake Pads

These are the most traditional type, designed to work with rim brake systems (like caliper, V-brakes, and cantilever brakes). They are typically made from rubber or a composite material and are mounted on a metal post that is secured to the brake caliper. The pad itself is shaped to make direct contact with the braking surface of the wheel's rim.

• Materials: Commonly found in compounds like Kevlar, rubber, cork, and various synthetic blends. Each material offers different characteristics in terms of grip, durability, and performance in wet conditions.
• Durability: Generally wear out faster than disc brake pads, especially in wet or muddy conditions.
• Performance: Can be very effective in dry conditions, but their performance can degrade significantly when wet or dirty.

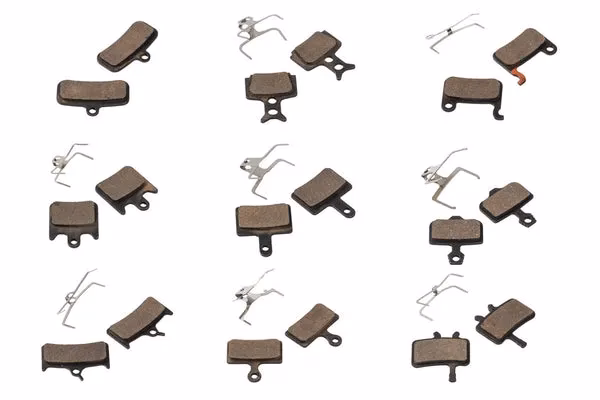

2. Disc Brake Pads

Disc brake systems have become increasingly popular due to their superior stopping power and consistent performance, especially in adverse weather. Disc brake pads are smaller and are housed within the brake caliper, pressing against a metal rotor attached to the wheel hub.

• Organic (Resin) Pads: These pads use a softer composite material, often mixed with resins. They offer excellent initial bite and modulation (the ability to control braking force), are quieter, and generally easier on rotors. However, they tend to wear out faster than metallic pads and can fade under prolonged heavy braking (like long descents).
• Metallic (Sintered) Pads: These are made from metallic compounds (like copper, iron, and steel) that are sintered (heated to a high temperature) to form a hard, durable material. They offer superior stopping power, especially in wet conditions, and are much more resistant to fading. However, they can be noisier, take longer to bed in, and can wear down rotors more quickly.
• Semi-Metallic Pads: As the name suggests, these are a hybrid, combining organic and metallic materials. They aim to offer a balance between the best characteristics of both – good stopping power, reasonable durability, and less noise than full metallic pads.

Factors Influencing Brake Pad Choice

When selecting replacement brake pads, several factors should be considered to ensure optimal performance for your specific needs:

• Riding Conditions: Are you a fair-weather road cyclist, a mud-loving mountain biker, or do you commute in all weathers? Dry, dusty conditions might favour one compound, while wet, muddy trails demand another.
• Brake System Type: Ensure you purchase pads compatible with your specific brake system (rim or disc) and even your brake model.
• Rider Preference: Some riders prioritise quiet operation and good modulation, while others seek maximum stopping power above all else.
• Budget: Prices can vary significantly between different pad types and brands.

Maintenance: Keeping Your Brakes in Top Form

Proper maintenance of your brake pads is paramount for both safety and performance. Neglecting them can lead to reduced stopping power, premature wear of other components, and potentially dangerous situations.

Inspecting Your Brake Pads

Regular visual inspection is key. Look for the following:

• Wear Indicators: Many brake pads have small grooves or lines. When these are no longer visible, it's time for replacement.
• Uneven Wear: If one side of the pad is more worn than the other, it might indicate an alignment issue with your caliper.
• Contamination: Oil, grease, or excessive dirt can contaminate the pad surface, significantly reducing their effectiveness. If contaminated, they should be cleaned or replaced.
• Damage: Cracks, chunks missing, or embedded debris can compromise performance.

Cleaning and Care

For rim brake pads, a gentle wipe with a clean cloth can remove surface dirt. For disc brake pads, it's crucial to avoid getting lubricants or degreasers on the pad surface. If they become contaminated, cleaning with isopropyl alcohol might help, but often replacement is the best course of action. Ensure your wheel rims or rotors are also clean.

Alignment and Adjustment

Brake pads need to be properly aligned with the braking surface. For rim brakes, the pad should contact the rim squarely, not the tyre. For disc brakes, the pad should make even contact with the rotor. Misaligned pads can lead to uneven wear and reduced braking efficiency.

When to Replace Your Brake Pads

Brake pads are a consumable item and will eventually wear out. Knowing when to replace them is a critical safety measure.

• Visual Wear Indicators: As mentioned, the presence of wear lines or grooves is the most direct indicator.
• Reduced Braking Power: If you find yourself squeezing the brake levers harder than usual to achieve the same stopping effect, your pads are likely worn down.
• Noisy Brakes: While some noise can be normal, a persistent grinding or squealing, especially metal-on-metal sounds, often indicates that the pad material has worn away, exposing the backing plate. This is a serious issue as it can damage your rim or rotor.
• Soft Brake Lever Feel: In hydraulic systems, a brake lever that feels spongy or pulls all the way to the handlebar can indicate worn pads or issues with the hydraulic fluid.

The lifespan of brake pads can vary greatly depending on the type of pad, riding style, terrain, and weather conditions. A mountain biker tackling steep, muddy descents will wear through pads much faster than a casual road cyclist on dry, paved paths.

Frequently Asked Questions (FAQ)

Q1: How often should I check my brake pads?
It's recommended to check your brake pads before every significant ride, or at least once a month, depending on your riding frequency and conditions.

Q2: Can I mix different types of brake pads?
It's generally not recommended to mix different types or compounds of brake pads on the same wheel, or even on the same bike, as it can lead to inconsistent braking performance.

Q3: Will worn brake pads damage my wheels?
Yes, if brake pads wear down completely, the metal backing plate (on disc brake pads) or the metal structural components (on some rim brake pads) can come into contact with the rim or rotor, causing significant damage and requiring costly repairs or replacements.

Q4: What's the difference between rim brake pads and disc brake pads?
Rim brake pads contact the wheel's rim, while disc brake pads contact a metal rotor attached to the wheel's hub. They are not interchangeable.

Q5: How do I bed in new disc brake pads?
Bedding in, or 'burning in', is a process that helps transfer a thin layer of pad material to the rotor for optimal performance. Typically, it involves a series of moderate-speed stops, gradually increasing intensity, without coming to a complete halt, followed by allowing the brakes to cool. Consult your brake manufacturer's instructions for specific procedures.

Conclusion: The Unsung Heroes of Your Ride

Bike brake pads might be small and often overlooked, but their role in ensuring a safe and enjoyable cycling experience cannot be overstated. By understanding the different types, performing regular maintenance, and knowing when to replace them, you can guarantee that your bike's stopping power remains consistently reliable, allowing you to ride with confidence and control, no matter the terrain or conditions. So, give your brake pads the attention they deserve – they are truly the unsung heroes of every cycle.
