Essential Welding Types for Car Repair

Welding is an indispensable skill in the realm of car repair, serving as the backbone for maintaining a vehicle's structural integrity and ensuring passenger safety. From patching minor rust spots to undertaking comprehensive restoration projects, the ability to join metals securely is paramount. This guide delves into the primary welding techniques employed in automotive repair, outlining their applications, the crucial equipment required, and, most importantly, the stringent safety measures every technician must observe. Mastering these elements is not just about producing a strong weld; it's about guaranteeing the reliability and longevity of the vehicle itself.

Understanding Automotive Welding

Automotive welding specifically refers to the processes used to join, repair, or fabricate metal components within vehicles. This encompasses everything from the chassis and body panels to exhaust systems and suspension parts. The metals involved are diverse, including various types of steel, aluminium, and even magnesium alloys, each requiring specific welding approaches. The goal is always to create robust, durable bonds that can withstand the stresses and impacts inherent in vehicle operation, directly influencing a vehicle's crashworthiness and overall performance.

Key Welding Techniques for Car Repair

The automotive repair industry primarily relies on a few core welding techniques, each with its distinct advantages and ideal applications. Understanding these methods is fundamental to achieving high-quality, lasting repairs.

MIG Welding (Metal Inert Gas Welding)

MIG welding, also known as Gas Metal Arc Welding (GMAW), is arguably the most popular and versatile technique used in car repair. It involves a continuous wire electrode fed through a welding gun, which melts and joins the metal pieces. An inert gas, typically a mixture of argon and carbon dioxide, shields the weld pool from atmospheric contaminants, ensuring a clean and strong bond.

• How it Works: The MIG gun is connected to a wire feeder and a gas cylinder. When the trigger is pulled, the wire feeds through, creating an electric arc that melts both the wire and the base metal. The shielding gas protects the molten metal.
• Applications in Car Repair: Its ease of use and versatility make it ideal for general bodywork, repairing chassis components, and welding various metals, including mild steel and aluminium (with appropriate wire and gas). It's excellent for patching rust, mending collision damage, and fabricating new sections.
• Advantages: High welding speed, relatively easy to learn, produces clean welds with minimal spatter, and allows for long, uninterrupted weld beads. It's forgiving for beginners, making it a staple in many auto repair shops.

TIG Welding (Tungsten Inert Gas Welding)

TIG welding, or Gas Tungsten Arc Welding (GTAW), is renowned for its precision and the exceptional quality of its welds. Unlike MIG, it uses a non-consumable tungsten electrode to create the arc. A separate filler rod is manually fed into the weld pool if additional material is required. An inert gas, usually pure argon, provides shielding.

• How it Works: An arc is struck between the tungsten electrode and the workpiece. The welder precisely controls the heat input, often with a foot pedal, and manually adds filler material. The inert gas prevents contamination.
• Applications in Car Repair: TIG is the go-to for intricate tasks where aesthetic appearance and superior strength are critical. This includes welding thinner materials, custom exhaust systems, engine components, suspension parts, and highly precise aluminium bodywork.
• Advantages: Produces extremely clean, high-quality welds with excellent aesthetic appeal. Offers superior control over the weld bead, making it ideal for delicate and intricate welding tasks where precision is paramount.

Spot Welding (Resistance Spot Welding)

Spot welding is a resistance welding process primarily used to join two or more sheets of metal by applying pressure and heat at specific points. It's incredibly fast and efficient, making it a cornerstone of automotive manufacturing and increasingly important in collision repair.

• How it Works: Two electrodes clamp the metal sheets together. A high electrical current passes through the sheets, and the resistance generates heat, melting the metal at the contact point to form a 'nugget' or spot weld. This happens in less than a second.
• Applications in Car Repair: Widely used for assembling body panels, door skins, bonnets, and other sheet metal components where quick, strong, and localised joints are required. It's often mandated by manufacturers for certain collision repairs to replicate original factory welds.
• Advantages: Creates strong, reliable joints with minimal distortion to the surrounding metal. Requires no filler material or shielding gases, produces minimal waste, and allows for a quick succession of welds, making it highly cost-effective and efficient for high-volume tasks.

Other Relevant Welding Techniques

While MIG, TIG, and Spot welding are the mainstays, other methods have niche applications in car repair:

• Stick Welding (Shielded Metal Arc Welding - SMAW): A more traditional method using a consumable electrode stick. It's robust and can be used in less-than-ideal conditions, often employed for heavier components or outdoor repairs where surface conditions might not be pristine.
• Laser Welding: Primarily found in automotive production due to its high precision and speed, laser welding uses a focused light beam. Handheld fibre laser welders are becoming more accessible for custom fabrication where extreme accuracy is needed.
• Brazing: Not strictly welding as it doesn't melt the base metal, only a filler metal with a lower melting point. Some manufacturers recommend brazing for certain collision repairs to preserve the original metallurgical properties of the base metal.

Comparative Overview of Welding Techniques

Choosing the right welding method depends on the material, thickness, required precision, and specific application. Here's a brief comparison:

Essential Equipment for Automotive Welding

Having the correct tools and equipment is fundamental for both the quality of the weld and the safety of the welder. An improper choice can lead to weak welds or significant hazards.

• Welding Machine: This is the core of your setup. For automotive work, a good MIG welder is often the primary choice due to its versatility. However, for precision tasks, a TIG welder is indispensable. Ensure the machine matches the thickness of the metal you'll be working with and your experience level.
• Welding Helmet: Absolutely critical for protecting your eyes and face from intense UV and IR radiation, sparks, and heat. An auto-darkening helmet is highly recommended as it automatically adjusts the lens shade, offering better visibility and protection.
• Welding Gloves: Essential for protecting your hands from heat, sparks, and spatter. They should be durable, heat-resistant, and provide enough dexterity for precise work.
• Flame-Resistant Clothing: Protects your body from sparks and heat. Avoid synthetic materials that can melt onto your skin. Leather aprons and sleeves are excellent additions.
• Steel-Toed Boots: Protect your feet from falling objects and molten metal.
• Angle Grinder: Used for preparing surfaces by removing rust, paint, and contaminants, and for finishing welds by smoothing out excess material.
• Wire Brush: For cleaning metal surfaces before and after welding.
• Clamps and Magnets: Crucial for securely holding metal pieces in place during welding, ensuring stability and accurate alignment.
• Chipping Hammer: Used to remove slag (from stick welding) and spatter from the weld bead.
• Fire Extinguisher: Always have one readily available in the workspace.

Mastering Welding Techniques: Best Practices

Achieving a strong, clean, and durable weld goes beyond just striking an arc. It involves meticulous preparation and refined technique.

• Clean Surfaces: The absolute cornerstone of a successful weld. All surfaces must be immaculately clean and free from rust, paint, oil, grease, and any other contaminants. Use a wire brush or grinder to prepare the areas thoroughly. Cleanliness ensures proper penetration and a strong, lasting bond.
• Joint Preparation: Proper joint preparation is equally vital. Ensure the edges of the metal align perfectly, leaving no unnecessary gaps. For thicker materials, bevelling the edges might be necessary to allow for full penetration. This preparation significantly contributes to the overall structural integrity of the weld.
• Angle and Travel Speed: Maintaining the correct welding angle and consistent travel speed is crucial for a quality weld. The angle of the welding gun (or electrode) and the speed at which you move it directly influence the weld's appearance, penetration, and strength. Practise is key to finding the right balance for different materials and thicknesses.
• Welding Patterns: Various welding patterns, such as the weave, circle, or stitch, can be employed depending on the joint type and material. Understanding when and how to apply these patterns ensures a consistent and reliable weld bead.
• Troubleshooting Common Issues: Even experienced welders encounter problems like porosity (tiny holes in the weld), burn-through (melting through thin material), or incomplete penetration. Knowing how to identify the causes (e.g., incorrect settings, poor preparation) and addressing them promptly is crucial for achieving high-quality welds.
• Post-Welding Inspection: After completing a weld, it's imperative to inspect it thoroughly for any defects such as cracks, irregularities, or inadequate fusion. For critical applications, non-destructive testing methods like dye penetrant or X-ray inspection can be used to ensure the weld meets stringent safety standards.

Safety First: Crucial Precautions

Welding inherently poses several significant safety risks, including exposure to harmful UV and IR radiation, flying sparks, hot metal, and electric shock. Adhering to strict safety protocols is non-negotiable.

• Workspace Preparation: Always work in a clean, well-organised area. Remove any flammable materials – fuel, oil, rags, plastics – from the vicinity. Ensure proper ventilation to disperse harmful fumes and gases, which can cause respiratory issues. Adequate lighting is also critical for maintaining accuracy and safety.
• Personal Protective Equipment (PPE): Always wear a welding helmet with the correct shade lens, flame-resistant clothing (long sleeves and trousers), heavy-duty welding gloves, and steel-toed boots. Ear protection can also be beneficial if noise levels are high.
• Electrical Safety: Properly ground your welding equipment to prevent electric shock. Regularly inspect cables and connections for damage. Never weld in wet conditions.
• Fire Prevention: Have a fire extinguisher (ABC type is generally suitable) readily accessible. Be aware of your surroundings and potential ignition sources. Keep a fire watch if welding in areas with hidden flammable materials.
• First Aid: Always have a well-stocked first aid kit on standby in case of minor burns or injuries. Know the location of emergency exits and procedures.

Welding Specific Materials in Car Repair

Different metals react uniquely to the welding process, requiring specific techniques and considerations.

• Welding Aluminium: Aluminium welding presents unique challenges due to its low melting point, high thermal conductivity, and tendency to oxidise rapidly. It often requires specialised equipment, such as an AC TIG welder or a MIG welder with a spool gun and appropriate aluminium wire. Careful surface preparation is even more critical for aluminium to remove the oxide layer.
• Welding Rusty Metal: While it's advisable to remove all rust before welding for a strong bond, sometimes minor surface rust might be present. Welding rusty metal can lead to porosity and weak welds. Thorough cleaning with a wire brush or grinder is paramount to achieve a clean, solid joint.
• Dissimilar Metals: Modern vehicles increasingly use a combination of different metals (e.g., high-strength steel with aluminium). Welding dissimilar materials requires advanced knowledge of metallurgy and specific filler materials to ensure compatibility and prevent premature failure.

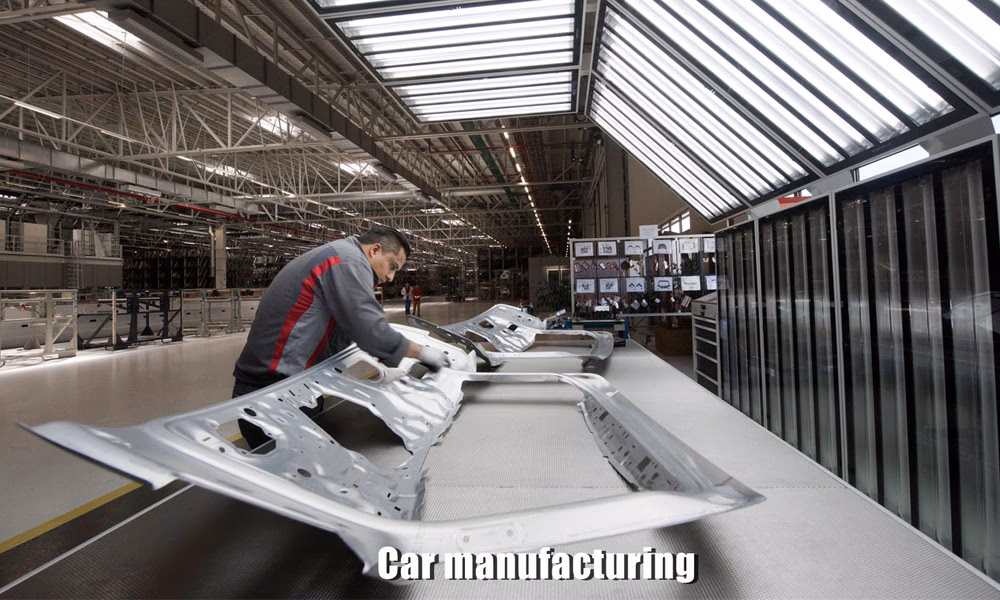

Manual vs. Robotic Welding in Automotive Repair

While robotic welding dominates automotive production lines for its speed and consistency, manual welding remains indispensable in repair shops. Technicians rely on their skill and adaptability for custom repairs, intricate jobs, and situations where robotic setups are impractical. Manual welding offers the flexibility to work in various positions and quickly adapt to unique or complex tasks, making it cost-effective for lower-volume repair work.

Frequently Asked Questions about Welding in Car Repair

Is welding necessary for all car repairs?

Welding is often required for car repairs, especially when dealing with structural components, chassis damage, or significant body panel replacement. It ensures the vehicle's long-term safety and structural integrity. For minor dents or cosmetic issues, alternative repair methods may be suitable, but for anything affecting the vehicle's strength, welding is usually essential.

Can I learn welding for car repair on my own?

While it's possible to pick up basic welding skills independently, it's highly recommended to seek guidance from qualified professionals or enrol in a dedicated welding course. Proper training ensures you learn safe practises, correct techniques, and understand the metallurgical aspects crucial for quality and safety in automotive applications.

What safety equipment is essential for welding in car repair?

Essential safety equipment includes a high-quality welding helmet with an auto-darkening lens, flame-resistant clothing (long sleeves and trousers), heavy-duty welding gloves, steel-toed boots, and adequate ventilation. Always have a fire extinguisher readily available and ensure proper grounding of your equipment.

How do I choose the right welding machine for car repair?

The choice of welding machine depends on the type of welding you'll primarily be doing, the thickness and type of metals involved (e.g., steel, aluminium), and your skill level. For general auto body work, a versatile MIG welder is often recommended. For precision work on thinner materials or aluminium, a TIG welder is preferable. Consulting with experienced welders or suppliers can provide tailored advice.

What is the most common type of welding used in car repair?

MIG welding is widely considered the most common type of welding used in car repair due to its versatility, relative ease of use, and efficiency in handling a broad range of automotive metals and repair scenarios, from chassis work to body panel repairs.

Can I weld rusty metal in car repair?

Welding rusty metal is generally challenging and not recommended. Rust can contaminate the weld, leading to porosity, weak spots, and an overall poor-quality bond. It is always advisable to thoroughly remove all rust and contaminants from the metal surface before attempting any weld for a strong and durable repair.

How do I prevent weld splatter?

Weld splatter, small molten metal droplets, can be minimised by adjusting your weld settings (voltage and wire feed speed for MIG), using an anti-spatter spray on the workpiece and nozzle, ensuring proper work angle and travel speed, and maintaining good technique. Clean base metal also helps reduce splatter.

Is TIG welding better than MIG welding for car repair?

Neither TIG nor MIG welding is universally 'better'; their suitability depends on the specific application. TIG welding offers superior precision, control, and aesthetic quality, making it ideal for intricate work on thin materials or specialised alloys like aluminium. MIG welding, conversely, is faster, easier for beginners, and more versatile for general bodywork and thicker materials. Many professional shops utilise both.

What is the typical cost of welding equipment for car repair?

The cost of welding equipment for car repair can vary significantly. A basic, entry-level MIG welder suitable for hobbyists or light repair might cost a few hundred pounds. More advanced, professional-grade MIG or TIG welders can range from £1,000 to several thousand pounds, depending on features, brand, and power output. Don't forget to budget for essential safety gear and consumables too.

Can exhaust pipes be welded in car repair?

Yes, welding exhaust pipes is a very common task in car repair. Stainless steel exhaust systems are often repaired using TIG welding for clean, strong, and aesthetically pleasing joints. Mild steel exhausts can typically be welded with MIG. Ensuring the right materials and techniques are used is crucial to prevent leaks and ensure proper exhaust function and longevity.

Conclusion

Mastering the art of welding in car repair is a continuous journey that demands a blend of technical skill, unwavering precision, and an absolute commitment to safety. Whether you're an aspiring automotive technician or a seasoned professional, a deep understanding of the various welding techniques, the correct use of equipment, and stringent safety measures are paramount for successful and secure car repairs. Always prioritise safety above all else, invest in high-quality, appropriate equipment, and consistently refine your welding skills. By doing so, you will ensure the structural integrity, longevity, and ultimate safety of every vehicle you work on, delivering peace of mind to both yourself and the vehicle's owner.
