Choosing the Right Sandpaper for Your Car

Refinishing your car can be a rewarding experience, whether you're breathing new life into faded paint or embarking on a complete colour transformation. Central to achieving a professional, showroom-quality finish is the correct use of sandpaper. Far from being a one-size-fits-all tool, sandpaper comes in a vast array of grits, each designed for specific tasks in the automotive refinishing process. Understanding these distinctions is crucial for both novice DIYers and seasoned professionals. This guide will demystify the world of automotive sandpaper, helping you select the ideal grit for every stage of your project, from initial repair to the final buff.

Why Use Automotive Sandpaper?

Automotive sandpaper is indispensable when preparing a vehicle for a new coat of paint. Its primary function is to create a smooth, clean surface that promotes optimal adhesion for primers, paints, and clear coats. Beyond surface preparation, sandpaper is vital for:

• Removing old paint and rust: Aggressive grits can efficiently strip away damaged or unwanted layers of paint and tackle corrosive rust.
• Smoothing imperfections: Medium to fine grits are used to level out minor scratches, dents, and uneven areas.
• Preparing surfaces for primer: Specific grits ensure the primer adheres effectively, preventing future lifting or peeling.
• Buffing and polishing: Ultra-fine grits are used after painting to achieve a high-gloss, mirror-like finish.

It's important to remember that sandpaper is often used in conjunction with power tools like orbital sanders or DA (Dual Action) sanders, which require specific disc or sheet sizes. Always ensure the sandpaper you purchase is compatible with your chosen tool. While sanding by hand is possible for small areas, it's rarely effective for an entire vehicle.

The Importance of Grit: Understanding the Numbers

Sandpaper is graded by its 'grit', which refers to the size of the abrasive particles bonded to the paper. The numbering system is inversely proportional to the coarseness: a lower grit number signifies larger, coarser abrasive particles, while a higher grit number indicates smaller, finer particles.

Key Principle: Lower grit = Coarser, More aggressive. Higher grit = Finer, Less aggressive.

The choice of grit is dictated by the task at hand. Aggressive sanding to remove significant material requires a low grit, whereas finishing and polishing demand high grits.

Sandpaper Grit Guide for Automotive Tasks

Navigating the multitude of grit options can be daunting. Here’s a breakdown of common automotive tasks and the recommended sandpaper grits:

Extra Coarse Grits (24-80 Grit)

These are your heavy-duty workhorses, designed for substantial material removal. Use them with caution to avoid creating deep scratches that will require extensive work to rectify.

• 24-40 Grit: Ideal for heavy paint removal, stripping multiple layers of old paint, and aggressive rust removal. Can also be used for shaping body filler. These are very aggressive and will leave noticeable scratches.
• 60-80 Grit: Suitable for moderate paint removal, shaping body filler, and smoothing metal surfaces after initial rough sanding. Still quite coarse, but less aggressive than 24-40 grit.

Medium Grits (100-220 Grit)

These grits are used for refining the surface after aggressive sanding or for removing lighter imperfections.

• 100-150 Grit: Good for smoothing out the scratches left by coarser grits, initial shaping of body filler, and removing lighter rust or corrosion.
• 180-220 Grit: Excellent for smoothing body filler, removing minor imperfections, and preparing surfaces for primer, especially if you've used a lower grit previously.

Fine Grits (240-600 Grit)

These grits are crucial for preparing the surface for paint application, ensuring a smooth and uniform finish.

• 240-320 Grit: Commonly used for wet sanding primer, smoothing out minor imperfections, and feathering edges after using coarser grits. This range is excellent for ensuring a smooth base for paint.
• 400-600 Grit: Used for final preparation of primer before applying paint, or for wet sanding minor imperfections in new paint (like runs or dust nibs). This grit range is critical for achieving a smooth surface for the top coat.

Ultra-Fine Grits (800 Grit and Above)

Reserved for the final stages of the painting process, these grits are for polishing and achieving a high-gloss finish.

• 800-1500 Grit: Used for wet sanding after the first coat of paint or clear coat to remove imperfections, orange peel, or dust nibs.
• 2000-4000 Grit: Primarily used for compounding and polishing the final clear coat to achieve a deep shine and a smooth, glass-like finish. Always use wet sanding techniques with these ultra-fine grits.

Wet vs. Dry Sanding

The choice between wet and dry sanding depends on the grit and the desired outcome:

• Dry Sanding: More common with coarser grits for initial paint removal, rust removal, and shaping body filler. It can create dust, so proper ventilation and respiratory protection are essential.
• Wet Sanding: Utilises water or a lubricating compound and is typically used with finer grits (240 grit and above). Water acts as a lubricant, reducing heat build-up, preventing the sandpaper from clogging with debris, and providing a smoother finish. It's particularly important for ultra-fine grits to prevent scratching.

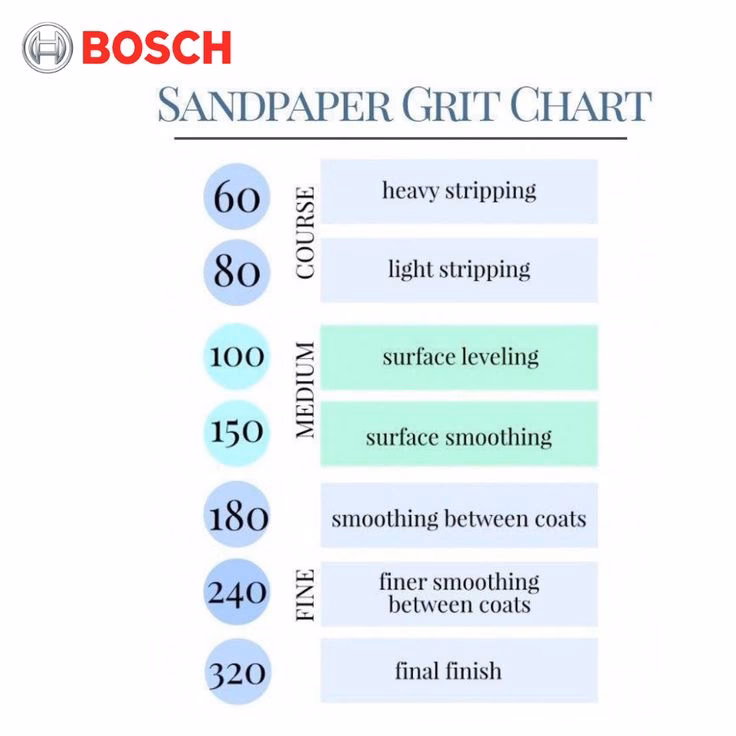

Table: Sandpaper Grit Recommendations for Auto Body Work

Pro Tips for Sanding Success

• Use a Sanding Block: When sanding by hand, always use a sanding block. This ensures even pressure distribution, preventing uneven sanding and potential damage to the surface.
• Work in Stages: Progress gradually from coarser grits to finer grits. Never skip grits, as this can leave deep scratches that are difficult to remove.
• Evaluate Regularly: Periodically step back and view your work from different angles. Check for consistency and avoid over-sanding, which can thin the metal or damage underlying layers.
• Keep it Clean: Ensure the surface and your sandpaper are free of debris. For wet sanding, use plenty of water or lubricant. For dry sanding, periodically brush or blow away dust.
• Safety First: Always wear appropriate personal protective equipment (PPE), including safety glasses, a respirator mask (especially for dry sanding), and gloves.
• Consider the Material: Different sandpaper types (e.g., aluminum oxide, silicon carbide) are suited for different materials. For automotive work, look for sandpaper specifically designed for metal and paint.

Frequently Asked Questions

What grit sandpaper should I use to remove rust?

For significant rust, start with a coarse grit like 40 or 60. For lighter rust or after initial removal, move to 80 or 120 grit to smooth the area before proceeding with primer.

What grit sandpaper is best for smoothing body filler?

After initial shaping with coarser grits (like 80), use 120-180 grit to smooth the body filler and feather the edges into the surrounding metal or paint. Follow with 220-320 grit for final preparation before priming.

Can I use sandpaper on a new car's paint?

Typically, you wouldn't sand a new car's paint unless you're correcting a defect. If you need to remove a single coat of paint for a custom job, start with a finer grit like 150 or 240, depending on the paint's thickness and condition. For minor blemishes on new paint, ultra-fine grits (1500+) used with wet sanding and polishing compounds are appropriate.

When should I use wet sanding?

Wet sanding is generally recommended for grits 240 and above. It's crucial for finer grits to prevent clogging and achieve a smoother finish. It's especially important when polishing after painting.

Choosing the right sandpaper is a critical step in any automotive refinishing project. By understanding the function of each grit and employing proper techniques, you can achieve professional results that enhance the appearance and longevity of your vehicle's finish. Always remember to prioritize safety and work methodically through the grit progression for the best possible outcome.
