ESC: Essential Car Stability Control

Imagine navigating a sudden downpour, an unexpected patch of ice, or needing to swerve sharply to avoid an obstacle. In such critical moments, your car’s ability to maintain grip and direction is paramount. This is where Electronic Stability Control, or ESC, steps in – a technological marvel designed to be your silent co-pilot, actively working to keep your vehicle firmly on its intended path. Originally developed and introduced by automotive pioneers Bosch and Mercedes-Benz in the 1980s, ESC steadily gained recognition for its profound impact on road safety. By the 1990s and 2000s, it was becoming an increasingly vital component in vehicle safety systems, culminating in 2014 when it was made standard on all new cars across Europe by legislation. This legal requirement continues to apply to new cars sold in the UK post-Brexit, underscoring its indispensable role.

But what exactly is this sophisticated system? And how does it manage to intervene so effectively, often without you even fully realising it? On this page, we'll walk you through the intricacies of ESC, explaining its mechanics, its indicators, and precisely how it can be a genuine lifesaver on the road.

What Exactly is Electronic Stability Control (ESC)?

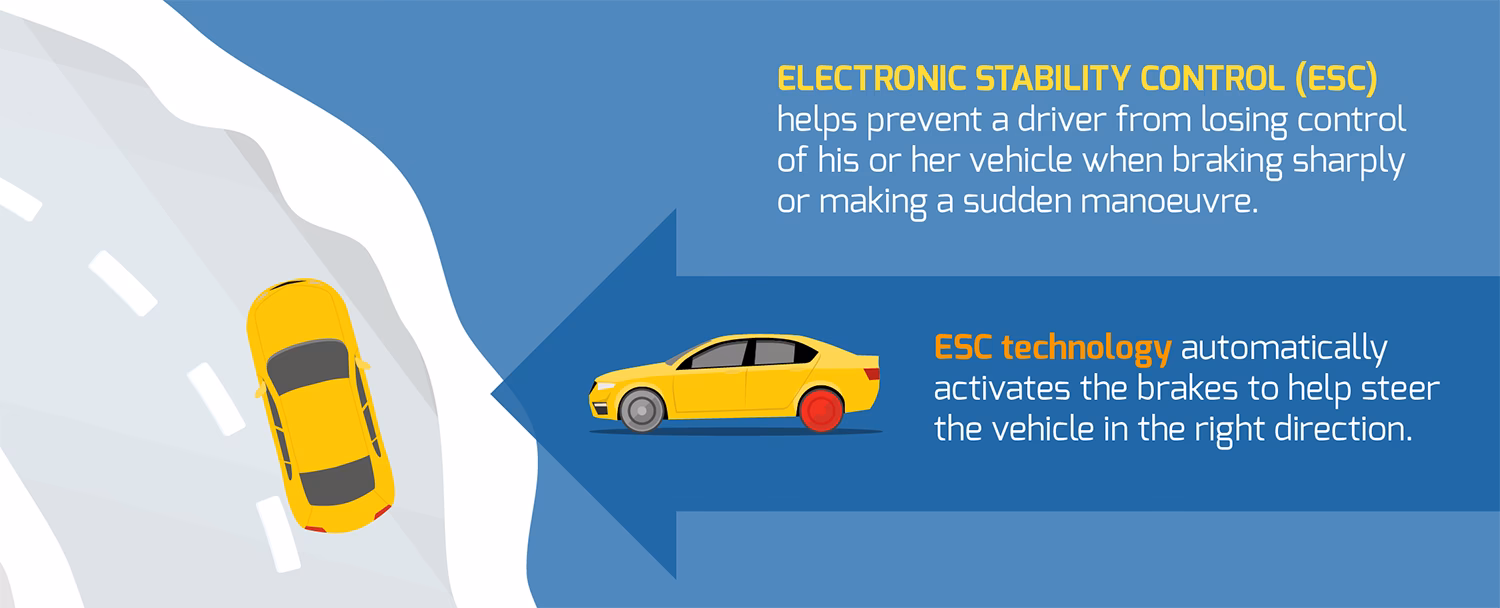

At its core, Electronic Stability Control (ESC) is an advanced electronic safety system engineered to prevent a vehicle from skidding out of control. It achieves this by intelligently managing the car's brakes and, in some instances, its engine power. Think of it as an invisible hand guiding your car back to stability when it detects that you're losing traction or deviating from your intended trajectory. It's a proactive system that doesn't just react to a skid but actively works to prevent one from escalating, ensuring your wheels maintain as much grip as possible on the road surface.

While the specific algorithms and components may vary slightly between manufacturers, the fundamental purpose of ESC remains consistent: to enhance vehicle stability and significantly reduce the risk of accidents caused by loss of control, particularly in adverse driving conditions or during sudden evasive manoeuvres.

The Science Behind the Safety: How ESC Works

The magic of ESC lies in its continuous monitoring and rapid response capabilities. It’s a complex interplay of sensors, an electronic control unit (ECU), and various actuators that work in harmony to maintain your car’s composure. Here’s a breakdown of how this remarkable system operates:

The Eyes and Ears: ESC's Array of Sensors

For ESC to function effectively, it needs to gather real-time data about what your car is doing and what you, the driver, intend for it to do. It achieves this through a network of sophisticated sensors:

• Wheel Speed Sensors: These are the same sensors used by your Anti-lock Braking System (ABS). They continuously monitor the rotational speed of each individual wheel. By comparing these speeds, the system can detect if a wheel is spinning too fast (indicating loss of traction during acceleration) or locking up (during braking).
• Steering Angle Sensor: Located in the steering column, this sensor measures the exact angle of your steering wheel. This tells the ESC system your intended path and how sharply you wish to turn.
• Yaw Rate Sensor: This crucial sensor measures the car's rotation around its vertical axis. In simpler terms, it detects if the car is actually turning, or 'yawing', and how quickly. If the car is skidding, this sensor will register an unintended rotation.
• Lateral Acceleration Sensor: This sensor measures the sideways force acting on the car. It helps the ESC determine if the vehicle is sliding sideways or experiencing excessive G-forces during a turn.

The Brain: The Electronic Control Unit (ECU)

All the data from these sensors is fed into the ESC's dedicated Electronic Control Unit (ECU). This powerful computer constantly analyses the incoming information, comparing the driver's steering input with the vehicle's actual movement. It calculates whether the car is deviating from the driver's intended path, identifying potential scenarios like oversteer or understeer before they become critical.

The Action: Corrective Measures

When the ECU detects a discrepancy between the driver's input and the car's actual behaviour – indicating a loss of stability – it takes swift and precise corrective actions. These actions are typically imperceptible to the driver until the situation is severe, highlighting ESC's seamless integration:

• Individual Wheel Braking: This is the primary and most effective method. The ESC system can apply the brake to a single wheel, or multiple wheels, independently. By selectively braking one wheel, it creates a rotational force that helps to steer the car back onto its intended line. For example, if the car is oversteering (rear sliding out), the system might brake the outer front wheel to pull the car's nose back into the turn. If it's understeering (front sliding wide), it might brake the inner rear wheel to help the front end grip and turn more effectively.
• Engine Power Reduction: In conjunction with braking, the ESC system can momentarily reduce engine power. This helps to reduce wheel spin, especially during acceleration on slippery surfaces, allowing the wheels to regain traction.

This rapid and precise intervention works to maintain as much grip as possible in the event of a car skidding, whether it's due to a slippery road surface, accelerating too hard, or negotiating tight corners. The entire process happens in milliseconds, far faster than any human reaction.

Understanding Oversteer and Understeer

ESC's main goal is to counteract two specific types of skids:

• Oversteer: This occurs when the rear wheels lose traction, causing the back of the car to slide outwards and the car to turn more sharply than intended (often described as the car's rear 'coming around'). ESC corrects this by applying the brake to the outer front wheel, which helps to straighten the car's path.
• Understeer: This happens when the front wheels lose traction, causing the car to 'plough' straight ahead despite the steering wheel being turned (the car turns less sharply than intended). ESC counters understeer by applying the brake to the inner rear wheel, which helps the front of the car regain grip and follow the desired steering path.

The ESC Warning Light: What It Means

Your dashboard is designed to communicate vital information about your vehicle's status, and the ESC warning light is no exception. It will flash on the dashboard if the ESC system has been triggered by the car skidding or sliding. This is a normal indication that the system is actively working to keep you safe.

When the light flashes, it will usually be accompanied by a subtle grinding sound or sensation. This is the ESC and the integrated traction control system applying individual wheel brakes to bring the car back under control. The ESC warning light is most commonly depicted as a small yellow triangle with an exclamation mark inside it, or an image of a car with wavy lines behind it.

What Does It Mean If the ESC Light Comes On?

If the ESC light has come on (meaning it's illuminated solidly, not just flashing), it signifies that your car’s electronic safety systems have detected that you’ve been in at least a small skid, or that one or more of your wheels have lost traction and the car has moved off its current trajectory. It’s entirely possible that the ESC system will activate without you having had any physical sensation of the car skidding, but that’s unlikely – normally the system will kick in just before or just after you’ve noticed an issue.

A brief flash of the ESC light is nothing to worry about – it’s most commonly triggered on wet days if you’ve driven through deep water and have briefly aquaplaned – but obviously if it stays on, it means that you’re in a severe skid and you need to act to regain control. If the light stays on after the event, or immediately upon starting the car, it indicates a fault within the system.

"Service ESC" or "ESC Fault": A Deeper Dive

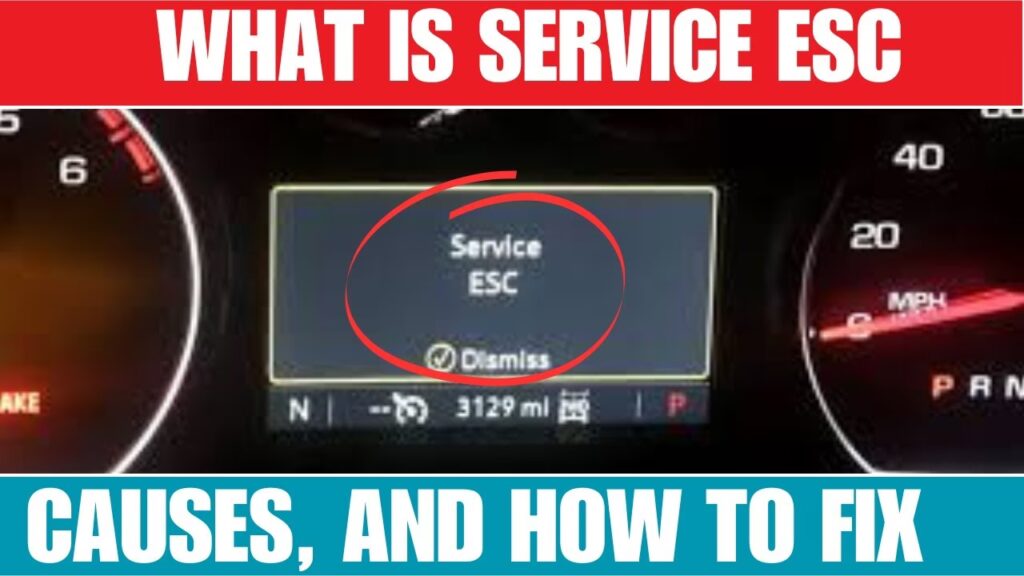

If the ESC warning light comes on and stays on when you start your car, that means that there’s a fault in the system. This might be accompanied by a text message on your car’s dashboard screen which says ‘Service ESC’, ‘ESC Fault’, or something similar. This is a more specific warning, indicating that the system is either malfunctioning or completely inoperable.

How to Fix a "Service ESC" Light

Often, a Service ESC light is just a temporary sensor issue or a minor glitch in the system, perhaps triggered by a temporary voltage drop or a sensor misreading. In such cases, the good old 'switch-it-off-and-switch-it-back-on' procedure will often clear the problem. This involves turning off your car, waiting a few minutes, and then restarting it. If the light goes out, it was likely a temporary anomaly.

However, if the Service ESC light remains on after restarting, then you’ll need to bring your car to a qualified garage as the fault is more serious and may require repair work. Common causes for a persistent Service ESC light include:

• Faulty Wheel Speed Sensor: These sensors are crucial for ESC. If one fails, the system can't accurately determine wheel speeds.
• Steering Angle Sensor Malfunction: An inaccurate reading from this sensor can confuse the ESC system about your steering intentions.
• Yaw Rate or Lateral Acceleration Sensor Issue: If these core stability sensors fail, the system loses its ability to detect skids.
• Wiring Problems: Damaged or corroded wiring to any of the sensors or the ESC module can disrupt communication.
• ABS Module Failure: Since ESC integrates with the ABS, a fault in the ABS control module can also trigger an ESC warning.
• Brake Light Switch Fault: In some vehicles, a faulty brake light switch can interfere with ESC operation, as the system needs to know when the brakes are being applied.

Don’t ignore a Service ESC light – it’s a serious issue. Driving with faulty ESC means you are without a major safety system designed to prevent loss of control, potentially putting your life and the lives of others at significant risk. Prompt diagnosis and repair by a professional are essential.

The Evolution of ESC: A Brief History and Mandate

As mentioned, ESC (sometimes known by manufacturers' specific names like ESP, DSC, VSC, or VSA) has been a legal requirement for all new cars sold in the European Union since November 2014. This legislation was a landmark moment for automotive safety, acknowledging the system's proven effectiveness in reducing accidents. The UK has continued to follow this requirement for new cars sold post-Brexit, ensuring that this vital safety feature remains standard across the board.

While the mandate came into effect in 2014, car manufacturers had been implementing this technology long before that. These systems have been around since the ‘80s and gained significant traction (pun intended) in the early 2000s as their benefits became widely apparent. Therefore, there’s a very good chance your car has some form of ESC, even if it’s quite old now, offering you an extra layer of protection on every journey.

When Can You Turn ESC Off?

Most vehicles equipped with ESC offer a button to temporarily disable the system, or at least reduce its intervention level. While it might seem counterintuitive to turn off a safety feature, there are very specific, limited scenarios where it can be beneficial:

• On a Race Track: For highly skilled drivers on a closed circuit, disabling ESC can allow for more aggressive driving techniques and faster lap times, as it removes the system's interventions that might otherwise limit performance. This is strictly for controlled environments and experienced individuals.
• In Deep Snow, Mud, or Sand: In certain low-traction situations, such as driving through deep snow or mud, ESC might prevent the wheels from spinning enough to gain momentum and free the vehicle. Temporarily turning it off can allow a slight amount of wheel spin, which can be necessary to 'dig out' or maintain forward motion.

Crucial Warning: For normal road driving, especially on public roads, ESC should always be enabled. It is a critical safety system designed to protect you in unexpected situations, and disabling it significantly increases the risk of losing control, particularly in adverse weather or during emergency manoeuvres.

Understanding ESC Warning Light Scenarios

To summarise the meaning of your ESC warning light, here's a quick guide:

Frequently Asked Questions (FAQs) About ESC

Can I drive with ESC turned off?

Yes, you can, and sometimes it’s a good idea in very specific, limited circumstances, as detailed above (e.g., on a race track for skilled drivers, or in deep snow/mud to gain traction). However, for everyday driving on public roads, it is strongly advised to keep ESC enabled at all times as it is a vital safety feature.

Can I drive with the ESC light on (indicating a fault)?

You can, and the car will technically function without ESC, but it’s not a good idea. ESC is a major safety system designed to prevent serious accidents. Driving without it operating properly can significantly increase the risk of losing control, putting you and others in danger, especially in challenging road conditions or during emergency manoeuvres. It should be addressed promptly.

Is ESC light an MOT failure?

Yes, ESC is a mandatory safety feature for cars sold in the EU and UK since 2014. If the ESC warning light is on and the system is not functioning correctly, it constitutes a major defect and is an MOT failure point. This is because a non-functional ESC system compromises the vehicle's safety standards.

Is ESC a required feature?

Yes. In 2014, the European Union introduced a requirement that ESC should be fitted as standard to all new cars sold within its member states. The UK has continued to follow that requirement post-Brexit, meaning all new cars sold in the UK must come equipped with ESC as a standard safety feature.

Electronic Stability Control is a prime example of how automotive technology has evolved to make our roads safer. It's a testament to engineering ingenuity, working tirelessly and often unnoticed to prevent accidents and protect lives. Understanding how it works and what its warning lights mean empowers you as a driver to react appropriately and ensure your vehicle remains in optimal condition. Never underestimate the importance of this silent guardian; if your ESC system signals a fault, ensure it's addressed by a professional without delay. Your safety, and the safety of others, depends on it.
