Ram 1500 Camber: Understanding Your Truck's Stance

When it comes to the handling and tyre longevity of your Ram 1500, understanding wheel alignment is absolutely crucial. Among the various alignment angles, camber often sparks confusion, especially when owners notice specific readings under certain conditions. This article will delve into the nuances of camber on your Ram 1500, addressing whether it typically exhibits negative camber readings, how its factory suspension is designed to accommodate adjustments, and what options are available for those who have modified their vehicle's ride height.

Camber refers to the inward or outward tilt of the wheel when viewed from the front of the vehicle. If the top of the wheel tilts outwards, it's known as positive camber. If the top of the wheel tilts inwards towards the vehicle, it's called negative camber. A perfectly vertical wheel has zero camber. The correct camber setting is vital for ensuring even tyre wear, optimal grip, and stable handling. For a robust vehicle like the Ram 1500, which handles diverse loads and terrains, precise alignment is paramount.

Understanding Negative Camber in Park Mode

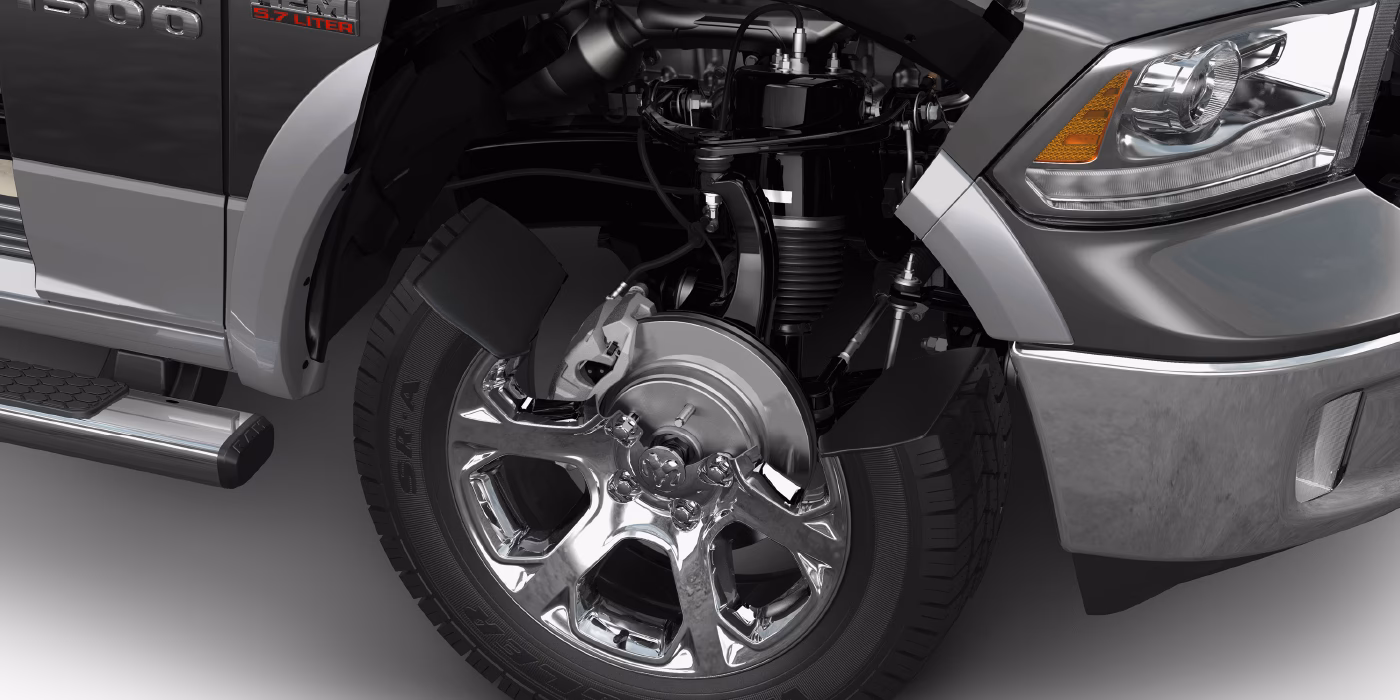

One common observation among Ram 1500 owners is the appearance of negative camber readings when the vehicle is in Park Mode. This is not necessarily an indication of a fault but rather a characteristic of the suspension's design and how the vehicle settles under no load. When the weight of the vehicle is fully resting on the suspension in a static, unmoving state, the geometry can naturally lead to a slight negative camber. This can be more pronounced in some trucks due to various factors including the specific suspension setup, the vehicle's unladen weight, and even the angle of the ground it's parked on.

It's important to differentiate between static readings and dynamic readings. While you might observe negative camber in Park Mode, the crucial factor for performance and tyre wear is the camber setting when the vehicle is at its normal ride height and in motion. Professional alignment shops use specific procedures to measure and adjust camber under conditions that simulate driving, often with the suspension loaded or at a specific ride height to ensure accuracy.

Factory Camber Adjustment Capabilities

The Ram 1500 is equipped with built-in provisions for camber adjustment, a feature that allows mechanics to fine-tune the wheel alignment. Specifically, the Ram 1500 comes with cam adjusters located on the lower control arms at the subframe. These adjusters are essentially eccentric bolts or cams that, when rotated, push or pull the lower control arm in or out, thereby altering the camber angle of the wheel. This factory design provides a reasonable range of adjustment, making it possible to correct minor alignment issues that arise from normal wear and tear or minor suspension component replacements.

These cam adjusters are the primary method used by technicians during a standard wheel alignment procedure. They allow for precise adjustments within the manufacturer's specified range, ensuring that the tyres make optimal contact with the road. However, there are limitations to the range of adjustment these factory components can provide. For vehicles that have undergone significant modifications, such as lifting or lowering, the standard cam adjusters may not offer enough correction to bring the alignment back into specification.

Addressing Camber and Caster on Modified Trucks

Modifying a Ram 1500 with a lift kit or a lowering kit significantly alters the vehicle's suspension geometry. When the ride height changes, the angles of the suspension components, including the control arms, also change. This often results in the wheels moving outside the factory camber and caster specifications. Caster, while distinct from camber, is another critical alignment angle that affects steering stability and return-to-centre action. It refers to the forward or rearward tilt of the steering axis when viewed from the side.

If you need more camber or caster adjustment than the factory cam adjusters can provide on a lifted or lowered truck, a common and effective solution is to install an offset ball joint in the upper control arm. These specialised ball joints are designed with their pivot point offset from the centre, allowing for a greater range of adjustment when installed. By replacing the standard upper ball joint with an offset version, technicians gain additional leverage to push or pull the top of the wheel, thereby significantly increasing the available camber and caster correction.

This modification can yield approximately ±2.25 degrees of camber or caster adjustment. This extended range is often essential for achieving proper alignment on modified trucks, preventing premature tyre wear, and maintaining safe and predictable handling characteristics. Without such modifications, a lifted or lowered Ram 1500 might suffer from excessive tyre wear on one side of the tread, compromised steering response, and instability, especially at higher speeds.

Why Modified Trucks Need More Adjustment

When a Ram 1500 is lifted, the lower control arms drop, pulling the bottom of the wheels outwards relative to the top. This typically results in a positive camber condition that needs to be corrected by bringing the top of the wheel inwards. Conversely, lowering a truck can cause the opposite effect, leading to excessive negative camber as the upper control arm pushes the top of the wheel inwards. In both scenarios, the factory cam adjusters might simply run out of adjustment range before the desired alignment specifications are met. Offset ball joints bridge this gap, allowing the suspension to be properly aligned within a much wider range of ride heights.

The Critical Importance of Correct Alignment

Maintaining correct wheel alignment, including precise camber settings, is paramount for several reasons:

• Tyre Longevity: Incorrect camber leads to uneven tyre wear. Excessive negative camber wears the inner edge of the tyre, while excessive positive camber wears the outer edge. Properly aligned wheels ensure the tyre tread makes full, even contact with the road, maximising its lifespan.
• Handling and Stability: Correct camber contributes to stable handling, especially during cornering. It ensures that the tyre maintains optimal contact with the road surface, providing predictable steering response and reducing the likelihood of the vehicle pulling to one side.
• Fuel Efficiency: Misaligned wheels create more rolling resistance, forcing the engine to work harder. Proper alignment reduces this resistance, potentially leading to better fuel economy.
• Safety: A vehicle with incorrect alignment can be unpredictable, especially during emergency manoeuvres. Good alignment contributes significantly to overall driving safety.

It's advisable to have your Ram 1500's alignment checked annually, or immediately after any significant suspension work, replacement of steering components, or if you notice uneven tyre wear or handling issues.

Checking and Adjusting Camber

Camber, along with other alignment angles like toe and caster, is measured using specialised alignment equipment in a professional workshop. These systems use sensors attached to the wheels to provide highly accurate readings. Based on these readings, a skilled technician will make adjustments using the factory cam adjusters or, if necessary, install and adjust offset ball joints to bring the angles back into specification.

It is not recommended for individuals to attempt camber adjustments without the proper tools and expertise. Incorrect adjustments can lead to severe tyre wear, poor handling, and potentially dangerous driving conditions. Always rely on certified mechanics with the right equipment for any alignment work.

Comparative Look: Standard vs. Modified Camber Adjustment

Frequently Asked Questions About Ram 1500 Camber

What is the difference between camber and caster?

Camber is the inward or outward tilt of the wheel when viewed from the front. Caster is the forward or rearward tilt of the steering axis when viewed from the side. Camber affects tyre contact patch and wear, while caster influences steering stability, effort, and return-to-centre.

How often should I get my Ram 1500 aligned?

It's generally recommended to have your alignment checked annually or every 12,000 to 15,000 miles. You should also get it checked after installing new tyres, after any suspension or steering component replacement, or if you hit a significant pothole or curb.

Can I adjust Ram 1500 camber myself?

While the cam adjusters are visible, precise camber adjustment requires specialised alignment equipment to measure the angles accurately. Attempting to adjust it without this equipment will likely lead to incorrect settings, resulting in tyre wear and handling issues. It's best left to professionals.

What are the signs of bad camber on a Ram 1500?

The most common sign is uneven tyre wear, either on the inner or outer edge of the tread. Other indicators include the vehicle pulling to one side, loose or wandering steering, or the steering wheel not returning to centre after a turn.

Is some negative camber always bad?

Not necessarily. While excessive negative camber is detrimental, a small amount of negative camber is often designed into vehicles for performance reasons, particularly to optimise tyre contact during cornering. The key is to be within the manufacturer's specified range or the appropriate range for a modified setup.

What are offset ball joints made of?

Offset ball joints are typically made from high-strength steel alloys, similar to standard ball joints, but with a design that repositions the pivot point. They are engineered to withstand the rigorous demands of truck suspension systems.

Conclusion

The Ram 1500 is a highly capable truck, and maintaining its suspension and alignment is key to its performance and longevity. While a negative camber reading in Park Mode can be a normal characteristic of its suspension geometry, ensuring proper alignment when the vehicle is at its operational ride height is critical. The factory cam adjusters provide a good range of adjustment for standard vehicles, but for those with lifted or lowered Ram 1500s, the introduction of offset ball joints in the upper control arms becomes an indispensable modification. This allows for the necessary ±2.25 degrees of camber or caster adjustment, ensuring your modified truck handles safely, wears its tyres evenly, and performs as intended on the road. Always consult with a qualified automotive technician for any alignment concerns or modifications to guarantee your Ram 1500 remains in prime condition.
