Brake Disc Thickness: Your Stopping Power

Imagine yourself cruising down a winding mountain road, the scenery breathtaking, the wind in your hair. Suddenly, you need to brake hard to avoid a sharp bend. Your car responds sluggishly, the brakes squealing in protest. This terrifying scenario highlights the critical importance of maintaining your vehicle’s braking system, particularly the brake discs. Brake discs, also commonly known as rotors, are the unsung heroes of your car’s stopping power. They are the metal discs that clamp against the brake pads, converting kinetic energy into heat, ultimately bringing your vehicle to a safe halt. Knowing the minimum thickness of your brake discs is crucial for ensuring safe and reliable braking performance. Ignoring this vital component can lead to compromised safety, increased stopping distances, and even catastrophic brake failure. This article delves into the intricate relationship between brake disc thickness and your car's ability to stop effectively, providing you with the knowledge to keep your vehicle safe on the road.

Understanding Brake Discs and Their Role

Brake discs are fundamental components of your car’s braking system, forming the crucial interface where friction is generated to slow down and stop your vehicle. Typically manufactured from high-grade cast iron, or sometimes composite materials for performance applications, these robust discs are securely attached to the wheel hub and rotate in unison with your wheels. When you apply the brake pedal, hydraulic pressure forces the brake calipers to squeeze the brake pads – friction materials designed for wear – against the rotating brake discs. This immense friction generates significant heat, which is the direct result of converting the car's kinetic energy into thermal energy. It is this controlled generation and dissipation of heat that slows the rotation of the wheels, bringing your car to a complete and safe stop.

Brake discs are engineered to endure extreme temperatures and tremendous pressure cycles. However, the very nature of their operation means they are subjected to continuous wear. Over time, friction from the brake pads gradually erodes the disc material, causing them to become thinner. This wear process can be significantly accelerated by factors such as aggressive driving styles involving frequent hard braking, operating the vehicle in dusty or abrasive environments, or even the use of low-quality or incompatible brake pads that can cause excessive friction and heat build-up.

How Brake Disc Thickness Affects Performance

The physical thickness of a brake disc is not merely a dimension; it is a critical determinant of its ability to perform safely and effectively. As a brake disc wears down and its thickness diminishes, several vital aspects of your braking performance are compromised:

• Reduced Friction Surface and Thermal Mass

  A thinner disc inherently offers less surface area for the brake pads to grip effectively. While the physical contact patch might remain similar, the overall thermal mass of the disc is significantly reduced. This reduction in mass means the disc has less material to absorb and store the heat generated during braking. Consequently, the disc's ability to dissipate heat diminishes rapidly. This leads to reduced friction, as the pads and disc can overheat more quickly, causing a drop in the coefficient of friction. The brake caliper pistons also have to extend further to compensate for the reduced disc thickness, potentially leading to a spongier pedal feel and less efficient force transfer.

• Increased Warping Susceptibility

  Thin brake discs are far more prone to warping. Warping occurs when the disc experiences uneven heating and cooling cycles, leading to thermal distortion. A thinner disc has less material to absorb and distribute heat evenly, making it more susceptible to localised hot spots. When these hot spots cool rapidly, the metal contracts unevenly, causing the disc to deform and become wavy or "warped". This condition manifests as vibrations felt through the steering wheel or brake pedal during braking, often described as a "judder." Warping severely compromises braking efficiency, as the brake pads can no longer make consistent, full contact with the disc surface, leading to reduced stopping power and an uncomfortable driving experience.

• Compromised Heat Dissipation and Brake Fade

  Perhaps one of the most critical functions of brake discs is to effectively dissipate the immense heat generated during braking. Thicker discs possess a greater mass and surface area, allowing them to absorb and dissipate heat far more effectively into the surrounding air. This efficient heat management prevents the brake system from overheating. Conversely, thinner discs have a significantly reduced capacity to shed heat. When a thin disc is subjected to heavy or prolonged braking, it quickly overheats. This excessive heat can lead to brake fade, a dangerous condition where the brake pads and disc lose their frictional effectiveness, resulting in a dramatic reduction in braking power and a dangerously extended stopping distance. In extreme cases, the brake fluid can even boil, leading to a complete loss of pedal feel.

Minimum Brake Disc Thickness: A Safety Standard

To guarantee safe and reliable braking performance throughout a vehicle's lifespan, vehicle manufacturers meticulously establish minimum thickness specifications for brake discs. These specifications are not arbitrary figures; they are the result of extensive engineering calculations, testing, and safety regulations. The minimum thickness represents the point at which the disc can no longer reliably perform its function without compromising structural integrity or heat management capabilities. These specifications vary considerably depending on the vehicle model, its weight, intended performance, and the specific type of disc (e.g., solid or vented). It is absolutely essential to consult your vehicle’s owner’s manual or a reputable automotive repair manual to determine the precise minimum acceptable thickness for your specific car. Adhering to these manufacturer guidelines is paramount for your safety and the safety of others on the road.

Consequences of Exceeding Minimum Thickness Limits

Driving with brake discs that have worn down below their manufacturer-specified minimum thickness is not just ill-advised; it is genuinely dangerous and can have severe consequences:

• Significantly Reduced Braking Performance

  As previously explained, thinner discs provide less thermal mass and can lead to reduced friction. This directly translates to a noticeable and alarming reduction in your car's overall braking power. You will experience significantly longer stopping distances, particularly in emergency situations, which can be the difference between avoiding an accident and being involved in one. The feeling of a "soft" or "spongy" brake pedal is often a symptom of severely worn discs, indicating that the system is struggling to generate adequate stopping force.

• Increased Risk of Brake Fade

  Thin discs are far more susceptible to overheating. When subjected to prolonged or heavy braking, such as descending a long hill or during spirited driving, the rapid temperature increase can cause the brake pads and disc material to lose their effectiveness. This phenomenon, known as brake fade, results in a dramatic and sudden reduction in braking power, requiring significantly more pedal effort to achieve even minor deceleration. This can be terrifying and highly dangerous, as your ability to control the vehicle's speed is severely compromised when you need it most.

• Potential for Catastrophic Brake Failure

  In the most extreme and alarming cases, severely worn brake discs can completely fail. When discs become excessively thin, their structural integrity is severely compromised. The constant heating and cooling cycles, combined with the immense forces exerted during braking, can cause the disc to crack, fracture, or even shatter. This can lead to a sudden and complete loss of braking capability on the affected wheel, potentially causing the vehicle to veer out of control and resulting in a serious accident. This is why neglecting disc thickness is never an option.

Checking Brake Disc Thickness: A DIY Guide

Regularly inspecting your brake disc thickness is a proactive measure essential for maintaining safe braking performance. While it is always recommended to have a professional mechanic perform a comprehensive brake inspection, you can certainly check the disc thickness yourself with a few simple tools and a careful approach:

Tools You’ll Need:

• Digital Caliper: This is the most accurate and recommended tool for precisely measuring brake disc thickness. Ensure it's calibrated and clean.
• Flashlight: A good torch will help you clearly see the disc thickness markings and the disc surface.
• Vehicle Jack & Jack Stands: Essential for safely raising your vehicle. Never work under a vehicle supported only by a jack.
• Wheel Brace: For loosening and tightening wheel nuts.

Steps to Check Brake Disc Thickness:

1. Park on a Level Surface: Ensure your vehicle is parked on a flat, stable surface. Engage the handbrake firmly and consider chocking the wheels that will remain on the ground.
2. Loosen Wheel Nuts: Before jacking up the car, slightly loosen the wheel nuts on the wheel you intend to remove.
3. Raise and Secure Vehicle: Using your jack, carefully raise the vehicle until the wheel is off the ground. Immediately place robust jack stands under the vehicle's designated jacking points for absolute safety. Lower the vehicle onto the stands.
4. Remove the Wheel: Fully remove the loosened wheel nuts and carefully take the wheel off the axle. Place it aside safely.
5. Locate the Thickness Markings: Most brake discs have a minimum thickness marking stamped onto them. This is usually found on the inner edge of the disc hub (the "hat" section) or sometimes on the outer edge. It will typically be displayed in millimetres (e.g., "MIN THK 22mm"). Use your flashlight to locate it.

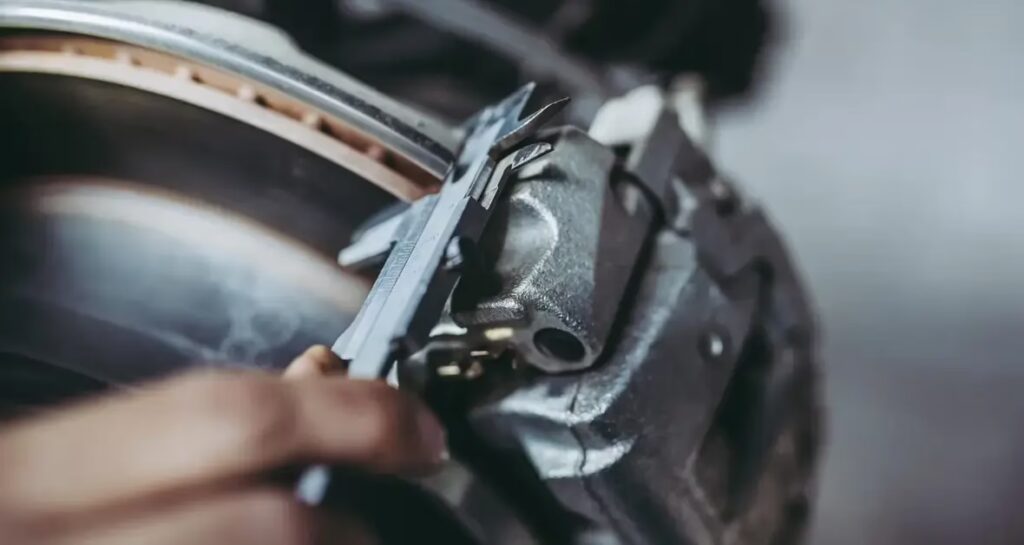

6. Measure the Thickness: Open your digital caliper and carefully place its jaws over the brake disc surface. Measure the thickness at several different points around the disc, avoiding any raised edges or rust. Ensure the caliper is perpendicular to the disc surface for an accurate reading.
7. Record and Compare: Note down your measurements. Compare the lowest measured thickness to the minimum thickness specification you found stamped on the disc or in your vehicle’s owner’s manual.
8. Reassemble: If the disc is within specification, reattach the wheel, tighten the wheel nuts by hand, lower the vehicle, remove the jack stands, and then torque the wheel nuts to the manufacturer's specified setting using a torque wrench. Repeat for other wheels as needed.

If any measured thickness is at or below the minimum specification, the brake disc must be replaced immediately. Do not postpone this critical maintenance task.

Maintaining Brake Disc Thickness: Tips for Longevity

While brake discs are designed to withstand considerable wear and tear, you can significantly extend their lifespan and ensure consistent braking performance by adopting sensible driving habits and adhering to regular maintenance practices:

• Avoid Aggressive Braking: Hard, sudden braking generates an enormous amount of heat in a very short period, which accelerates disc wear and increases the risk of warping and fade. Instead, anticipate stops and brake smoothly and progressively. Gradual braking allows heat to dissipate more evenly across the disc surface, reducing thermal stress and extending component life.
• Use High-Quality Brake Pads: The type and quality of your brake pads directly influence disc wear. Low-quality or overly abrasive brake pads can cause discs to wear down faster due to increased friction and potentially uneven material transfer. Invest in reputable, high-quality brake pads that are designed to work optimally with your vehicle's discs, offering a good balance of friction, heat resistance, and disc friendliness.
• Regular Brake Inspections: Do not underestimate the value of professional brake inspections. Have your brakes checked regularly by a qualified mechanic, ideally during your routine service appointments or at least once a year. They possess the expertise and specialised tools to accurately check disc thickness, assess brake pad wear, inspect calipers, and identify any other components showing signs of wear or damage before they become serious safety hazards.
• Proper Wheel Alignment: While seemingly unrelated, incorrect wheel alignment can indirectly lead to premature brake disc wear. Misaligned wheels can cause uneven tyre wear, and more importantly, can contribute to uneven brake pad wear. If brake pads are wearing unevenly, they will apply pressure inconsistently across the disc surface, leading to localised hot spots and accelerated, uneven disc wear. Ensuring your wheels are properly aligned helps maintain even pressure distribution across the braking system.
• Drive Mindfully: Heavy loads, towing, and frequent driving in hilly or mountainous terrain place additional stress on your braking system. Be mindful of these conditions and adapt your driving style accordingly, utilising engine braking where appropriate to reduce reliance on friction brakes.

What Is the Minimum Brake Disc Thickness?

There isn't a universal "minimum brake disc thickness" that applies to all vehicles. This crucial measurement is highly specific and determined by the vehicle manufacturer based on a multitude of engineering factors. It is a critical safety parameter that dictates when a disc has reached the end of its safe operational life. Exceeding this limit compromises the entire braking system's integrity and performance.

Factors Affecting Minimum Thickness:

The minimum acceptable thickness for brake discs varies significantly depending on several key factors:

• Vehicle Make and Model: Different vehicles have vastly different weights, performance characteristics, and intended uses. A compact city car will have different disc specifications than a heavy-duty SUV or a high-performance sports car.
• Disc Material and Design: The composition of the disc material (e.g., standard cast iron, high-carbon cast iron, or even carbon-ceramic for exotic cars) affects its strength and heat dissipation properties. Additionally, whether the disc is solid or vented (with internal fins for cooling) plays a major role in its minimum thickness specification, as vented discs are inherently more robust and better at heat management.
• Disc Size: Larger diameter and thicker discs inherently have more material and thermal mass. Consequently, they typically have a greater absolute minimum thickness limit compared to smaller, thinner discs.
• Vehicle Application: Performance-oriented vehicles or those designed for demanding conditions (e.g., towing, off-road, commercial use) are engineered with braking systems that can withstand more extreme stresses. While their new disc thickness might be greater, their minimum thickness limit is also carefully calculated to ensure they can handle the expected heat and wear.

Importance of Consulting Manufacturer Specifications

It cannot be stressed enough: it is absolutely crucial to consult your vehicle’s official owner’s manual or a reputable, vehicle-specific automotive repair manual (such as a Haynes manual for UK vehicles) to determine the exact minimum acceptable thickness for your specific brake discs. Relying on generalised information or assumptions can compromise your safety and lead to severe brake performance issues or even complete brake failure. The manufacturer's specification is the only definitive guide to knowing when your discs require replacement.

Frequently Asked Questions (FAQs)

What happens if my brake discs are too thin?

If your brake discs are too thin, your braking performance will be severely compromised. You will experience noticeably longer stopping distances, especially in emergency situations. The discs will overheat much more quickly, leading to brake fade – a dangerous condition where you lose significant braking power under heavy or prolonged use. Furthermore, excessively thin discs are at a much higher risk of cracking, fracturing, or even shattering under the immense stress and heat of braking, which can result in a complete and catastrophic brake failure. It is absolutely essential to replace worn brake discs immediately to ensure safe and reliable braking and to comply with vehicle inspection standards like the MOT in the UK.

How often should I check my brake disc thickness?

It is generally recommended to have your brake disc thickness checked at least once a year, or every 12,000 miles (approximately 19,000 kilometres), whichever comes first. This inspection should ideally be part of your vehicle's regular service schedule. More frequent inspections are advisable if you drive in demanding conditions, such as frequent heavy braking, towing, driving in hilly terrain, or if you notice any changes in your braking performance, such as noise, vibration, or a spongy pedal.

Can I drive with brake discs that are slightly below the minimum thickness?

No, absolutely not. It is not safe to drive with brake discs that are even slightly below the manufacturer's specified minimum thickness. That minimum threshold is a critical safety limit. Even a small reduction in thickness beyond this point can significantly compromise the disc's structural integrity and its ability to dissipate heat effectively. This drastically increases the risk of reduced braking performance, dangerous brake fade, and ultimately, a much higher probability of brake failure. For your safety and the safety of other road users, worn discs must be replaced promptly.

What is the best way to extend the life of my brake discs?

To maximise the lifespan of your brake discs and maintain optimal braking performance, practice smooth and gradual braking rather than abrupt, harsh stops whenever possible. Invest in high-quality, reputable brake pads, as their material directly impacts disc wear. Ensure you have your brakes inspected regularly by a qualified mechanic to catch wear early. Finally, proper wheel alignment helps ensure even brake pad pressure, preventing uneven disc wear.

How much does it cost to replace brake discs?

The cost of replacing brake discs in the UK can vary significantly depending on several factors, including your vehicle's make and model, the type of discs (e.g., standard cast iron, high-carbon, or performance-oriented), and the labour rates at your chosen garage. On average, you might expect to pay anywhere from £150 to £400 per axle (meaning for both front or both rear discs, including pads and labour). High-performance vehicles or those requiring specialist parts could incur higher costs. It's always advisable to get a detailed quote from a reputable mechanic.

Understanding the fundamental importance of brake disc thickness and taking proactive steps to maintain them is not just about car maintenance; it is absolutely crucial for your safety and the safety of everyone else on the road. By consistently following the guidelines outlined in this article, you can ensure your vehicle's braking system remains in optimal condition, providing you with the unwavering confidence and profound peace of mind that comes with knowing your vehicle can stop safely and effectively, every single time.

Remember, your brakes are your lifeline on the road. Do not neglect them. Regular checks and timely replacements are investments in your safety.
