Multiport Fuel Injection: An Automotive Deep Dive

In the intricate world of automotive engineering, few advancements have had as profound an impact on vehicle performance, efficiency, and environmental responsibility as the Multiport Fuel Injection (MPFI) system. For decades, the carburettor reigned supreme, a venerable but often imprecise device for mixing fuel and air. However, as demands for cleaner emissions, better fuel economy, and more consistent power delivery grew, a more sophisticated approach was desperately needed. Enter MPFI, a technology that fundamentally changed how our engines breathe and burn.

This article delves deep into the fascinating history, intricate workings, and significant benefits of Multiport Fuel Injection, providing a comprehensive guide for any UK motorist keen to understand the heart of their vehicle's powertrain. From its early mechanical inception to the sophisticated electronic systems found in millions of cars today, we'll explore why MPFI became, and largely remains, a cornerstone of modern internal combustion engines.

The Dawn of Precision: When Was Multiport Fuel Injection Invented?

While electronic fuel injection might seem like a relatively modern invention, the concept of Multiport Fuel Injection actually has roots stretching back surprisingly far, predating the digital age by several decades. The earliest production Multiport Fuel Injection systems were mechanical in nature and emerged in the 1950s. These pioneering systems marked a significant departure from the carburettor's single-point fuel delivery, introducing the revolutionary idea of a separate fuel injector for each cylinder.

These early mechanical systems, while rudimentary by today's standards, offered a glimpse into the future of fuel delivery. They aimed to overcome the inherent limitations of carburettors, such as inconsistent fuel distribution across cylinders, especially during rapid acceleration or deceleration, and the notorious problem of 'fuel puddling' within the intake manifold. By spraying fuel directly into the cylinder head intake port, they ensured a more uniform mixture for each cylinder, laying the groundwork for the efficiency gains that would follow.

The Electronic Revolution: From Mechanical to Digital Control

The true transformation of fuel injection came with the advent of electronics. While mechanical systems proved the concept, they lacked the precision and adaptability required for increasingly stringent emissions regulations and consumer demands for better performance. The late 1970s marked a pivotal moment with the introduction of electronic fuel injection (EFI) systems, such as the widely adopted Bosch L-Jetronic. These systems replaced the complex mechanical linkages with electronic injectors, controlled by an early form of engine control unit (ECU).

This shift to electronic control allowed for much finer tuning of the air-fuel mixture. Sensors would monitor various engine parameters – such as engine speed, throttle position, and oxygen content in the exhaust – feeding this data to the ECU. The ECU, in turn, would calculate the precise amount of fuel needed and signal the electronic injectors to open for the exact duration required. This marked the beginning of the highly sophisticated, computer-controlled fuel injection systems we know today.

How Multiport Fuel Injection Works: The Dry Manifold Advantage

The core principle of Multiport Fuel Injection is elegantly simple yet profoundly effective: instead of a single point of fuel delivery for all cylinders (as in carburettors or early single-point/throttle body injection systems), MPFI dedicates a separate fuel injector to each cylinder. Each injector is strategically positioned to spray fuel directly into the cylinder head intake port, just before the intake valve.

This design offers a critical advantage: the intake manifold remains dry. In carburetted or single-point injection systems, fuel would mix with air much earlier in the intake manifold, leading to several issues:

• Fuel Puddling: Fuel could condense and accumulate in certain areas of the manifold, especially at lower engine speeds or temperatures. This 'puddling' leads to an inconsistent air-fuel mixture entering the cylinders.
• Fuel Separation: Heavier fuel particles could separate from the air, causing leaner mixtures in some cylinders and richer mixtures in others. This uneven distribution severely impacts performance, fuel economy, and emissions.

By keeping the intake manifold dry, MPFI systems eliminate these problems entirely. The fuel is introduced precisely where and when it's needed, ensuring a remarkably uniform fuel mixture in all cylinders. This uniformity is the bedrock upon which MPFI builds its impressive benefits.

The Unrivalled Advantages of Multiport Fuel Injection

The transition to Multiport Fuel Injection was not merely an incremental improvement; it was a quantum leap that delivered a multitude of benefits across the board:

1. Superior Fuel Economy: With precise control over fuel delivery to each cylinder, the ECU can deliver exactly the right amount of petrol for optimal combustion, minimising waste. This translates directly into more miles per gallon for the motorist.
2. Reduced Emissions: A uniform and precisely metered air-fuel mixture ensures more complete combustion, significantly reducing the output of harmful pollutants such as unburnt hydrocarbons, carbon monoxide, and nitrogen oxides. This was crucial for meeting increasingly strict environmental regulations worldwide.
3. Enhanced Performance: The consistent fuel delivery across all cylinders leads to smoother engine operation, better throttle response, and more consistent power output. Drivers experience improved drivability and a more enjoyable motoring experience.
4. Improved Cold Starts: Carburettors often struggled with cold starts, requiring chokes and careful manipulation. MPFI systems, with their electronic control, can precisely enrich the mixture for cold starting, leading to quicker and more reliable ignition.
5. Greater Reliability and Durability: With fewer moving parts than complex carburettor systems and the ability of the ECU to compensate for minor variations, MPFI systems generally offer greater long-term reliability.

Sequential Fuel Injection (SFI): The Next Level of Precision

While early electronic MPFI systems were a massive improvement, most of those used in the late 1980s and early 1990s operated by firing all injectors simultaneously with every revolution of the crankshaft. This meant that even if a cylinder's intake valve was closed, fuel would still be sprayed, waiting for the valve to open. While effective, it wasn't the most efficient use of fuel.

The evolution continued with the introduction of more sophisticated Sequential Fuel Injection (SFI) systems. Introduced later, SFI systems represent the pinnacle of MPFI technology. Instead of firing all injectors at once, SFI fires each injector separately, normally just after the intake valve is opening for that specific cylinder. This timed, individual injection allows for much more precise fuel control, further enhancing fuel economy, reducing emissions, and improving engine performance, particularly at varying engine speeds and loads.

Simultaneous vs. Sequential Fuel Injection: A Comparison

Understanding the difference between these two electronic MPFI firing strategies highlights the continuous pursuit of efficiency and precision in automotive engineering.

Key Components of a Multiport Fuel Injection System

A typical electronic MPFI system is a complex network of interconnected components, all working in harmony under the command of the Engine Control Unit (ECU). Understanding these components helps demystify how your engine receives its vital fuel supply:

• Fuel Pump: Located in the fuel tank, this electric pump delivers high-pressure petrol from the tank to the fuel rail.
• Fuel Filter: Positioned in the fuel line, it removes contaminants from the petrol, protecting the sensitive injectors.
• Fuel Rail: A manifold that distributes the pressurised fuel evenly to all the individual fuel injectors.
• Fuel Pressure Regulator: Maintains a consistent fuel pressure within the fuel rail, ensuring stable operation of the injectors.
• Fuel Injectors: Electrically operated valves (solenoids) that open and close very rapidly to spray a fine mist of fuel into the intake port of each cylinder. These are the stars of the MPFI show.
• Engine Control Unit (ECU): The 'brain' of the system. This onboard computer receives data from numerous sensors, processes it, and then calculates the optimal fuel delivery, ignition timing, and other engine parameters.
• Various Sensors: A host of sensors feed crucial data to the ECU, including:
  • Mass Air Flow (MAF) Sensor or Manifold Absolute Pressure (MAP) Sensor: Measures the amount of air entering the engine.
  • Oxygen (O2) Sensors: Located in the exhaust, they measure the oxygen content to determine combustion efficiency and allow the ECU to fine-tune the air-fuel ratio.
  • Throttle Position Sensor (TPS): Detects how far the throttle pedal is pressed.
  • Coolant Temperature Sensor (CTS): Informs the ECU about engine temperature, crucial for cold start enrichment.
  • Crankshaft Position Sensor (CKP): Monitors engine speed (RPM) and piston position.
  • Camshaft Position Sensor (CMP): Essential for sequential fuel injection, it tells the ECU the position of the camshafts, indicating which cylinder is ready for fuel injection.

Common Multiport Fuel Injection Issues and Maintenance Tips

While MPFI systems are robust, they aren't immune to problems. Recognising common issues can save you time and money:

• Clogged Fuel Injectors: Over time, deposits from fuel can build up on the injector nozzles, leading to poor spray patterns, reduced fuel delivery, and symptoms like misfires, rough idling, poor fuel economy, and a loss of power. Using high-quality fuel and periodic fuel system cleaners can help prevent this.
• Faulty Fuel Pump: If the fuel pump fails, the engine won't receive enough fuel, leading to stalling, difficulty starting, or complete failure to start.
• Sensor Malfunctions: A faulty MAF, O2, or other sensor can send incorrect data to the ECU, leading to an incorrect air-fuel mixture, poor performance, and often illuminating the 'check engine' light.
• Fuel Leaks: Leaks in the fuel lines, fuel rail, or around the injectors can be dangerous and lead to a strong petrol smell, reduced fuel pressure, and potential fire hazards.

Maintenance for Longevity:

To ensure your MPFI system continues to operate efficiently:

• Regular Fuel Filter Replacement: Follow your vehicle's service schedule. A clogged fuel filter strains the fuel pump and can starve the engine of fuel.
• Use Quality Fuel: Opting for reputable petrol brands often means better fuel additives that help keep injectors clean.
• Consider Fuel System Cleaners: Periodically adding a high-quality fuel system cleaner to your tank can help dissolve deposits from injectors.
• Professional Diagnostics: If you suspect an issue, a professional mechanic with diagnostic tools can accurately pinpoint the problem by reading fault codes from the ECU.

Beyond MPFI: The Rise of Gasoline Direct Injection (GDI)

While Multiport Fuel Injection, particularly Sequential Fuel Injection, remains widely used and highly effective, the automotive industry continues to innovate. The latest evolution in fuel delivery is Gasoline Direct Injection (GDI). GDI takes the concept of precise fuel delivery a step further by injecting fuel directly into the combustion chamber, rather than into the intake port.

This allows for even greater control over the air-fuel mixture, particularly during the compression stroke, enabling higher compression ratios, more precise combustion, and further improvements in fuel economy and emissions. Many modern vehicles now combine GDI with turbocharging to achieve impressive power output from smaller, more efficient engines. However, MPFI still holds its own, often paired with GDI in some engines (known as dual-injection systems) to leverage the benefits of both technologies across different engine loads and speeds.

Frequently Asked Questions About Multiport Fuel Injection

Here are some common questions motorists have about MPFI systems:

Q1: What's the main difference between MPFI and an old carburettor system?

The primary difference is precision and fuel delivery method. A carburettor mixes fuel and air in a single location before it enters the intake manifold, often leading to uneven distribution. MPFI uses a separate electronic injector for each cylinder, spraying fuel directly into the intake port, ensuring a precise and uniform mixture for every cylinder, leading to better fuel economy, performance, and lower emissions.

Q2: Is Multiport Fuel Injection still used in new cars today?

Yes, absolutely. While Gasoline Direct Injection (GDI) has become prevalent, many new vehicles still utilise MPFI, especially in smaller engines or in conjunction with GDI in dual-injection systems. MPFI is a robust, well-understood, and cost-effective technology that continues to deliver excellent performance and efficiency.

Q3: How do I know if my MPFI injectors are faulty or clogged?

Common symptoms of faulty or clogged injectors include a rough idle, misfires (engine shaking), reduced fuel economy, a noticeable loss of engine power, difficulty starting, and an illuminated 'check engine' light on your dashboard. A diagnostic scan tool can often pinpoint specific injector issues.

Q4: Can I clean my MPFI injectors myself?

For minor deposits, over-the-counter fuel system cleaners added to your fuel tank can be effective. However, for heavily clogged injectors, professional cleaning using specialised equipment (often off-vehicle, involving ultrasonic cleaning) or replacement is usually required. Attempting to manually clean them without proper tools can cause damage.

Q5: What is the typical lifespan of an MPFI system?

With proper maintenance, the core components of an MPFI system, particularly the injectors and fuel pump, can last for well over 100,000 miles, often for the entire lifespan of the vehicle. Regular fuel filter changes, using quality fuel, and addressing any 'check engine' lights promptly will significantly contribute to its longevity.

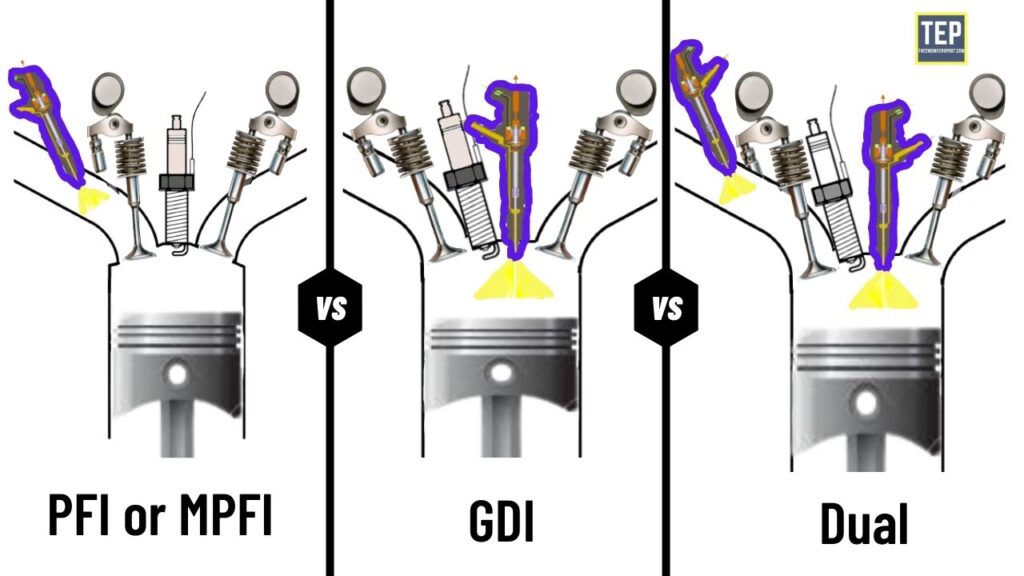

Q6: What is the difference between MPFI and GDI?

The key difference lies in where the fuel is injected. MPFI (Multiport Fuel Injection) sprays fuel into the intake port, just before the intake valve. GDI (Gasoline Direct Injection) injects fuel directly into the combustion chamber itself. GDI generally offers even greater precision and efficiency, especially in modern turbocharged engines, but MPFI remains a highly effective and reliable system.

Conclusion: The Enduring Legacy of MPFI

From its humble mechanical beginnings in the 1950s to the highly sophisticated electronic systems of today, Multiport Fuel Injection has been a quiet revolutionary in the automotive world. It transformed how engines operate, moving from the imprecise art of carburetion to the precise science of electronic fuel delivery. By ensuring a uniform air-fuel mixture in every cylinder and keeping the intake manifold dry, MPFI systems delivered unprecedented gains in fuel economy, emissions reduction, and overall engine performance.

While newer technologies like Gasoline Direct Injection continue to push the boundaries of efficiency, the principles and benefits established by MPFI remain fundamental to modern engine design. For UK motorists, understanding MPFI is not just about appreciating automotive history; it's about recognising the technology that powers millions of vehicles on our roads, ensuring a smoother, cleaner, and more efficient journey every time.
