Understanding Kingpin Angle: The Hidden Hero of Steering

In the intricate world of automotive engineering, countless parameters work in harmony to ensure your vehicle handles safely and predictably. Among these, one often overlooked yet profoundly significant concept is the Kingpin Angle, also widely known as Steering Axis Inclination (SAI). Far from being a mere technical detail, KPI is a fundamental design element that dictates how your car steers, how its tyres interact with the road, and ultimately, how stable and comfortable your driving experience is.

For those unacquainted with the term, the Kingpin Angle might sound like something out of a medieval knight's tale, but its impact on modern vehicle dynamics is anything but archaic. It's a cornerstone of effective steering geometry, influencing everything from the ease with which you turn the wheel to the longevity of your tyres. Let's delve deeper into what this angle represents and why it's so critical to your car's performance.

Understanding Kingpin Inclination (KPI)

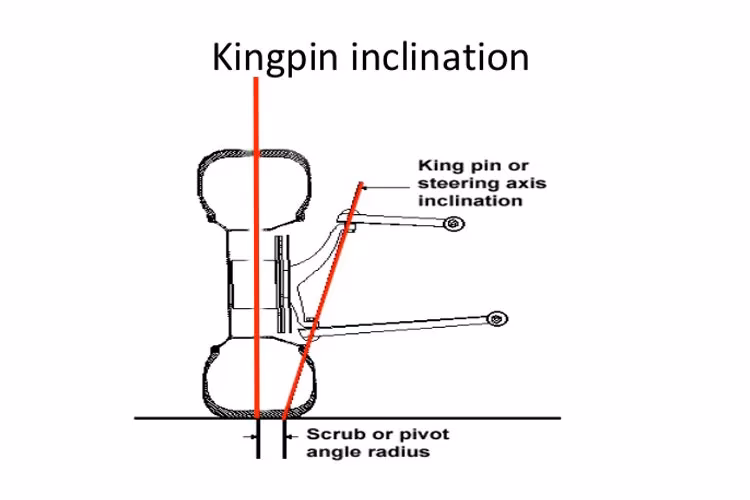

At its core, Kingpin Inclination (KPI) is a measure of the angle, viewed from the front of the vehicle, between the steering axis and the true vertical axis of the wheel. The 'steering axis' is an imaginary line that runs through the pivot points around which the wheel turns when you steer. In a double wishbone suspension, as mentioned in your query, this axis is typically defined by the upper and lower ball joints. When you turn the steering wheel, the entire wheel and tyre assembly pivots around this steering axis.

The term 'kingpin' itself is a historical nod to earlier suspension designs where a physical pin (the kingpin) connected the steering knuckle to the axle, allowing the wheel to pivot. While modern vehicles rarely use a literal kingpin, the terminology persists due to the concept's enduring relevance. Today, it's more accurately referred to as Steering Axis Inclination (SAI), which is the preferred term in contemporary automotive engineering, though Kingpin Angle remains widely understood.

This angle is meticulously designed into the vehicle's suspension geometry by the manufacturer. Unlike some other alignment parameters such as toe or camber, KPI is generally not adjustable during a standard wheel alignment. It's a fixed characteristic determined by the placement of the suspension's pivot points.

The Critical Role of the Steering Axis

The steering axis is the pivot point for the wheel and tyre assembly. The angle of this axis, determined by KPI, has a profound effect on how the wheel moves as it turns. When you turn the steering wheel, the KPI causes the wheel to 'jack up' or lift the vehicle slightly. This lifting action creates a gravitational force that helps return the wheel to the straight-ahead position, contributing significantly to what is known as 'self-centring' steering.

A correctly designed KPI works in conjunction with other alignment angles, particularly caster, to ensure the steering feels stable and predictable. Without proper KPI, steering could feel heavy, unresponsive, or lack the crucial self-centring action that makes driving safe and comfortable.

KPI and Scrub Radius: The Intricate Link

One of the most critical aspects influenced by Kingpin Inclination is the Scrub Radius. This concept is explicitly highlighted in the initial query as being 'totally dependant on KPI'. So, what exactly is scrub radius, and why is its relationship with KPI so vital?

The scrub radius is the distance between two points on the ground: the point where the steering axis intersects the road surface, and the true vertical centre of the tyre's contact patch. Essentially, it's the lever arm through which forces acting on the tyre (like braking or accelerating) can exert a turning moment on the steering. The KPI plays a primary role in determining where the steering axis intersects the ground relative to the tyre's centre, thereby defining the scrub radius.

There are three types of scrub radius:

• Positive Scrub Radius

  This occurs when the steering axis intersects the road surface *inside* the centre of the tyre's contact patch. Imagine a line from the steering axis going straight down, landing closer to the car's centreline than the middle of the tyre's footprint. With a positive scrub radius, external forces acting on the tyre (like uneven braking or hitting a pothole) create a turning moment that tends to push the wheel *outwards* from the vehicle's centreline. This can lead to what's known as 'torque steer' in powerful front-wheel-drive cars, where strong acceleration can cause the steering wheel to pull to one side as the tyres fight for grip.

• Negative Scrub Radius

  In contrast, a negative scrub radius means the steering axis intersects the road surface *outside* the centre of the tyre's contact patch. In this scenario, forces acting on the tyre create a turning moment that tends to pull the wheel *inwards* towards the vehicle's centreline. This design is highly beneficial for stability, especially under uneven braking conditions (e.g., if one wheel brakes harder due to a faulty brake or different road surface grip). The inward pull helps to self-correct the steering, making the car more stable and predictable. Most modern front-wheel-drive cars utilise a negative scrub radius to enhance braking stability and mitigate torque steer.

• Zero Scrub Radius

  The ideal, theoretical zero scrub radius occurs when the steering axis intersects precisely at the centre of the tyre's contact patch. In this configuration, external forces acting on the tyre would theoretically create no turning moment on the steering. While seemingly perfect for minimal steering effort and optimal feedback, achieving a true zero scrub radius is challenging in practice and can sometimes lead to a lack of stability under extreme conditions, as there's no inherent self-correction mechanism from tyre forces. It's rare to find a truly zero scrub radius in production vehicles.

The choice of scrub radius, driven primarily by KPI, is a critical decision for vehicle designers. It balances factors like steering effort, braking stability, and resistance to torque steer, tailoring the car's behaviour to its intended purpose.

Impact on Driving Dynamics

Beyond its influence on scrub radius, KPI directly affects several key aspects of your car's driving dynamics:

• Steering Feel and Effort

  KPI contributes to the overall weight and feel of the steering. A well-designed KPI helps to reduce steering effort, particularly at lower speeds, by leveraging the car's weight to assist the turning motion. It's part of the reason why your steering wheel doesn't feel excessively heavy when parking.

• Self-Centring Action

  As mentioned, the 'jacking' effect caused by KPI helps the steering wheel return to the straight-ahead position after a turn. This Self-Centring mechanism is crucial for driver comfort and safety, as it reduces the need for constant steering corrections, especially on long, straight roads.



• Vehicle Stability

  Along with caster angle, KPI contributes significantly to the directional stability of the vehicle. It helps keep the car tracking straight, resisting deviations caused by road imperfections or crosswinds. This stability is paramount for safe driving, particularly at higher speeds.

• Road Feedback

  The precise angle of the kingpin also influences the amount and quality of feedback you receive through the steering wheel. A well-tuned KPI allows the driver to feel connected to the road, understanding how the tyres are gripping and reacting to the surface, without transmitting excessive harshness or vibrations.

Tyre Performance and Longevity

The relationship between Kingpin Inclination, scrub radius, and the Tyre Contact Patch is fundamental to how much grip your tyres can provide. The contact patch is the small area of the tyre that is actually touching the road at any given moment. An optimally designed KPI helps to ensure that this contact patch remains consistent and maximises the tyre's ability to provide grip for acceleration, braking, and cornering.

Furthermore, incorrect or suboptimal KPI (often indirectly caused by worn suspension components that alter the effective steering axis) can lead to uneven Tyre Wear. If the geometry is off, the tyre might scrub or drag across the road surface during turns or even when driving straight, leading to premature wear patterns like feathering or cupping. This not only reduces tyre life but also compromises safety by reducing grip and increasing braking distances.

KPI in Suspension Design

As a fixed parameter, KPI is meticulously engineered into the vehicle's Suspension Geometry during its design phase. It's not something that mechanics typically adjust during a routine alignment. Instead, it's determined by the precise positioning of the upper and lower pivot points (like ball joints or strut mounts) relative to the wheel hub. In a double wishbone suspension, for instance, the engineers carefully choose the mounting points of the wishbones to achieve the desired KPI and, consequently, the desired scrub radius.

While KPI itself isn't adjustable, maintaining your vehicle's suspension components in good condition is vital. Worn ball joints, bushes, or bent suspension arms can effectively alter the intended steering axis, leading to symptoms that mimic incorrect KPI, even if the original design angle remains unchanged. Regular inspections and timely replacement of worn parts are crucial for preserving the designed handling characteristics of your vehicle.

Comparative Analysis: Scrub Radius Types

To further illustrate the practical implications of KPI's influence on scrub radius, consider the following comparison:

Frequently Asked Questions (FAQs)

What is the difference between Kingpin Inclination (KPI) and Caster?

Both KPI and Caster are crucial angles in steering geometry, but they measure different things. KPI (or SAI) is the angle of the steering axis when viewed from the *front* of the car, influencing scrub radius and steering effort. Caster is the angle of the steering axis when viewed from the *side* of the car, influencing directional stability and self-centring at speed. While both contribute to self-centring, they do so through different mechanisms and have distinct primary effects.

Can Kingpin Inclination (KPI) be adjusted?

Generally, no. KPI is a fixed design parameter determined by the manufacturer's engineering of the suspension components and steering knuckle. It's not an angle that mechanics adjust during a standard wheel alignment. If a vehicle's KPI is incorrect, it typically indicates a bent steering knuckle, damaged suspension component, or a previous collision.

How does KPI affect tyre wear?

KPI primarily affects tyre wear through its influence on the scrub radius. If the scrub radius is not optimal, or if suspension components are worn, it can cause the tyre to 'scrub' or drag across the road surface during steering or even straight-line driving. This scrubbing action leads to uneven and premature tyre wear, reducing the life of your tyres and potentially compromising grip.

Why is it called 'Kingpin' angle?

The term 'Kingpin' is historical. In early vehicle designs, a literal 'kingpin' was a large pivot pin that connected the steering knuckle (which held the wheel) to the vehicle's axle. The steering axis was defined by this physical pin. While modern suspension systems no longer use a single physical pin in the same way, the concept of the pivot axis around which the wheel turns remains, and the historical name persisted, though 'Steering Axis Inclination (SAI)' is now the more accurate and technical term.

Is KPI the same as Steering Axis Inclination (SAI)?

Yes, Kingpin Inclination (KPI) and Steering Axis Inclination (SAI) refer to the exact same angle. SAI is the more contemporary and universally accepted technical term, but KPI is still widely used and understood, particularly in maintenance and alignment contexts.

Conclusion

The Kingpin Angle, or Steering Axis Inclination, is a silent workhorse within your vehicle's intricate suspension system. Though often unseen and unadjusted, its fundamental design dictates a surprising array of driving characteristics – from the effortless return of your steering wheel to centre, to the precise grip and longevity of your tyres, and the overall stability you feel on the road. It's a testament to the meticulous engineering that goes into every modern vehicle, ensuring that even the most subtle angles contribute to a safe, predictable, and enjoyable driving experience. Understanding KPI helps us appreciate the complexity and ingenuity beneath the surface of our everyday journeys.
