FSI vs TSI: A Deep Dive into VW's Direct Injection

In the realm of modern automotive engineering, direct fuel injection (DFI) has become a cornerstone technology, promising enhanced performance, improved fuel economy, and reduced emissions. Volkswagen and Audi, pioneers in this field, introduced their FSI (Fuel Stratified Injection) and later the TSI (Turbo Stratified Injection) engines, both leveraging DFI. While both systems represent advancements in engine design, understanding their nuances, particularly the differences and evolution from FSI to TSI, is crucial for any car enthusiast or owner.

What is Direct Fuel Injection?

Before delving into the specifics of FSI and TSI, it's essential to grasp the concept of direct fuel injection. Unlike traditional port injection systems where fuel is sprayed into the intake manifold or port, direct injection delivers fuel at significantly higher pressures directly into the combustion chamber. This precise fuel delivery allows for better control over the air-fuel mixture, leading to more efficient combustion, increased power output, and a reduction in fuel consumption and emissions. The pressurized fuel is typically supplied via a common rail system, ensuring consistent pressure to each injector.

FSI: The Foundation of Direct Injection

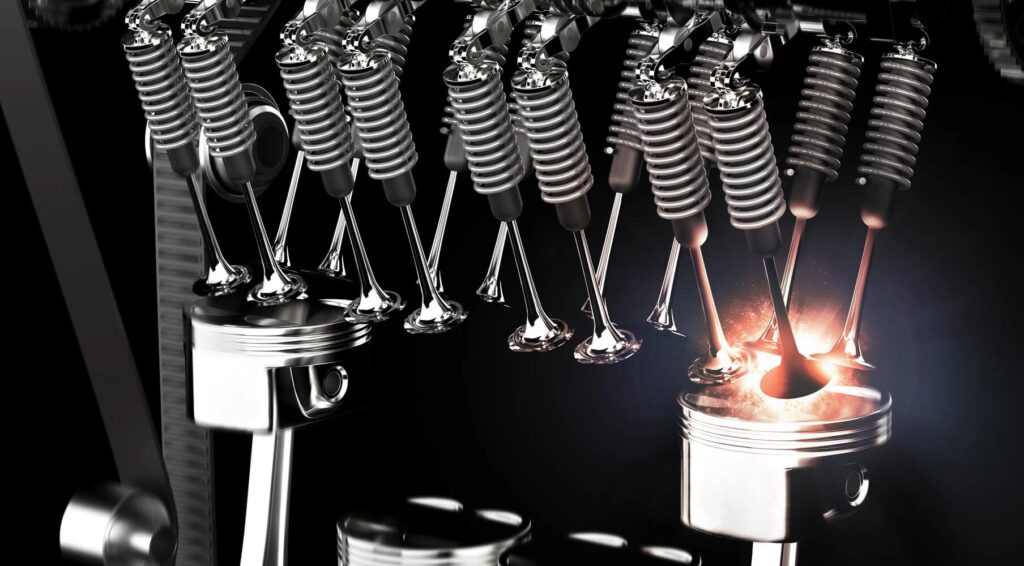

FSI, or Fuel Stratified Injection, was Volkswagen's initial foray into widespread direct injection technology. The core principle of FSI is to create a 'stratified charge' within the combustion chamber. This means that a fuel-rich mixture is concentrated around the spark plug, while the rest of the chamber contains a leaner mixture. This stratified approach aims to optimize combustion, especially under light load conditions, leading to improved fuel efficiency. However, a notable side-effect of this stratified charge, particularly in the US market where fuel formulations differed, was the potential for increased NOx (nitrogen oxide) emissions. To counteract this, US-spec FSI engines often used an air-to-fuel ratio similar to port-injected engines, foregoing the lean-burn strategy employed in Europe for maximum power and efficiency.

TSI: Evolution and Turbocharging

The TSI (Turbo Stratified Injection) engine emerged as an evolution of the FSI technology. While still employing direct fuel injection, the key differentiator for TSI is the integration of a turbocharger. This turbocharger forces more air into the combustion chamber, allowing for a greater amount of fuel to be injected, thus significantly boosting power and torque. The TSI system also refined the direct injection process, often featuring improvements in fuel delivery and engine management systems. The combination of direct injection and turbocharging in TSI engines generally results in a more potent and responsive power delivery across a wider rev range compared to naturally aspirated FSI engines.

FSI vs. TSI: Key Differences and Similarities

While both FSI and TSI are direct injection systems, several significant changes marked the transition from FSI to TSI. Here's a comparative look:

What they share:

Interestingly, many core specifications remained consistent, highlighting the underlying architectural similarities:

What changed from FSI to TSI:

The advancements in the TSI engine were substantial:

• Timing System: FSI engines typically used a timing chain, whereas early TSI engines (specifically the EA113 generation often associated with FSI) also used chains. However, the later EA888 TSI platform, which became the standard, also largely relies on timing chains, but with refinements. The text provided mentions FSI using chain timing as opposed to belt timing, which might be a point of confusion as many VW models of that era used timing belts. However, focusing on the direct comparison provided, the key takeaway is the engineering changes around the timing and valve train.
• Compression Ratio: The compression ratio saw adjustments. While one source indicates a drop from 10.5:1 in FSI to 6:1 in TSI, another suggests a drop from 10.5:1 to 9.6:1. This variation might depend on specific engine variants or generations. Generally, turbocharging allows for higher compression ratios, but tuning for specific performance goals can lead to variations.
• Engine Management: A significant upgrade was the move to Bosch MED 17 engine management systems in TSI, from Bosch MED 9 in FSI. This allows for more precise control over fuel injection and ignition timing.
• Oxygen Sensors: The number of oxygen sensors increased from two in FSI to three in TSI, providing the engine management system with more data for finer adjustments and emissions control.
• Structural Enhancements: TSI engines incorporated cross-bolted main bearing caps for increased block strength, oil spray jets on piston undersides for better cooling and lubrication, and more evenly distributed camshafts.
• Internal Improvements: TSI featured updated internals with reduced internal parasitic losses and an improved flowing cylinder head, contributing to better efficiency and performance.
• Turbocharger Integration: The most defining difference is the addition of a turbocharger in TSI engines, which is absent in naturally aspirated FSI variants.
• Fueling System: The TSI's high-pressure fuel pump (HPFP) was often driven off a dedicated lobe on the exhaust camshaft, a more refined approach.
• PCV System: An improved Positive Crankcase Ventilation (PCV) system was implemented in TSI engines.

Common FSI Engine Problems

Despite its technological advancements, the FSI engine was not without its issues. Several common problems were reported:

• Ignition Coils and Misfires: Faulty ignition coils are a frequent culprit for flashing check engine lights and cylinder misfires. Diagnosis often involves swapping coils between cylinders.
• Cam Follower and Camshaft Wear: The high fuel pressures required for direct injection put immense stress on the mechanical high-pressure fuel pump. The cam follower, which interfaces with the camshaft lobe, is prone to wear and failure. This is a critical component requiring regular inspection and replacement.
• Diverter Valve (DV) Failure: The diverter valve, a part of the turbocharger system, regulates boost pressure. Diaphragm tears are a common cause of failure. Piston-style DVs are generally considered more robust and reliable as they lack a wearable diaphragm.
• Carbon Build-Up: Direct injection engines, especially older ones like the FSI, can suffer from carbon deposits on the intake valves. This can lead to rough idling, hesitation, and cold start misfires. Solutions range from chemical cleaning services like Sea Foam to more intensive manual cleaning or media blasting of the intake manifold.
• Intake Manifold Runner Control (IMRC) Motor: The IMRC motor controls flaps in the intake manifold to optimize airflow. If this motor seizes or fails, it can trigger check engine lights and affect engine performance. Replacement of the motor is typically required.
• Check Gas Cap Light (EVAP System Issues): Problems with the EVAP (Evaporative Emission Control) system, often related to the N80 valve (purge control solenoid), can trigger a "check gas cap" warning or specific fault codes (e.g., P0441). This valve regulates fuel vapor returning to the engine.
• Timing Chain and Tensioner Issues: While FSI engines used timing chains, problems with the chain adjuster, tensioner, or the chain itself can lead to timing jumps and serious engine damage. These components are oil-pressure dependent, making proper lubrication crucial.
• PCV Valve and Whistle Noise: A failing PCV valve can cause significant vacuum leaks, leading to rough running and a distinctive whistling noise. Power loss can also occur due to a failed check valve within the system.
• Fuel Pump Control Module: The module controlling the in-tank electric fuel pump is a known point of failure, leading to fuel delivery issues.
• Coolant Temperature Sensor: A malfunctioning coolant temperature sensor can lead to various issues, including the engine running too cool, affecting performance and fuel economy.

FSI vs. TSI Reliability: A Comparative View

When comparing the reliability of FSI and TSI engines, it's important to acknowledge that the TSI represents an evolution, incorporating lessons learned from the FSI. Generally, TSI engines are considered to be more reliable due to these refinements and the integration of improved components. However, both engine families have had their specific issues. The widespread adoption and longer history of FSI mean its common problems are well-documented. The TSI, being newer, may still reveal long-term issues as it ages. Nonetheless, the technological advancements in TSI, including better engine management and structural improvements, suggest a higher potential for reliability and longevity, especially in later generations like the EA888 platform.

Fuel Economy and Performance Considerations

While FSI aimed for efficiency through stratified charge, its real-world fuel savings, particularly in the US, were sometimes not as pronounced as anticipated. TSI engines, with their turbocharging, offer a more potent blend of performance and efficiency. The ability of the turbocharger to provide significant torque at lower RPMs enhances drivability and can lead to better fuel economy when driven conservatively. However, the performance gains often come with the expectation of using high-octane fuel, especially for optimal performance in both FSI and TSI variants, though TSI generally handles boost pressure more efficiently.

Conclusion

The transition from FSI to TSI marked a significant step forward for Volkswagen's direct injection technology. The TSI engine, with its integrated turbocharger, improved engine management, and structural enhancements, generally offers superior performance and, arguably, better long-term reliability. While FSI laid the groundwork, TSI refined the concept, delivering a more dynamic and efficient driving experience. Understanding the specific issues associated with each can help owners maintain their vehicles effectively and appreciate the engineering evolution that brought us the modern turbocharged direct injection engines.

Frequently Asked Questions (FAQs)

Q1: What does FSI stand for?
FSI stands for Fuel Stratified Injection.

Q2: What does TSI stand for?
TSI stands for Turbo Stratified Injection.

Q3: Are FSI and TSI engines the same?
No, while both use direct fuel injection, TSI engines feature a turbocharger, and TSI generally represents an evolution with several internal and management system improvements over FSI.

Q4: Which engine is more reliable, FSI or TSI?
TSI engines are generally considered more reliable due to technological advancements and refinements over the FSI. However, both have specific known issues that require attention.

Q5: What are common problems with FSI engines?
Common FSI problems include ignition coil failures, cam follower wear, carbon build-up on intake valves, diverter valve failure, and issues with the PCV system and timing components.

Q6: Does TSI use a timing belt or chain?
While some early 2.0T engines used timing belts, the EA113 and EA888 TSI engines primarily utilize timing chains, though these can also require maintenance.

Q7: Is high-octane fuel necessary for TSI engines?
While TSI engines can run on regular unleaded, using high-octane fuel (premium unleaded) is recommended for optimal performance and to prevent potential knocking or pre-ignition, especially under demanding driving conditions.

Q8: What is the benefit of direct fuel injection?
Direct fuel injection offers improved fuel efficiency, increased power output, and reduced emissions compared to traditional port injection systems.
